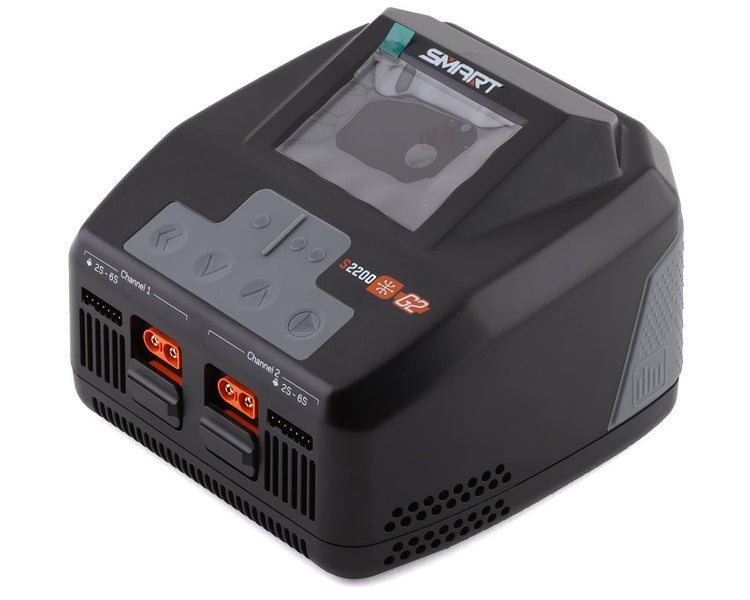

Spektrum SPMXC2010 RC S2200 G2 AC LiPo Smart Charger (6S/20A/200W x2)

SKU: SKU: SPMXC2010

• Description

  Features:

  • Up to 200W power per channel or 380W on one channel for fast charging
  • Charges AND balances Smart G2 batteries with one simple IC3® or IC5® connection — no separate balance lead needed
  • Auto Charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected
  • Charges virtually any RC battery (use Smart batteries to benefit from all charger features)
  • Smart software tracks and stores numerous smart battery data
  • Includes IC3® and IC5® charging output ports — eliminating the need for a separate IC3® or IC5® adapter to charge Spektrum Smart batteries
  • Large, 2.8" display screen
  • An on-screen clock counts down remaining charge time until your Smart battery is fully charged and ready to use
  • Updated user interface features fresh, intuitive menus, icons and navigation tools, plus non-slip, easy to use buttons
  • USB input and output ports are included for updating firmware and charging secondary devices
  • ON/OFF switch eliminates the need to plug in and unplug the power cord for on/off control
  • Detachable power cord makes transporting more convenient
  • Includes an efficient, low-noise cooling fan
  • Sleek, sturdy case fits well on a workbench and in pit or field bags
  • Handy rubber grips on case make it easier to plug in and remove batteries
  • IC3® and IC5® connectors are backwards compatible with EC3™ and EC5™ connectors

  Specifications:

  Normal/Standard Charge Rate: 0.1 - 20.0A

  Product Width: 5.67" (144 mm)

  Technology: Smart

  Application: RC Model Battery Charger

  Reverse Polarity Protection: Yes

  Selectable Charge Rate: Yes

  Software Updates: Yes

  Hard Case: Yes

  Over Current Protection: Yes

  Integrated Balancing: Yes - Internal Balancer & Internal Adapter

  Charge Protection Circuitry: Yes

  Input Voltage: 100 - 240V AC

  Maximum Continuous Discharge Rate: 1.5A

  Output: 2 x 200W, or 380W on one channel

  Battery Balance Connector: JST_XH

  Maximum Charge Rate: 20A

  Low Input Voltage Protection: Yes

  PC Connectivity: Yes

  Product Weight: 37.7oz (1070g)

  Discharge: 0.1 - 1.5A

  Number of Cells: 1 - 6S LiPo, LiIon, LiFe, 1-16 cell NiMH, NiCd, 1-12 cell Pb

  Safety Timer: Yes

  Short Circuit Protection: Yes

  Amp Meter: Yes

  Product Height: 4.13" (105 mm)

  Product Length: 5.7" (145 mm)

  Voltage Meter: Yes

  Display: 2.8" LCD

  Output Connector: IC3 and IC5 selectable

  Peak Detection: Yes

  Thermal Protection: Yes

  Programmable: Yes

  Battery Temperature Monitoring: Yes

  Cooling Method: Fan

  Includes:

  • (1) S2200 Smart G2 AC Charger
  • (1) Power Cord
  • (1) Manual
