HWI30113400

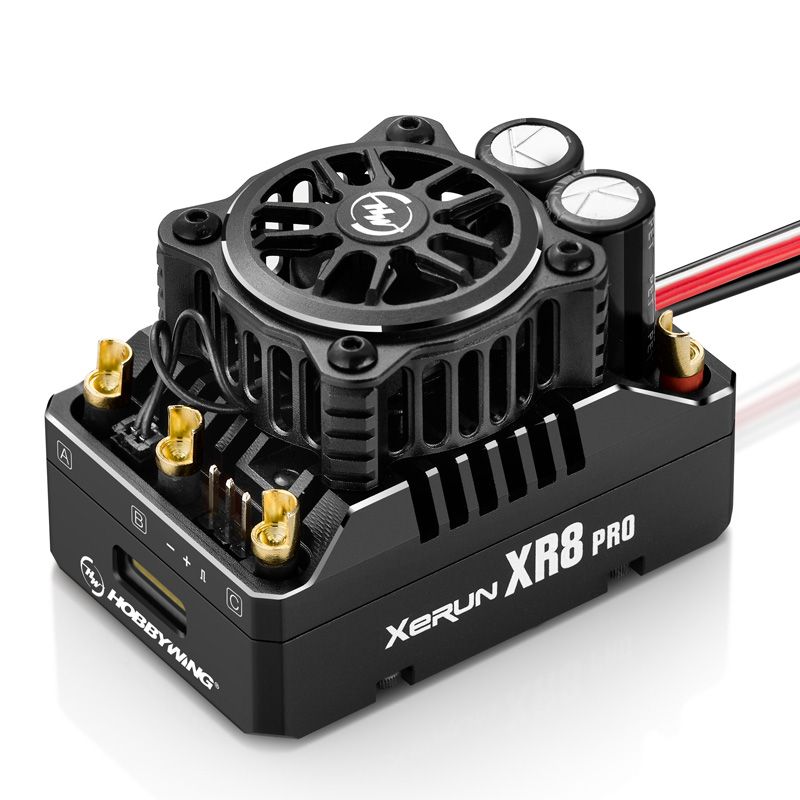

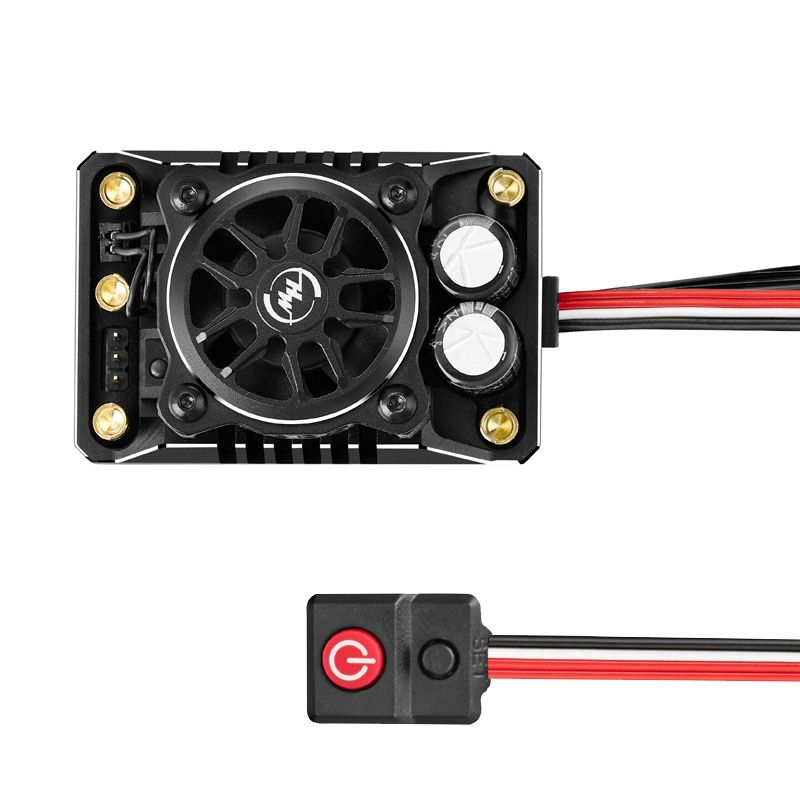

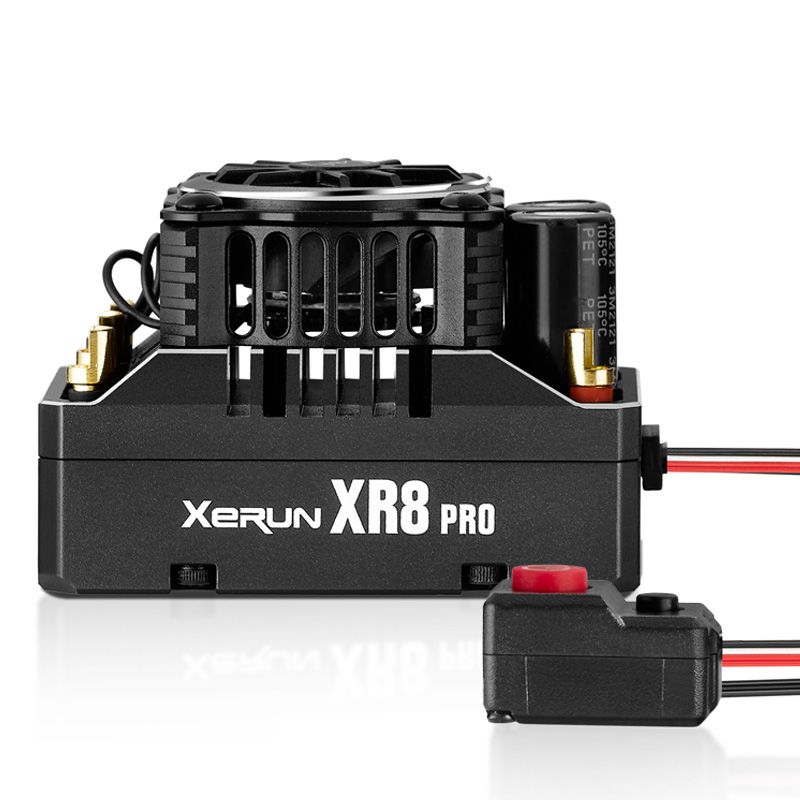

Xerun XR8 Pro G3 ESC
The XR8 Pro G3 performs best when paired with Hobbywing 4268/4274 G3 motors. The XR8 Pro G3 has the same Turbo Timing technology used and the XR10 Pro series of escs. Capable of up to 48 degrees of Boost and Turbo timing, a 50% increase of performance is seen over previous models when paired with the recommended motors. The dual brake mode eliminates non-linear force caused by vehicle speed using traditional braking methods. Braking force and distribution can be adjusted in the programing. Compatible with the OTA module, real-time data can be obtained through the Hobbywing phone app. The redesigned frameless fan and cooling programming reduce fan failure while increasing effectiveness. This ESC also features a built-in reverse polarity circuit and capacitor thermal protection, helping to protect and ensure a long life. Featuring an IP5X rating, you can drive with confidence in many different types of environments.
Includes:
- ESC
- Factory decal
Required to Complete:
- Soldering of chosen battery connector
- Installation in vehicle
- Compatible motor
Features:
- Recommended Applications: 1/8 Off-Road, On-Road Racing & 1/10 Short course truck, Monster truck
- Ultra flex 11AMG wires (factory installed)
- Programming Port: Multifunction LCD G2 Program Box, OTA Programmer
Specifications:
- Cont. / Peak Current: 200A / 1080A
- ESC Type: Sensored Brushless
- Motor Type: Sensored / Sensorless Brushless Motors
- Motor Limit: With 3S Lipo: KV= 4000 3660 Size motor; With 4S Lipo: KV= 3000 4268 Size motor
- Lipo Cells: 2-4S Lipo
- BEC Output: 6V/7.4V Adjustable, Continuous Current: 6A
- Braking mode: FOC/BLDC

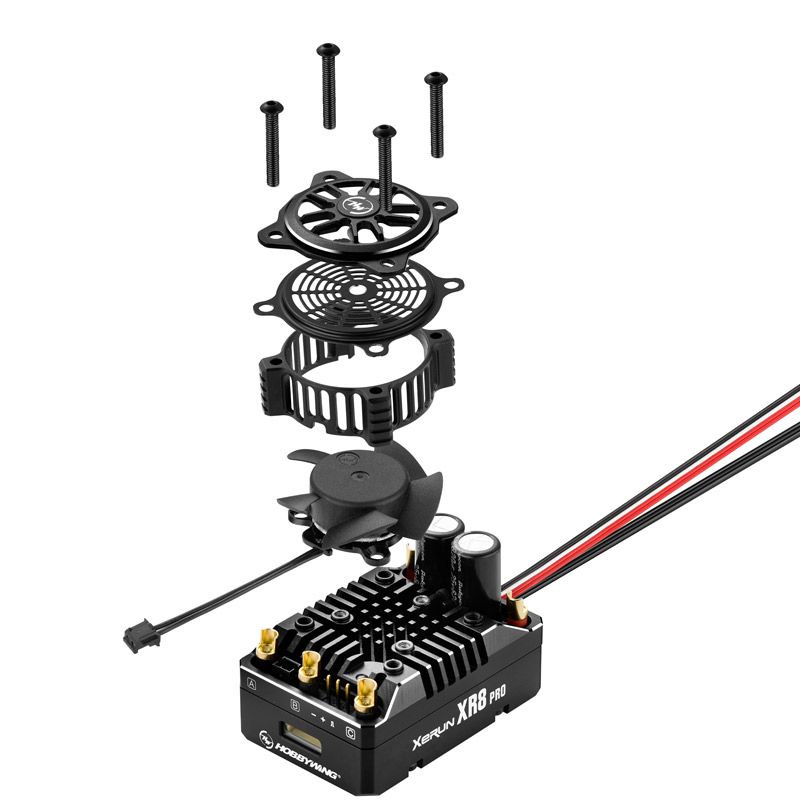

- Fan Type: Frameless fan
- Size / Weight: 54.8x36.8x38.8mm/102.8g
