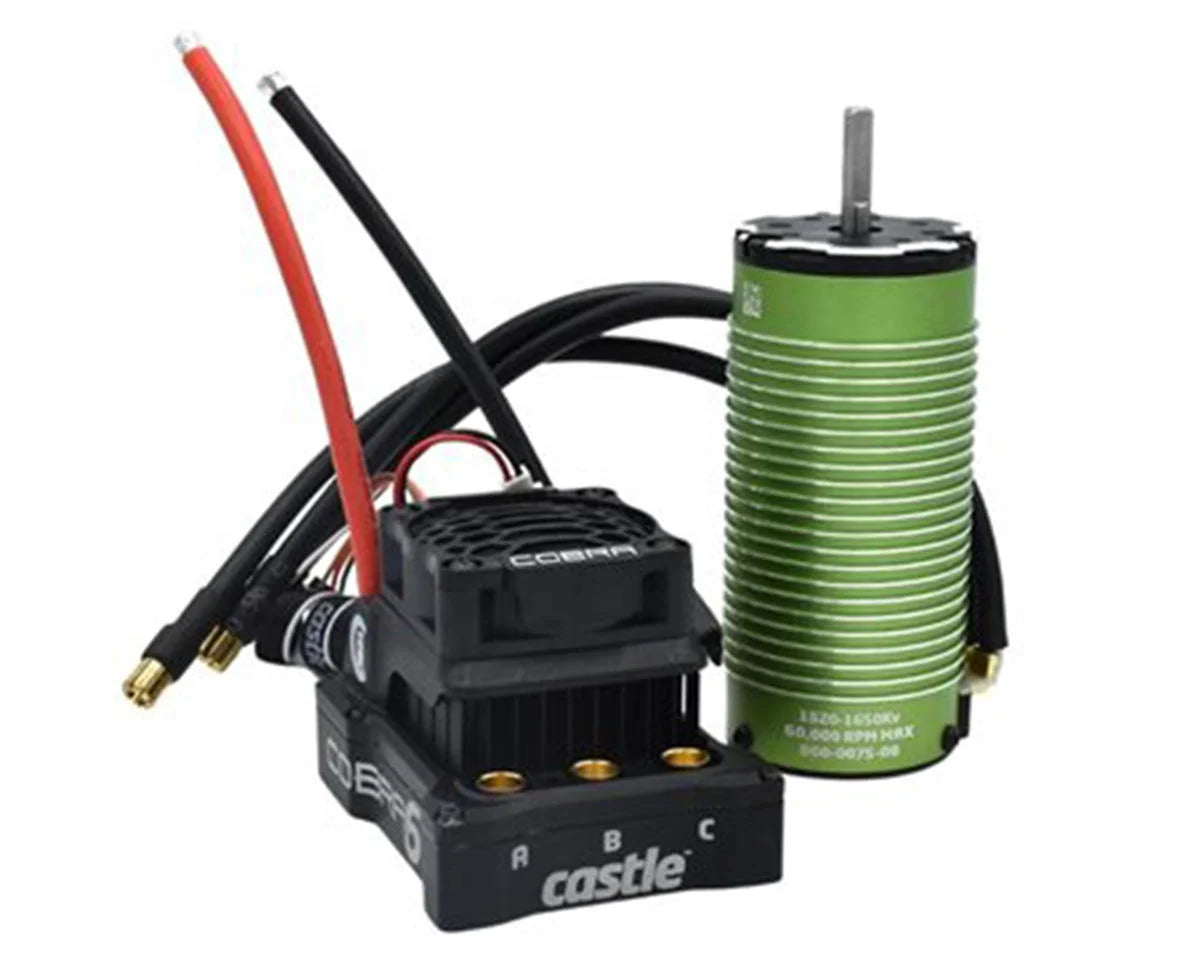

Castle Creations 010-0184-04 Cobra 6 8S 1/6 Brushless ESC & Motor Combo (1650kV) w/1520 Sensored Motor

High-Output Brushless System for Large-Scale RC Performance

The Castle Creations Cobra 6 8S 1/6 Brushless ESC and Motor Combo is engineered for large-scale 1/8, 1/7 and 1/6 vehicles weighing up to 18 pounds and running up to 8S LiPo. Built for heavy, high-performance rigs, it delivers smooth low-end control without sacrificing torque, punch, or top-end speed. Building on the success of the Cobra 10 and Cobra 8, the Cobra 6 elevates performance with a powerful 32-bit processor, expanded data logging, and advanced tuning flexibility. Paired with the 1520 sensored motor, this combo provides a complete, high-efficiency power system for demanding applications.

About the Cobra 6 8S ESC & Motor Combo

Advanced Processing & Control

The Cobra 6 is powered by a 32-bit processing platform that enhances throttle precision, motor control, and responsiveness under load. This architecture allows the ESC to react quickly to changing conditions, improving consistency during acceleration, braking, and high-stress driving. CRYO-DRIVE thermal management further boosts efficiency by reducing heat generation during partial-throttle operation.

Data Logging & Tuning Flexibility

A significantly expanded data logging suite provides double the sample frequency and eight times the recording duration of previous generations. Additional data points, including electrical motor timing and acceleration from the onboard accelerometer, give drivers deeper insight into system behavior. Adjustable braking curves, a wide-range internal BEC, and multiple programming pathways such as the included Castle Link V4 USB-C and optional Castle Creations B-Link Bluetooth Interface (CSE011-0181-00 - sold separately), offer complete control over ESC setup.

Sensored Motor Performance

The 1520-1650kV sensored brushless motor delivers the same performance character and refinement found in the larger 1717-1650kV, but in a more compact diameter that fits tighter chassis layouts without modification. Its sensored design provides smooth, controllable power at low RPM while still offering the punch and top-end needed for high-performance setups. This balance of efficiency, torque, and packaging flexibility makes the 1520 an ideal choice for drivers who want big-motor feel in a smaller, easier-to-fit form factor.

Features:

• 32-bit dual-core processing
• Enhanced data logging system
• Double sample frequency capability
• Eight times extended logging duration
• Onboard accelerometer data point
• Adjustable internal BEC from 5.0V to 8.0V
• Improved braking adjustability
• Separate brake and reverse curves
• High-efficiency CRYO-DRIVE thermal management
• Auxiliary wire functionality for adjustments using your transmitter
