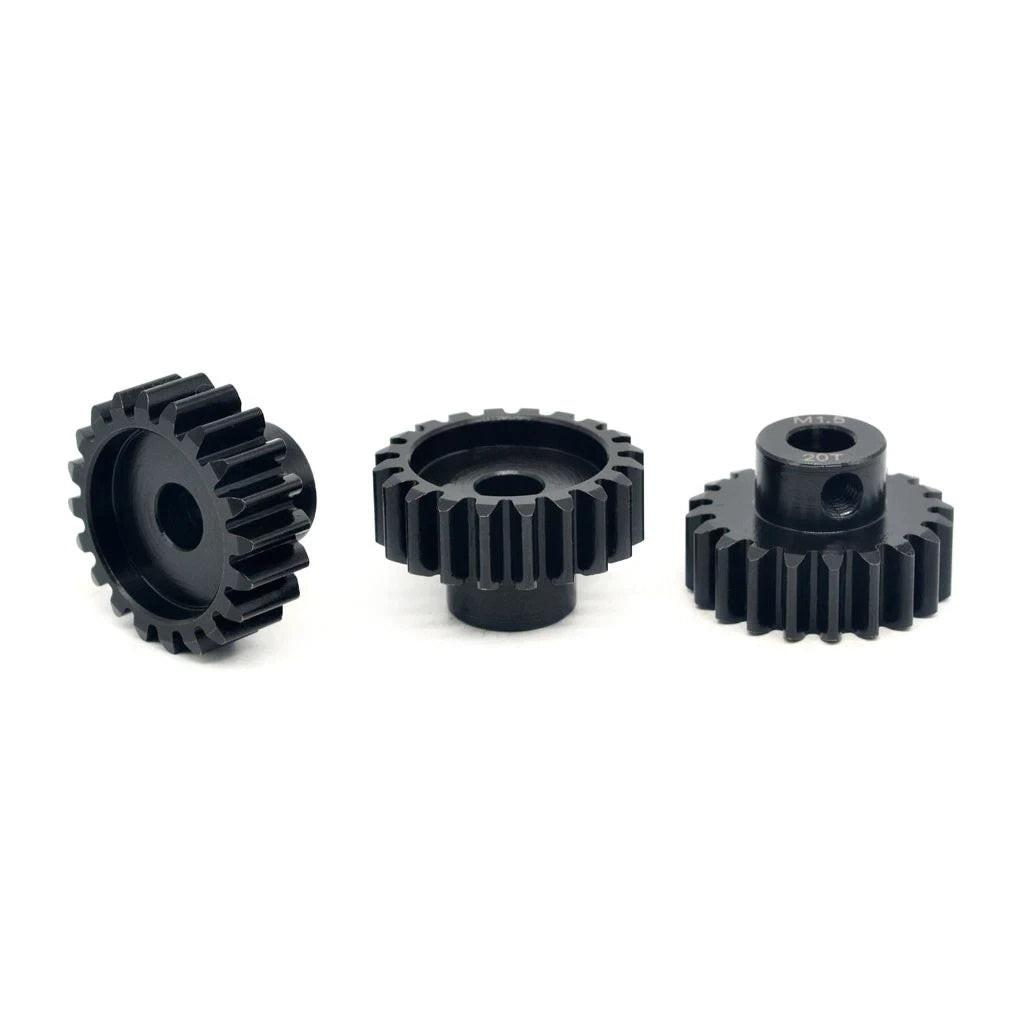

Powerhobby Mod 1.5 13T Steel Pinion Gear w/ 8mm Bore

Powerhobby Mod 1.5 13T Steel Pinion Gear w/ 8mm Bore

Description

Fine-tune the gearing of your high-powered RC vehicle with a Powerhobby Mod 1.5 Steel Pinion Gear. Designed for motors with an 8mm output shaft, these heavy-duty pinions are suitable for large-scale RC cars, trucks, speed-run vehicles, and other demanding applications.

The durable steel construction is designed to withstand the increased power and drivetrain loads produced by large-scale brushless systems. Tooth counts ranging from 11T through 17T allow you to select the gearing that best matches your desired acceleration, top speed, motor temperature, and driving conditions.

Lower tooth counts generally provide quicker acceleration and reduced motor load, while higher tooth counts may increase top speed when properly matched with the motor, ESC, battery, spur gear, and vehicle setup.

Features

• Mod 1.5 gear pitch
• 8mm motor-shaft bore
• Durable steel construction
• Designed for high-powered RC applications
• Multiple tooth-count options available
• Suitable for large-scale and custom RC builds
• Available from 11T through 17T

Includes

• One Mod 1.5 steel pinion gear

Fits

• RC motors with a compatible 8mm output shaft
• Vehicles using a Mod 1.5 spur gear
• Compatible large-scale RC cars and trucks
• Custom high-power, speed-run, and performance builds

Always confirm the gear pitch, motor-shaft diameter, motor-mount adjustment range, and recommended gear ratio before installation. Set the gear mesh carefully and monitor motor and ESC temperatures after changing the gearing.

Tooth Counts and Part Numbers

• 11T: PHB5116
• 12T: PHB5117
• 13T: PHB5118
• 14T: PHB5119
• 15T: PHB5120
• 16T: PHB5121
• 17T: PHB5122
