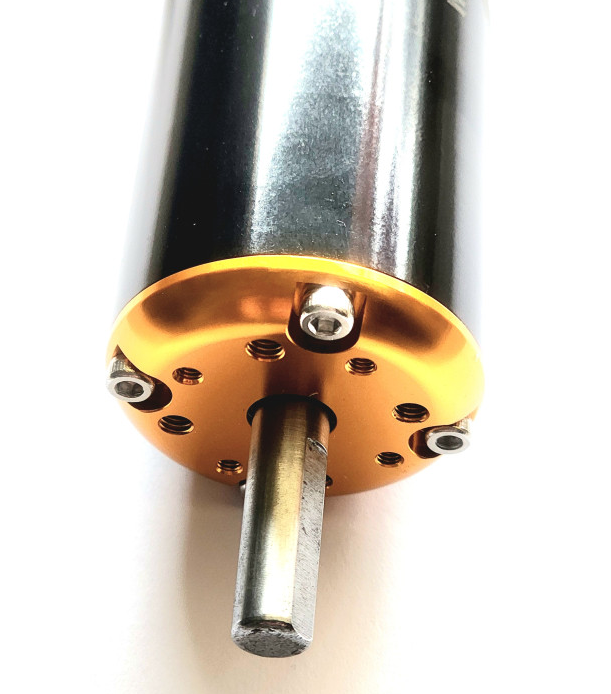

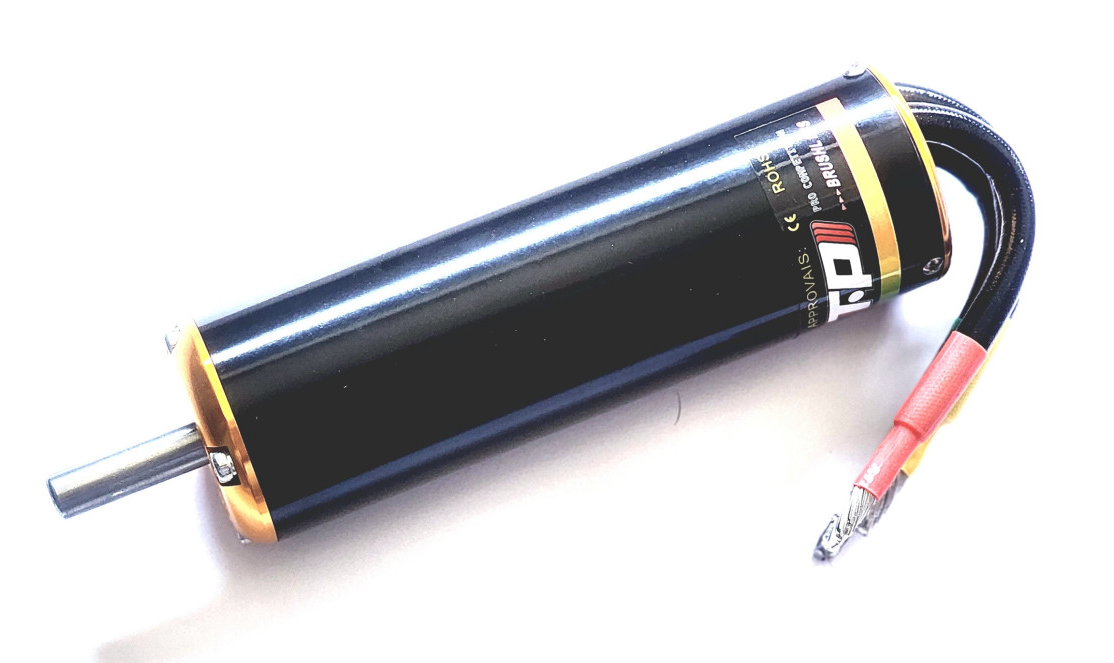

TP POWER USA 4090-SVM 2400-KV BRUSHLESS MOTORS 8MM SHAFT

TP4090-SVM Series are the new competition 4-pole motor with more torque and power under high RPM design at the same time. It has highest power of 13300 W and highest RPM of 75K!

Parameters:

Can: Smooth

Wind: D

KV: 2400

Max Amps (A): 392

Max Volt (V): 8S

Continuous Power (W): 7200

Max Power (W): 13300

Max RPM: 75K

Internal Resistance (Ohm): 0.0028

No-load Current (A): 5.2

Shaft Diameter (mm): 8

Shaft Length (mm): 24

Diameter X Length (mm): 40X127

Mounting Pattern: 4 sets of M3 & M4 screw holes on the same front plate; with 25mm diagonal distance.

Weight: 850g
