GPM RACING,TEAM LOSI-Micro-B ALLOY 7075 MOTOR PLATE LMB018

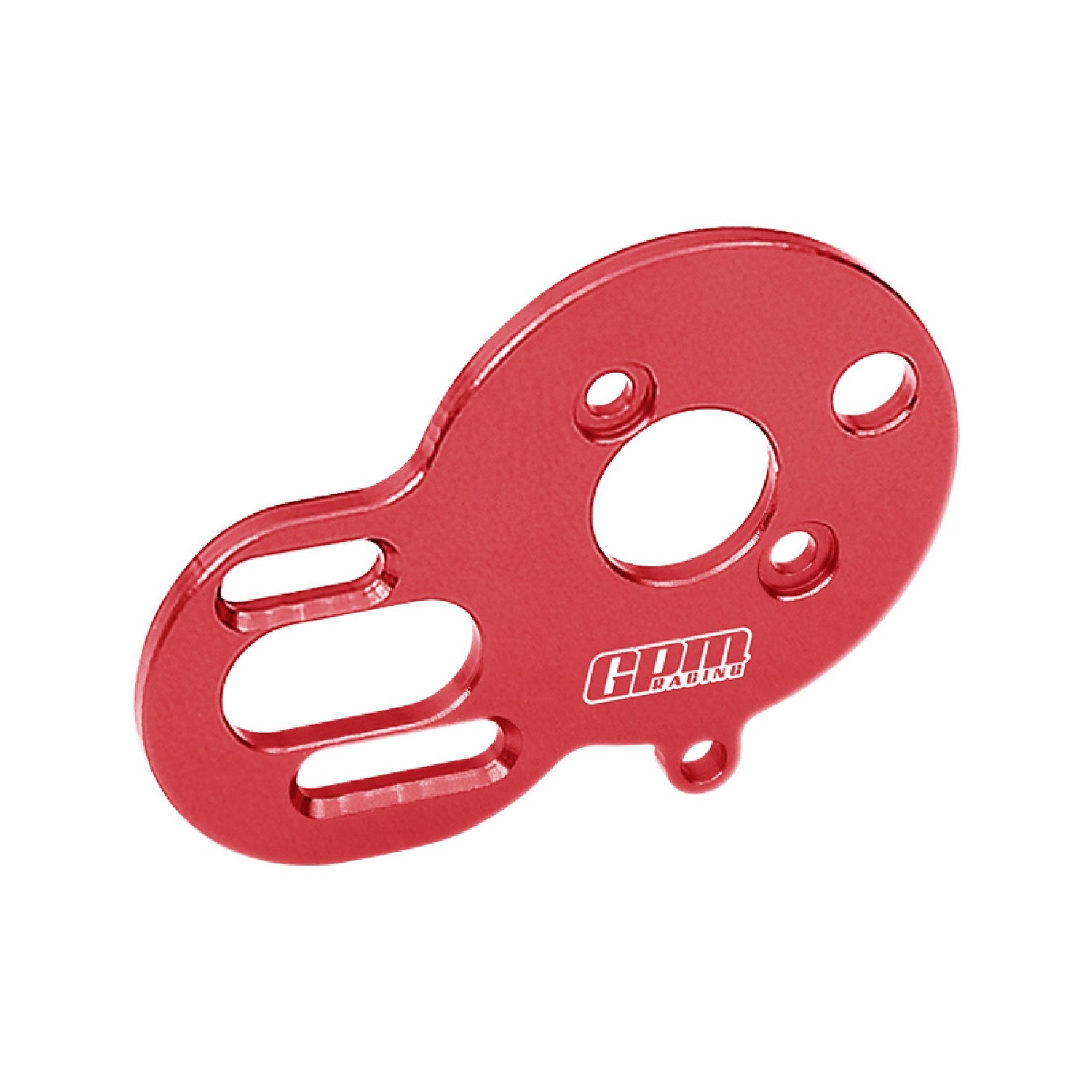

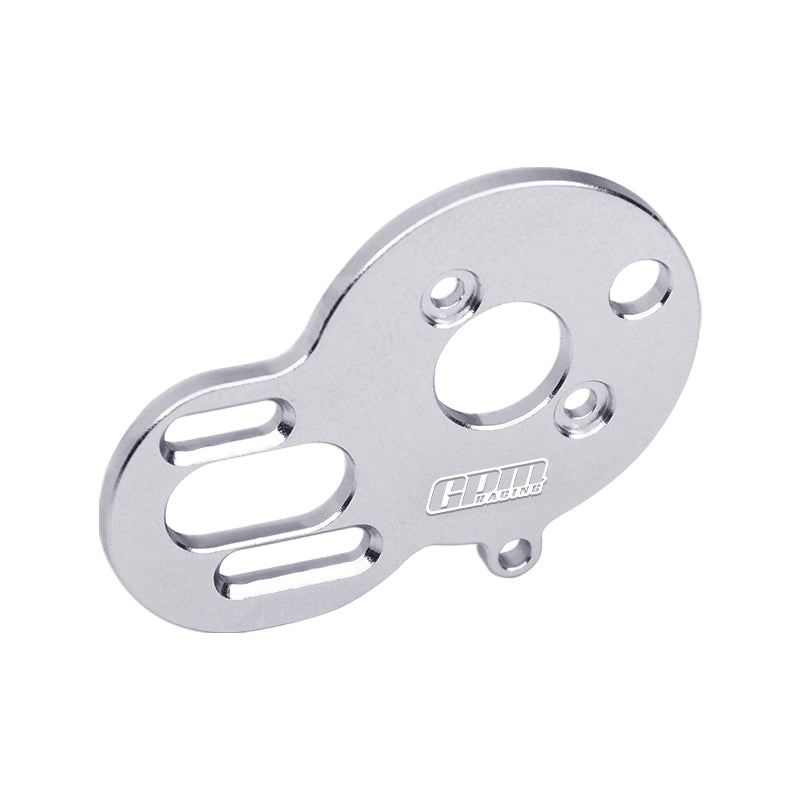

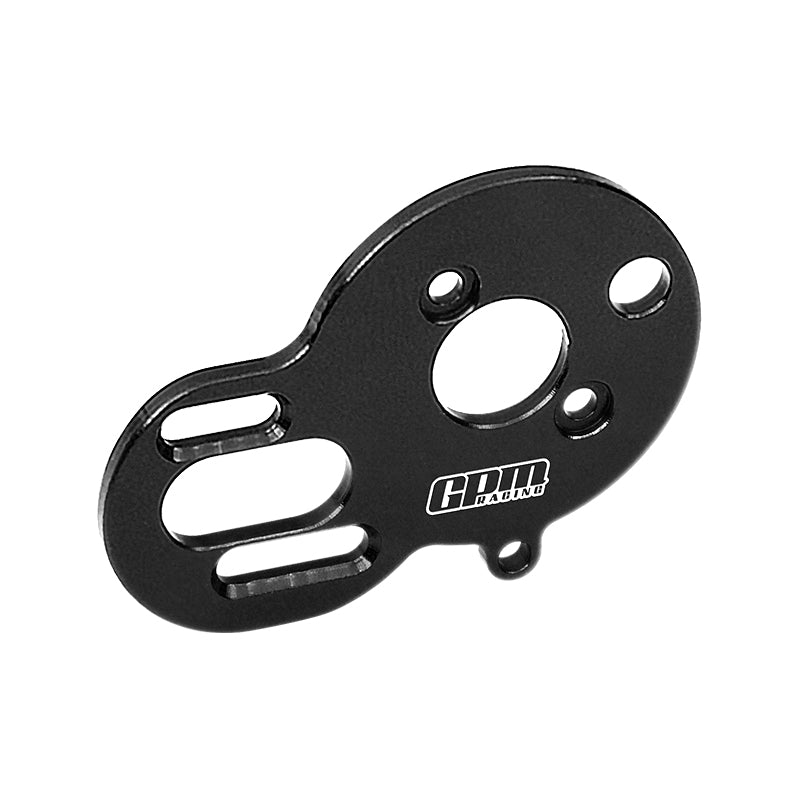

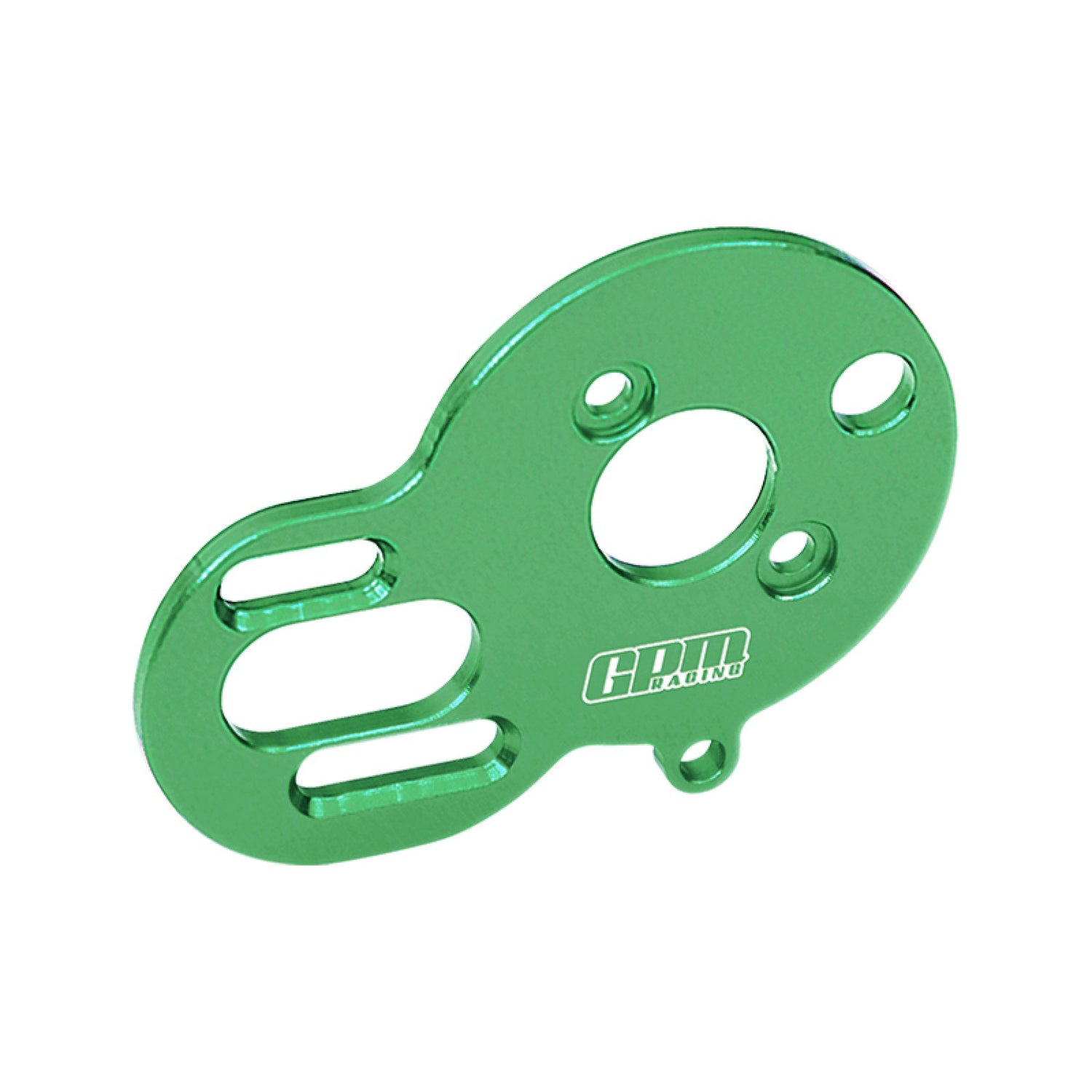

ALLOY 7075 MOTOR PLATE LMB018
Suitable For TEAM LOSI-1/24 Micro-B 2WD Buggy RTR-LOS00007
Packaging Includes:
Mount plate-1pcs
Grade 12.9 black Flat Head Screws 2x4-2pcs

Part location:
Between the center gearbox and motor

Major advantages of upgrading to this part/product:
(1) GPM redesigned the alloy 7075 motor plate to make it compatible with Hobbywing 1621 and 1525x1410 motors.

(2) Motor teeth of 14T or larger can be installed. After installing GPM motor plate, the original gear cover cannot be closed, which is suggested to remove it and some battery compartments need to be modified.
Note:
GPM motor plate + GPM or factory 36T spur gear: With HobbyWing 1621 motor, it is compatible with 14–18T pinion gears; With HobbyWing 1626 motor, it is compatible with 15–17T pinion gears.
GPM motor plate + GPM 34T spur gear: Compatible with 17–18T pinion gears when used with HobbyWing 1621 or HobbyWing 1626 motor.
Suitable Model:
LOSI 1/24 Micro-B 2WD Buggy RTR-LOS00007
