Powerhobby Quattro Micro 1S Lipo Battery AC/DC Fast Charger 1-Cell

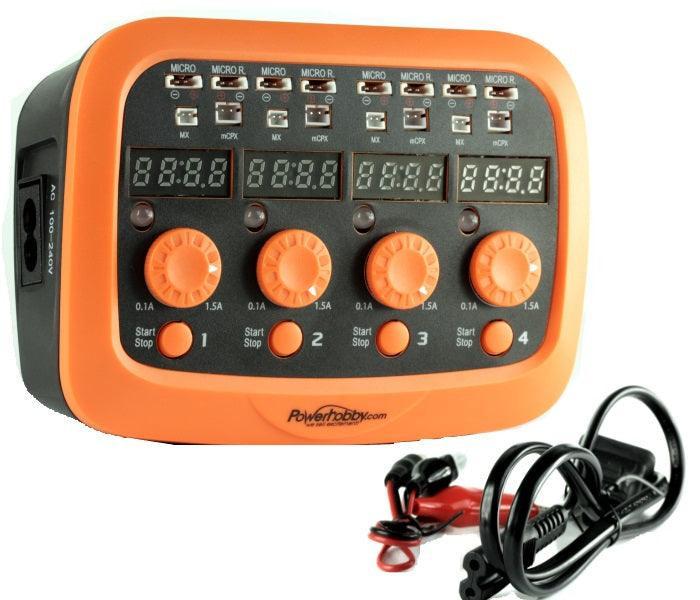

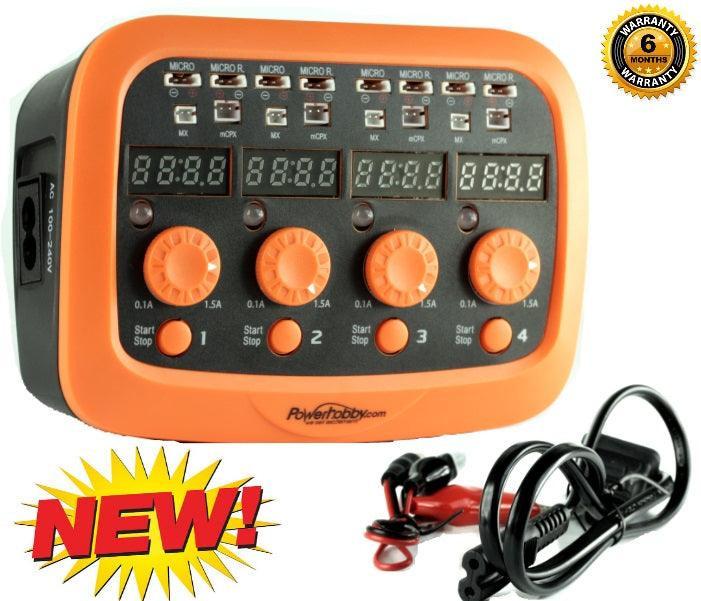

Powerhobby Quattro Micro 1S Lipo Battery AC/DC Fast Charger

Description

Charge up to four compatible 1S LiPo batteries simultaneously with the Powerhobby Quattro Micro Fast Charger. Four independent charging circuits allow each port to operate separately, making the charger ideal for micro helicopters, drones, airplanes, and other small RC models.

Each charging port includes four common micro-battery connector styles: Molex, reversed Molex, MX, and mCPX. The adjustable 0.1A to 1.5A charging range allows the current to be matched to batteries with different capacities.

Four individual digital displays show charging current and capacity information, while LED and audible indicators provide charging-status updates. The charger can be powered from either a standard AC outlet or a compatible DC power source for convenient use at home or in the field.

Features

• Charges up to four 1S LiPo batteries simultaneously
• Four independently operating charging circuits
• Adjustable charging current from 0.1A to 1.5A per channel
• Four individual digital displays
• Displays charging current and capacity
• LED and audible charging-status indicators

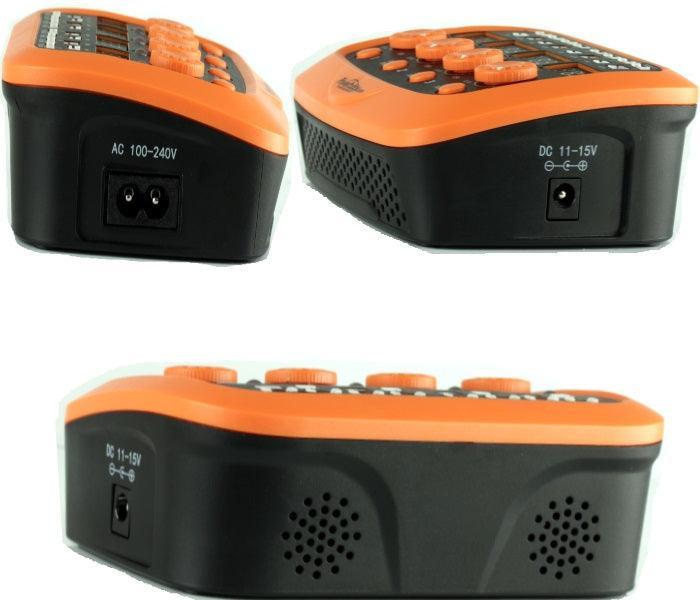

• AC and DC power-input capability
• Molex, reversed Molex, MX, and mCPX connectors on each port
• Short-circuit protection
• Overcurrent protection
• Reverse-polarity protection
• DC input-voltage protection
• Ventilated housing

Includes

• One Powerhobby Quattro Micro 1S LiPo Charger

Specifications

• Battery chemistry: LiPo
• Battery cell count: Four independent 1S channels
• AC input: 100–240V AC, 50–60Hz
• DC input: 11–15V
• Charging power: 4 x 6W
• Maximum total power: Approximately 26W
• Charging-current range: 0.1–1.5A per channel
• Operating temperature: 0–50°C
• Dimensions: 132 x 100 x 50mm
• Weight: Approximately 280g
• Part number: PH-Quattro-Charger
• Barcode: Not assigned

Use only with rechargeable 1S LiPo batteries. Confirm connector polarity before connecting a battery, as similar-looking micro connectors may use different polarity arrangements.
