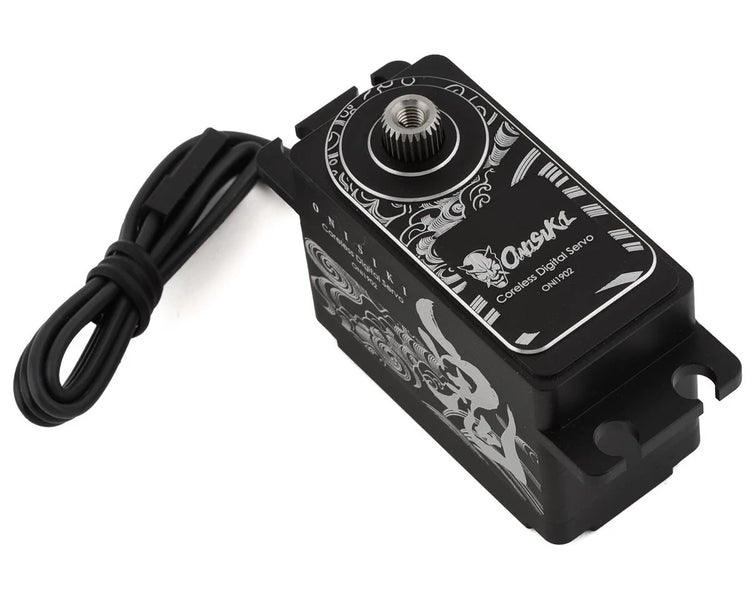

Onisiki ONI1902 Full Aluminum Case Low Profile Coreless Drift Servo ONI1902

ONI1902

The Onisiki Full Aluminum Case Low Profile Coreless Drift Servo is a great option for a high voltage drift servo. This servo was designed specifically for RWD drifting precision. Using this servo will allow for a zero dead band giving you higher accuracy. A full aluminum case was used to aid in heat dissipation. Package includes one servo, two nylon servo horns and mounting hardware.

Features:

• Compatible with Yeah Racing and Yokomo Gyros
• Zero dead band for extreme accuracy

Specifications:

• Type: Digital
• Operating Voltage Range: 6-8.4V DC
• Bearing Type: Dual Ball Bearing Supported Output Shaft
• Speed:
  • 6.0V: 0.1s/60°
  • 7.4V: 0.08s/60°
  • 8.4V: 0.07s/60°
• Torque:
  • 6.0V: 140oz/in (10kg/cm)
  • 7.4V: 150oz/in (11kg/cm)
  • 8.4V: 170oz/in (12.8kg/cm)
• Size: 40.5x20x29mm
• Stall Current: 3200m/3900mA
• Connector Wire Length: 300 mm. 25 AWG wire
• Connector Type: JR
• Gear Type: Steel gears
• Shaft: 25T
