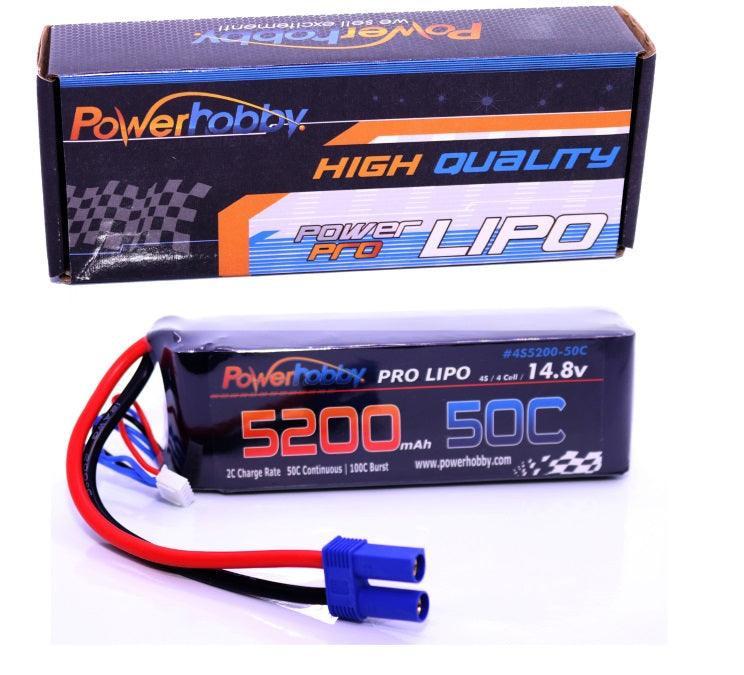

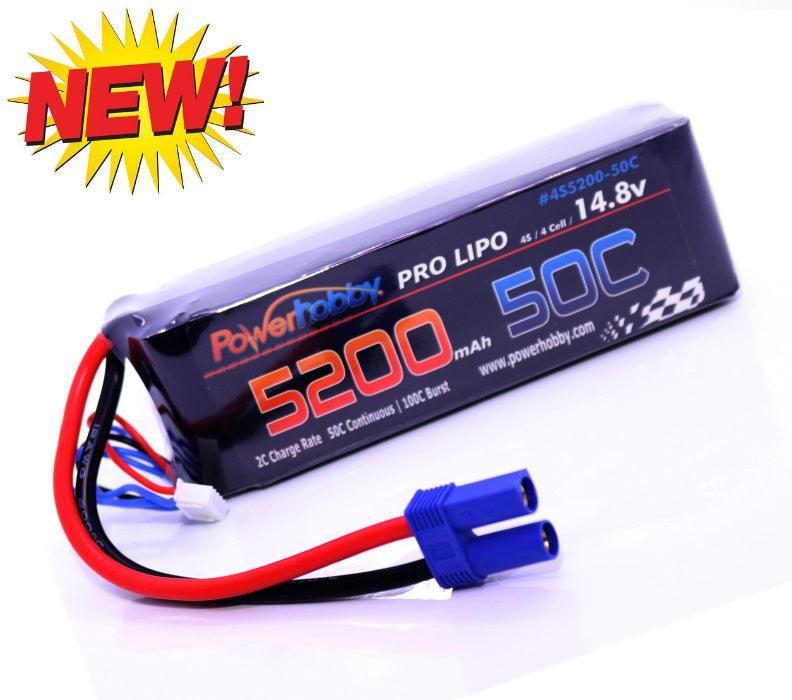

Powerhobby 4S 14.8V 5200mAh 50C Lipo Battery Soft Case 4-Cell w EC5 Plug

Powerhobby 4S 14.8V 5200mAh 50C Lipo Battery Soft Case 4-Cell w EC5 Plug

Description

The Powerhobby 4S 14.8V 5200mAh 50C LiPo Battery delivers dependable power, extended runtime and consistent performance for a wide range of RC applications. Its 5200mAh capacity provides longer operating time, while the 50C continuous discharge rating supplies responsive acceleration and reliable current under load.

Choose from lightweight soft-case, protective hard-case or lower-profile LCG hard-case configurations. Multiple connector options are available, including XT60, XT90, EC5 and Deans, allowing you to select the version that best matches your vehicle’s electronic speed control.

The battery delivers up to a 100C burst discharge rate and is suitable for compatible 1/10 and 1/8 scale cars, trucks and buggies, along with select boats, airplanes, helicopters and drones. Always verify the selected battery’s dimensions, case style, connector and 4S compatibility before installation.

Features

• 4S lithium-polymer battery
• 14.8V nominal voltage
• 5200mAh capacity
• 50C continuous discharge rate
• Up to 100C burst discharge rate
• Soft-case, hard-case and LCG hard-case options
• XT60, XT90, EC5 and Deans connector options
• JST-XH balance connector
• Strong and consistent power delivery
• Suitable for compatible 1/10 and 1/8 scale RC applications
• Recommended charging rate up to 2C
• Brand new and factory sealed

General Specifications

• Battery Type: LiPo
• Cell Count: 4S / 4 Cell
• Nominal Voltage: 14.8V
• Fully Charged Voltage: 16.8V
• Capacity: 5200mAh
• Continuous Discharge Rate: 50C
• Maximum Burst Rate: 100C
• Balance Connector: JST-XH
• Suggested Charge Rate: Up to 2C

Soft-Case Specifications

• Case Type: Soft Case
• Approximate Length: 139mm
• Approximate Width: 44mm
• Approximate Height: 35mm
• Approximate Weight: 15.5 oz

Dimensions and weight may vary slightly depending on the selected connector.

Standard Hard-Case Specifications

Published dimensions vary by connector configuration:

• XT90 and Deans versions: Approximately 133 x 44 x 35.5mm
• XT60 hard-case version: Approximately 139 x 46 x 48.5mm
• Approximate Weight: 14.8–16.8 oz
• Case Type: Protective hard case

LCG Hard-Case Specifications

• Case Type: LCG hard case
• Length: Approximately 138mm
• Width: Approximately 47mm
• Height: Approximately 38mm
• Weight: Approximately 16.5 oz

The LCG configuration offers a lower-profile alternative to the taller standard hard-case design for compatible battery compartments.

Available Soft-Case Versions

• PHB4S520050XT60 – XT60 Connector
• PHB4S520050EC5 – EC5 Connector
• PH-4S-5200-50C-DEANS – Deans Connector
• PHB4S520050DNS – Deans Connector, alternate SKU
• PH-4S-5200-50C-XT90 – XT90 Connector
• PHB4S520050XT90 – XT90 Connector, alternate SKU

Available Standard Hard-Case Versions

• PHB4S520050EC5HC – EC5 Connector
• PHB4S520050XT60HC – XT60 Connector
• PHB4S520050XT90HC – XT90 Connector
• PH-4S-5200-50-HC-XT90 - Burst – XT90 Connector, legacy SKU
• PH-4S-5200-50-HC-Deans - Burst – Deans Connector

Available LCG Hard-Case Versions

• PHB4S520050LCGEC5 – EC5 Connector
• PHB4S520050LCGXT60 – XT60 Connector
• PHB4S520050LCGXT90 – XT90 Connector
• PHB4S520050LCGDNS – Deans Connector

Two-Battery Version

• PH-4S-5200-50C-XT90 X2 – Two soft-case batteries with XT90 connectors

The X2 version includes two batteries rather than one.

Legacy or Unspecified SKU References

• PHB4S520050
• PH 4s 5200mah 50c

These references do not identify a connector or case style and should only be used after confirming the exact battery configuration.

Fits

• Compatible 1/10 scale RC cars, trucks and buggies
• Compatible 1/8 scale RC cars, trucks and buggies
• Select RC boats
• Select RC airplanes and helicopters
• Compatible drones and multirotors
• Other RC models designed for a 4S 14.8V LiPo battery

Fitment depends on the selected case style, battery dimensions and connector. Confirm that the battery will physically fit the model and that the electronic speed control supports a 4S LiPo battery before use.

Includes

• One Powerhobby 4S 14.8V 5200mAh 50C LiPo Battery in the selected case and connector configuration

The PH-4S-5200-50C-XT90 X2 version includes two batteries.

Warranty

This Powerhobby LiPo battery includes a six-month limited warranty from the original purchase date against defects in materials and workmanship.

The warranty does not cover:

• Physical or crash damage
• Damage caused by hard landings
• Improper installation or mounting
• Punctures, dents or battery deformation
• Overcharging or incorrect charger settings
• Deep discharging or operation below a safe voltage
• Excessive discharge current
• Modification, improper storage or misuse

Always inspect the battery before and after use. Stop using it immediately if it becomes swollen, punctured, unusually hot, physically damaged or unable to maintain balanced cell voltages. Proof of purchase may be required for warranty service.
