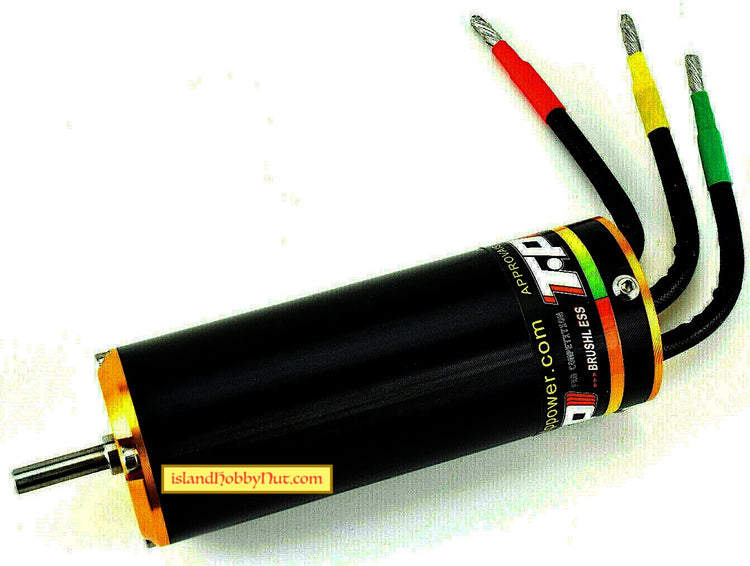

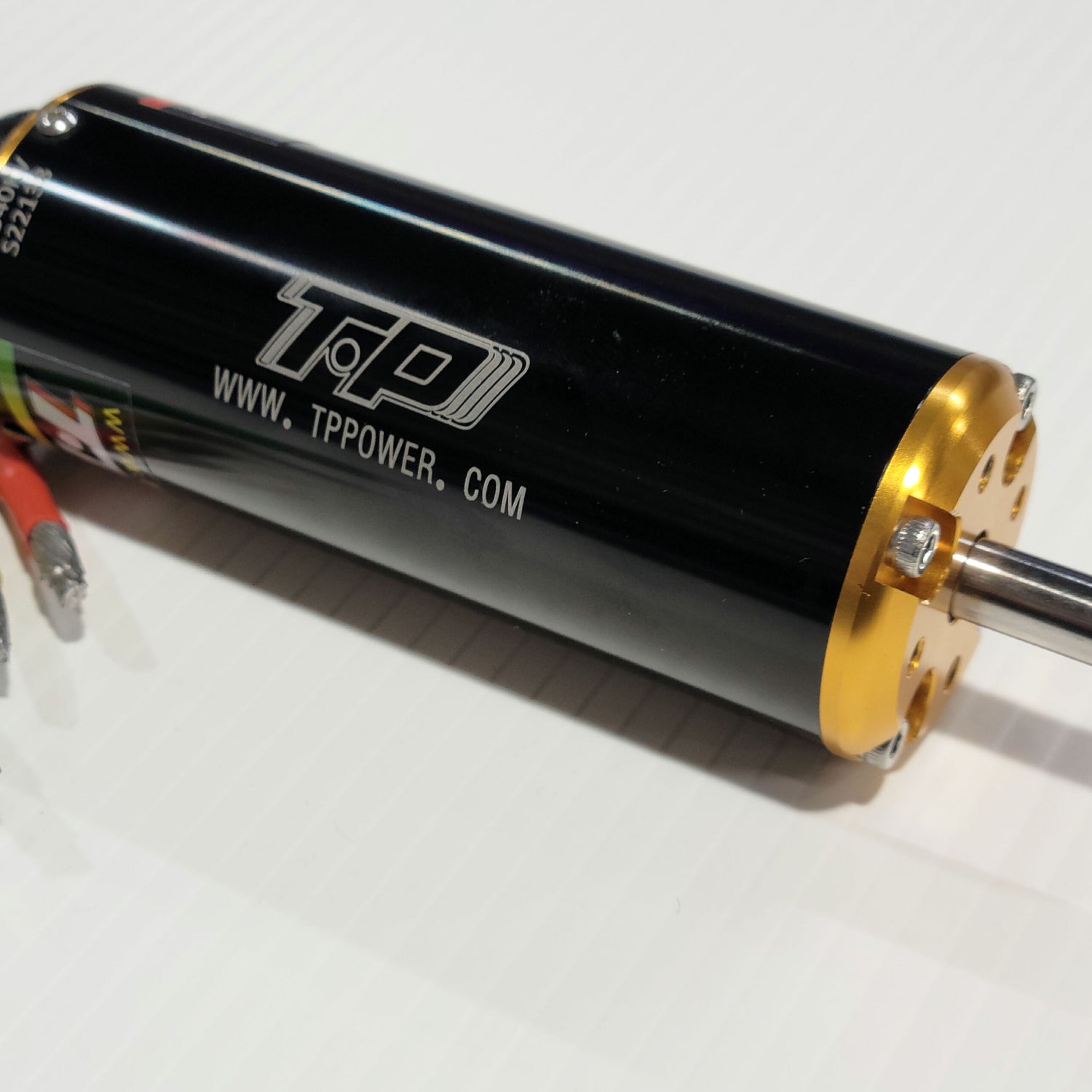

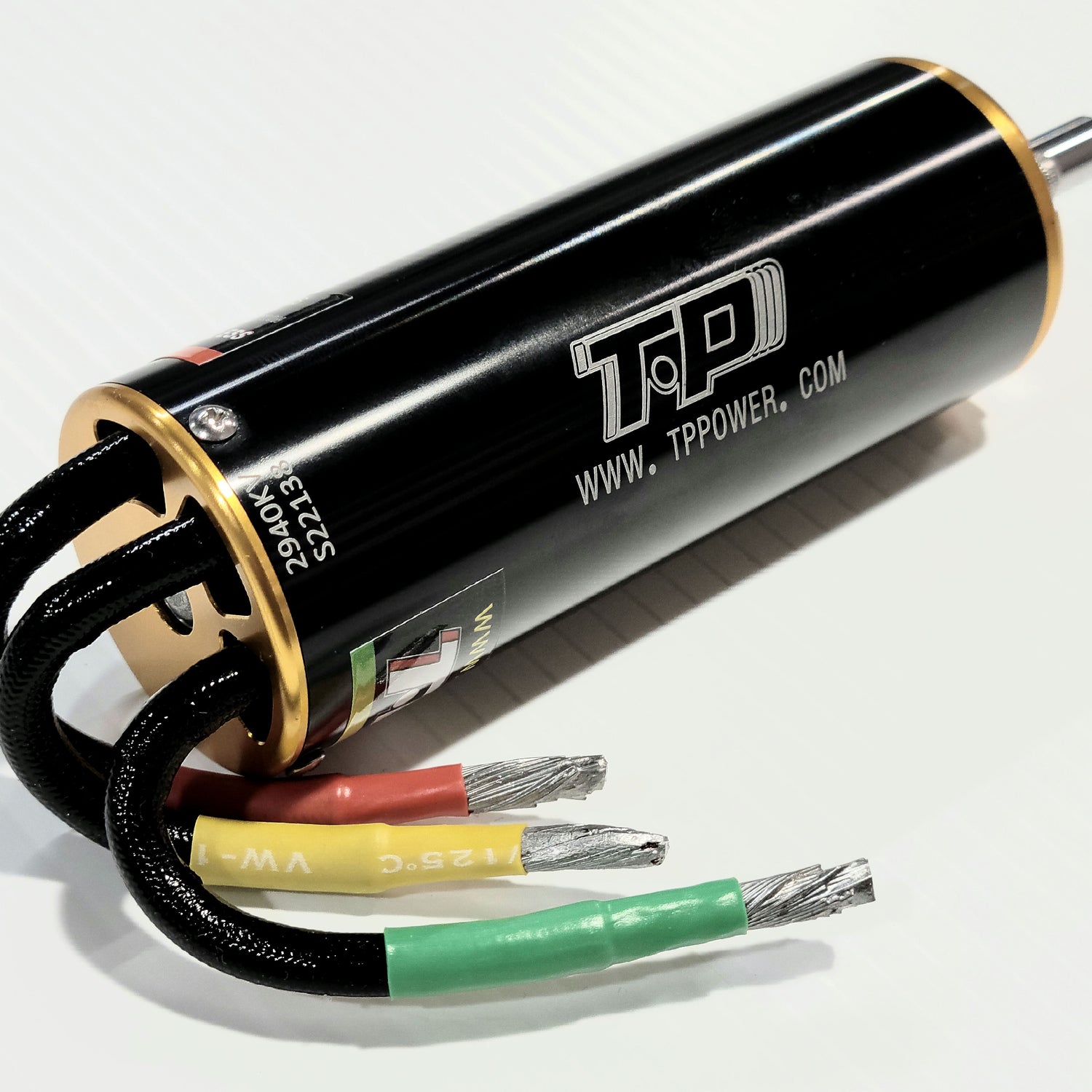

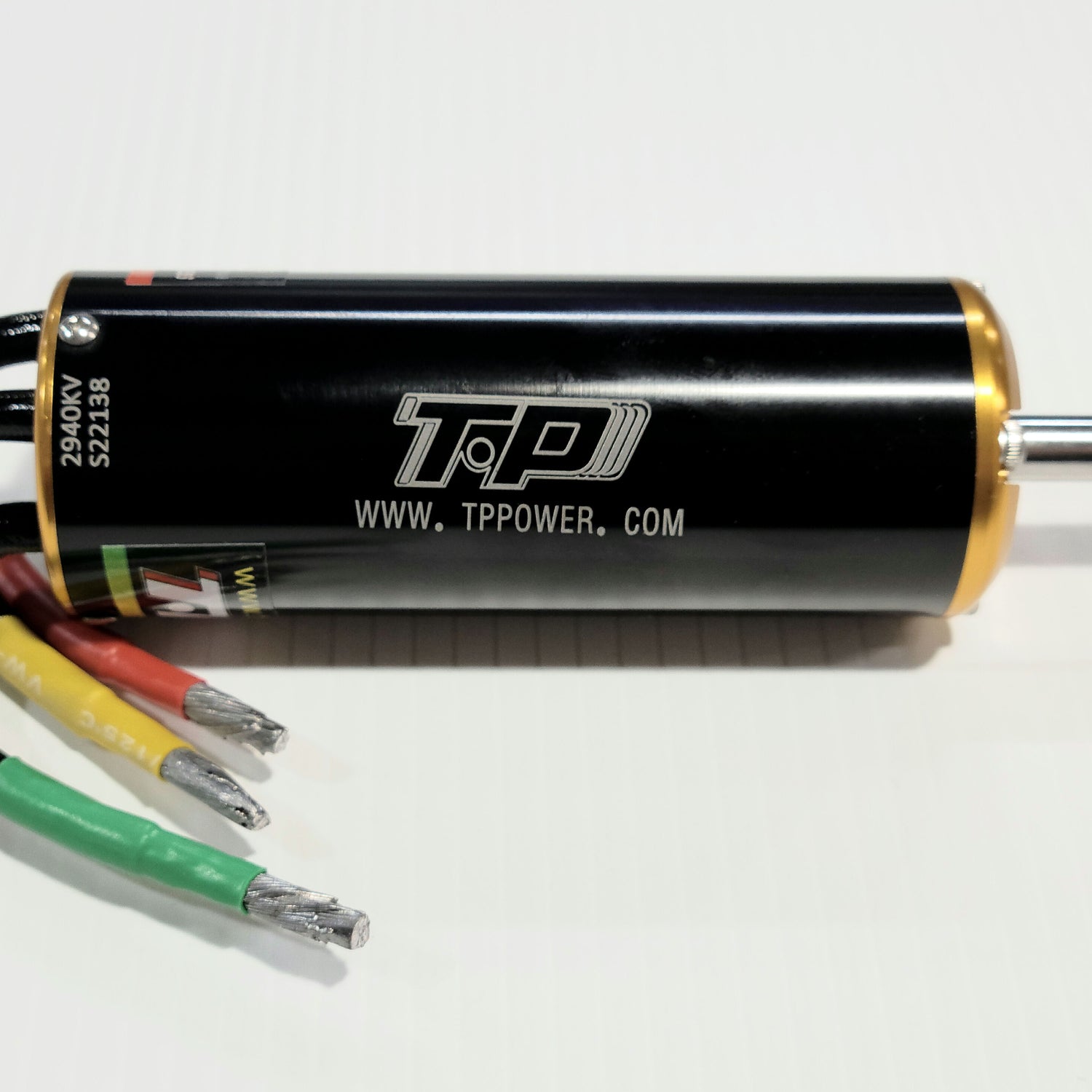

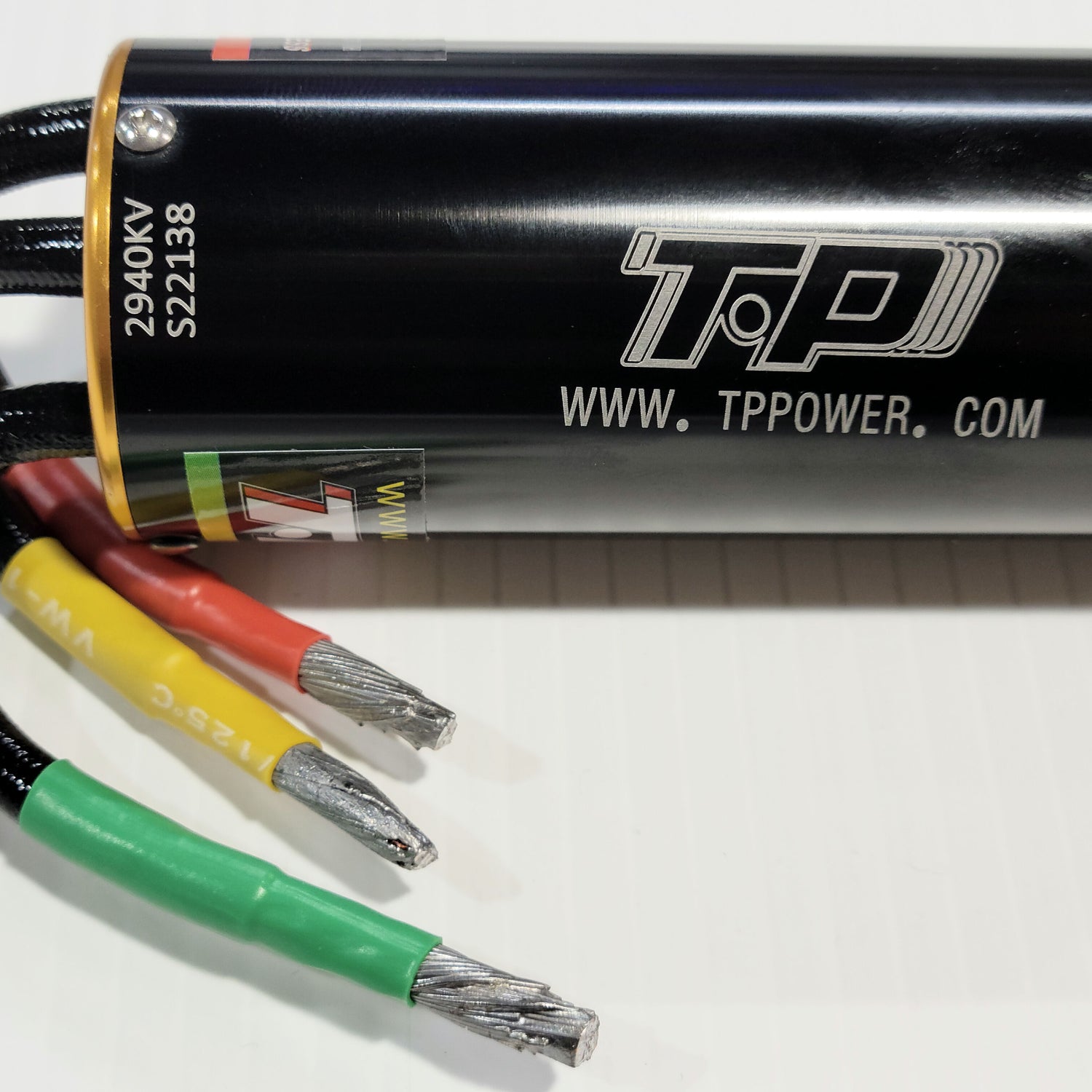

TP POWER 4070 SVM 2940 kv 6s BRUSHLESS MOTOR

SKU: SKU: 4070svm2940kv-01

• Description

  TP4070-SVM Series are the new competition 4-pole motors with more torque and power under high RPM design.

  KV: 2940

  Winding: D

  Max Current (A): 383

  Max Voltage (V): 24.8

  Continuous Power (W): 5500

  Max Power (W) - Less than 10 seconds for safety: 9500

  Max RPM - Less than 10 seconds for safety: 73K

  No-load current (A): 7.4

  Internal Resistance (Ohm): 0.001888

  Shaft diameter: 8mm

  Output Shaft Length: 18mm for 5mm diameter, 24mm for 8mm diameter

  Diameter x length (mm): 40 x 107

  Bolt pattern: 4-M4-25

  Poles: 4 pole
