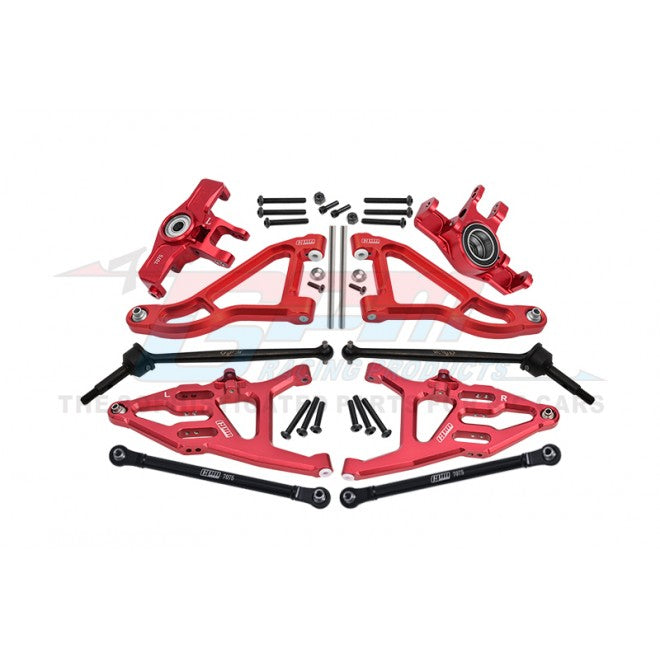

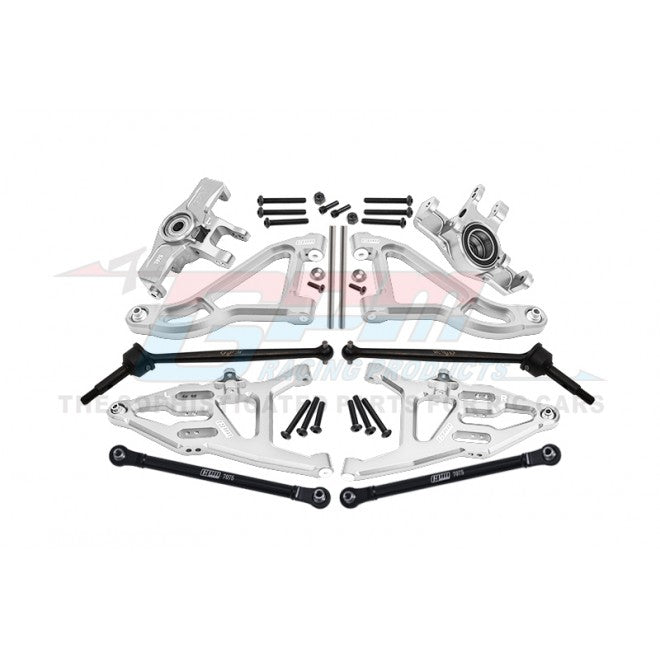

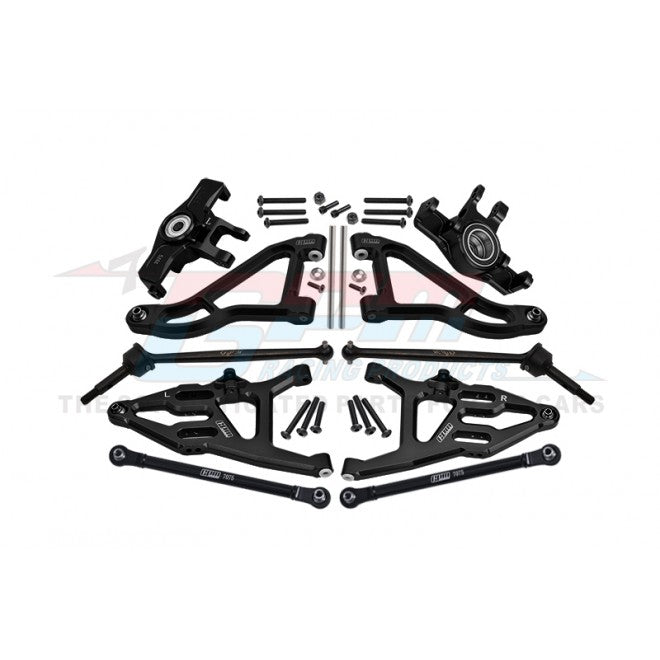

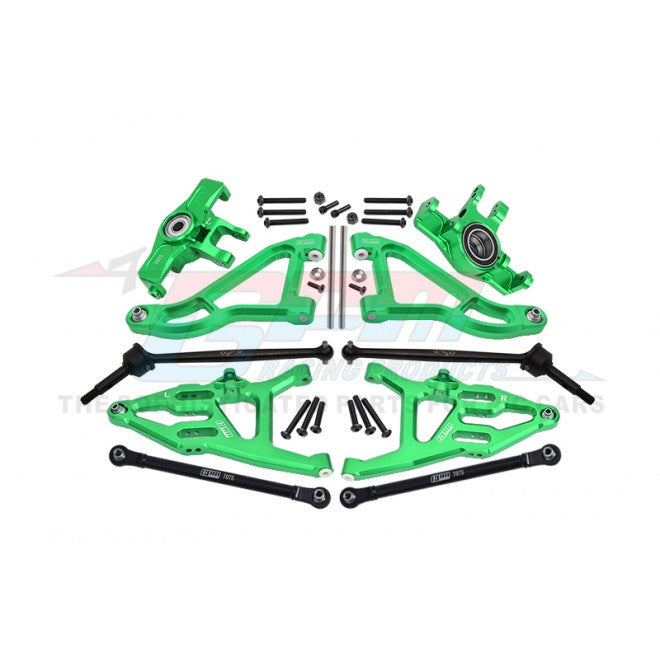

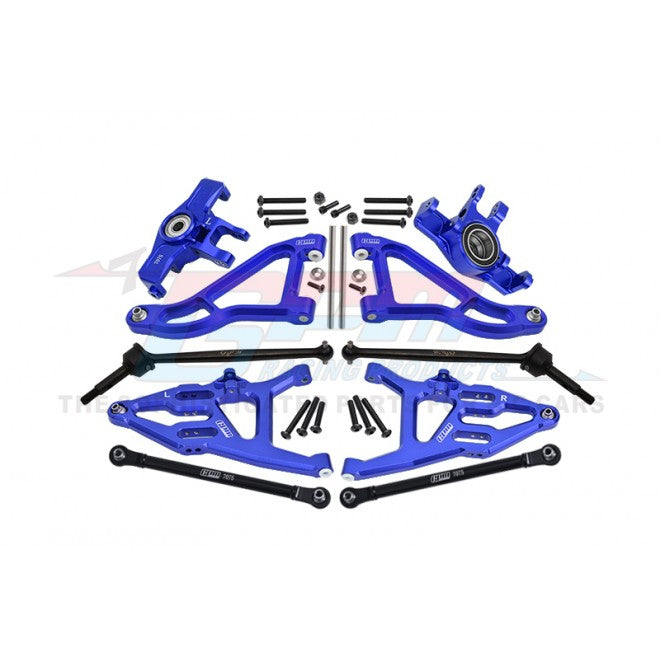

GPM RACING,TRAXXAS UNLIMITED DESERT RACER ALUMINUM F UPPER&LOWER ARMS+KNUCKLE ARMS+HARDEN STEEL CVD+SST TURNBUCKLE-36PC SET UDR1000

Original Name / Part No.: 8552+8531+8532+8550+8553+8547

Part location: Front upper & lower arms, knuckle arms, CVD, front steering area

Product major functions & usage:
Knuckle arms: Stabilize the CVD and front + rear arms in order to assist steering.
Front upper & lower arms: To support front knuckle arms, increase stability of the vehicle.
Turnbuckle: Assist the knuckle arms to complete steering process.
CVD: Transfer the power from the motor to the front wheels.

Is this part adjustable? If yes … how and why/purpose?
YES
How: Insert tool into positioning hole of tie rod.
Purpose: Adjust the length of tie rods.

Accessories:
Knuckle Arm 2pcs
Front Upper Arms 2pcs
Front Lower Arms 2pcs
Turnbuckle 2pcs
CVD 2pcs
Staainless Steel Round Head Screw 3x25 2pcs
Staainless Steel Round Head Screw 3x23 4pcs
M4x2.5x11 Screw Pin 2pcs
3mm Lock Nut 2pcs
Stainless Steel Pin 2pcs
Stainless Steel Flat Head Screw 2.5x8 2pcs
Stainless Steel Washer 2.5 2pcs
Staainless Steel Round Head Screw 3x20 6pcs
Staainless Steel Round Head Screw 3x16 4pcs

Major advantages of upgrading to this part/product :
1. Made with a quality light weight high tensile strength aluminum 6061 T6 for greater support and durability, inserted POM collar to minimize any gap so the bearing are able to fit tightly into the knuckle arms for accurate turning.
2. Easy to plug and play.
3. POM is great protection for the bearing from falling off due to friction.
4. Multiple positioning holes for installing the tie rods with this product.
5. Upper & lower arms are made with curved outline which helps to avoid hitting other components, create more space.
6. Delrin collars are inserted to minimize the gap and strengthen the fitting for a smooth and stable drive.
7. Stainless steel balls are inserted and stainless steel screws are used to enhance sturdiness.
8. The fixing method of the stainless steel ball is changed to our special screw locking design for better security.
9. CVD made by harden steel #45, stronger and great durability to achieve smooth driving performance.
10. Extra duty design from 4.5 diameter to 6.5 so that the transferring force is more powerfil and firm.
11. Turnbuckle is made with a strong material stainless steel 304 - more sturdy and not easy to rust.
12. Adjustable tie rod (clockwise or counterclockwise).
