vendor-unknown | SKU:
4070svm2940kv-01

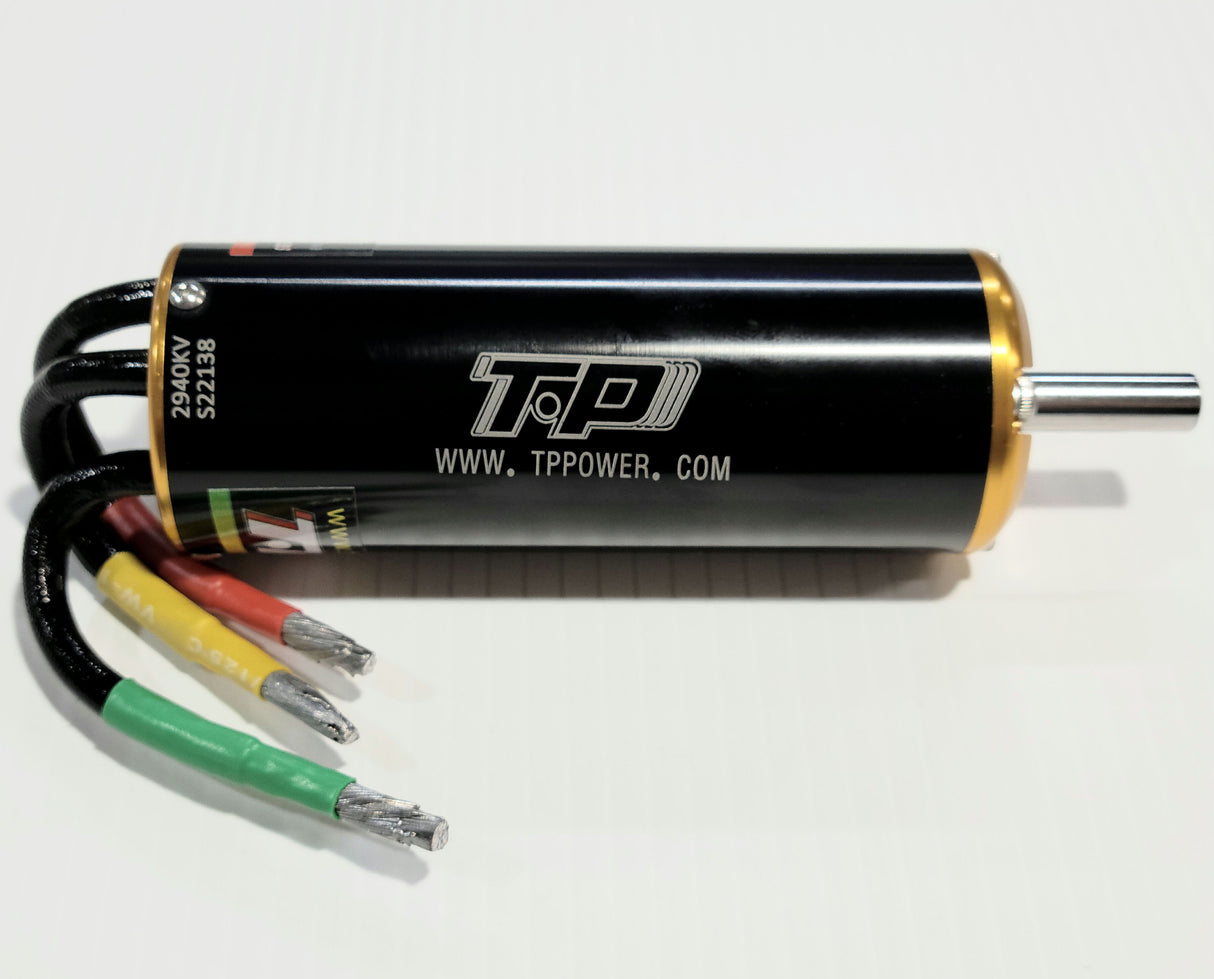

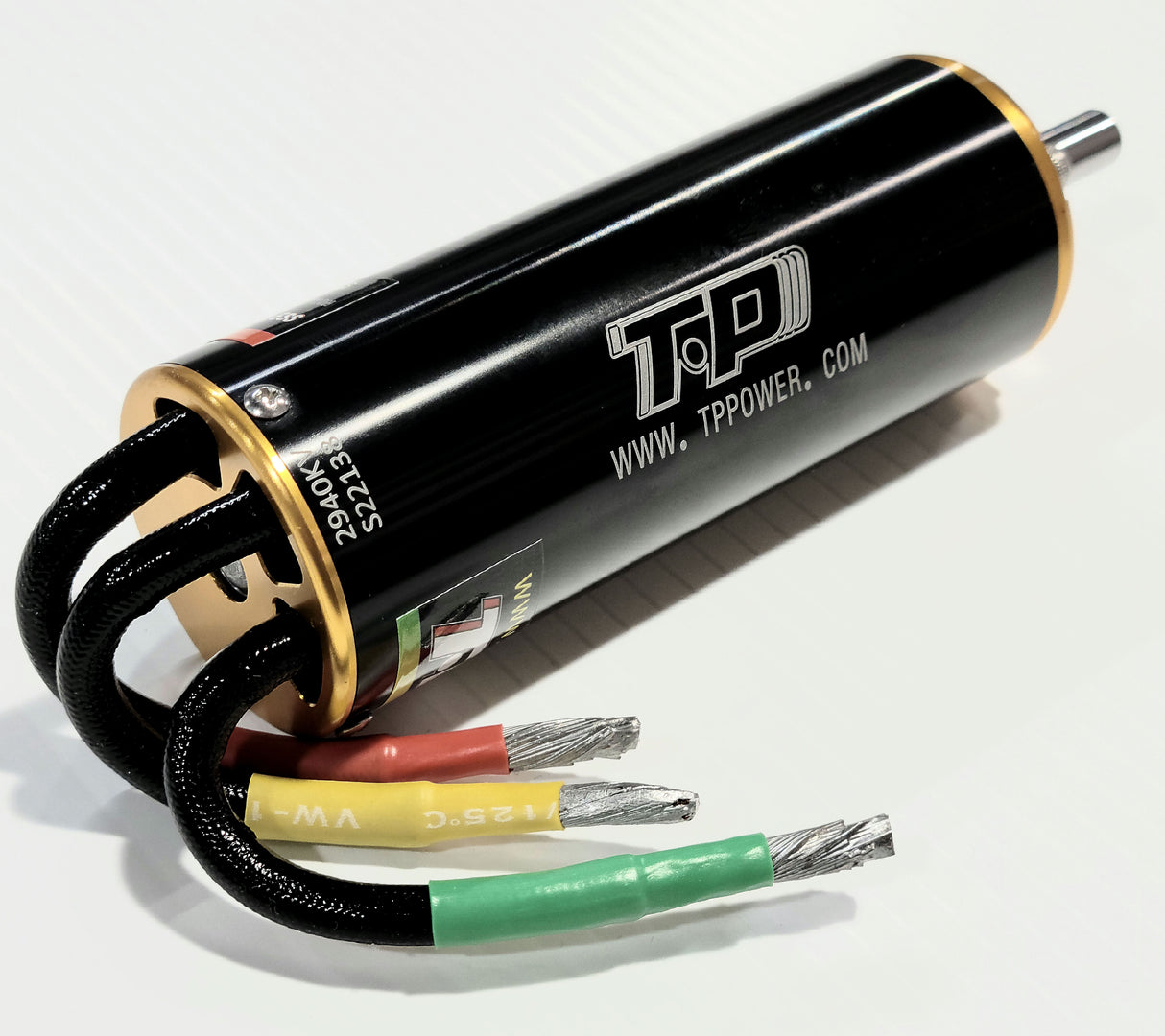

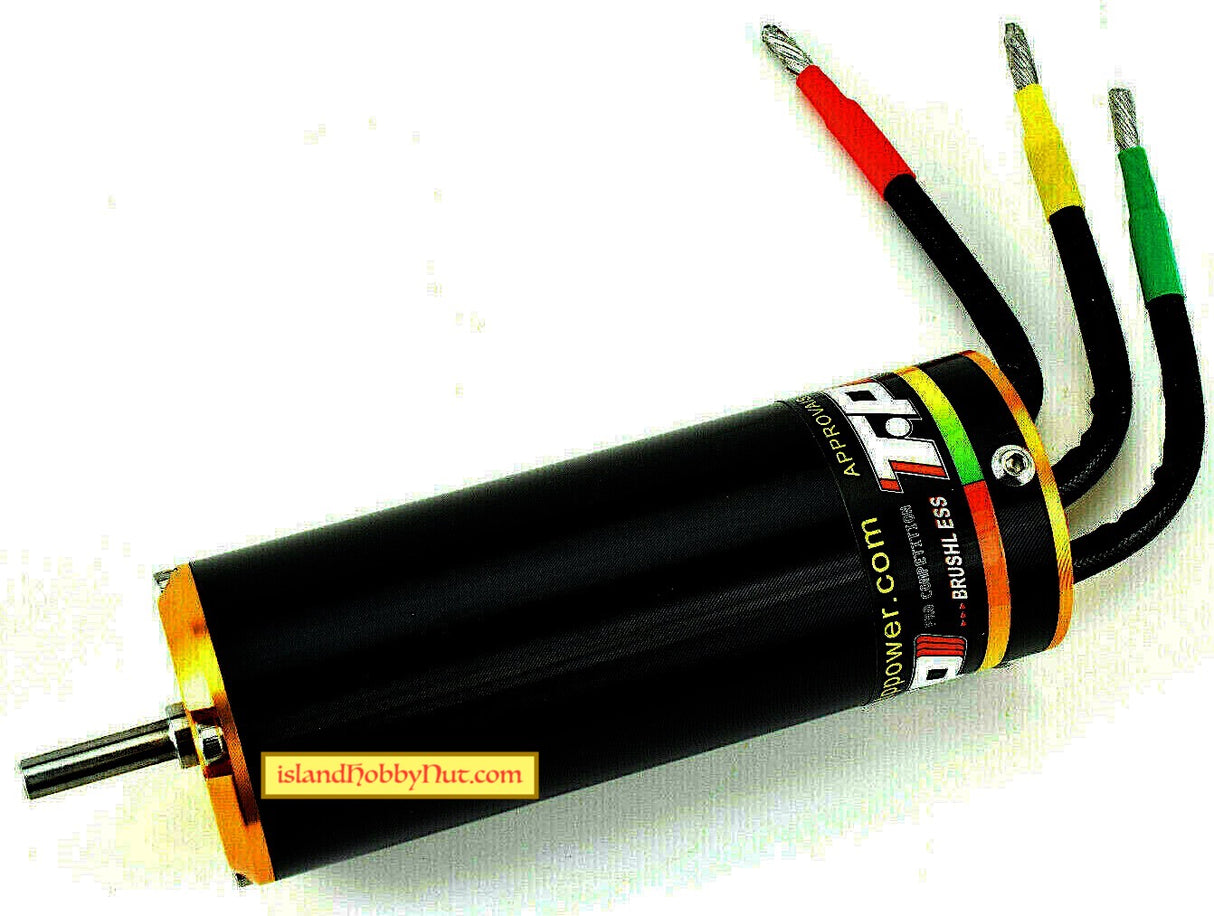

TP POWER 4070 SVM 2940 kv 6s BRUSHLESS MOTOR
$244.95
Unit price
/
Unavailable
Shipping calculated at checkout.
TP POWER 4070 SVM 2940 kv 6s BRUSHLESS MOTOR - 8MM is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
TP4070-SVM Series are the new competition 4-pole motors with more torque and power under high RPM design.
KV: 2940
Winding: D
Max Current (A): 383
Max Voltage (V): 24.8
Continuous Power (W): 5500
Max Power (W) - Less than 10 seconds for safety: 9500
Max RPM - Less than 10 seconds for safety: 73K
No-load current (A): 7.4
Internal Resistance (Ohm): 0.001888
Shaft diameter: 8mm
Output Shaft Length: 18mm for 5mm diameter, 24mm for 8mm diameter
Diameter x length (mm): 40 x 107
Bolt pattern: 4-M4-25
Poles: 4 pole
