RC4WD Z-A0101 K44 Ultimate Scale Cast Front Axle Trail Finder 2 Gelande II

RC4WD Z-A0101 K44 Ultimate Scale Cast Front Axle Trail Finder 2 Gelande II

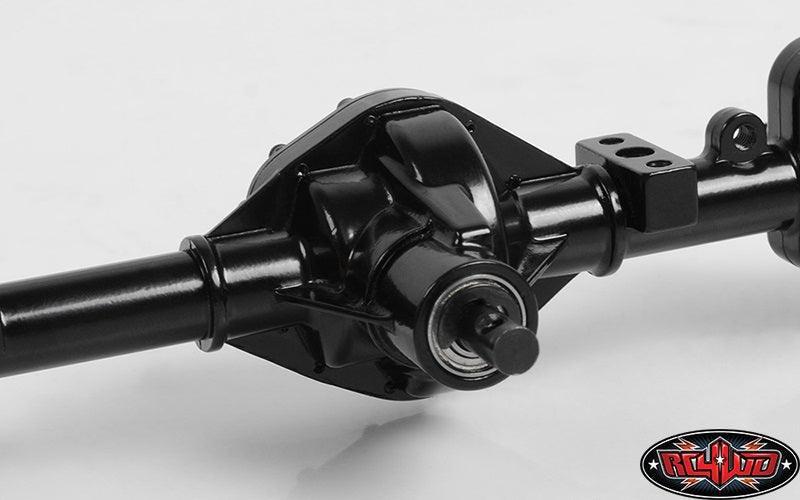

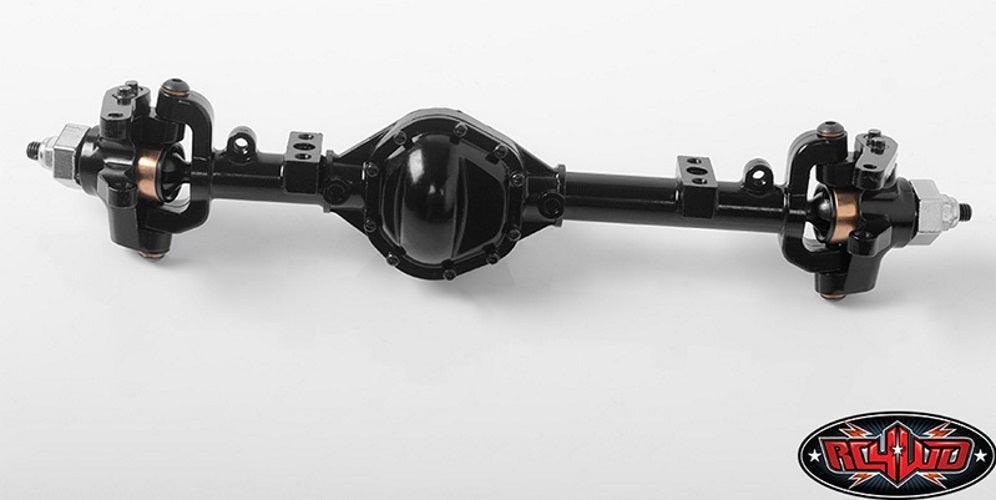

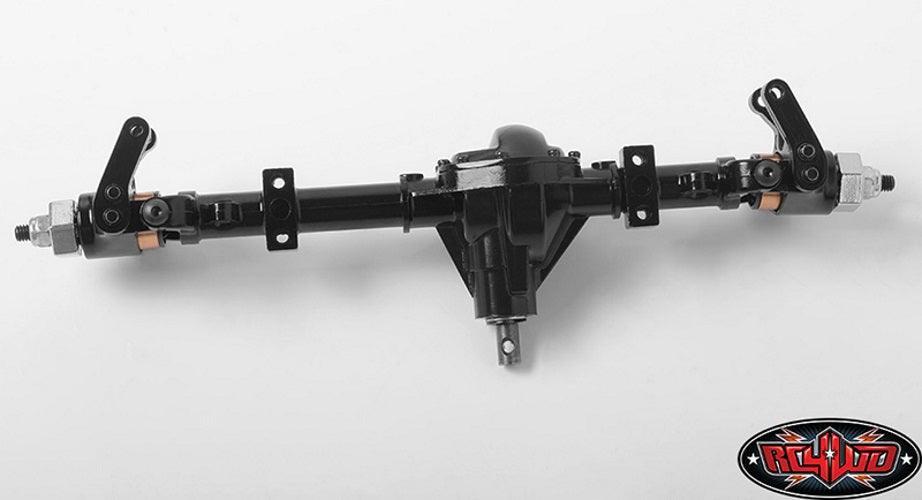

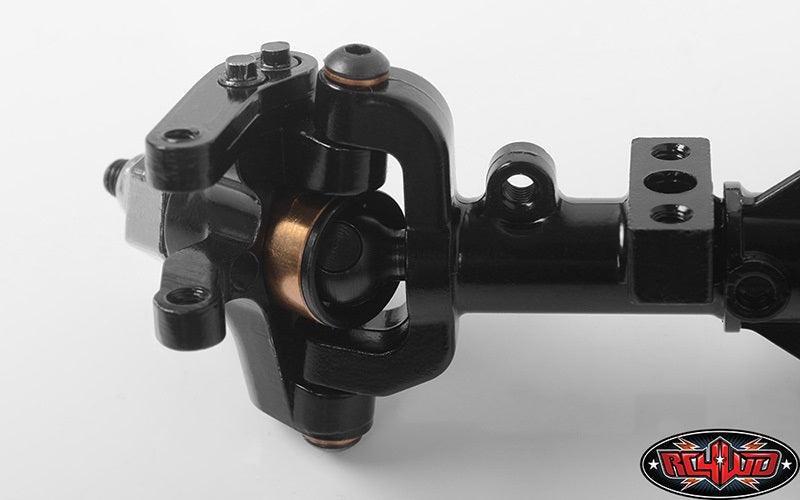

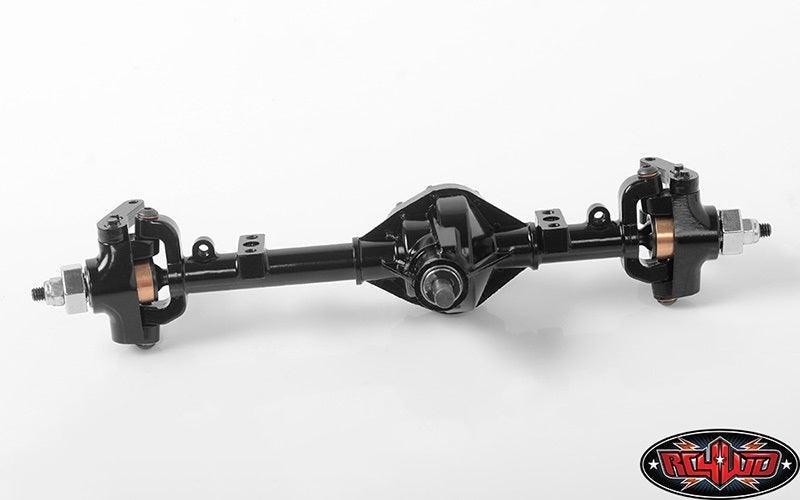

This is the best reproduction to date of a scale axle. The K44 Axles have been designed from the ground up with input from some of the top scale builders in the world. With smaller axle tubes, high steer knuckles and many more features never before found on a set of radio control scale axles. RC4WD keeps pushing the limits on scale items and this new axle is a perfect example!

Specifications:
Die Cast Zinc Alloy Housing
Black Electrophorese
Removable Diff Cover
Hex Thickness: 6mm
12mm Wheel Hex
5mm Axle Output Shaft
Gear Ratio: 2.67 : 1
Designed and Manufactured by RC4WD
Designed for 1/10 Trucks
Hex to Hex Width: 6.97in / 177mm
Pin to Pin Width: 6.46in / 164mm
Pumpkin Height: 1.37in / 34.86mm
Weight: 8.32oz / 236g

What's Included:
1x K44 Ultimate Scale Cast Front Axle

Rear K44 Axles:
K44 Ultimate Scale Cast Rear Axle (Z-A0096)

Required Parts:
K44 Cast Steering Link Set (Z-S1685)

Replacement Hardware:
10x M1.6 x 4mm SHCS (Black) (Z-S1232)
4x M3 x 8mm BHCS (Black) (Z-S0652)
6x Metal Shield Bearing 5x11x4mm (Z-S0683)
2x Metal Shield Bearing 5x8x2.5mm (Z-S0684)
2x RC4WD 12mm Axle Wheel Hexes (Z-S0239)
2x Nylock Nuts M4 (Silver) (Z-S1265)
1x M4 E-clip (Black) (Z-S0919)

Optional Parts:
Ultimate Axle 4 Link Mount (Z-S0133)
RC4WD 12mm Mini Hex Wheel Widener Set (+15mm) (Z-S0407)
Helical Gear Set for 1/10 Yota Axle (Z-G0059)
The Ultimate Scale Yota 1/10 Axle Ring & Pinion Gears (Z-S0027)
RC4WD ARB Diff Cover for K44 Cast Axle (Z-S1839)
RC4WD Poison Spyder Bombshell Diff Cover for Cast K44 Axle (Z-S1847)
XVD for Cast K44 Front Axle (Z-S1864)

Notes:

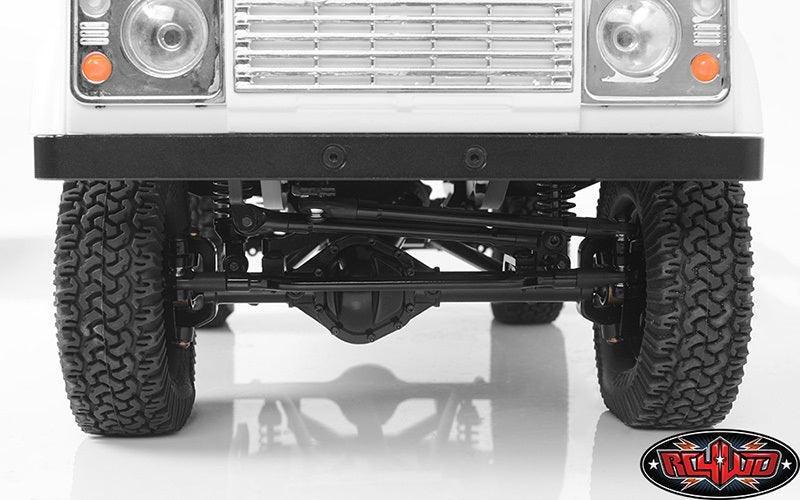

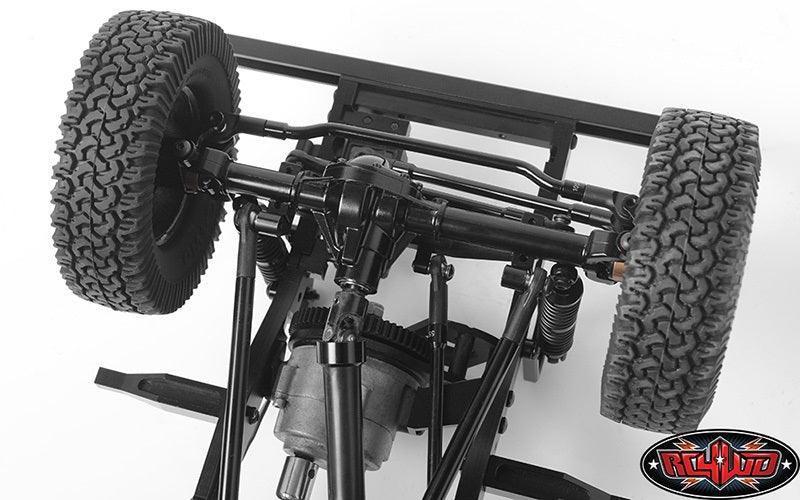

Fits RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024)
Fits RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler (Z-RTR0034)
Fits RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set (Z-RTR0030)
Fits RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Limited Edition) (Z-RTR0035)
Fits RC4WD Trail Finder 2 Truck Kit "LWB" w/ Mojave II Four Door Body Set (Z-K0058)
Fits RC4WD Trail Finder 2 Truck Kit "LWB" 1/10 Scale Long Wheel Base (Z-K0059)
Fits RC4WD Gelande II Truck Kit "LWB" 1/10 Chassis Kit (Z-K0061)
Fits RC4WD Trail Finder 2 Truck Kit (Z-K0054)
Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
Fits Gelande II D110 Truck Kit With Hard Body (Z-K0047)
Fits RC4WD Gelande II Truck Kit w/D90 Body Set (Z-K0001)
Fits Gelande II Truck Kit w/Cruiser Body Set (Z-K0051)
