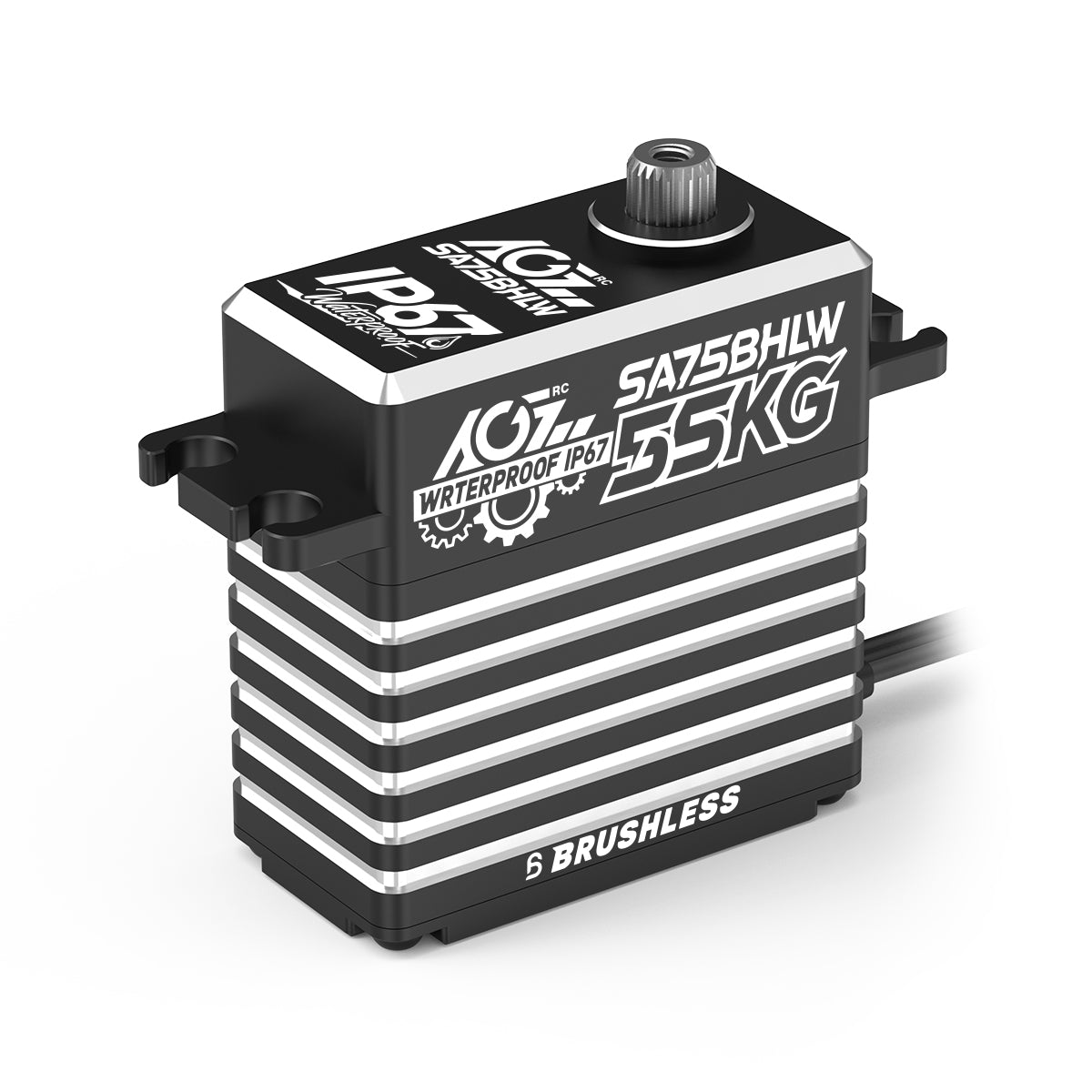

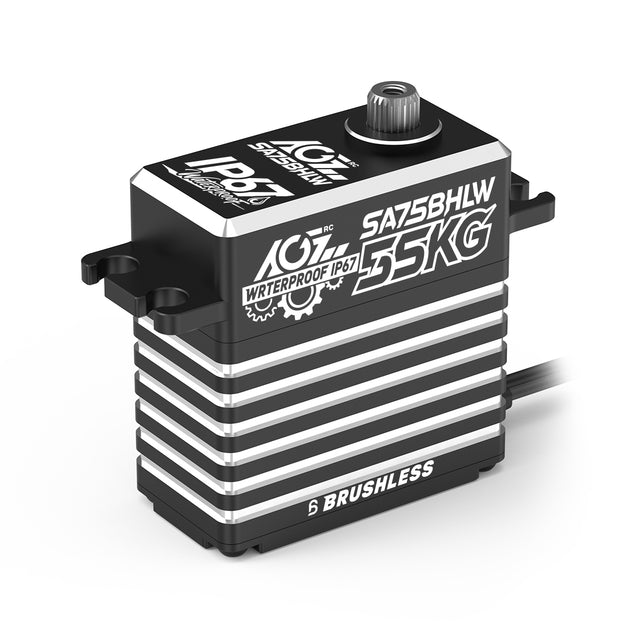

AGFRC SA75BHLW 55Kg High Torque / High Speed Waterproof Servo

The AGFRC SA75BHLW is a high-performance digital brushless servo that strikes the perfect balance between raw power and blazing speed. Delivering up to 55 kg·cm of torque at 8.4V with a swift 0.11s/60° transit time, it handles heavy loads with precision and agility.

Built with an IP67 waterproof housing, AL6061T6 CNC-machined case, and hardened steel gears, the SA75BHLW thrives in harsh environments — from off-road RC buggies and rock crawlers to industrial robotics and automation systems.

Fully programmable and compatible with a wide 4.8V ~ 8.4V voltage range, this servo adapts to your specific needs. Whether you're competing at the highest level or engineering a mission-critical system, the SA75BHLW delivers the reliability and performance you can count on.

FEATURES

• Full CNC Aluminum Case

• Cooling Servo-Shaped Design

• Long-lifespan Brushless Motor

• Super-hardness Steel Gear

• Magnetic IP67 Waterproof

• Programmable And Winch Mode

PRODUCT SPECIFICATIONS

   Voltage    4.8V ~ 8.4V   Direction    CCW

   Gear Material    Strength Steel   Temperature    -15°C ~ +70°C

   Pulse Width    500 ~ 2500 µSec   Refresh Rate    1520 µS / 333Hz

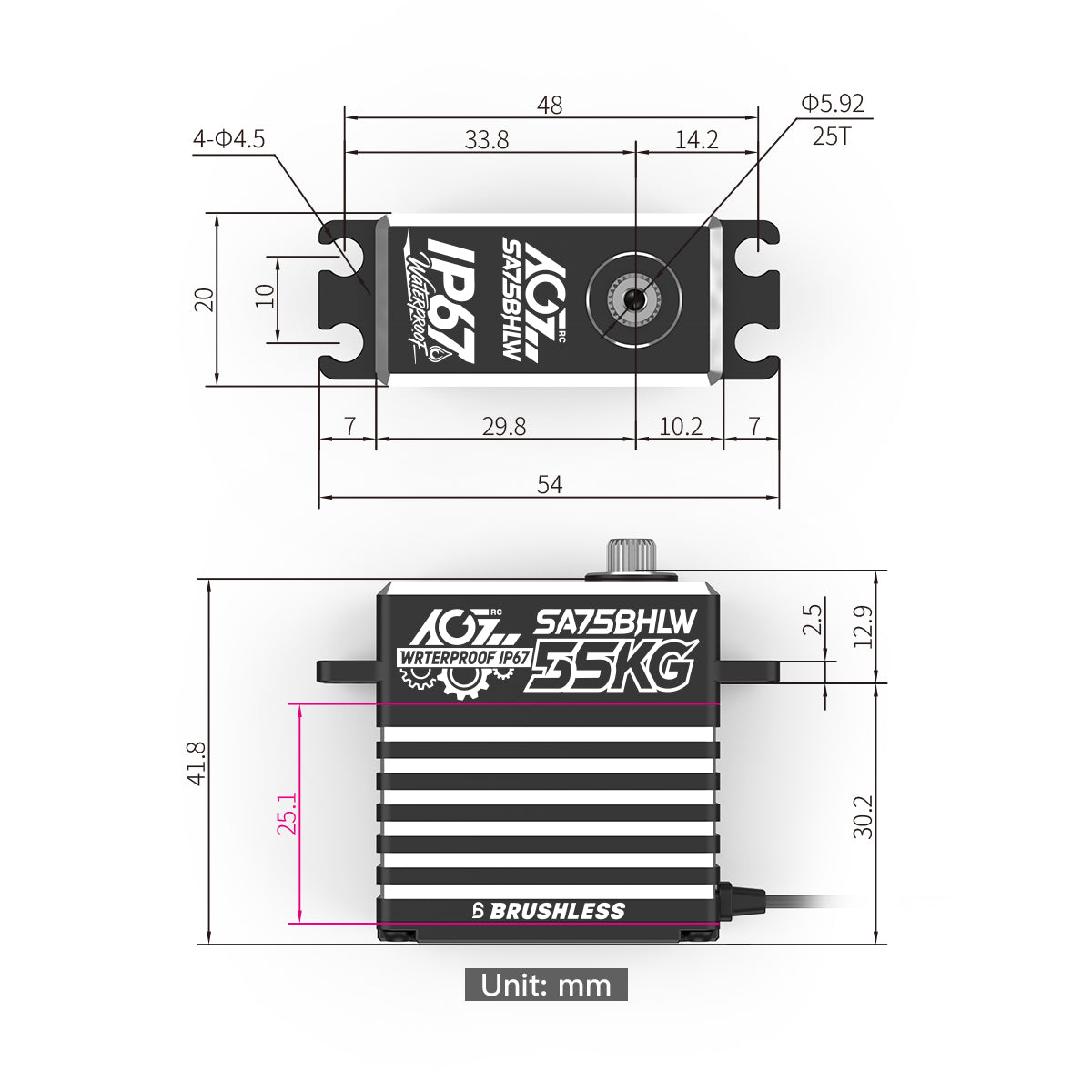

   Dimension    40*20*41.8 mm   Motor Type    Brushless

   Bearing    2BB   Dead Band    2 µSec

   Net Weight    85 g   Gear Spline    25T-ɸ5.92 mm

   Case Material    AL6061T6   Travel Angel    180 ± 10°

   Wire    TYU 300mm / 22AWG   Wire Color    Black | Black | Grey

Operating Speed    Stall Torque

0.175 sec/60° @4.8V    35 kg·cm (486 oz·in) @4.8V

0.142 sec/60° @6.0V    40 kg·cm (556 oz·in) @6.0V

0.125 sec/60° @7.4V    49 kg·cm (681 oz·in) @7.4V

0.110 sec/60° @8.4V    55 kg·cm (764 oz·in) @8.4V
