Castle Creations | SKU :

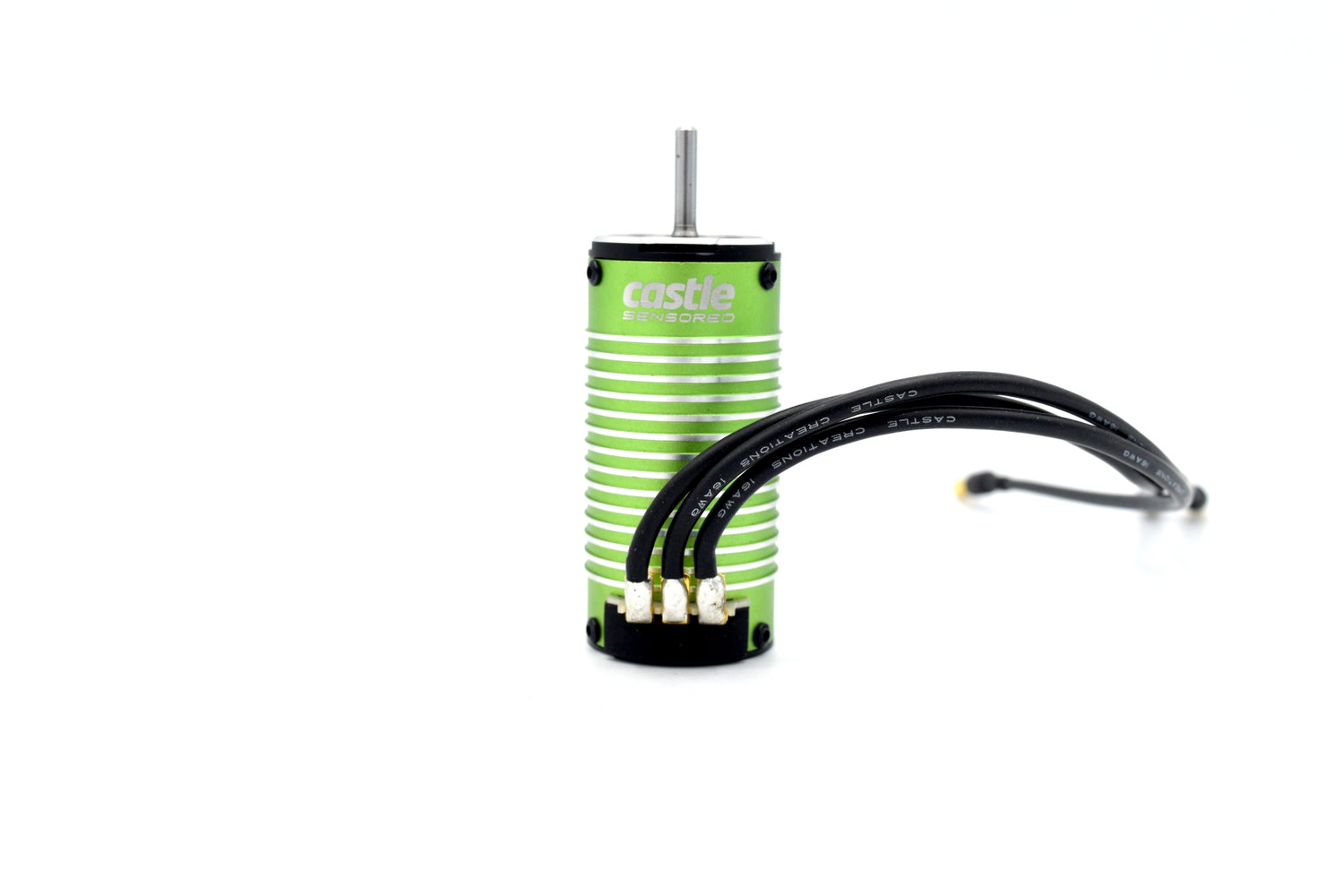

CASTLE CREATIONS 060-0098-00 4-Pole Sensored Brushless Motor, 1010-4400KV
$99.99
Prix unitaire
/
Indisponible
Frais de livraison calculés lors du paiement.
CASTLE CREATIONS 060-0098-00 4-Pole Sensored Brushless Motor, 1010-4400KV est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Description
Description
- Our IMPROVED 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT.
- QUIETSENSE(TM) technology shields the sensors from magnetic field noise generated from the motor coils and keeps your motor and ESC in sync at all times. Use of a Flux Shield(TM) in conjunction with secondary Sense Magnets delivers even HIGHER PRECISION and MORE EFFICIENT startups.
- Our OPTIMIZED design eliminates the need for mechanical timing adjustments. Our sensor alignment method delivers uniform timing and torque in both directions, automatically.
- Updated modern and sleek design; looks as cool as it performs.
- Input Voltage Range: 2s - 4s LiPo
- Kv: 4400
- Max. RPM: 80,000
- Size: Length: 58.4 mm; Diameter: 28 mm
- Weight (w/wires): 5.17oz (146.5g)
- Shaft Size: Length: 15 mm; Diameter: 1/8" (3.175 mm)
- Mounting Hole Specifications: M.5 @ 14mm & 16mm; M3 @ 19 mm
- Connectors: 4mm male Castle Bullet Connectors attached to replaceable 16 gauge wire; includes 210mm length sensored wire
- Application Guidelines: Ideal for 1/16th and 1/14th scale vehicles weighing up to 3lbs.
- Recommended ESC(s): Mamba Micro X2
- Running Modes: SmartSense(TM) (with Castle Sensor capable ESC), Sensored and an ultra-efficient Sensorless mode.
