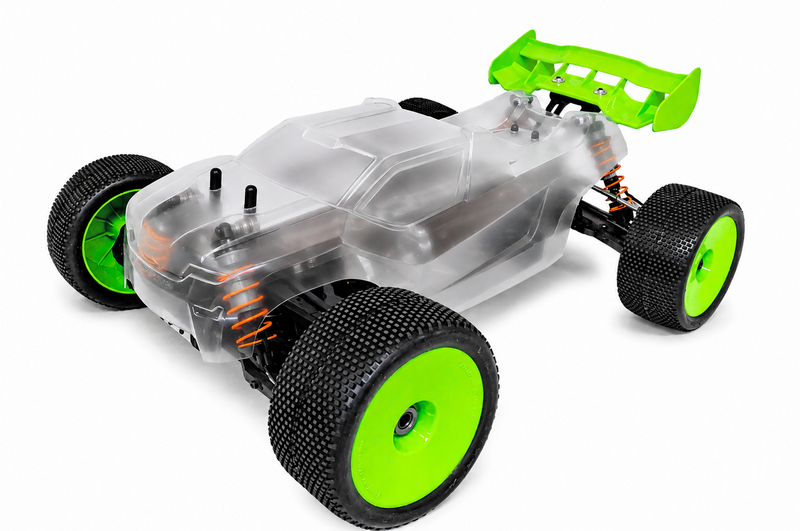

HOBAO [HB-VSTE] HYPER VS2 TRUGGY ELECTRIC ARR

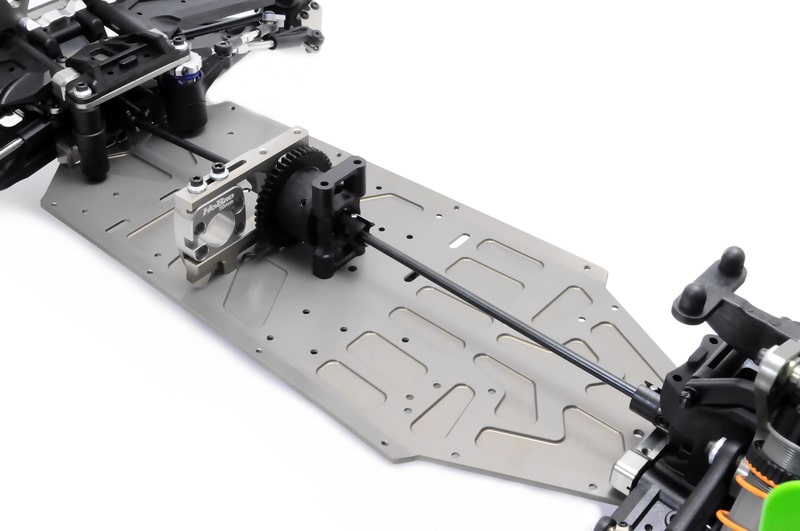

Drivetrain:

• All driveshafts and cups are made of hardened steel.
• Central:
  -. Dual battery tray layout: Dogbone axles, Ø4.5 mm (Front: 95 mm / Rear: 147 mm)
  -. Optional single battery tray layout: Dogbone axles, Ø4.5 mm (Front: 64 mm / Rear: 182 mm)
• Front: Universal driveshafts, Ø4.5 mm, 130 mm
• Rear: Dogbone axles, Ø4.5 mm, 131 mm
  -. Optional rear universal joint driveshafts #85212 .

Differentials:

• Front, rear, and center differentials with metal bevel gears and anti-leakage housings.
• Pinion Gear: 10T (MOD 1)/ Ring Gear: 46T (MOD 1)
  Optional pinion and ring gear:
  -. 13T/ 43T (high-speed application) #87028, #85111
  -. 15T/ 40T (Extreme speed application) #OP-0146, #OP-0147
      Note: Using the 15T/40T pinion and ring gear setup may increase stress on the drivetrain and electronics. Please upgrade related parts accordingly.
• Center Spur Gear: 45T (MOD 1)

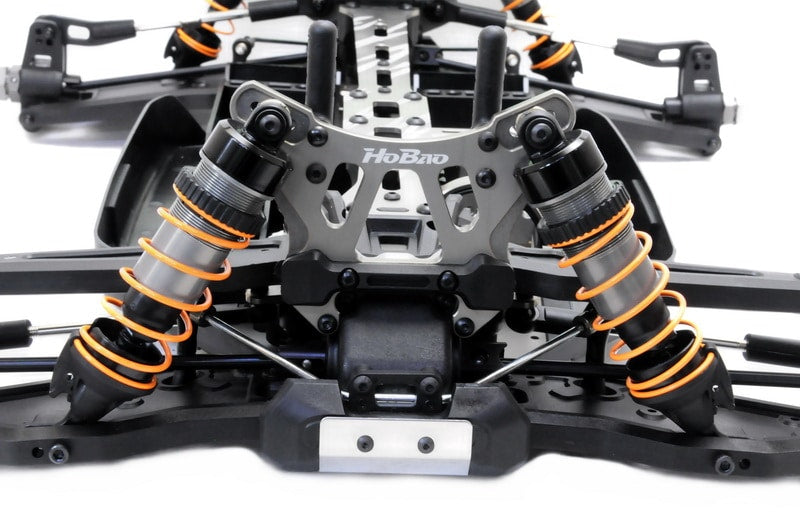

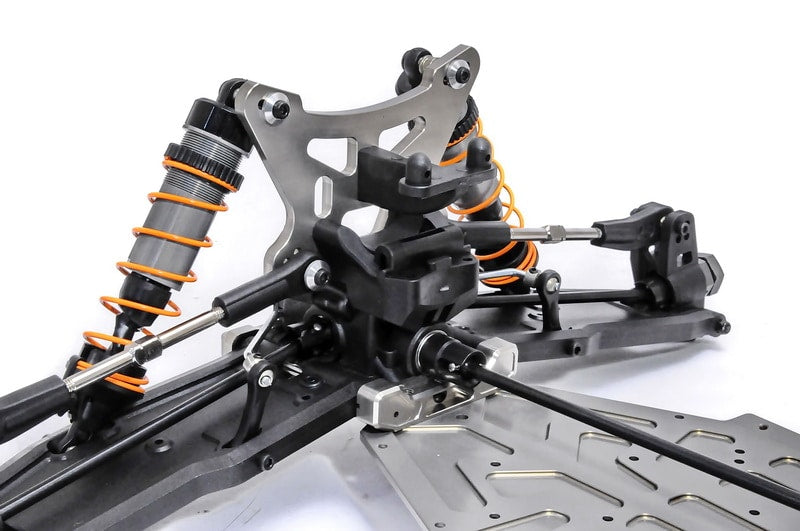

Shocks:

• Shock Fluid Setup:
  -. Front: #500 silicone oil.
  -. Rear: #500 silicone oil.
• 17 mm ID large-bore alum shock bodies with adjustable ring
• 4 mm shock shafts made of high-hardness alloy steel for excellent wear resistance and high fatigue strength.
• CNC 7075 alum shock towers- 5 mm thick and lightweight
• Piston: 1.5 mm x 3 holes

• Optional Piston:
  -. 1.0mm x 6 holes #OP-0192
  -. 1.2mm x 6 holes #OP-0193
  -. Outer ring: 1.2 mm x 8 holes/ Inner ring: 1 mm x 8 holes, POM , not drilled  #OP-0194
• Spring
  -. Front: Rate 1 kg/cm, Length 65 mm, Orange.
  -. Rear: Rate 0.85 kg/cm, Length 85 mm, Orange.
• Optional Spring
  -. Front- Soft: Rate 0.85 kg/cm, Length 65 mm, Orange, (1-Dot) #OP-0196
  -. Rear- Soft: Rate 0.7 kg/cm, Length 85 mm, Orange, (1-Dot) #OP-0198
  -. Front- Hard: Rate 1.15 kg/cm, Length 65 mm, Orange, (3-Dots) #OP-0197
  -. Rear- Hard: Rate 1 kg/cm, Length 85 mm, Orange, (3-Dot) #OP-0199
• One-Piece shock alum cap #89130
