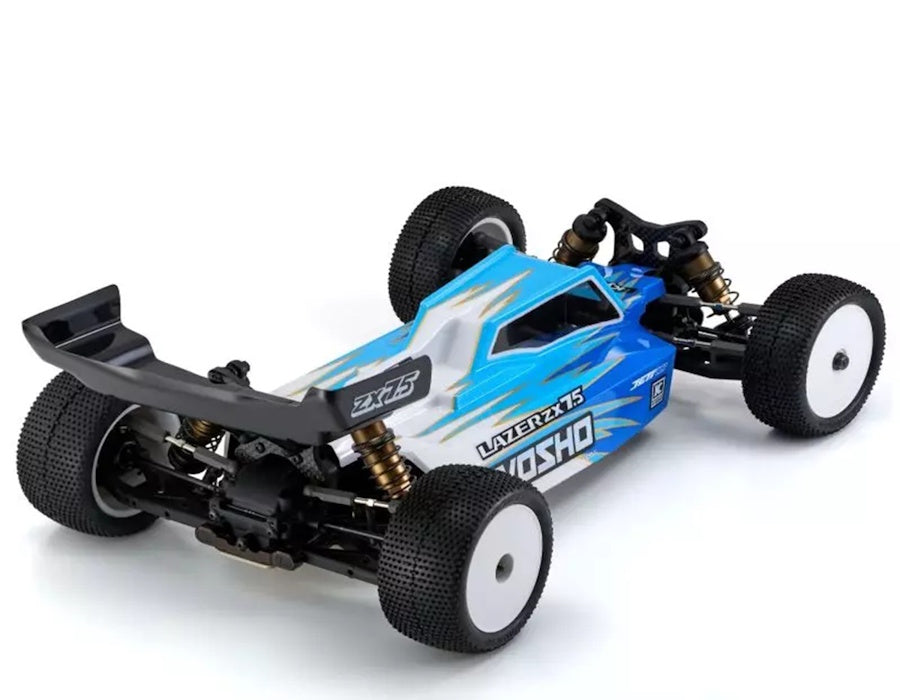

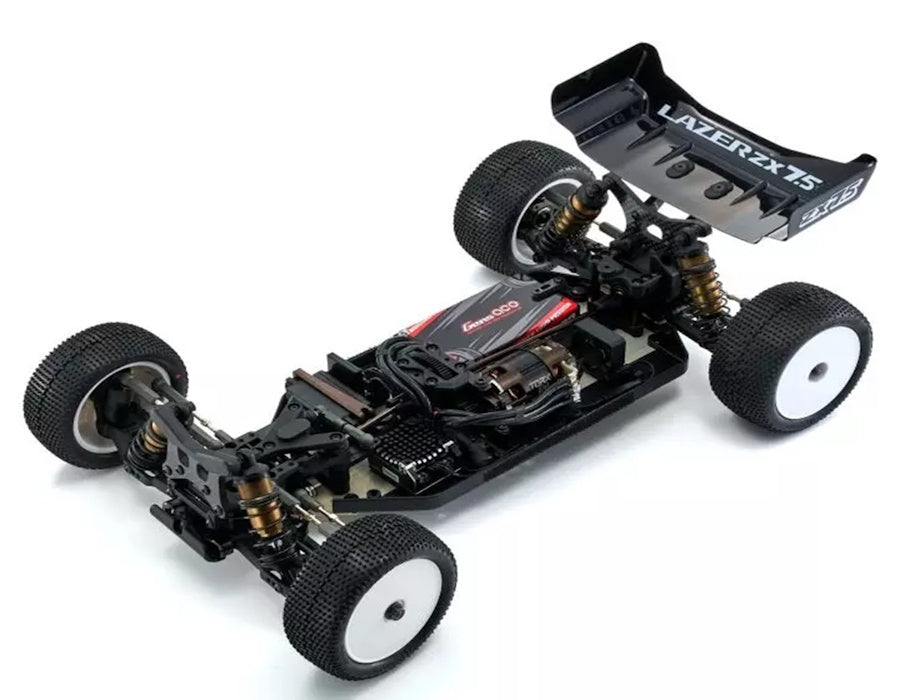

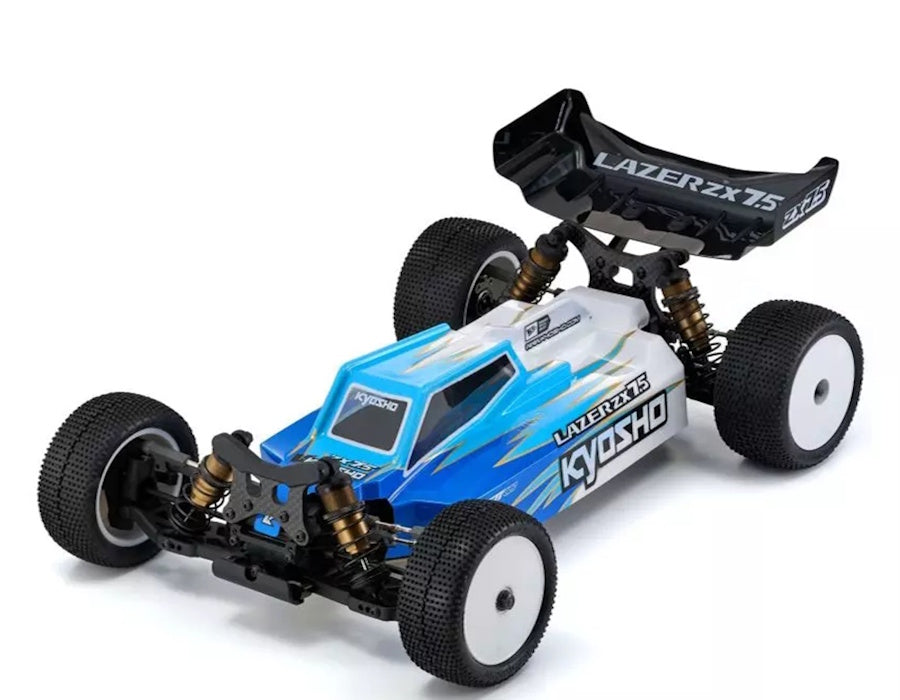

Kyosho 34331 Lazer ZX7.5 1/10 4WD Electric Competition Buggy Kit

Kyosho Lazer ZX7.5 1/10 4WD Electric Competition Buggy Kit 34331

Description:

The Kyosho Lazer ZX7.5 is a high-performance 1/10 scale 4WD electric competition buggy kit designed for serious off-road racing. Building on the proven Lazer ZX7 platform, the ZX7.5 features improved weight distribution, increased chassis flex, enhanced durability, and expanded tuning options for carpet, artificial turf, and dirt tracks.

A lightweight 2.0mm A7075-T6 aluminum chassis positions the center gearbox farther forward for improved traction and stability. Aluminum big-bore shocks, carbon-fiber shock towers, adjustable suspension geometry, and durable sintered-steel differential gears provide the precision and reliability needed for competitive racing.

This is an unassembled kit and requires electronics, tires, paint, and additional running equipment.

Features:

• 1/10 scale 4WD electric competition buggy
• Lightweight 2.0mm A7075-T6 aluminum main chassis
• Revised chassis layout for improved weight distribution
• Geared center differential
• Optional slipper-clutch conversion capability
• One-piece aluminum steering-servo mount
• Floating servo-mount design helps preserve chassis flex
• Aluminum big-bore oil shocks with 13mm pistons
• Lightweight 4mm carbon-fiber shock towers
• Adjustable 7-, 10-, or 13-degree caster settings
• Aluminum rear hub carriers with multiple adjustment positions
• Adjustable upper-link length, height, and roll center
• Sintered-steel front and rear differential gears
• Compatible with optional ball differentials
• Designed for shorty-style LiPo batteries
• Carbon-fiber battery holder
• High-downforce forward-cabin body
• Includes two front upper-plate options for steering and stability tuning
• Suitable for carpet, artificial turf, and dirt-track racing

Specifications:

• Scale: 1/10
• Drive System: Four-Wheel Drive
• Power Type: Electric
• Vehicle Type: Competition Off-Road Buggy
• Length: 385mm
• Width: 248mm
• Height: 145mm
• Wheelbase: 278mm
• Front Tread: 210mm
• Rear Tread: 200mm
• Approximate Weight: 1,650g when completed

Includes:

• Kyosho Lazer ZX7.5 unassembled buggy kit
• Clear buggy body
• Rear wing
• Wheels
• Logo decal sheet
• 1.5mm, 2.0mm, and 2.5mm hex wrenches
• Cross wrench
• Teflon grease
• Assembly instructions

Required to Complete:

• 2-channel or 3-channel transmitter and receiver
• Steering servo
• Electronic speed controller
• Electric motor
• Motor pinion gear
• Shorty-style LiPo battery
• Compatible battery charger
• 1/10 buggy tires
• Tire inserts
• Shock oil
• Differential oil
• Polycarbonate body paint
• Assembly tools

Fits:

• Kyosho Lazer ZX7.5
• Designed as a complete 1/10 scale 4WD electric competition buggy kit

Part Number: 34331

Brand: Kyosho

Model: Lazer ZX7.5

UPC/JAN: 4548565522552

Important: This is an unassembled competition kit. Motor, ESC, servo, radio system, battery, charger, tires, tire inserts, oils, pinion gear, and body paint are not included.
