Powerhobby 112MG High-Speed Brushless Programmable Digital Servo 1/12

Powerhobby 112MG High-Speed Brushless Programmable Digital Servo

Description

The Powerhobby 112MG is a compact, high-output programmable digital servo designed for 1/12-scale on-road, off-road, and lightweight racing applications where fast response, strong torque, and precise steering are required.

Its FET-driven brushless motor delivers smooth and consistent performance, while hardened steel gears and dual ball bearings provide durability for demanding racing conditions. A low 2μs deadband helps provide precise centering and responsive control.

Supporting operation from 4.8V to 8.4V, the 112MG produces up to 167 oz-in of torque with an ultra-fast transit speed of 0.050 second per 60 degrees at 8.4V. Programmable settings allow compatible parameters such as direction, travel, and response to be adjusted for different vehicles and driving preferences.

Features

• High-speed programmable digital servo
• Designed for 1/12-scale racing applications
• FET-driven brushless motor
• Hardened steel gear train
• Dual ball-bearing support
• Low 2μs deadband for precise centering
• Adjustable direction, travel, and response settings
• High-voltage 4.8V–8.4V operating range
• Up to 167 oz-in of torque
• Ultra-fast 0.050 sec/60° transit speed
• Compact and lightweight design
• Strong power-to-size ratio

Includes

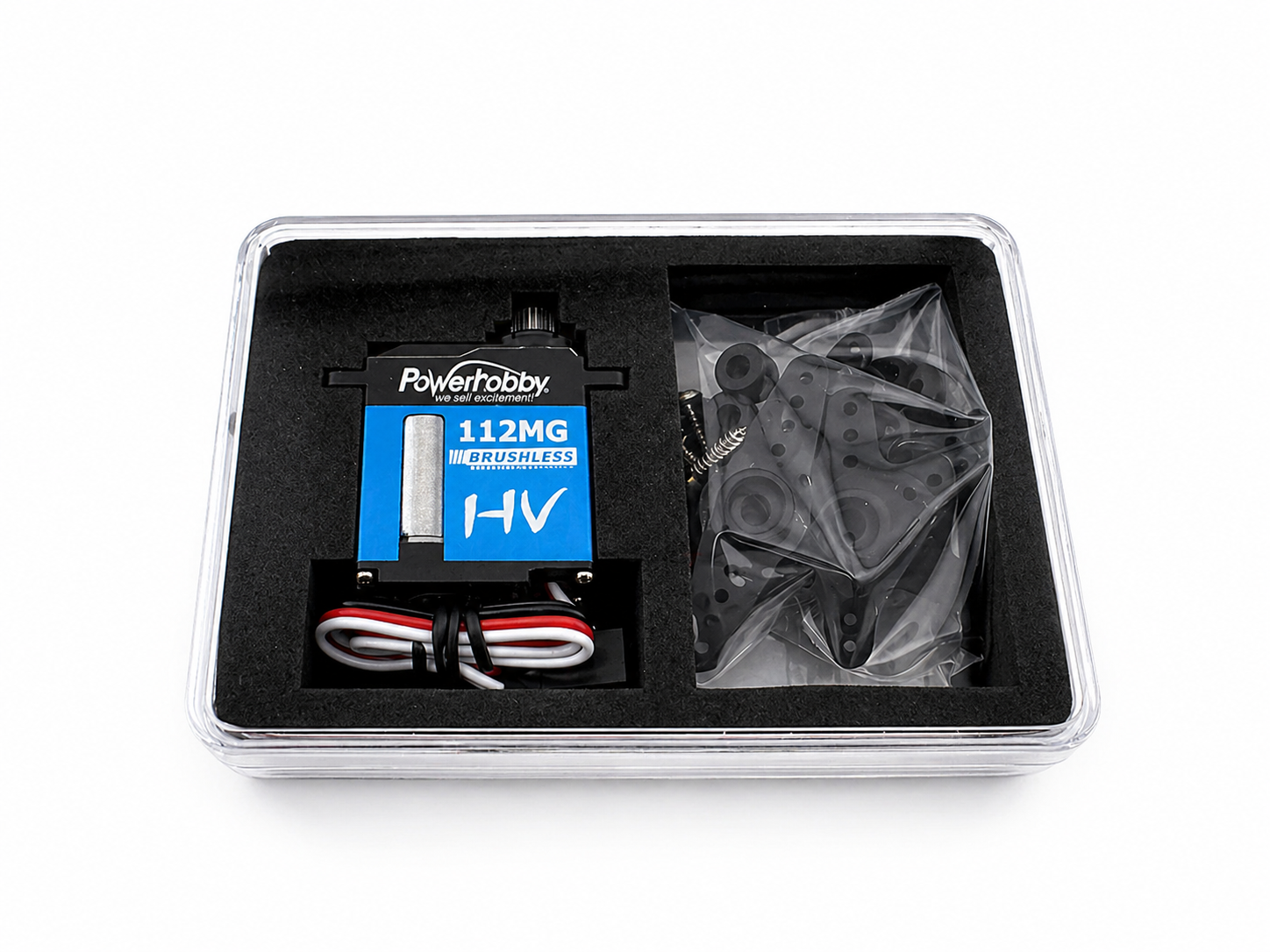

• 1 Powerhobby 112MG Programmable Digital Servo

Specifications

• SKU: PHB112MG
• Barcode: 800185010111
• Servo Type: Programmable Digital Mini Servo
• Operating Voltage: 4.8V–8.4V
• Speed at 4.8V: 0.085 sec/60°
• Speed at 6.0V: 0.070 sec/60°
• Speed at 7.4V: 0.060 sec/60°
• Speed at 8.4V: 0.050 sec/60°
• Torque at 4.8V: 8.5 kg-cm / 118 oz-in
• Torque at 6.0V: 10.0 kg-cm / 139 oz-in
• Torque at 7.4V: 11.0 kg-cm / 153 oz-in
• Torque at 8.4V: 12.0 kg-cm / 167 oz-in
• Motor Type: Brushless
• Gear Material: Hardened Steel
• Bearings: Dual Ball Bearing
• Deadband: 2μs
• Dimensions: 25.6 × 12 × 28.9mm
• Dimensions in Inches: Approximately 1.01 × 0.47 × 1.14"
• Weight: 26g

Fits

Suitable for compatible applications including:

• 1/12-scale on-road racing vehicles
• 1/12-scale off-road vehicles
• Lightweight RC racing platforms
• Other models accepting a 25.6 × 12 × 28.9mm servo

Check the servo dimensions, mounting-hole spacing, output spline, servo-horn compatibility, connector type, receiver or BEC voltage, steering linkage, and programming-device compatibility before installation.

• 12.0 kg-cm (167 oz-in) @ 8.4V
• 11.0 kg-cm (153 oz-in) @ 7.4V
• 10.0 kg-cm (139 oz-in) @ 6.0V
• 8.5 kg-cm (118 oz-in) @ 4.8V

Operating Speed

• 0.050 sec/60° @ 8.4V
• 0.060 sec/60° @ 7.4V
• 0.070 sec/60° @ 6.0V
• 0.085 sec/60° @ 4.8V
