Powerhobby 30MM Booster High Speed Aluminum RC Cooling Fan 28K

Powerhobby 30mm Aluminum Tornado Booster High Speed HV Cooling Fan

Description

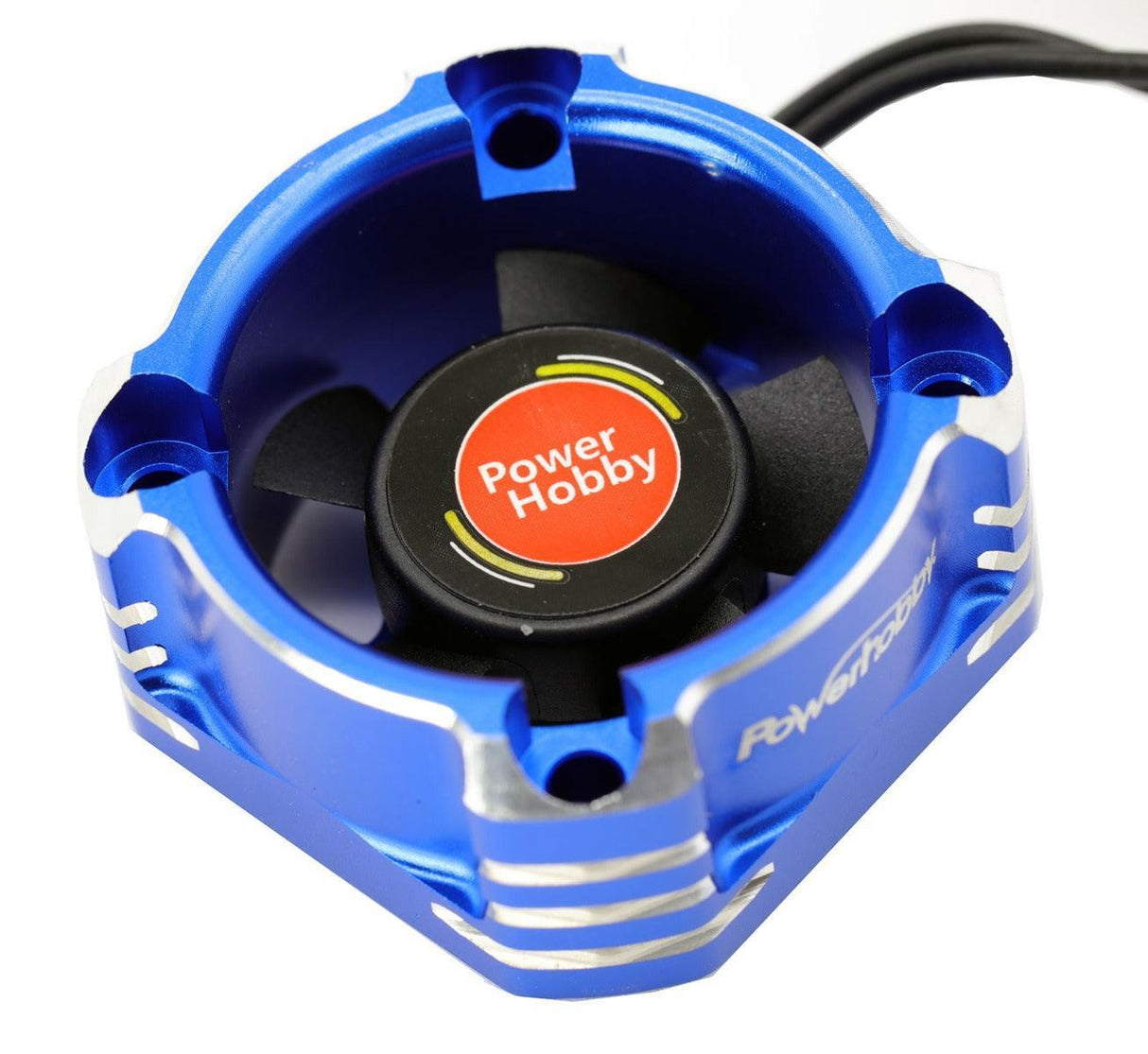

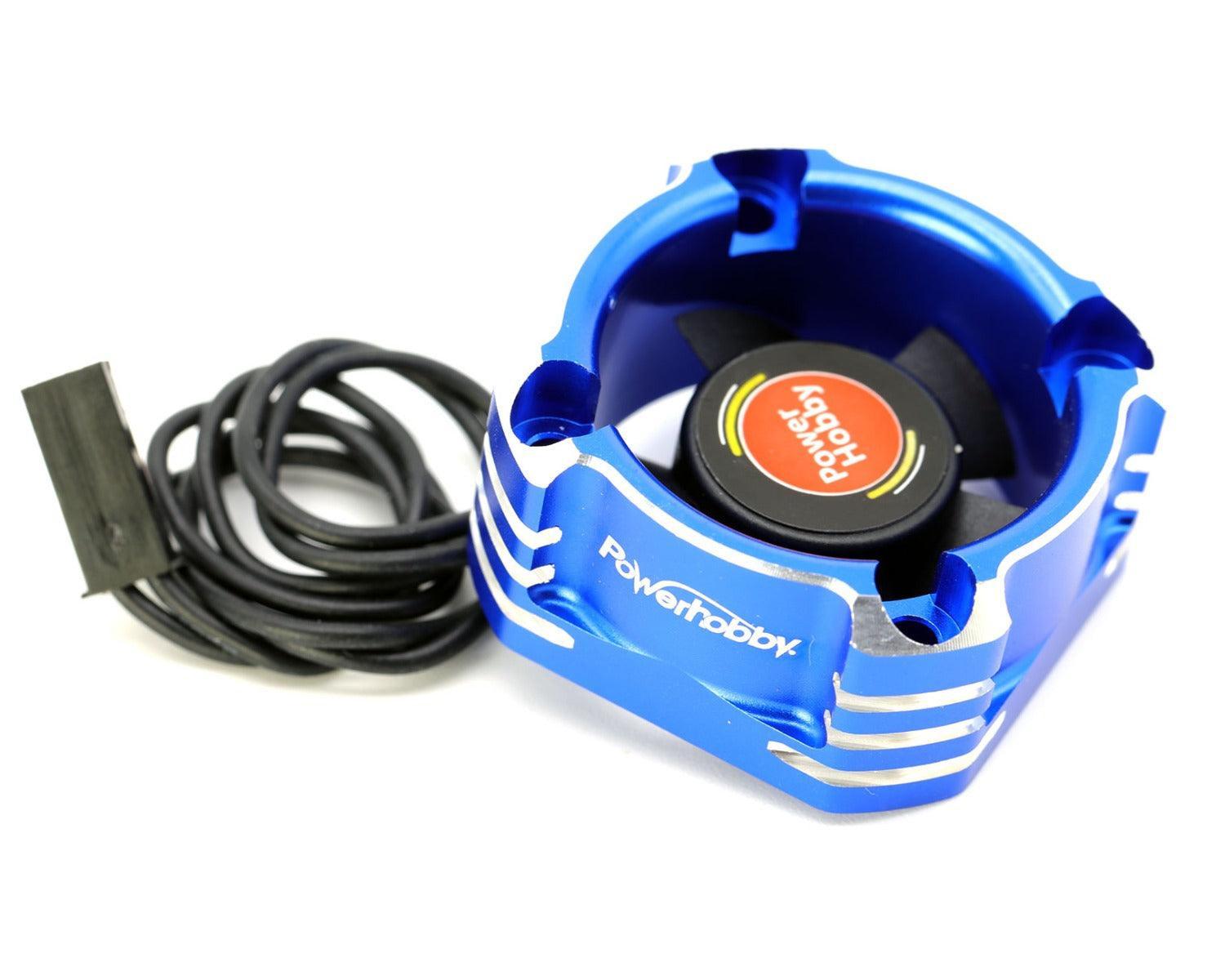

The Powerhobby 30mm Tornado Booster Cooling Fan is designed to deliver high-speed airflow for RC motors, electronic speed controls, and other compatible electronics.

Its full T6 aluminum housing helps direct airflow into the fan while also providing additional surface area for heat dissipation. The aluminum construction also helps protect the fan blades from debris and accidental contact.

Operating from 5V to 8.5V, the fan reaches up to 28,000 RPM at 8.5V. Its compact 30 × 30 × 10mm size makes it suitable for a wide range of RC cooling installations.

Features

• High-speed 30mm RC cooling fan
• Produces up to 28,000 RPM at 8.5V
• T6 aluminum heatsink-style housing
• Aluminum casing helps protect the fan blades
• Housing helps concentrate and direct airflow
• Compact 30 × 30 × 10mm dimensions
• Wide 5V–8.5V operating range
• JST power connector
• Suitable for motor, ESC, and custom electronics cooling
• Compatible with many 1/12 through 1/5-scale RC applications
• Blue finish

Includes

• 1 Powerhobby 30mm High-Speed Aluminum Cooling Fan
• Mounting Hardware

Specifications

• SKU: PHF3033-Blue
• UPC: Does Not Apply
• Product Type: High-Speed RC Cooling Fan
• Fan Dimensions: 30 × 30 × 10mm
• Fan Dimensions in Inches: Approximately 1.18 × 1.18 × 0.39"
• Maximum Fan Speed: 28,000 RPM at 8.5V
• Operating Voltage: 5V–8.5V
• Current Draw: 0.45A
• Wire Length: 180mm
• Connector: JST
• Housing Material: T6 Aluminum
• Weight: 13g
• Color: Blue

Fits

Universal RC cooling applications with sufficient mounting space and a compatible power source, including many:

• 1/12-scale RC vehicles
• 1/10-scale RC vehicles
• 1/8-scale RC vehicles
• 1/7-scale RC vehicles
• 1/6-scale RC vehicles
• 1/5-scale RC vehicles
• Motor heatsinks and fan mounts
• Electronic speed controls
• Custom RC electronics installations

Verify the mounting-hole spacing, available clearance, connector type, power-source voltage, and current capacity before installation.

Installation Note

Mount the fan securely with the included hardware and confirm that the blades rotate freely. Keep the fan and wiring away from gears, driveshafts, motor shafts, suspension components, and other moving parts.

Connect the fan only to a power source rated between 5V and 8.5V that can provide at least 0.45A. Do not exceed 8.5V.

The product page also mentions 2S HV LiPo compatibility, but a fully charged 2S HV battery can exceed the fan’s listed 8.5V operating limit. Use a regulated BEC or voltage reducer when necessary.
