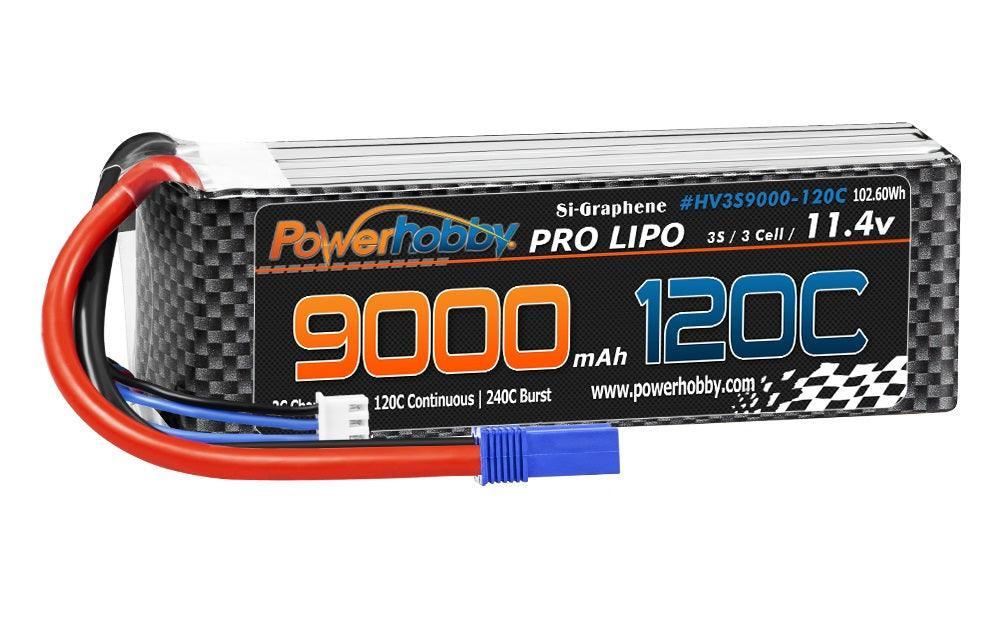

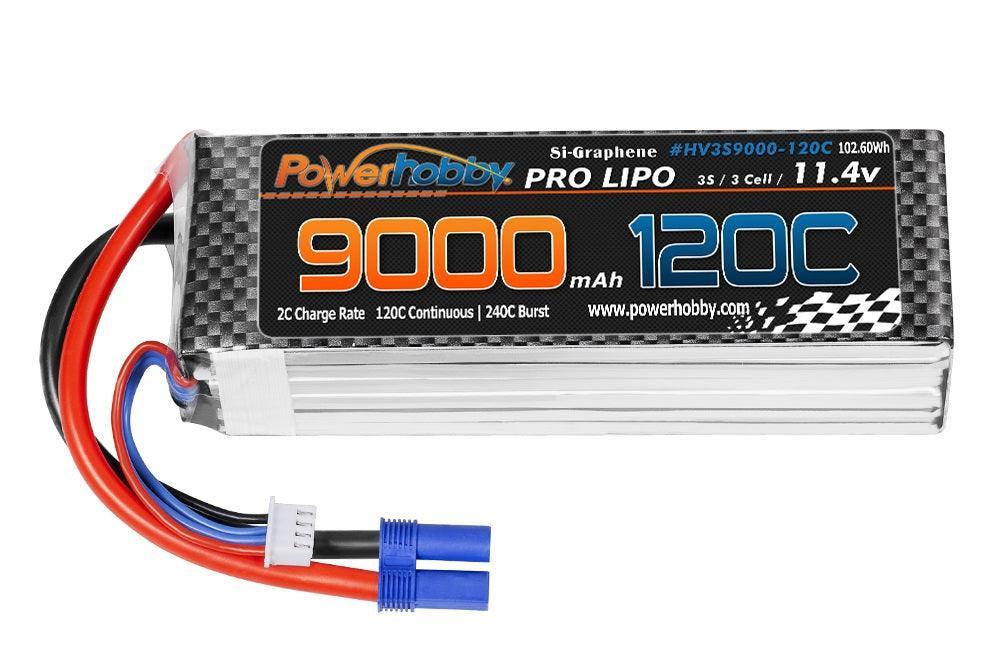

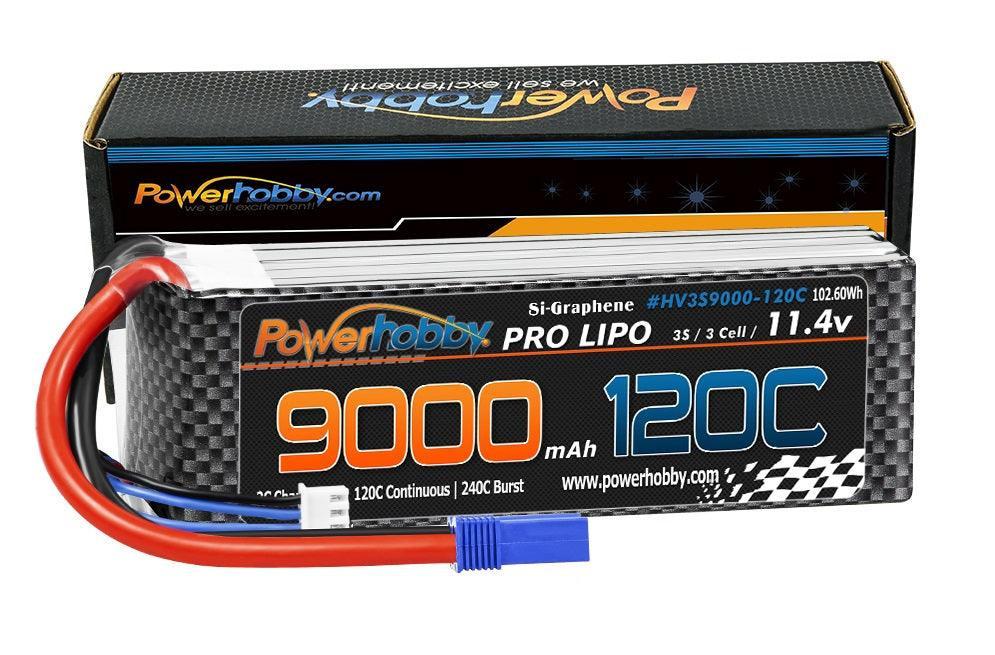

Powerhobby 3S 11.4V 9000mah 120C GRAPHENE + HV Lipo Battery w EC5 Plug

Powerhobby 3S 11.4V 9000mah 120C GRAPHENE + HV Lipo Battery w EC5 Plug

120C Continouse / 240C Brust

Description

The Powerhobby 3S 9000mAh LiPo Battery delivers extended runtime, strong acceleration and dependable power for demanding RC applications. Its large 9000mAh capacity provides longer driving sessions, making it an excellent choice for high-powered RC cars, trucks, buggies, boats, airplanes and drones that can accommodate the battery’s size and voltage.

Choose from 75C, 100C and 120C discharge configurations to match your performance requirements. The 75C version delivers up to a 150C burst rate, while the 100C Graphene version delivers up to a 200C burst rate. For maximum output, the 120C Graphene+ HV version provides up to a 240C burst rate and an 11.4V nominal voltage.

Available connector options include XT60, XT90, EC5, Deans and QS8. The high-current QS8 version is equipped with heavy-duty 8 AWG wire. Always verify the selected battery’s dimensions, voltage, connector and compatibility with your model before installation.

Features

• 3S lithium-polymer battery
• Large 9000mAh capacity
• Extended runtime and strong power delivery
• Available in 75C, 100C and 120C discharge ratings
• Up to 150C, 200C or 240C burst output
• Graphene construction on 100C versions
• Graphene+ high-voltage construction on 120C versions
• Multiple main power connector options
• QS8 version includes heavy-duty 8 AWG wire
• Suitable for high-performance brushless RC applications
• Recommended charge rate up to 2C

General Specifications

• Battery Type: LiPo or LiHV, depending on selected version
• Cell Count: 3S / 3 Cell
• Capacity: 9000mAh
• Applications: Compatible RC cars, trucks, buggies, boats, airplanes and drones
• Quantity Included: One battery

75C Version Specifications

• Nominal Voltage: 11.1V
• Continuous Discharge Rate: 75C
• Maximum Burst Rate: 150C
• Suggested Charge Rate: 1C
• Maximum Charge Rate: 2C
• Dimensions: 155 x 46 x 44mm
• Weight: Approximately 617g
• Connector: XT90

100C Graphene Version Specifications

• Nominal Voltage: 11.1V
• Continuous Discharge Rate: 100C
• Maximum Burst Rate: 200C
• Recommended Charge Rate: Up to 2C
• Dimensions: 168 x 48 x 32mm
• Weight: Approximately 1.38 lb, depending on connector configuration
• Available Connectors: XT60, XT90, EC5 or Deans

120C Graphene+ HV Version Specifications

• Nominal Voltage: 11.4V
• Continuous Discharge Rate: 120C
• Maximum Burst Rate: 240C
• Recommended Charge Rate: Up to 2C
• Dimensions: 134 x 44 x 34.9mm
• Weight: Approximately 17.92–18.4 oz, depending on connector configuration
• Available Connectors: EC5, XT90, Deans or QS8
• QS8 Version Wire: 8 AWG

Available 75C Version

• PH-3S-9000MAH-75C-XT90 – 75C with XT90 Connector

Available 100C Versions

• PHB3S9000100XT60 – 100C Graphene with XT60 Connector
• PHB3S9000100XT90 – 100C Graphene with XT90 Connector
• PHB3S9000100DEANS – 100C Graphene with Deans Connector
• PHB3S9000100EC5 – 100C Graphene with EC5 Connector

Available 120C Graphene+ HV Versions

• PHB3S9000120EC5 – 120C with EC5 Connector
• PHB3S9000120XT90 – 120C with XT90 Connector
• PHB3S9000120QS8 – 120C with QS8 Connector and 8 AWG Wire
• PHB3S9000120DEANS – 120C with Deans Connector

Fits

• Compatible 1/10 scale RC cars, trucks and buggies
• Compatible 1/8 scale RC cars, trucks and buggies
• Select RC boats, airplanes and drones
• Other RC models designed for a compatible 3S LiPo or LiHV battery

Fitment depends on the selected battery’s dimensions, voltage and connector. The 75C and 100C versions have different dimensions from the more compact 120C HV versions. Verify the battery compartment size and confirm that your electronic speed control and charger support the selected battery before use.

Includes

• One Powerhobby 3S 9000mAh LiPo Battery in the selected discharge rating and connector configuration
