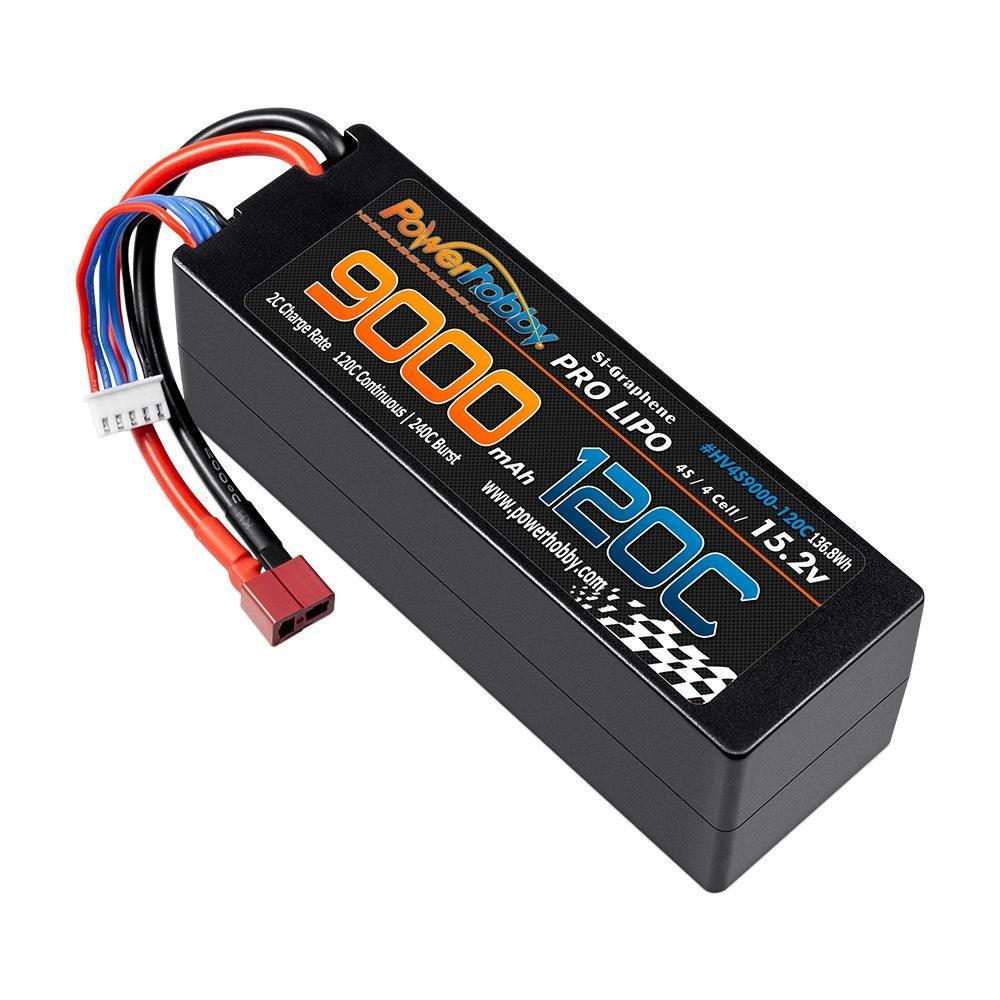

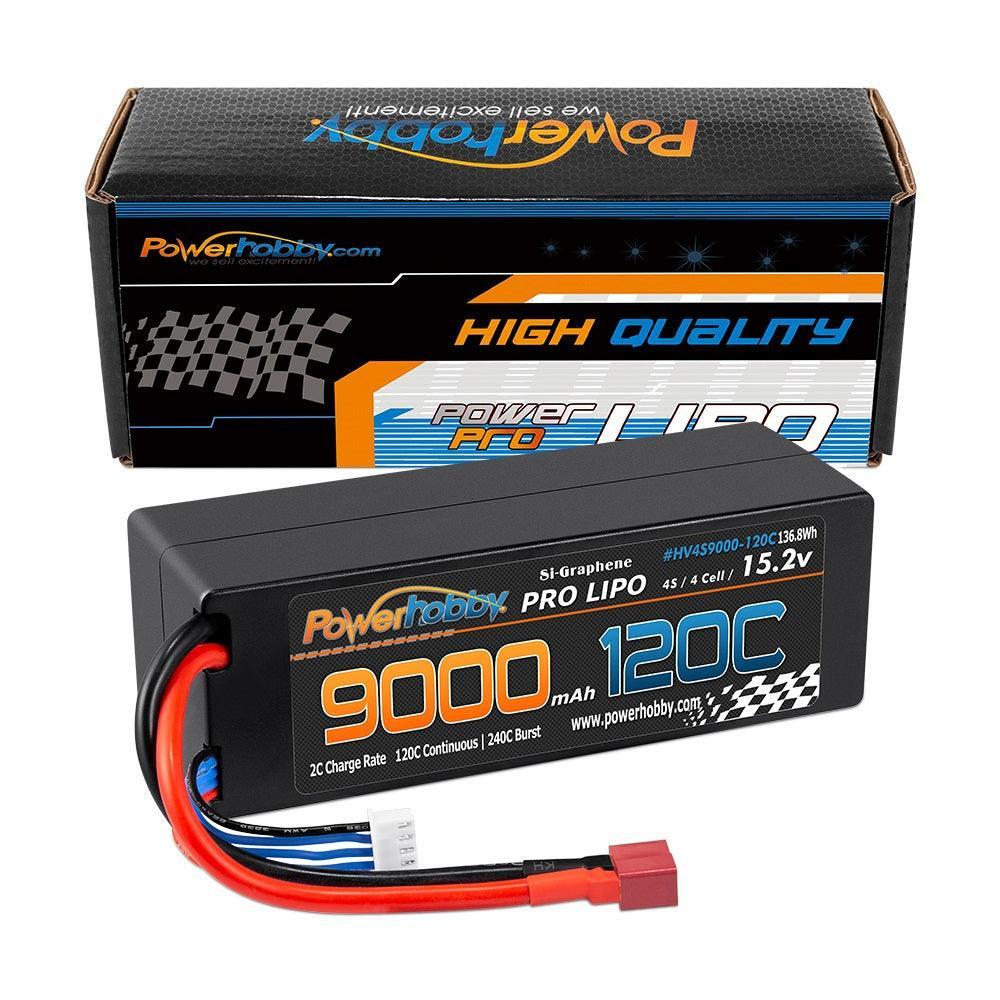

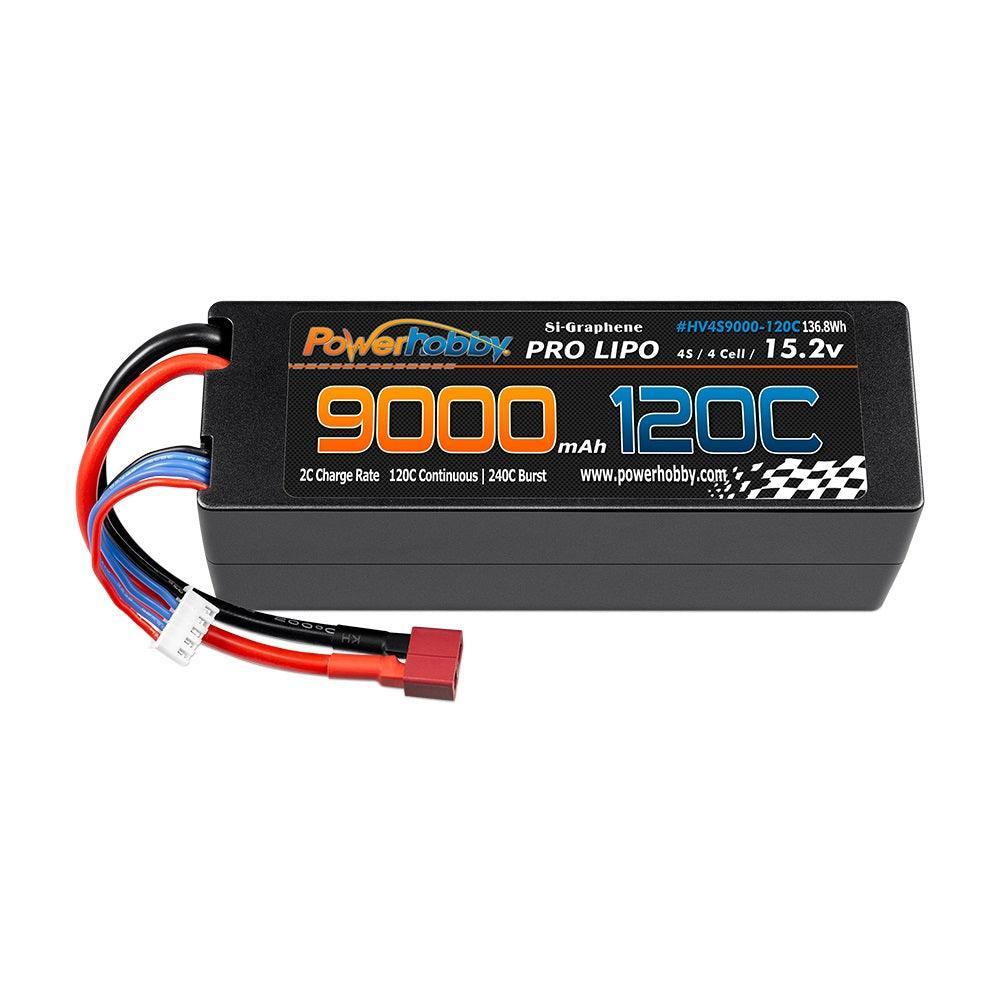

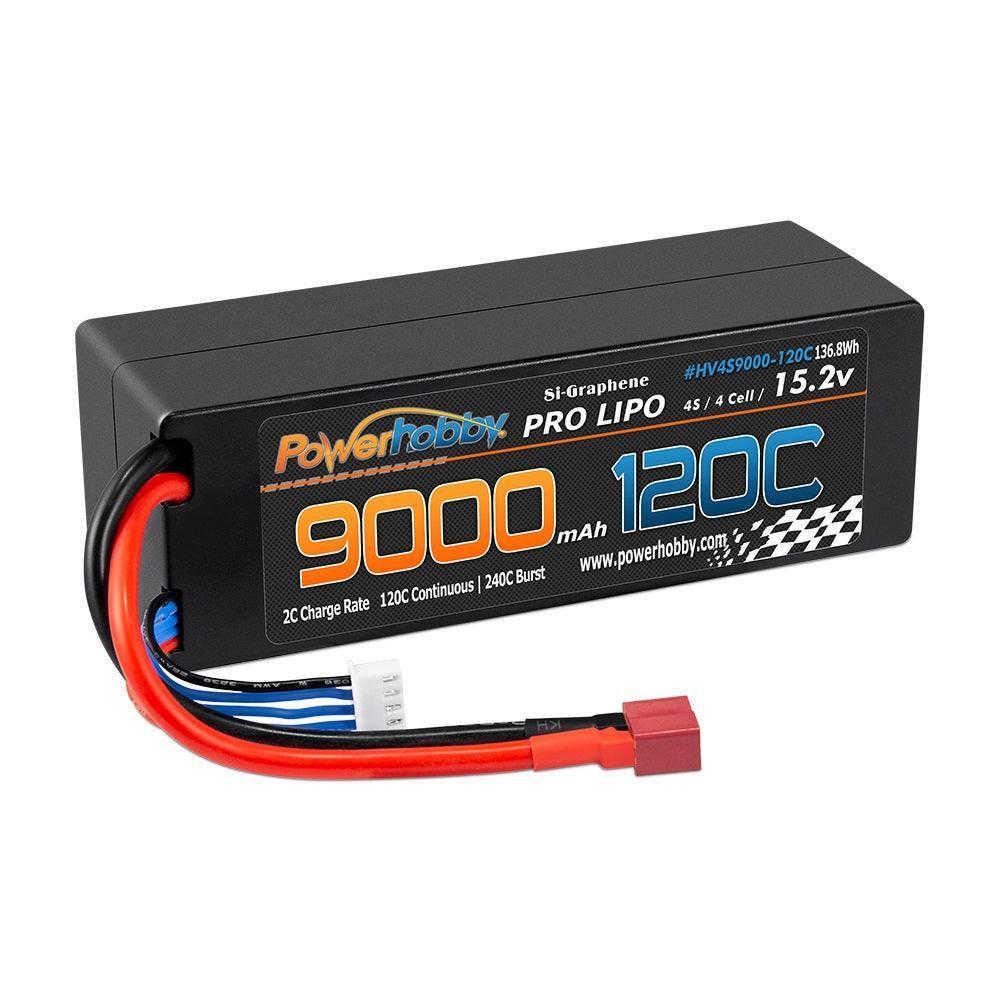

Powerhobby 4S 15.2V 9000mah 120c Graphene Lipo Battery w Deans Plug

Powerhobby 4S 15.2V 9000mah 120c Graphene Lipo Battery w Deans Plug

120C Continous / 2400C Brust

Description

The Powerhobby 4S 9000mAh Graphene LiPo Battery delivers extended runtime, strong acceleration and dependable high-current performance for demanding RC applications. Its large 9000mAh capacity is an excellent choice for compatible RC cars, trucks, buggies, boats, airplanes and drones requiring longer operating times.

Choose from a standard 14.8V 100C Graphene LiPo battery or a higher-voltage 15.2V Graphene LiHV version rated at 120C or 130C. The 100C configuration delivers up to a 200C burst rate, while the 120C and 130C versions provide up to 240C and 260C burst output for more demanding brushless power systems.

Multiple connector options are available, including XT60, XT90, EC5, Deans, QS8 and 5mm bullet connections with a Deans adapter. Always verify the selected battery’s dimensions, voltage, connector and compatibility with your vehicle, electronic speed control and charger before installation.

Features

• Large 9000mAh capacity
• Graphene-enhanced lithium-polymer construction
• Available in standard LiPo and high-voltage LiHV configurations
• Available in 100C, 120C and 130C discharge ratings
• Up to 200C, 240C or 260C burst output
• Strong acceleration and consistent voltage under load
• Extended runtime for high-performance RC applications
• JST-XH balance connector
• Multiple main connector options
• Suitable for compatible 1/10 and 1/8 scale RC vehicles
• Brand new and factory sealed

General Specifications

• Battery Chemistry: Graphene LiPo or LiHV
• Cell Count: 4S / 4 Cell
• Capacity: 9000mAh
• Balance Connector: JST-XH
• Quantity Included: One battery

100C Graphene LiPo Specifications

• Nominal Voltage: 14.8V
• Fully Charged Voltage: 16.8V
• Continuous Discharge Rate: 100C
• Maximum Burst Rate: 200C
• Length: 156mm
• Width: 48mm
• Height: 39.5mm
• Weight: Approximately 24 oz

Available 100C Versions

• PHB4S9000100EC5 – EC5 Connector
• PHB4S9000100XT60 – XT60 Connector
• PHB4S9000100XT90 – XT90 Connector

120C Graphene HV Specifications

• Battery Type: Graphene LiHV
• Nominal Voltage: 15.2V
• Fully Charged Voltage: 17.4V in LiHV mode
• Continuous Discharge Rate: 120C
• Maximum Burst Rate: 240C
• Length: 138mm
• Width: 47mm
• Height: 48mm
• Weight: Approximately 1.76 lb

Available 120C Versions

• PHB4S9000120EC5 – EC5 Connector
• PHB4S9000120XT90 – XT90 Connector
• PHB4S9000120DNS – Deans/T Connector
• PHB4S9000120QS8 – QS8 Connector
• PHB4S9000MAH120CDEANS-BULLET – 5mm Bullet Connections with Deans Adapter

130C Graphene HV Specifications

• Battery Type: Graphene LiHV
• Nominal Voltage: 15.2V
• Fully Charged Voltage: 17.4V in LiHV mode
• Continuous Discharge Rate: 130C
• Maximum Burst Rate: 260C
• Length: 138mm
• Width: 47mm
• Height: 48mm
• Weight: Approximately 24.2 oz

Available 130C Versions

• PHBPB4S9000MAH130CEC5 – EC5 Connector
• PHB4S9000130QS8 – QS8 Connector

Fits

• Compatible 1/10 scale RC cars, trucks and buggies
• Compatible 1/8 scale RC cars, trucks, buggies and truggies
• Select RC boats and airplanes
• Compatible drones and multirotors
• Other RC models designed for a compatible 4S LiPo or LiHV battery

Fitment depends on the selected battery’s dimensions, voltage and connector. Confirm that the battery will physically fit your model and that its electronic speed control supports a 4S battery before use.

The 15.2V 120C and 130C batteries require a charger with a dedicated LiHV mode to charge fully to 4.35V per cell. The standard 14.8V 100C versions should be charged using the regular LiPo setting.

Includes

• One Powerhobby 4S 9000mAh Graphene LiPo or LiHV Battery in the selected discharge rating and connector configuration

Warranty

This Powerhobby LiPo battery includes a six-month limited warranty from the original purchase date against defects in materials and workmanship.

The warranty does not cover:

• Physical or crash damage
• Damage caused by hard landings
• Improper installation or mounting
• Punctures, dents or battery deformation caused by the user
• Overcharging or incorrect charger settings
• Deep discharging or operating below a safe voltage
• Excessive discharge current

Always inspect the battery before and after use. Stop using it immediately if it becomes swollen, punctured, unusually hot or physically damaged. Proof of purchase may be required for warranty service.
