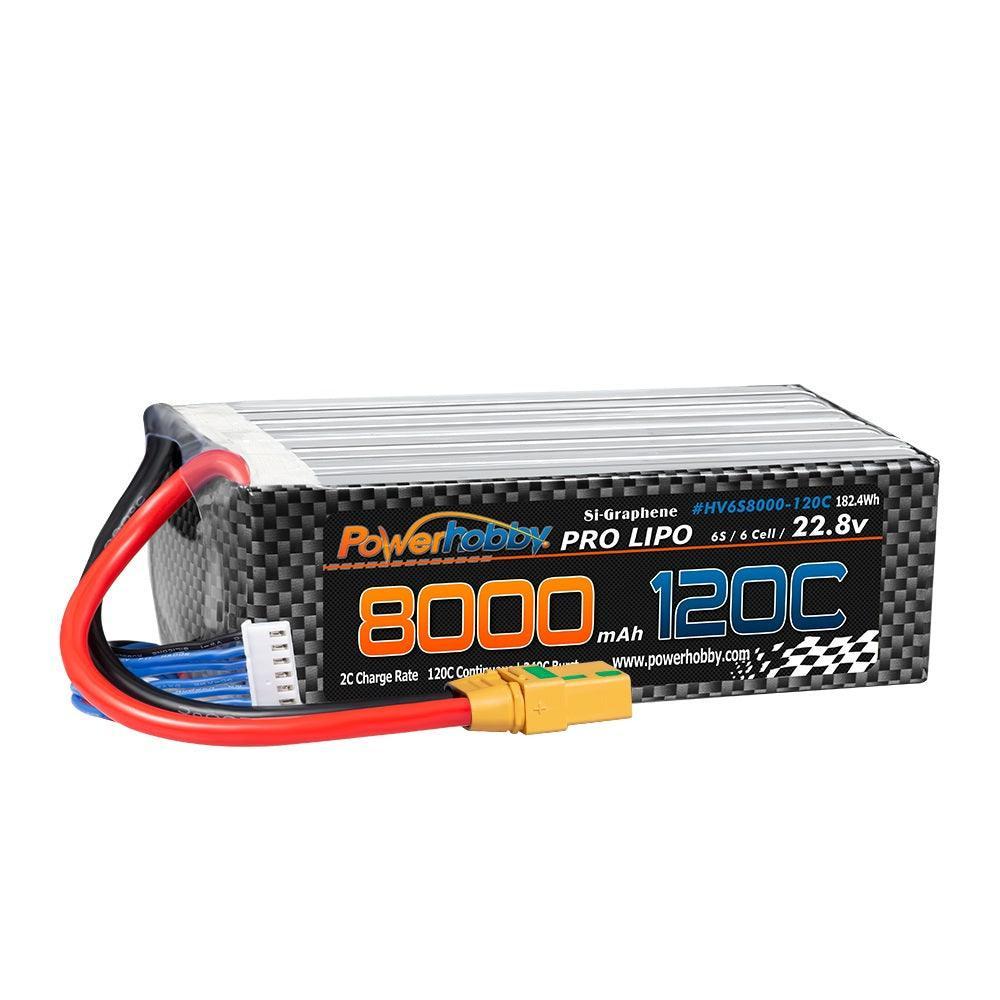

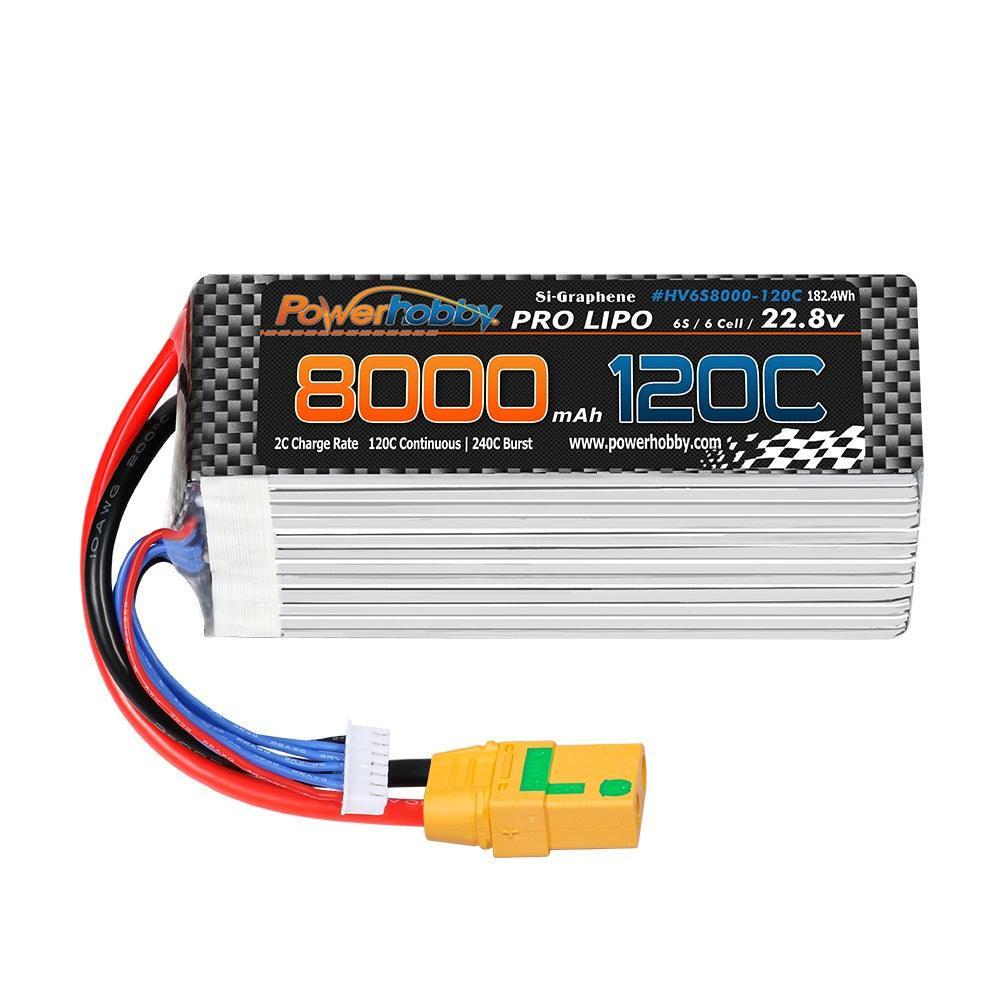

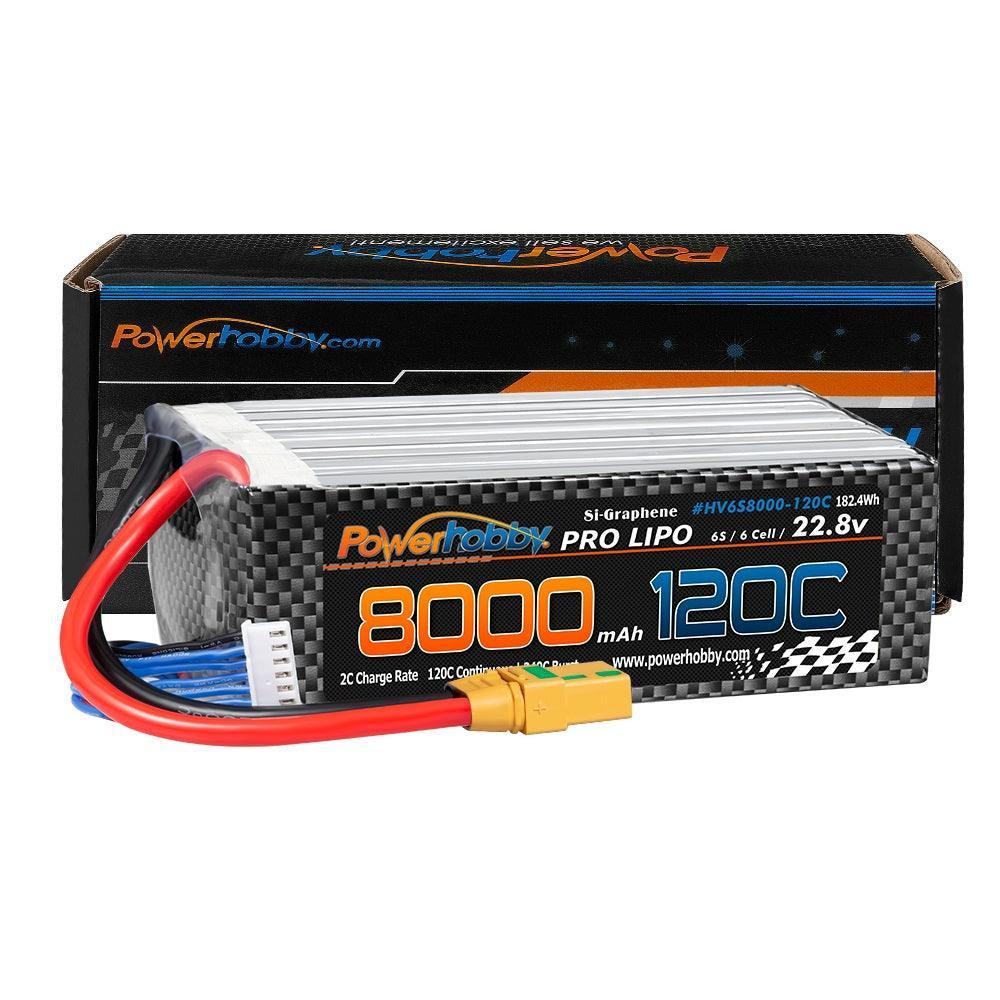

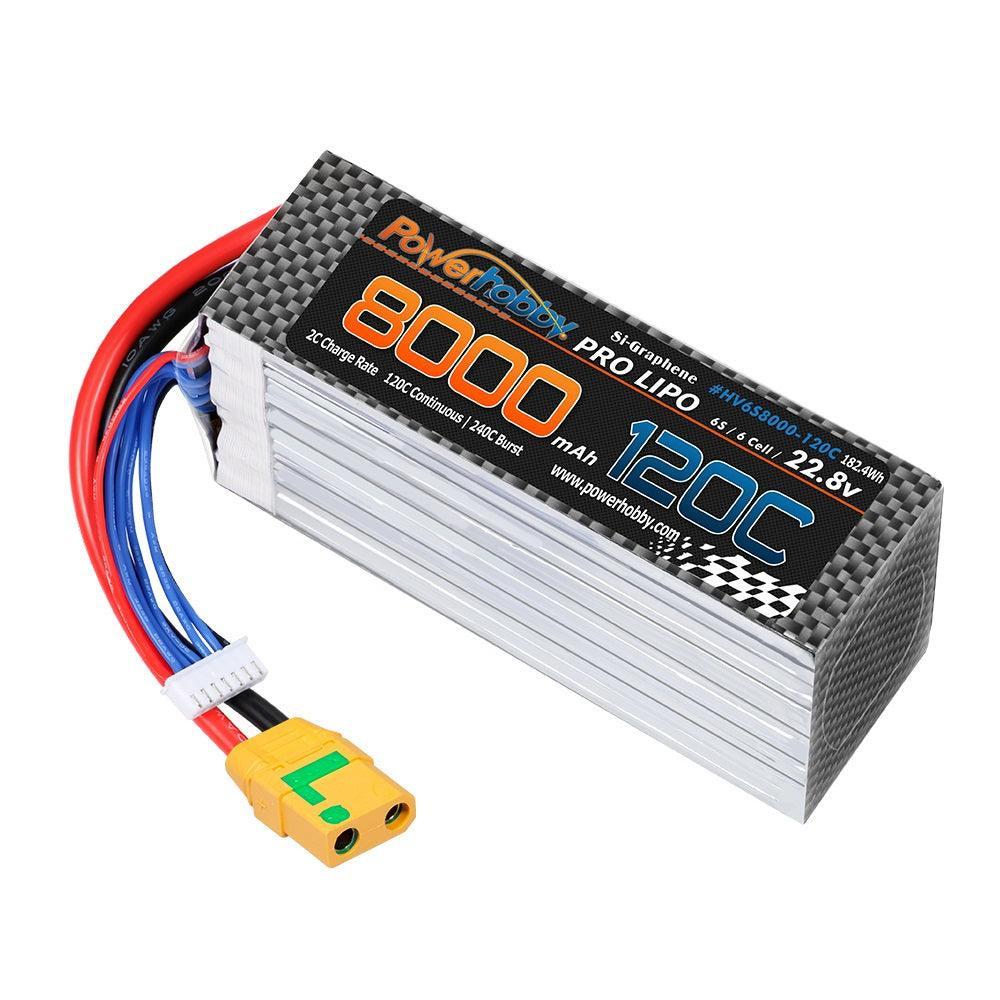

Powerhobby 6S 22.8V 8000mah 120C GRAPHENE + HV Lipo Battery w XT90 Plug

Powerhobby 6S 22.8V 8000mah 120C GRAPHENE + HV Lipo Battery w XT90 Plug

120C Continouse / 240C Brust

Description

The Powerhobby 6S 22.8V 8000mAh 120C Graphene+ HV LiPo Battery delivers high-output power, strong acceleration and extended runtime for demanding RC applications. Its large 8000mAh capacity makes it an excellent choice for compatible high-performance RC cars, trucks, buggies, boats, airplanes and drones.

With a 120C continuous discharge rating and up to a 240C burst rate, this battery provides dependable current delivery during hard acceleration and other high-load operation. Advanced cell-stacking technology and quality lithium-polymer materials help provide consistent voltage and reliable performance throughout each run or flight.

Choose from XT90, EC5 or QS8 connector options to match your model’s electronic speed control. The QS8 version is equipped with heavy-duty 8 AWG wire for demanding high-current applications. Always verify the battery dimensions, connector type and 6S LiHV compatibility before installation.

Features

• High-voltage 6S lithium-polymer battery
• Graphene+ battery construction
• 22.8V nominal voltage
• Large 8000mAh capacity
• 120C continuous discharge rate
• Up to 240C burst discharge rate
• Extended runtime and strong acceleration
• Compact soft-case construction
• JST-XH balance connector
• Available with XT90, QS8 or EC5 connector
• QS8 version includes heavy-duty 8 AWG wire
• Recommended charge rate up to 2C
• Brand new and factory sealed

Specifications

• Battery Type: Graphene+ LiHV
• Cell Count: 6S / 6 Cell
• Nominal Voltage: 22.8V
• Fully Charged Voltage: 26.1V in LiHV mode
• Capacity: 8000mAh
• Continuous Discharge Rate: 120C
• Maximum Burst Rate: 240C
• Recommended Charge Rate: Up to 2C
• Balance Connector: JST-XH
• Length: 134mm
• Width: 44mm
• Height: 67mm
• Weight: Approximately 30.6 oz
• QS8 Version Weight: Approximately 30.8 oz
• Case Type: Soft Case

Available Versions

• PHB6S8000120XT90 – XT90 Connector
• PHB6S8000120QS8 – QS8 Connector with 8 AWG Wire
• PHB6S8000120EC5 – EC5 Connector

Fits

• Compatible 1/10-scale RC cars, trucks and buggies
• Compatible 1/8-scale RC cars, trucks, buggies and truggies
• Select RC boats
• Select RC airplanes and helicopters
• Compatible drones and multirotors
• Other RC models designed for a 6S LiHV battery

Fitment depends on the battery-compartment dimensions, selected connector and electronics. Confirm that the battery will physically fit your model and that its electronic speed control supports a 6S battery before use.

A charger with a dedicated LiHV charging mode is required to charge the battery fully to 4.35V per cell. When charged using a standard LiPo setting, the battery will not reach its maximum rated voltage.

Includes

• One Powerhobby 6S 22.8V 8000mAh 120C Graphene+ HV LiPo Battery with the selected connector

Warranty

This Powerhobby LiPo battery includes a six-month limited warranty from the original purchase date against defects in materials and workmanship.

The warranty does not cover:

• Physical or crash damage
• Damage caused by hard landings
• Improper installation or mounting
• Punctures, dents or battery deformation caused by the user
• Overcharging or incorrect charger settings
• Deep discharging or operation below a safe voltage
• Excessive discharge current

Always inspect the battery before and after use. Stop using it immediately if it becomes swollen, punctured, unusually hot or physically damaged. Proof of purchase may be required for warranty service.
