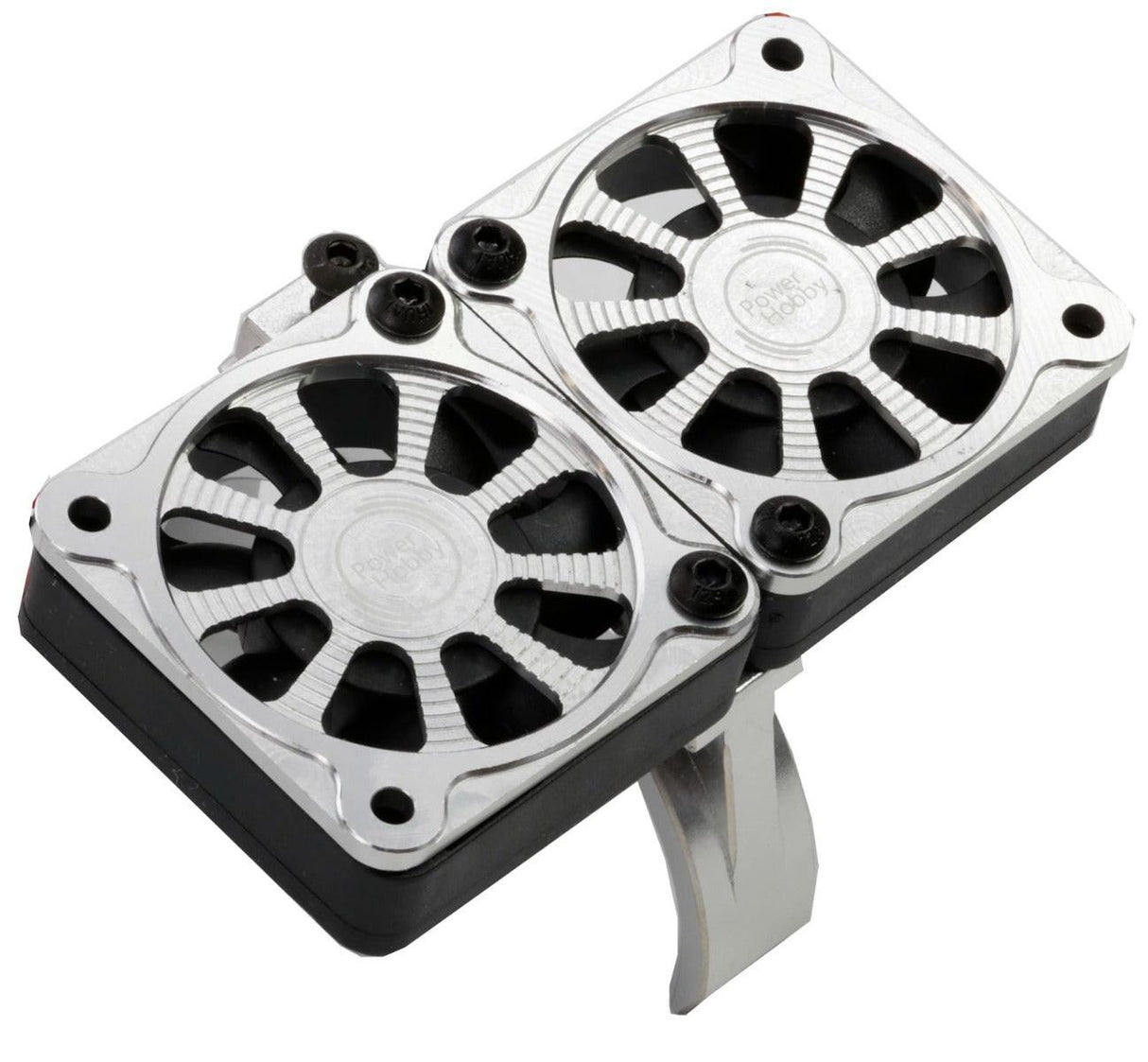

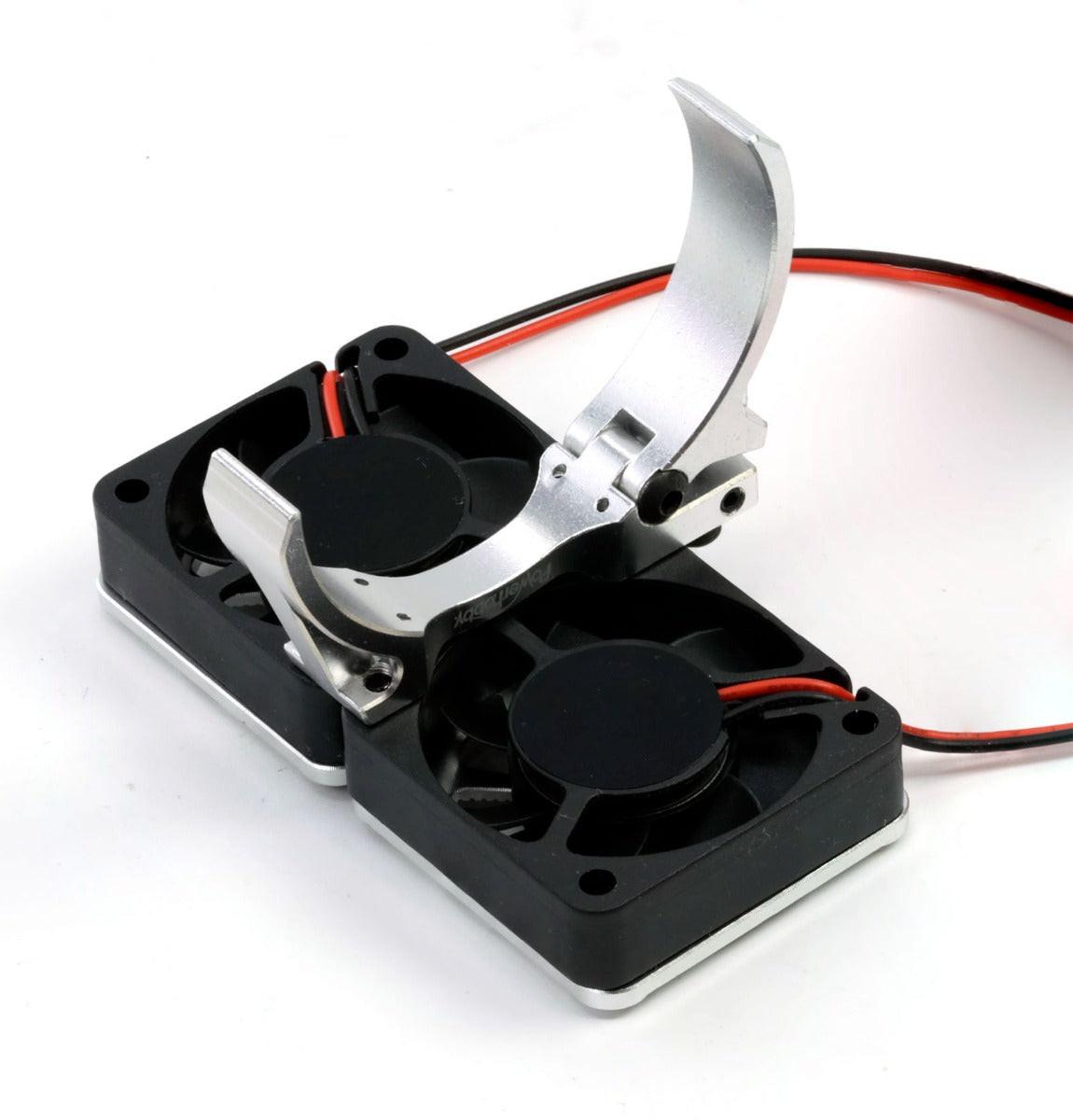

Powerhobby Aluminum Dual High Speed Cooling Fans SILVER Castle Creations 800kV

Powerhobby 1/5 Aluminum HeatSink w/Twin Turbo High-Speed Cooling Fans

Description

The PowerHobby Aluminum Dual High-Speed Cooling-Fan System is designed to help reduce operating temperatures on the Castle Creations 2028 800Kv motor and other compatible large-scale RC motors.

The aluminum mount fits motors measuring approximately 55–58mm in diameter. Two high-speed 40mm cooling fans provide increased airflow across the motor can to help control heat during extended runs, aggressive driving, and high-load operation.

Aluminum fan covers help protect the fan blades, while the included JST Y-splitter combines both fan connections into a receiver-style plug for convenient installation.

Features

• Designed for the Castle Creations 2028 800Kv motor
• Fits compatible motors measuring approximately 55–58mm in diameter
• Suitable for large-scale RC applications
• Durable aluminum motor mount
• Dual high-speed cooling-fan design
• Two 40 × 40 × 10mm cooling fans
• Approximately 16,000 RPM at 8.4V
• 6–8.4V operating-voltage range
• Aluminum fan covers help protect the fan blades
• Includes JST Y-splitter with receiver-style connector
• Approximately 15-inch total wire length
• Helps reduce motor temperatures during demanding operation
• Silver finish

Specifications

• Part Number / SKU: PH1291Silver-C
• Barcode: 791511477336
• Product Type: Motor Mount and Dual-Fan Cooling System
• Compatible Motor Diameter: Approximately 55–58mm
• Fan Quantity: 2
• Fan Dimensions: 40 × 40 × 10mm
• Fan Speed: Approximately 16,000 RPM at 8.4V
• Input Voltage: 6–8.4V
• Total Wire Length: Approximately 15 inches
• Connector: JST Y-Splitter with Receiver-Style Plug
• Motor-Mount Material: Aluminum
• Fan-Cover Material: Aluminum
• Color: Silver

Includes

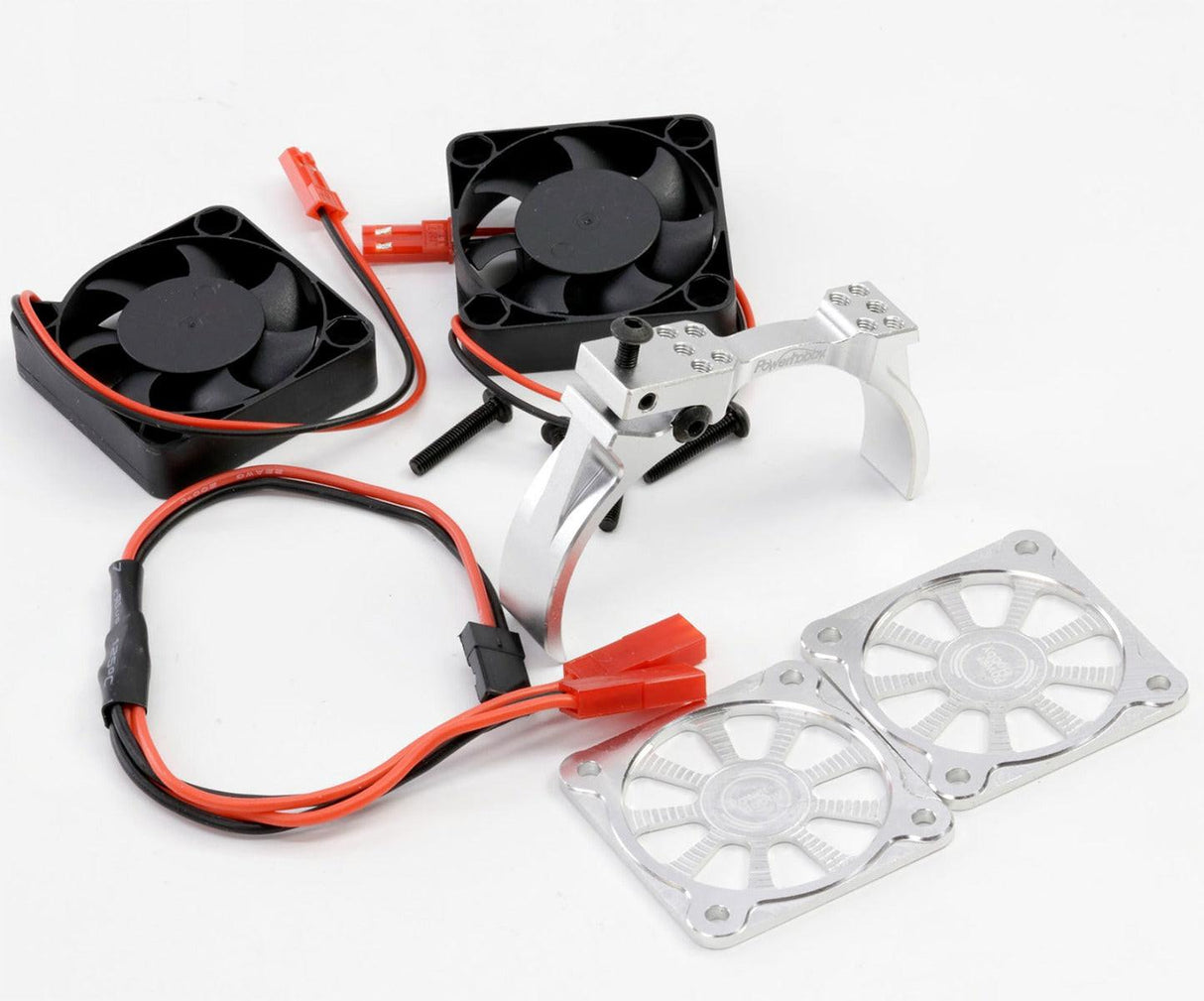

• 1 Aluminum Motor Mount
• 2 High-Speed 40 × 40 × 10mm Cooling Fans
• 2 Aluminum Fan Covers
• 1 JST Y-Splitter with Receiver-Style Connector

Fits

• Castle Creations 2028 800Kv Sensored Motor
• Other compatible motors measuring approximately 55–58mm in diameter

Suitable applications may include compatible:

• 1/5-scale RC vehicles
• 1/6-scale RC vehicles
• Large-scale monster trucks
• Large-scale buggies
• On-road speed-run vehicles
• Gas-to-electric conversions
• Custom high-performance RC builds

Verify the motor diameter, available chassis clearance, mounting space, connector compatibility, power-source voltage, and available current before purchasing.

Installation Note

Secure the aluminum mount around a clean section of the motor can. Make sure the mount cannot rotate or move during operation.

Keep the fans, covers, screws, and wiring away from the motor shaft, pinion gear, spur gear, driveshafts, suspension components, and other moving parts.

Connect the receiver-style plug to a compatible open receiver channel or external BEC supplying between 6V and 8.4V. Confirm connector polarity and available current before applying power. Do not exceed 8.4V.
