Powerhobby Aluminum Motor Heatsink Twin Dual Cooling Fan BLUE FOR Traxxas Slash 4x4

Powerhobby Aluminum Motor Heatsink + Twin Cooling Fan FOR Traxxas Slash 4X4

Description

The Powerhobby Aluminum Motor Heatsink with Dual Cooling Fans is designed to help reduce motor temperatures in the Traxxas Slash 4x4 and other compatible vehicles using a 540- or 550-size motor.

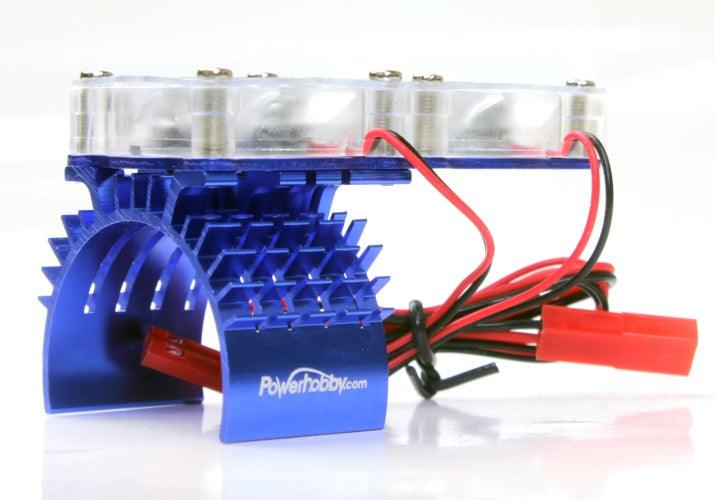

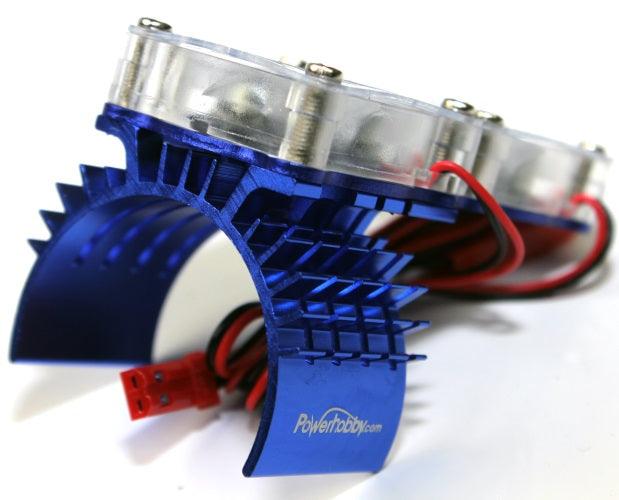

The aluminum heatsink clips around the motor can and features multiple cooling fins to increase the available surface area for heat dissipation. Two cooling fans provide additional airflow across the motor during extended runs and demanding driving conditions.

The fans use a standard two-pin receiver-style power connector and must be powered by a source that does not exceed 6V DC.

Features

• Designed for the Traxxas Slash 4x4
• Compatible with many 540- and 550-size motors
• Aluminum heatsink construction
• Multiple cooling fins for increased surface area
• Dual cooling-fan design
• Helps reduce motor operating temperatures
• Clip-on motor installation
• Standard two-pin receiver-style power connector
• Maximum fan input voltage of 6V DC
• Blue anodized finish

Includes

• 1 Powerhobby Aluminum Motor Heatsink
• 2 Cooling Fans
• Preinstalled Wiring and Two-Pin Power Connector

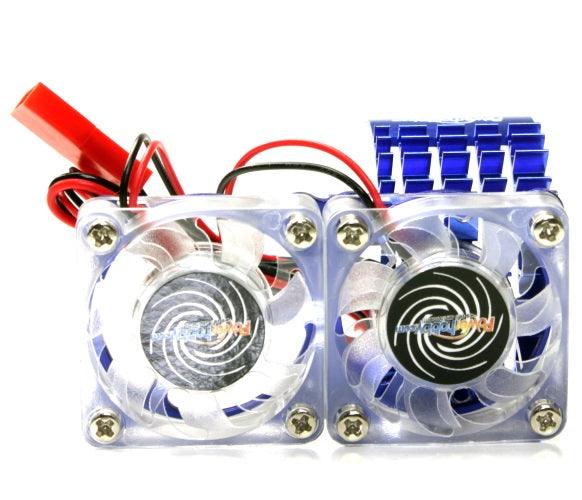

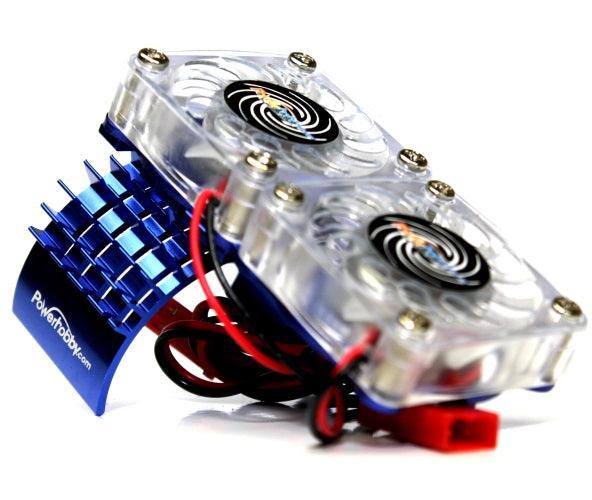

The included dual-fan configuration is confirmed by the current product photos.

Specifications

• SKU: PHBFSBLUE
• Barcode: 791511474786
• Product Type: Motor Heatsink and Dual-Fan Cooling System
• Heatsink Material: Aluminum
• Compatible Motor Size: 540 and 550
• Overall Length: 61mm / 2.40"
• Overall Width: 40mm / 1.57"
• Overall Height: 42mm / 1.65"
• Maximum Fan Voltage: 6V DC
• Power Connector: Standard Two-Pin Receiver-Style Plug
• Color: Blue

Fits

• Traxxas Slash 4x4
• Compatible RC vehicles using a 540- or 550-size cylindrical motor

Verify the motor diameter, available chassis clearance, wiring clearance, connector type, and power-source voltage before purchasing.

Installation Note

Clip the heatsink securely around a clean section of the motor can. Make sure the heatsink, fans, and wiring do not contact the motor shaft, pinion gear, spur gear, center driveshaft, or other moving components.

Connect the cooling fans only to a compatible power source that does not exceed 6V DC. Do not connect the fans directly to a 2S or 3S battery.
