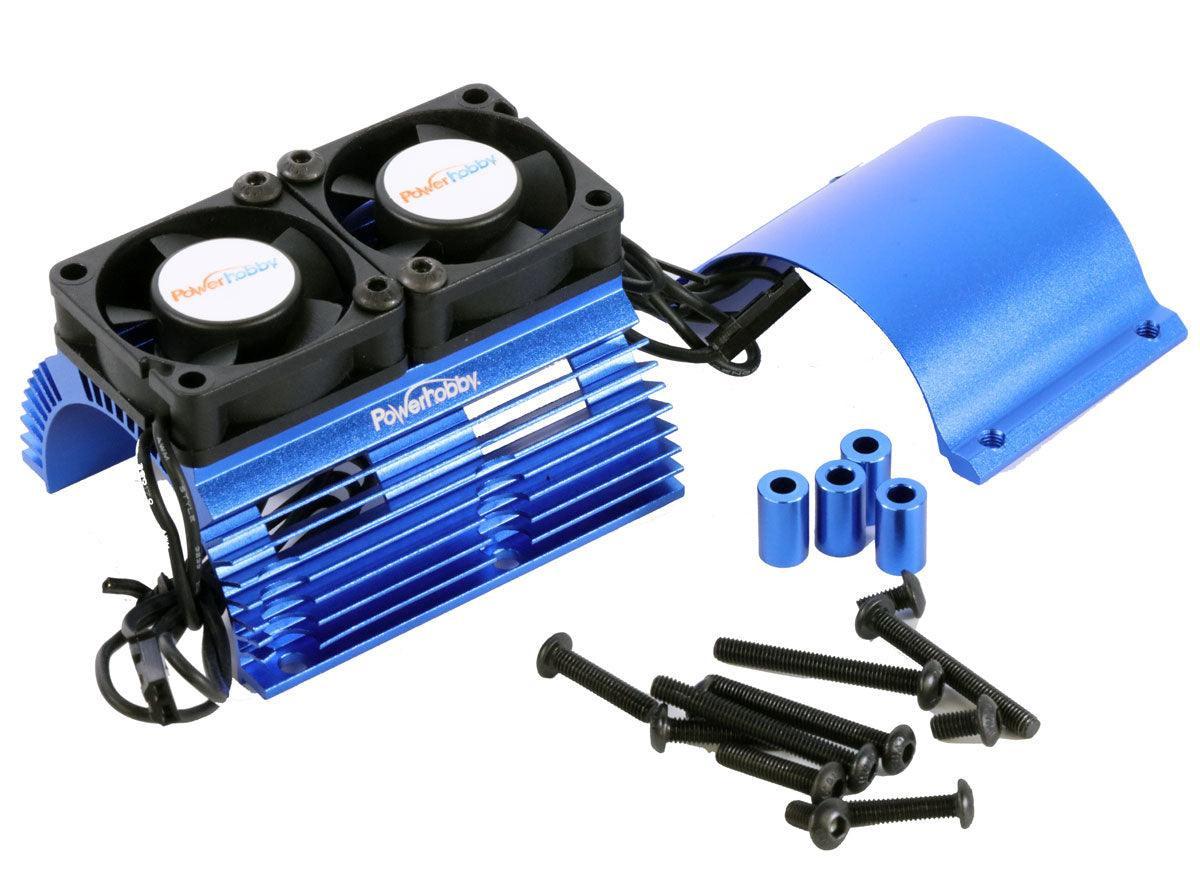

Powerhobby Heat Sink w Twin Turbo High Speed Cooling Fans 1/8 Motors Blue

Powerhobby Heat Sink w/ Twin Turbo High Speed Cooling Fans 1/8 Motors Blue

Description

The Powerhobby Aluminum Heatsink with Twin Turbo Cooling Fans is designed to help reduce motor temperatures in compatible 1/8-scale RC vehicles.

Its lightweight aluminum heatsink fits motors measuring approximately 40.8mm in diameter and 57.9mm in length. Two high-speed 30mm cooling fans provide increased airflow across the motor to help control heat during extended runs and demanding driving conditions.

The fans can be installed directly onto the heatsink for a compact setup or raised with the included 10mm spacers for additional airflow between the fans and motor. Each fan reaches approximately 18,000 RPM at 6V.

Features

• Designed for compatible 1/8-scale RC motors
• Fits motors approximately 40.8mm in diameter
• Designed for motors approximately 57.9mm long
• Lightweight aluminum heatsink construction
• Dual high-speed cooling-fan design
• Two 30 × 30 × 10mm fans
• Fans reach approximately 18,000 RPM at 6V
• Fans can mount directly to the heatsink
• Includes optional 10mm fan spacers
• Multiple screw lengths for different mounting configurations
• Blue finish

Includes

• 1 Large Heatsink Section
• 1 Small Heatsink Section
• 2 High-Speed 30 × 30 × 10mm Cooling Fans
• 4 M3 × 6mm Round-Head Screws
• 4 M3 × 14mm Round-Head Screws
• 4 M3 × 25mm Round-Head Screws
• 4 10mm Fan Spacers

Specifications

• SKU: PH1289BLUE
• Barcode: Does Not Apply
• Product Type: Motor Heatsink and Dual-Fan Cooling System
• Recommended Scale: 1/8 Scale
• Compatible Motor Diameter: Approximately 40.8mm
• Compatible Motor Length: Approximately 57.9mm
• Fan Quantity: 2
• Fan Dimensions: 30 × 30 × 10mm
• Fan Speed: Approximately 18,000 RPM at 6V
• Heatsink Material: Aluminum
• Spacer Length: 10mm
• Color: Blue

Fits

Universal 1/8-scale RC applications using a compatible motor measuring approximately:

• 40.8mm in diameter
• 57.9mm in length

Suitable applications may include compatible:

• 1/8-scale buggies
• 1/8-scale truggies
• 1/8-scale monster trucks
• On-road and off-road RC vehicles
• Custom high-performance RC builds

Verify the motor diameter, motor length, chassis clearance, fan connector, power-source voltage, and mounting space before purchasing.

Installation Note

The fans may be installed directly against the heatsink or raised using the included 10mm spacers. Select the appropriate screw length for the chosen configuration.

Secure the heatsink around a clean section of the motor can. Make sure the fans, screws, and wiring do not contact the motor shaft, pinion gear, spur gear, center driveshaft, or other moving components.

Power the fans from a compatible regulated 6V source capable of supplying adequate current. Do not connect them directly to a battery unless its output matches the confirmed fan-voltage rating.

(4) 10mm Washers
(2) 30x30x10mm Turbo High Speed Fan
