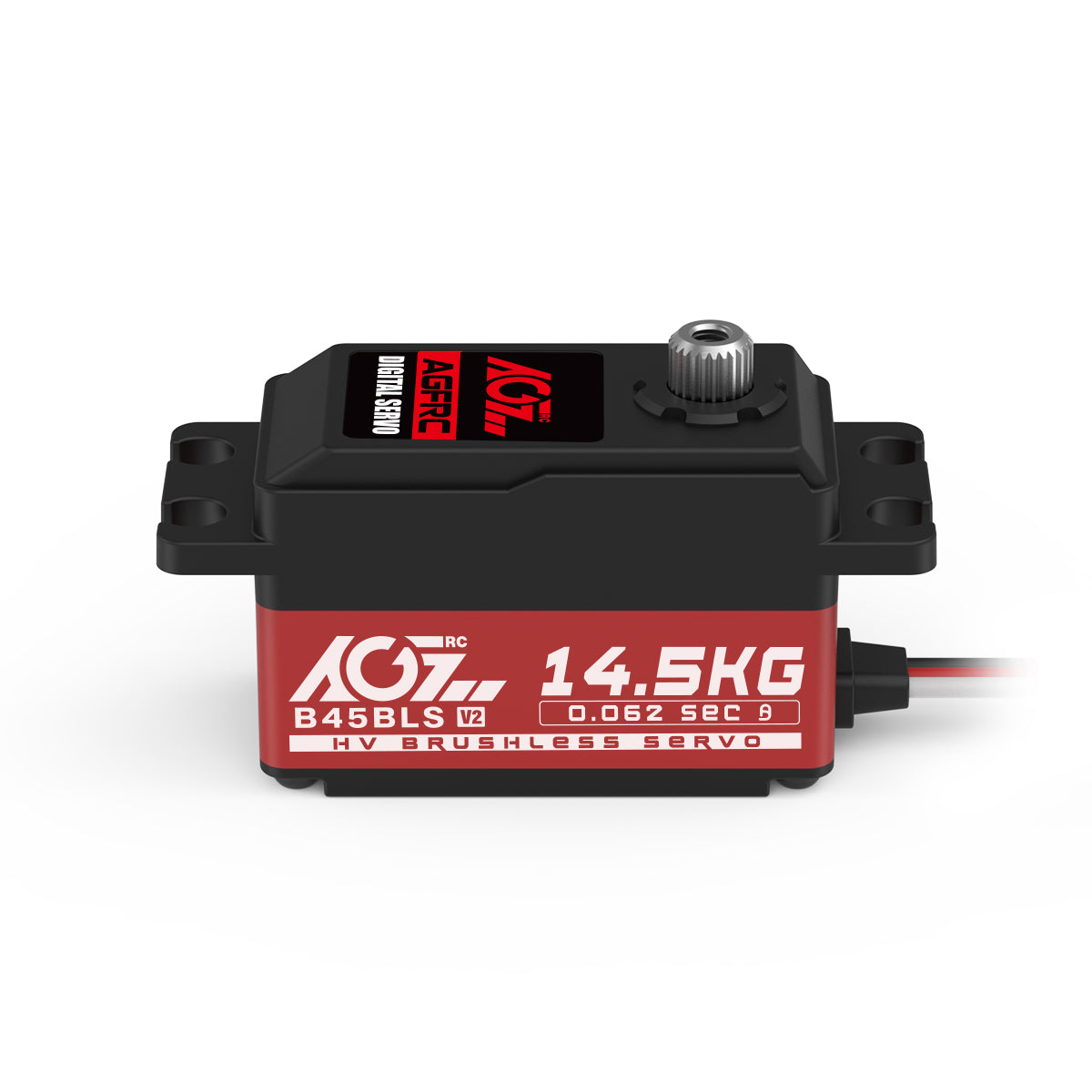

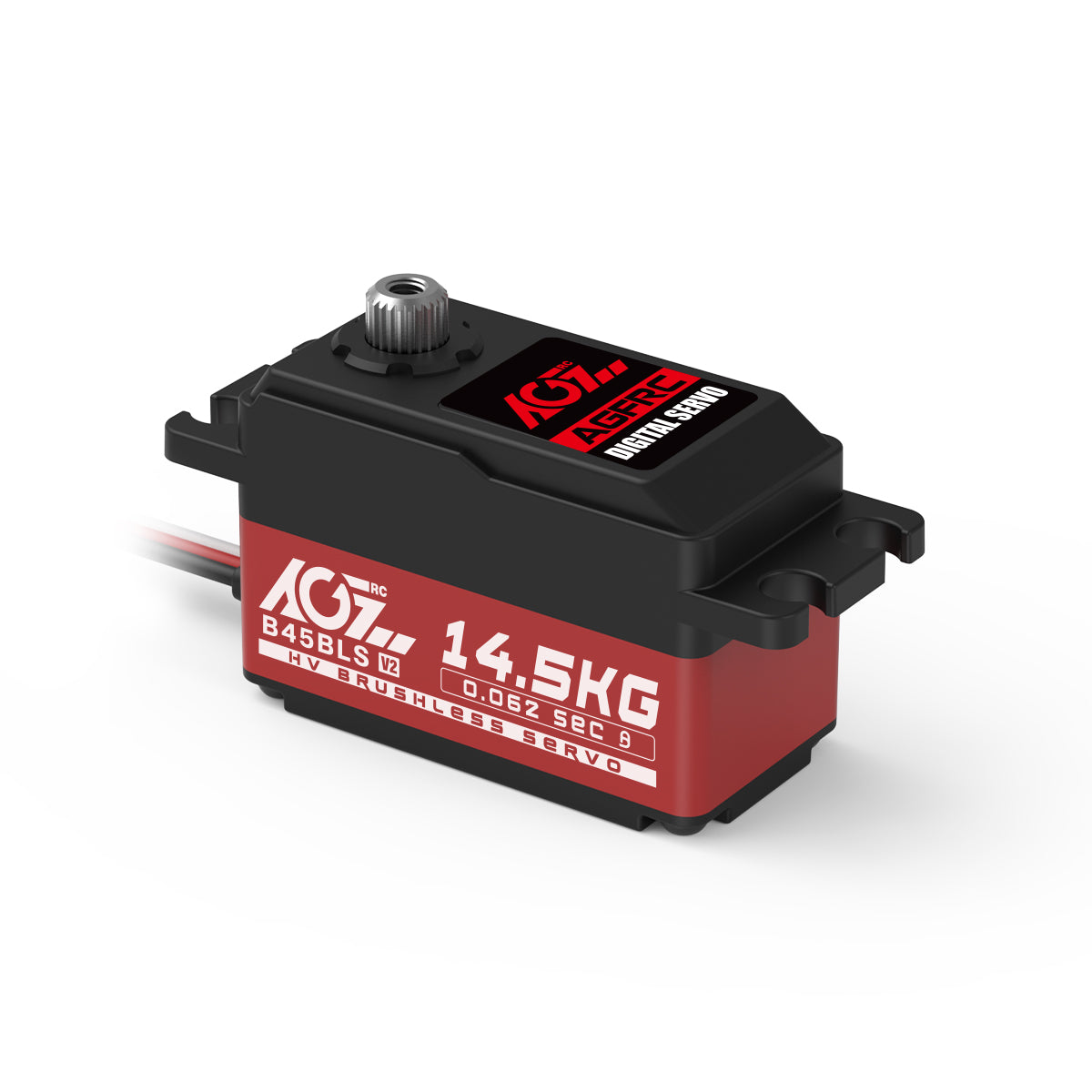

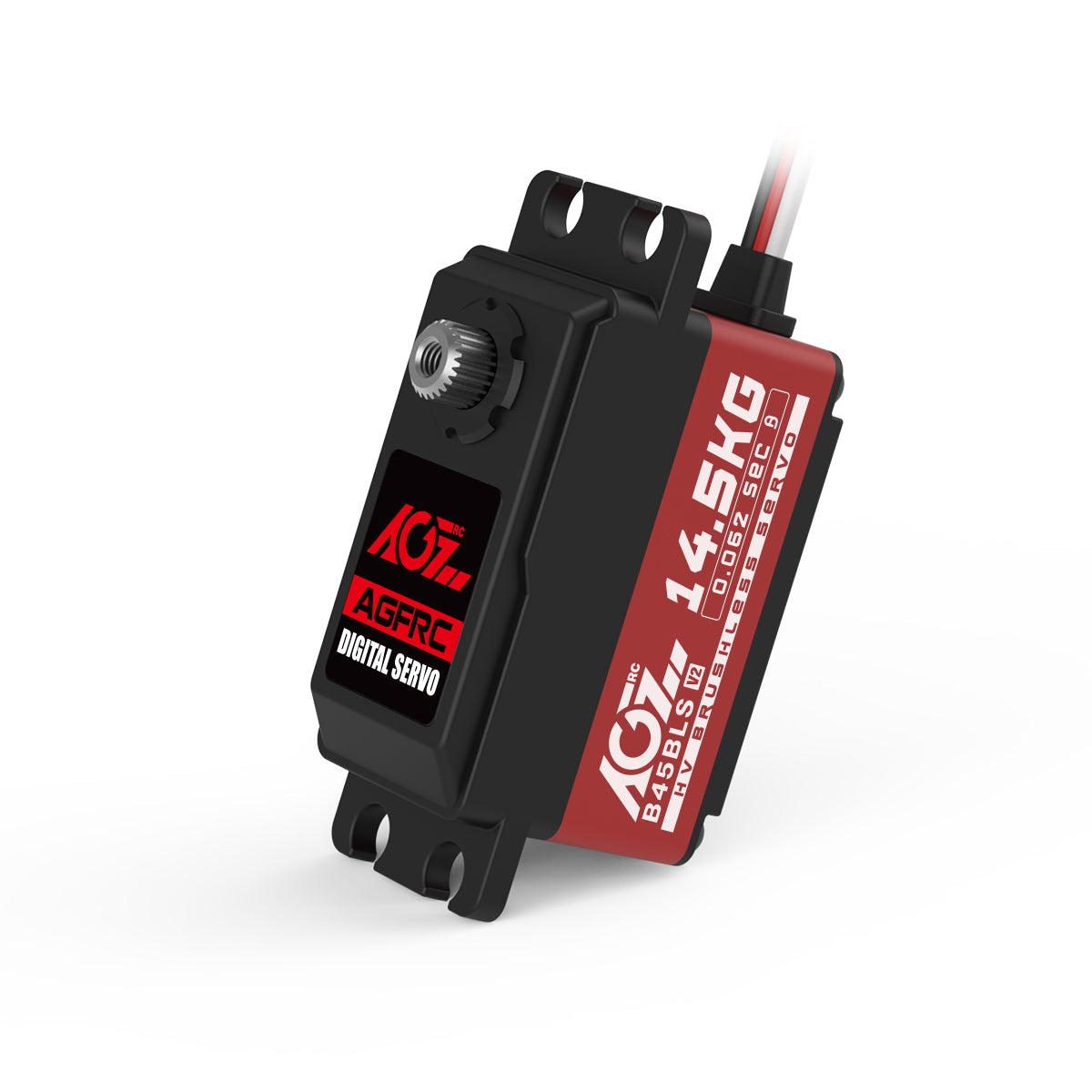

AGFRC B45BLS 48g HV 2BB Steel Gear 14.5KG 0.062Sec Brushless Low Profile Fast Speed Servo

Product Description

AGFRC B45BLS V2 has a torque of 14.5KG, is a low-profile high-performance fast servo, small size and light weight. The fastest speed can reach 0.062sec/60°@8.4V, bringing you a faster driving experience. It adopts a long-life brushless motor and strong steel gears design, the gears not only have high crash resistance, but also prevent them from falling off and loosening. And the plastic and aluminum shell are dust and splash resistant. In addition, the servo is made of green and environmentally friendly materials from production to packaging. It is an affordable and practical servo.

Feature

High Performance Low Profile Digital Servo

High Precision 25T Spline Steel Gear

Long Lifespan Brushless Motor

Smooth Dual Ball Bearings

Aluminium Middle Case

Parameter Programmable

Ideal for 1/10, 1/12 On Road, Touring Racing Car, Boat, Airplane etc.

Specification

B45BLS V2

Operating Voltage: 4.8-8.4V

Operating speed: 0.074sec/60° @ 6.0V

Operating speed: 0.068sec/60° @ 7.4V

Operating speed: 0.062sec/60° @ 8.4V

Stall Torque: 12.0 kg-cm (167 oz-in) @6.0V

Stall Torque: 13.5 kg-cm (187 oz-in) @7.4V

Stall Torque: 14.5 kg-cm (201 oz-in) @8.4V

Gear: Steel

Motor: Brushless

Size: 40.8*20.2*26.1mm (1.60 x 0.79 x 1.02 in)

Weight: 48g

Connector Wire: JR 180 mm / 22AWG
