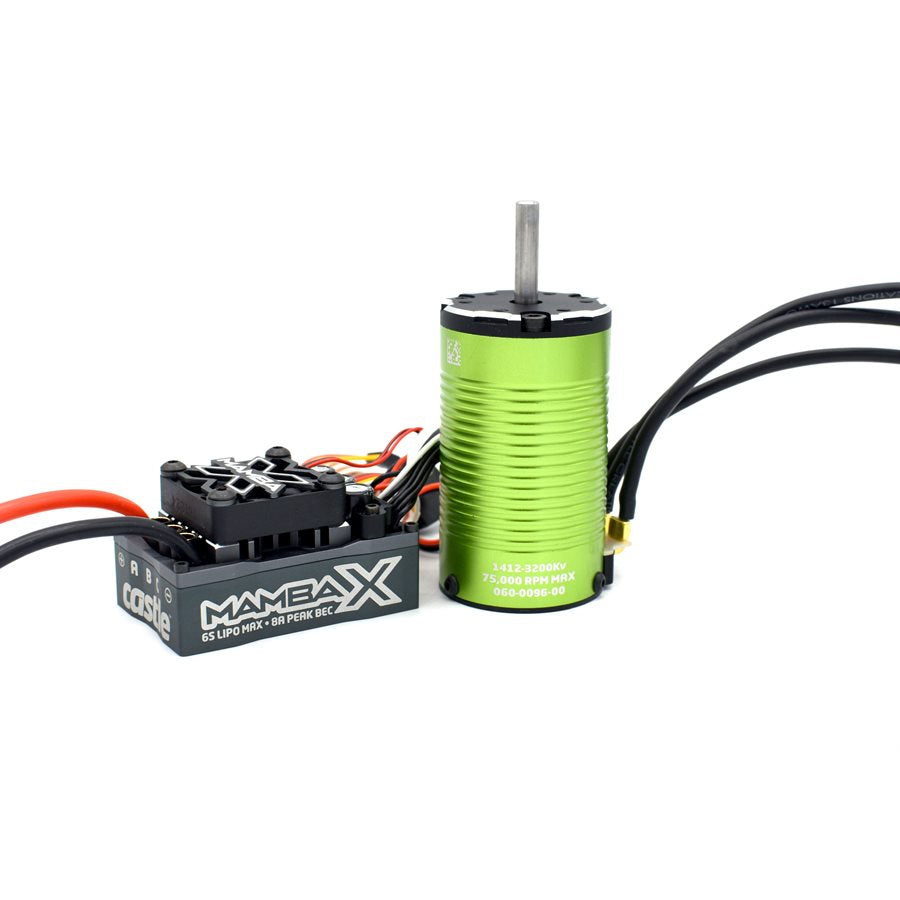

CASTLE CREATIONS 010-0155-15 Mamba X SCT 25.2V Waterproof ESC, 1412-2100KV 5mm Sensored Motor Combo

CSE010-0155-15

Mamba X SCT 25.2V Waterproof ESC, 1412-2100KV 5mm Sensored Motor Combo

Castle wanted to address three main concepts while designing an ESC for the modern day RC enthusiast; VERSATILITY, RELIABILITY, and PERFORMANCE. These are the pillars of the Mamba X design and the driving forces behind the feature-packed controller.

The Mamba X is extremely versatile, capable of powering a wide variety of applications ranging from 2S to 6S and vehicles ranging from 1/10th scale to 1/8th scale*. The Mamba X with 1412-2100K with 5mm shaft sensored motor is perfect for 2WD and 4x4 short course trucks, monster trucks and rock racers running up to 4s LiPo and weighing up to 6.5 lbs. It is a cooling running torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 4s LiPo.


FEATURES:
ESC voltage range 2S-6S (4s max with included motor)
1412-2100Kv Sensored Motor
Waterproof
8A Adjustable BEC (5.25V-8.0V)
Data-logging
Rugged CNC Aluminum Case
Castle Link Programming Support
Convenient Transmitter Programming
Auxiliary Wire Functionality for "on-the-fly" adjustments
SmartSense Technology
Integrated Capacitors
Removable 30mm Cooling Fan
Integrated 4mm Bullet Connectors
12 AWG Power Wires
Waterproof Switch
Audible Alerts and LED Alerts for easy diagnoses of common issues
ROAR Certified ESC
RECON G6 Certified ESC
MAMBA X ESC 1412-3200 WITH 5MM SHAFT COMBO COMES WITH:

Mamba X ESC with Sensor Harness
1412-2100Kv 4-pole 12-slot sensored motor
Coupon for free Castle Link USB
Mamba Decals
Driver's Ed and Quick Start Guide
Gearing Chart for Castle Motors

*In 1/8th scale setups, the Mamba X is intended to be used for off-road racing in buggies weighing up to 9 lbs (including batteries and ready-to-run). In these 1/8th scale racing setups, the Mamba X should be run at 4S Lipo (16.8V) max and is recommended to be paired with the Castle 1512-1800Kv (P/N: 060-0062-00) or Castle 1515-2200Kv (P/N: 060-0063-00) motor, with appropriate gearing only.
