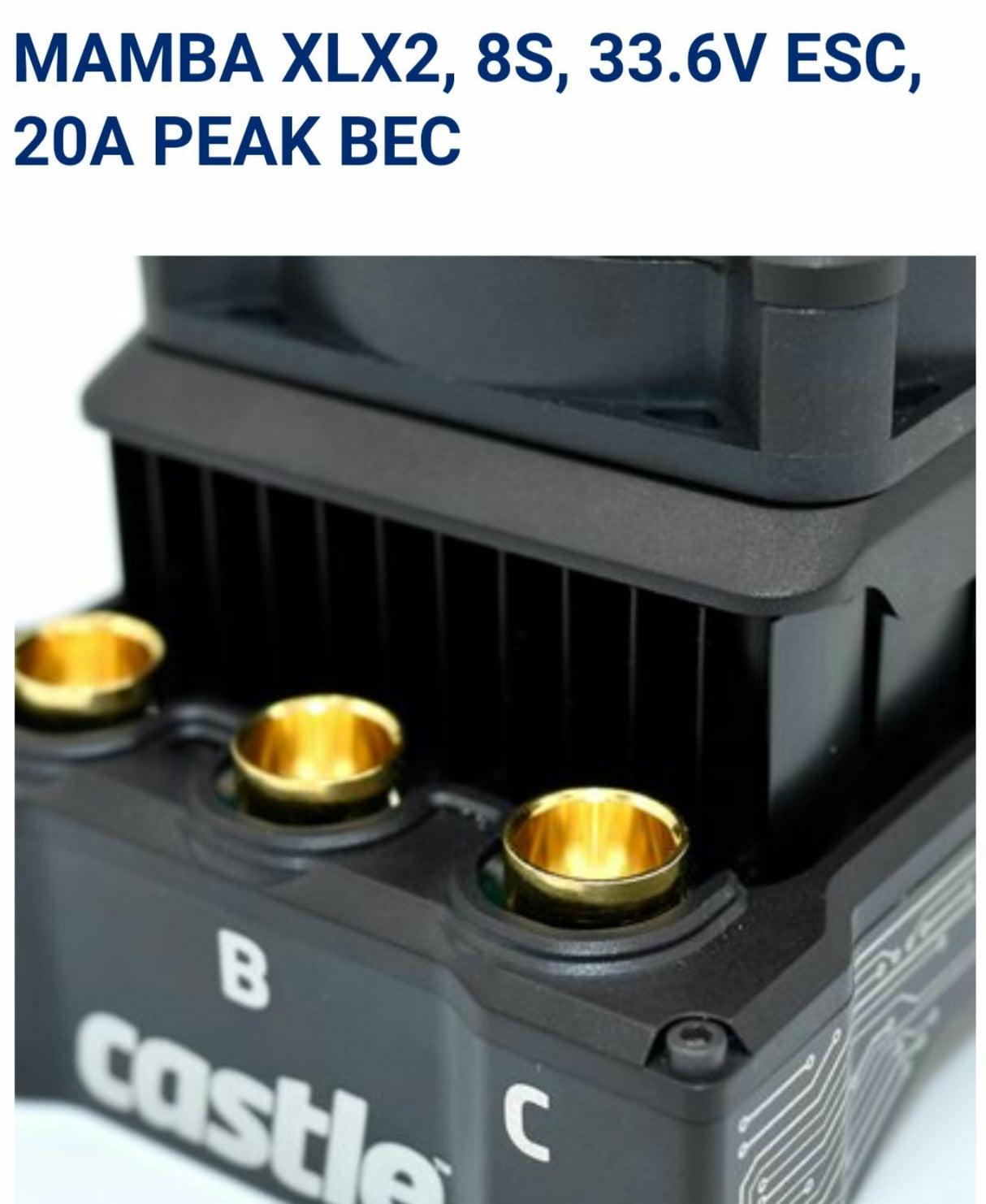

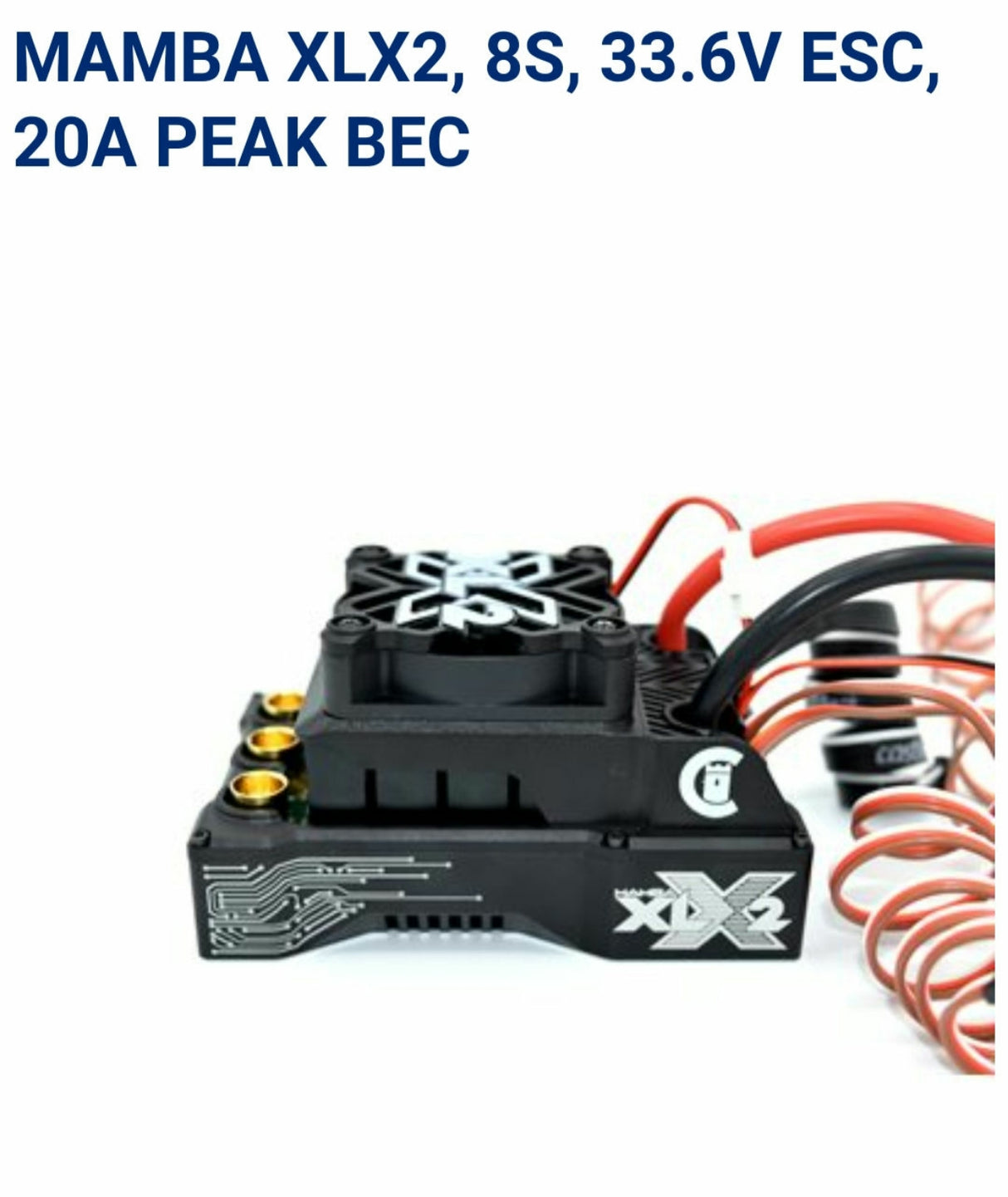

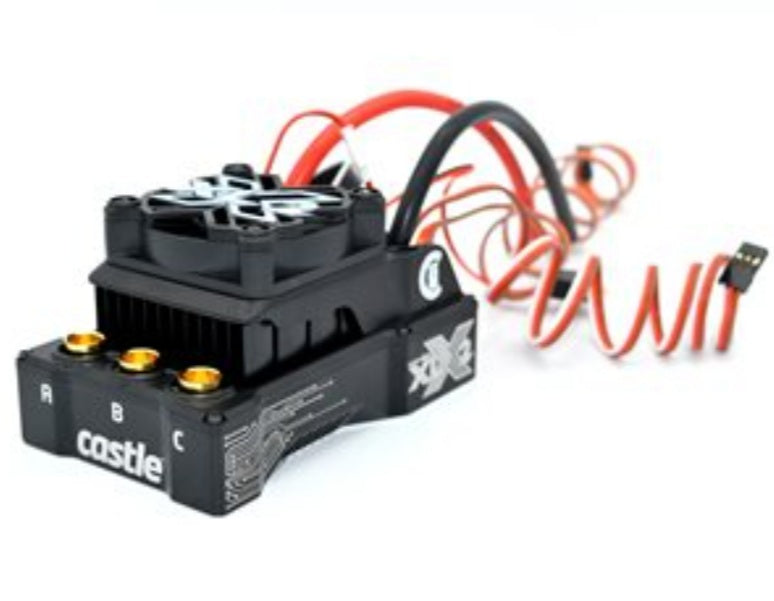

Castle Creations 010-0167-00 XLX2 / 8S / 33.6V ESC / 20A PEAK BEC

SKU: SKU: 010-0167-00

• Description
  Features:

  • Sensored, Sensorless and SmartSense™ running modes
  • Powerful Integrated 20A Peak Adjustable BEC (5.25V-8.0V)
  • Premium forged heatsink with for superior airflow and increased heat dissipation
  • Oversized factory equipped thermally controlled 50mm fan
  • Waterproof design for all weather conditions.
  • ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to  protect the components and promote efficient heat transfer
  • Data-logging capability to capture and record performance data from your vehicle
  • Auxiliary wire functionality for “on the-fly” adjustments using your transmitter
  • Audible alerts for easy diagnosis of possible issues such as motor over-temperature and low voltage cutoff
  • Convenient transmitter programming for six adjustable settings such as cutoff voltage and drag brake
  • Easily tune and update ESC with USB and Bluetooth™ programming options.
  • Castle Link USB programming kit (coupon included with purchase)
  • Optional smartphone-based programming  with the B-LINK™ Bluetooth Adapter (sold separately) and Castle Link app available on Google Play or Apple App Store.
  • Proudly designed and manufactured in Olathe, Kansas USA and backed by Castle Creations’ 1-year warranty

  Specifications:

  Input voltage range: 3S-8S LiPo

  Length: 3.98” (101.2mm)

  Width: 2.49” (63.3mm)

  Height: 2.2” (55.8mm)

  On/Off Switch: Yes, waterproof*

  Cooling Fan: Yes, thermally controlled factory equipped (50mm) fully removable**

  Weight: 13.1 oz (371g)

  Running Modes: Sensored, Brushed, Sensorless and SmartSense™ when paired with a Castle 4-POLE 12-SLOT Sensored Motor. (Dust cover included in package for non-sensored operation)

  Wire Gauge: 8AWG

  Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX, T7PXR Transmitters.
  Items Needed: Connectors designed for 150+ amps continuous, such as Castle 6.5mm polarized or CC BULLET 8.0MM



  Includes:

  • Mamba XLX2 ESC
  • 300mm Direct Connect Sensor Wire
  • Mamba Decals
  • Coupon for free Castle Link USB
  • Motor connection wire, bullets and shrink (not included with combos)
  • Mamba XLX2 Quick Start Guide
  • Sensor port dust cover
