Furitek Starter 118 2S Brushless ESC & Venom Motor Combo for Traxxas TRX-4M (3450kV) FUR-2431

TRX-4M Starter Combo Overview:

The Furitek Lizard Pro 30A Micro element resistant ESC is a Powerful ESC that delivers huge performance to small scale rock crawlers. Boasting a 30 amp continuous rating, adjustable 5A BEC, up to 3S LiPo support, and built-in wireless module programming capability! This ESC supports both brushed and brushless motors and uses FOC technology to give you a buttery smooth performance on the trail. The Furitek Venom 1212 3450kV 12-Pole hi-torque brushless Outrunner motor is designed to provide a buttery smooth feel at low and high RPM with incredibly high torque that will turn your TRX-4M into a crawling performance weapon! Designed to be a plug-and-play option for TRX-4M rock crawlers, this combo is an excellent upgrade if you are looking to bring your TRX-4M to the next level of high performance!

Note: This Combo is not compatible with stock TX/RX due to no channel 2 for external esc and requires a separate RX unit.

Features:

• Lizard Pro ESC
• Support Sensorless brushless DC and brushed DC motor (config via the app, default is brushless)
• FOC (Field-oriented control) technology
• Compatible with stock battery
• Built-in wireless
• Built-in switchable BEC
• Built-in switch power
• Super easy programming via App on both Android and IOS
• Lifetime free firmware updates
• Compact and lightweight
• Real-time telemetry up to 10Hz
• Venom Motor
• 12-Pole Outrunner design
• Super thin (0.2mm) stator laminations
• Precision balanced rotor, smoothness for best reliability and maximum RPM.
• Quiet and compact without sacrificing performance
• Extreme quality high temperature copper windings
• High strength steel pinion gear

Specifications:

• ESC:
• Input Voltage: 2S-3S LiPo
• Waterproof: No
• BEC: 5V-6.5V Switchable
• Current:
• Continuous: 30A
• Peak: 50A
• Dimensions (LxW): 28x15.5mm
• Weight: (3.5g)
• Motor:
• Motor Type: Outrunner
• KV: 3450kV
• Pole: 12-Pole
• LiPo: 2S
• Power: 120W
• Resistance: 0.16 Ohm
• No Load Current(@10V): .07A
• Size (Diameter x Length): 20x15.5mm
• Weight: (17.5g)
• Application: Micro Crawler

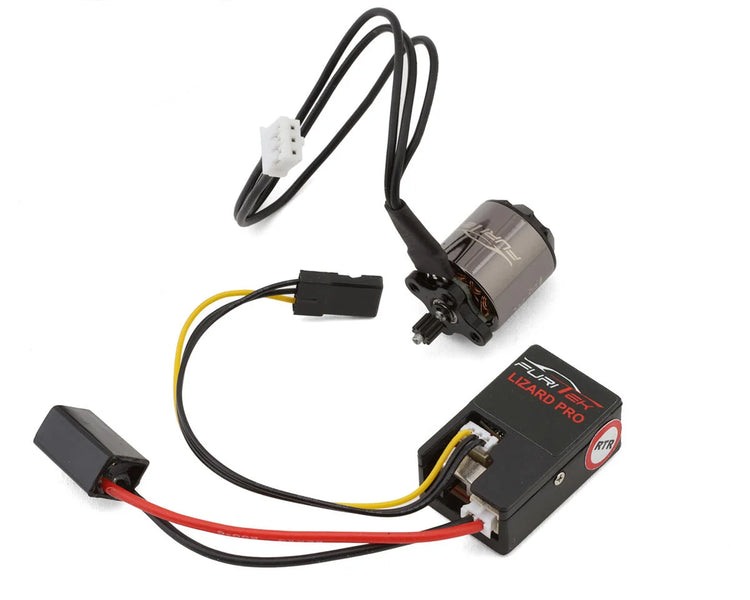

Includes:

• (1) Lizard Pro 30A Brushless ESC
• (1) Venom 1212 3450kV Brushless Motor
• (1) Built-in Wireless Module
• (1) 11T CNC Steel Pinion
