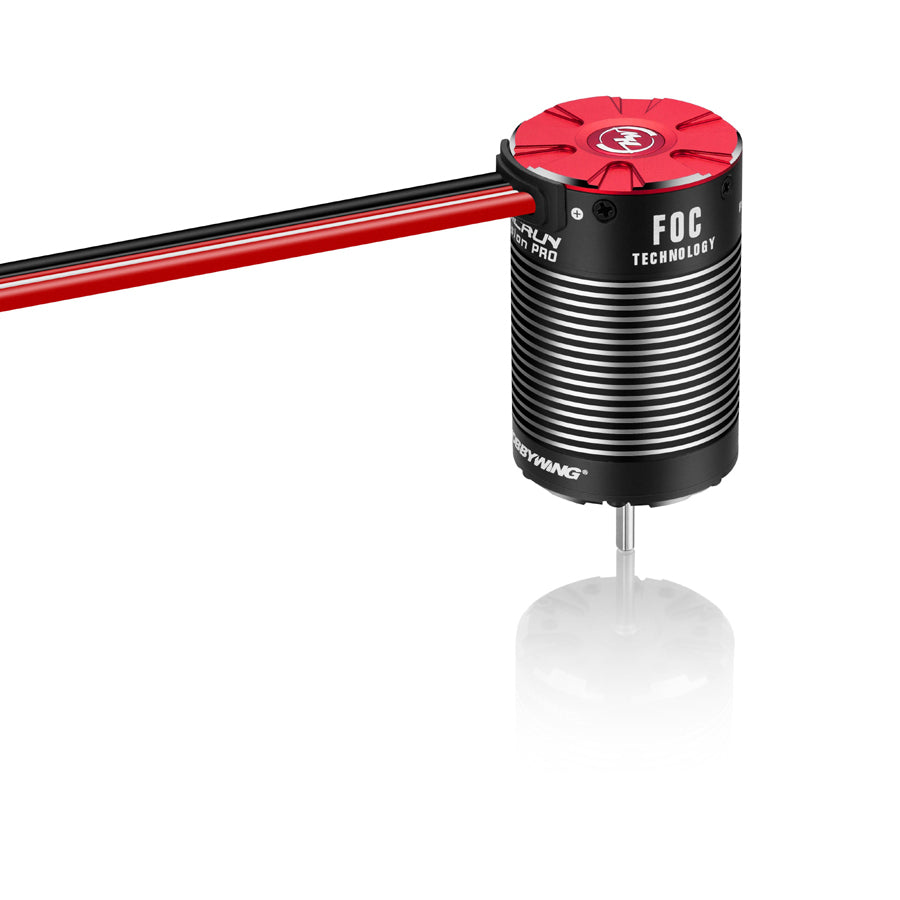

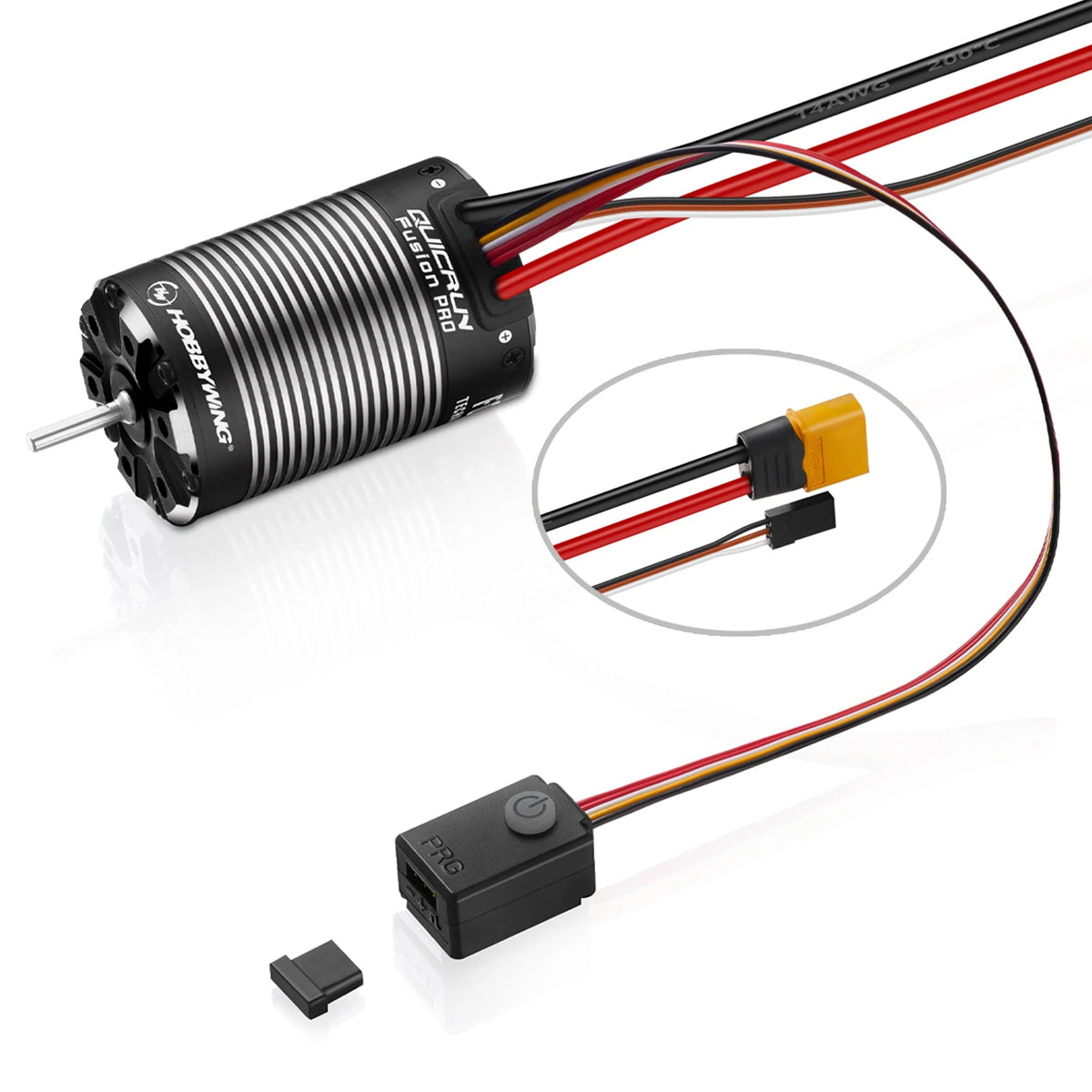

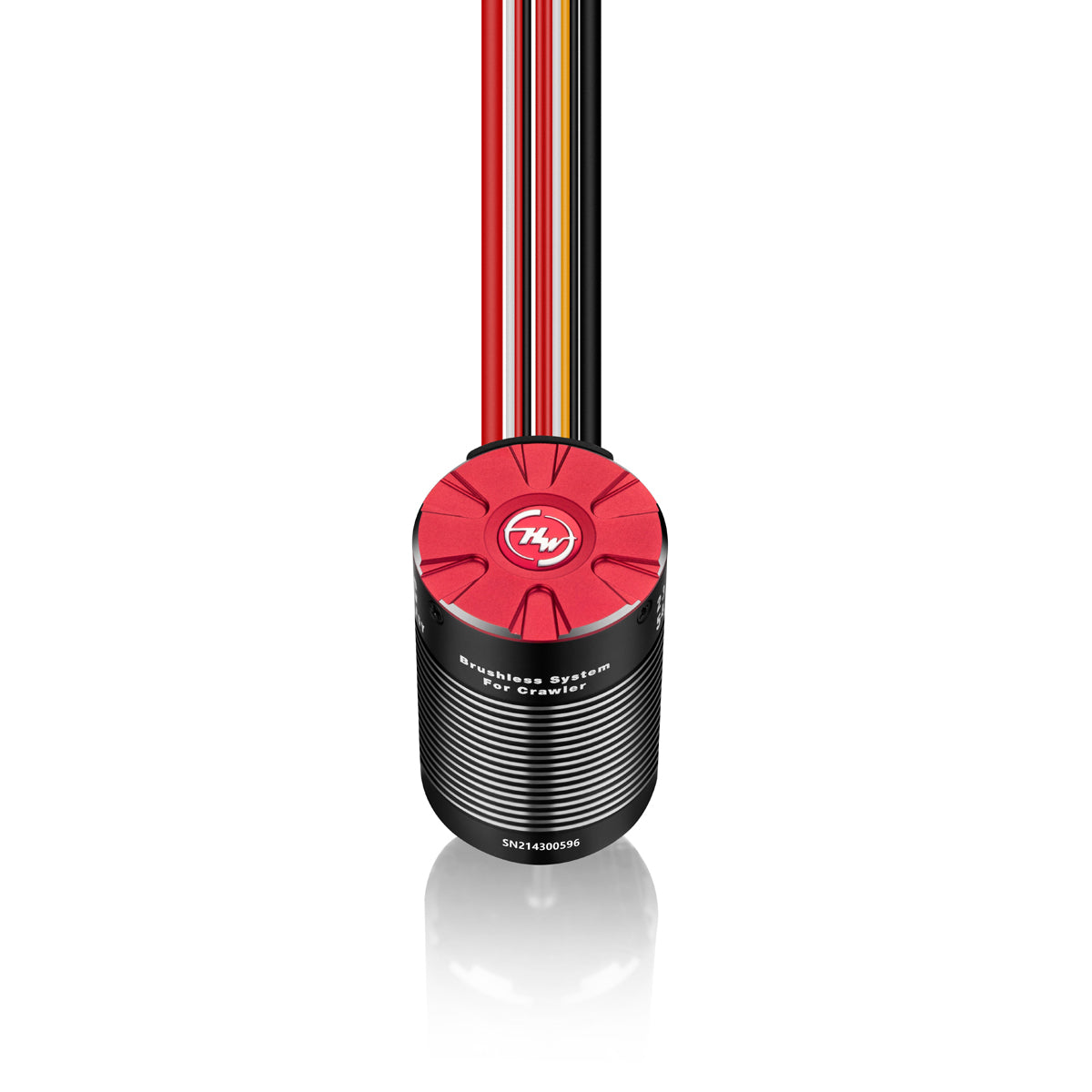

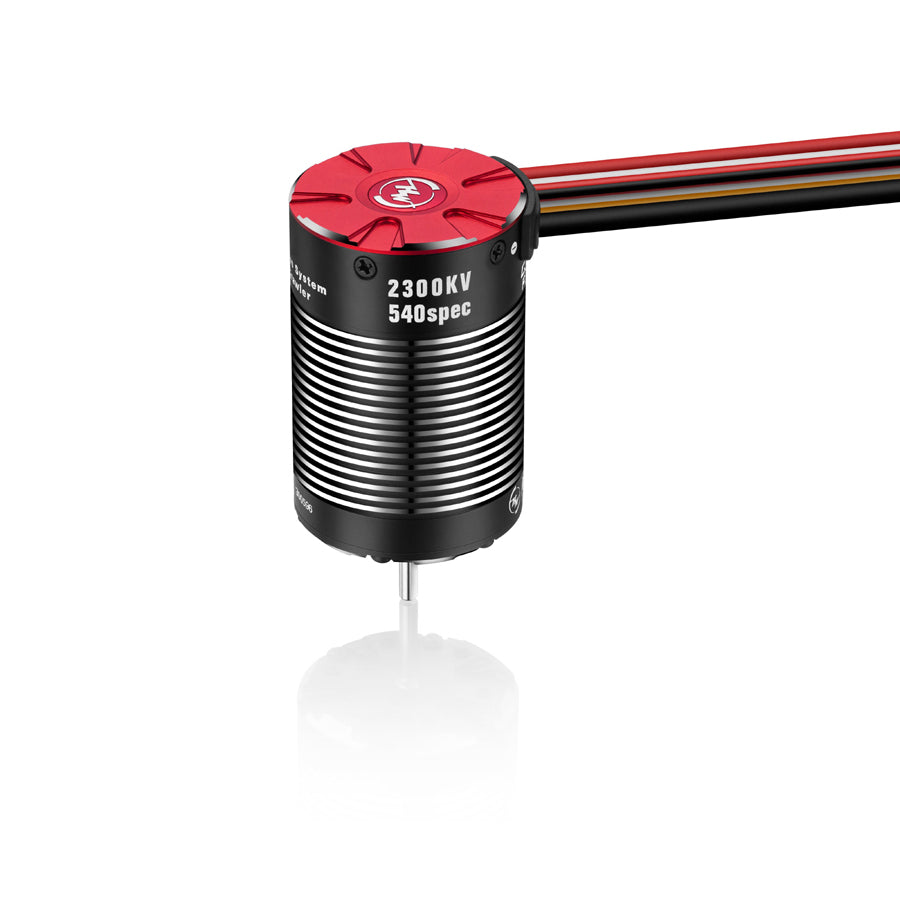

HOBBYWING 30120402 QUICRUN Fusion PRO 2in1 FOC System (2300kV)

The design has been integrated and optimized to provide a cleaner
and sleeker layout appearance. The overall length is now at 58mm, 6mm shorter than the previous version. The smaller footprint provides for a spacious, easy assembly process.

Supports a variety of application needs such as the "constant speed
mode (forward and reverse)", "normal mode (forward and reverse with
brake)" and "normal mode without constant speed function
(Forward and Reverse)

The IP-67 waterproof system guarantees excellent water and dust protection. The whole power system is able to drive on a variety of surfaces, including mud, sand, ice, and snow without damaging the power unit.

The ESC is equipped with 13 adjustable parameters for fine-tuning adjustments. New parameters such as "maximum
braking force", "speed fluency", "start mode ( Punch)", "throttle
midpoint area" and other practical parameters are included.

Specifications:

• Current Rating: 60A Continuous / 200A Peak
• Input Voltage: 2-3S Lipo, 6-9 Cells NiMH
• Motor Poles: 4
• Size: 37mm (diameter) / 58mm (length)
• Weight: 209g (including wires & connectors)
• BEC Output: 6V/7.4V, 6A
