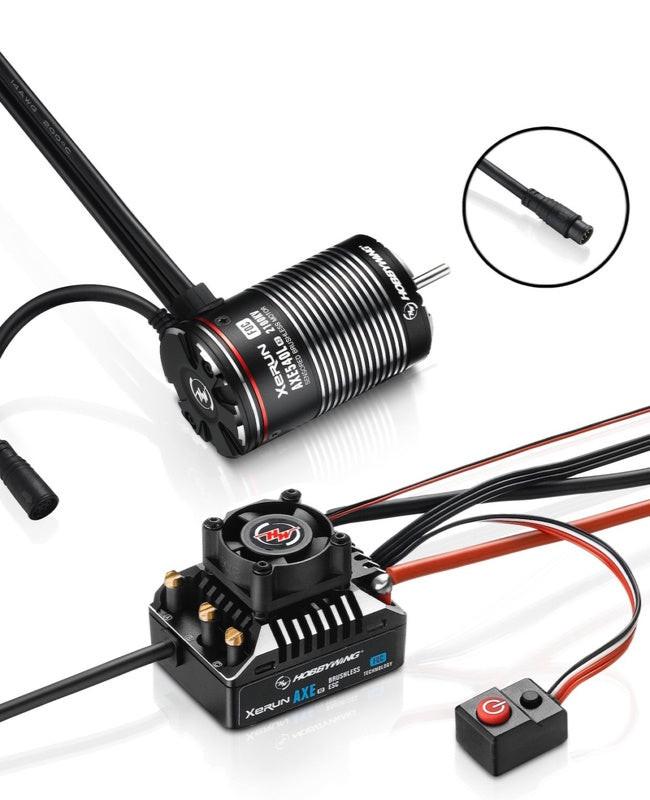

Hobbywing 38020312 Xerun Axe 540l R2 System for Rock Crawler Combo Axe 540l-21

XERUN AXE 540L R2 Brushless System for Rock Crawler w/ AXE 540L-2100KV-R2 Motor, Combo

XERUN AXE R2 FOC ESC Specification:

Item number: 30112102
Cont./Peak Current: 80A/480A
Input Voltage: 2-3S LiPo, 6-9S NiMh
BEC Output: 6V/7.4V Switchable, Continuous Current of 6A (Switch-mode)
Input wires: Red-Black-12AWG-200mm
Input connector: XT60
Programming Port: Built-in Bluetooth
Firmware: iOS or Android smartphone (installed with the HW LINK app)
Size / Weight: 47.4(L)x36.2(W)x26.5(H)mm/ 108g (Included input wires)


XERUN AXE 540L Motor-Specification:

1/10-1/8th FOC brushless motor (Patented), Waterproof
Motor Diameter: 36.0mm(1.42in)
Length (mm): 57.8mm(2.28in)
Shaft Diameter: 3.175(0.125in)
Pole: 4
