HOT RACING ERVT46M01 46t Mod 1 Steel Spur Gear E Revo 2 X-Maxx XO-1

HOT RACING ERVT46M01 46t Mod 1 Steel Spur Gear E Revo 2 X-Maxx XO-1

No reviews

SKU: SKU: 083745293197

Regular price $29.99
Sale price $29.99 Regular price
Sale Sold out
  • Description

    HRAERVT46M01

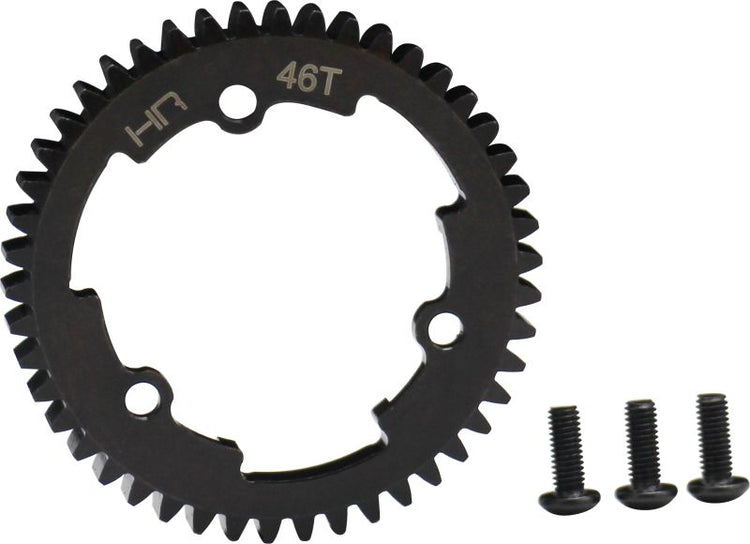

    Hot Racing 46 tooth hardened steel Mod 1 (1.0 metric pitch) spur gear for the Traxxas E Revo2, X-Maxx 6S and 8S, Mxx 4S and XO-1.

    FEATURES:

    - CNC machined hardened steel construction- Black oxide finished- Laser etched tooth count marking

    YOU WILL RECEIVE:

    - One (1) 46 tooth, 1.0 modulus steel spur gear

    REQUIREMENTS:

    - Do NOT use the pin system for setting the X-Maxx gear mesh. Instead, manually set the gear mesh without the pins. Refer to the Traxxas manual for instructions (ref. pg.22 - Adjusting Gear Mesh)- With the pins removed, use the four 4x16mm button-head cap screws on the bottom to set gear mesh. Loosen the four 4x16mm button-head cap screws. Cut a narrow strip of notebook paper and run it into the gear mesh. Slide the motor and pinion gear into the spur gear. Tighten the four 4x16mm button-head cap screws, and then remove the strip of paper. You should be able to run a fresh strip of paper through the gears without binding them.

    SPECIFICATIONS:

    - Overall diameter: 48.7mm- Gear face width: 8mm

    COMMENTS:

    - Replace Traxxas plastic 6447 or 6447X 54T spur gear
