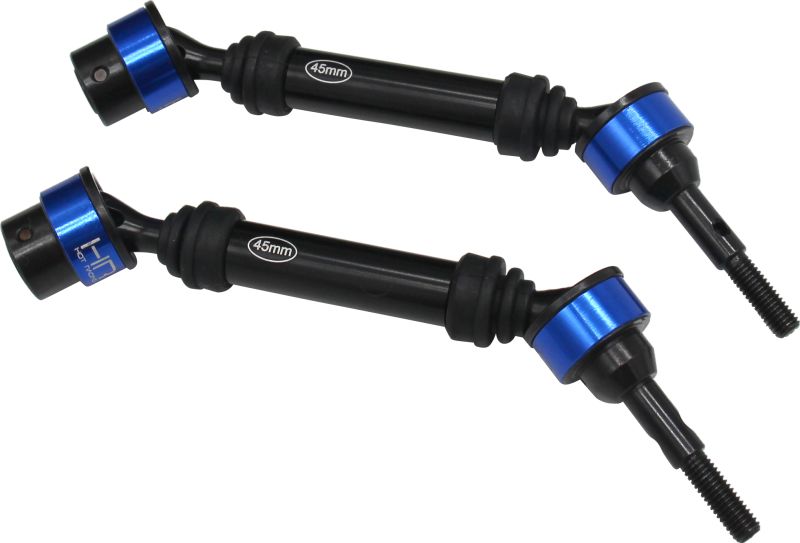

Hot Racing MXX288RC06 Metal Cv Splined Drive ShafT 1/10 Maxx

Hot Racing heavy duty splined star drive CVD axle kit for the front or rear of the Traxxas 1/10th scale Maxx

FEATURES:

- CNC machined #45 hardened carbon steel CVs, drive hub, male slider spline, and stub axle
- CNC machined aluminum slider tube
- Blue anodized aluminum pin capture rings with rubber o-rings to prevent movement
- Rubber dust cover boots
- Replaces factory front or rear driveshaft axles

YOU WILL RECEIVE:

- Two (2) splined axle assemblies

REQUIREMENTS:

- Installation to the drive assembly
- Need to reuse the stock Drive pin and set screw Pin
- Recommended to maintain CV joint and shaft spline with grease
- Recommended to medium thread lock on screws threading into metal

SPECIFICATIONS:

- Collapsed length, overall: 140 mm
- Extended length, overall resulting in zero shaft engagement: 156mm
- Collapsed length, wheel pin to outdrive pin: 118mm
- Extended length, wheel pin to outdrive pin resulting in zero shaft engagement: 132mm

COMMENTS:

For USE with Traxxas WIDE Maxx Kit.
You will need to Replace the center drive Tube to 65mm (SLD65T)
Traxxas Wide Maxx Kit
TRA8995
