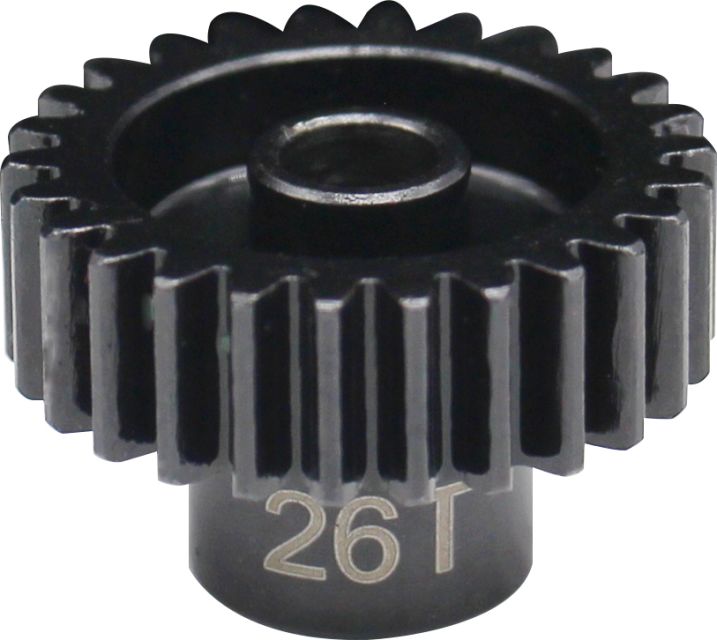

HOT RACING NSG3226 26t Steel 32p Pinion Gear 5mm Bore

Hot Racing hardened steel 26tooth, 32 pitch pinion gear for motors with a 5mm shaft

FEATURES:

- CNC machined
- Hardened steel to increased wear resistance and improve fatigue life
- Nitrided to enhanced hardness corrosion resistance

YOU WILL RECEIVE:

- One (1) pinion gear
- One (1) M4x4mm setscrew

REQUIREMENTS:

- 2mm hex wrench to install setscrew
- Removable thread lock (ex. blue threadlocking compound) for setscrew
- Motor with 5mm shaft
- 32 pitch spur gear

SPECIFICATIONS:

- Tooth count: 26
- Tooth pitch: 32 pitch
- Tooth face width: 7mm
- length: 14.5mm
- For shaft: 5mm
Comment
0.8 module is the same as 32 standard pitch
