Powerhobby 1/8 Aluminum Heatsink 40mm Dual High Speed Cooling Fans Cover Gunmetal

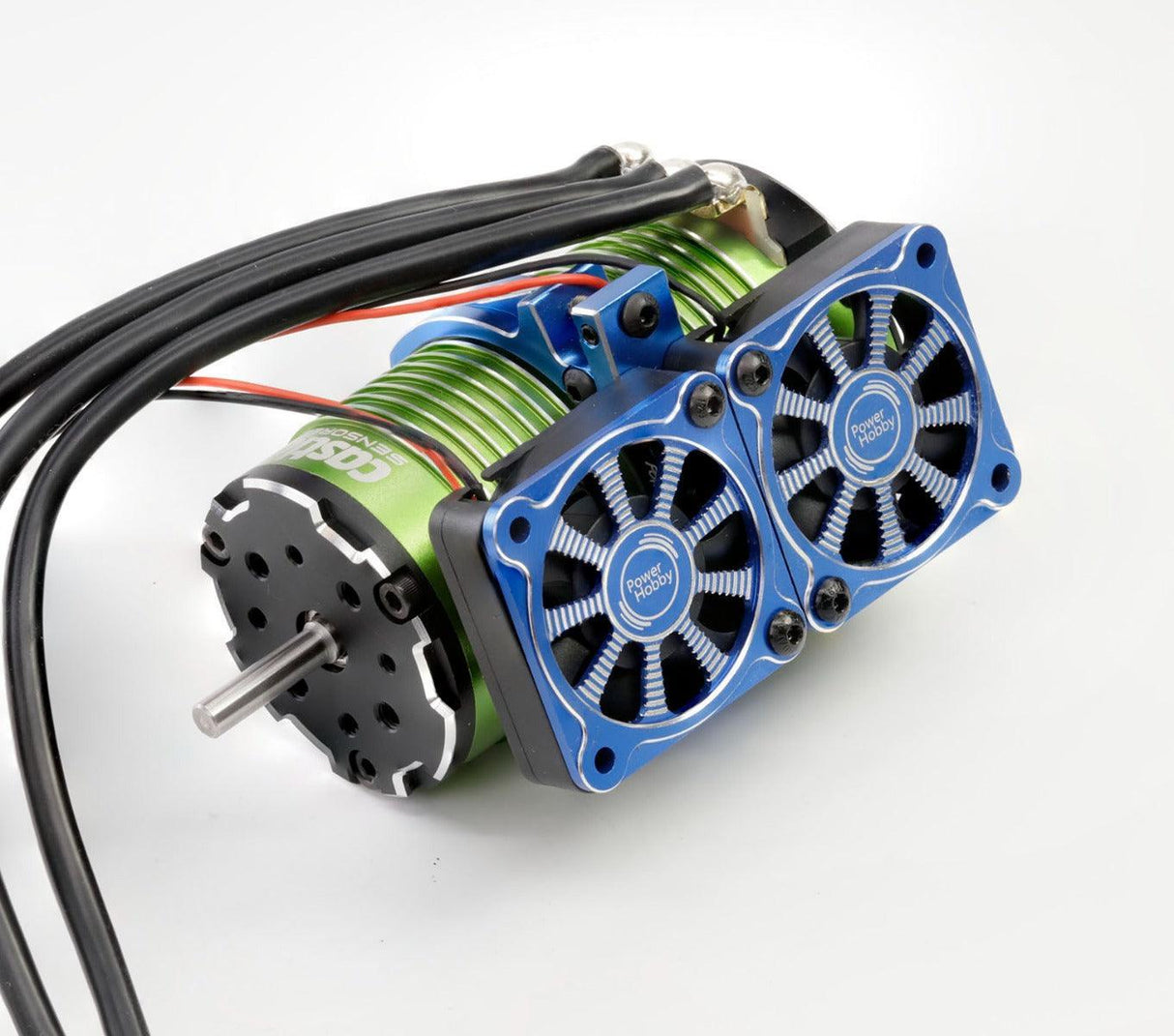

Powerhobby 1/8 Aluminum HeatSink (Motor Mount) w/Twin Turbo High-Speed 40mm Cooling Fans

Description

The PowerHobby Aluminum Motor Heatsink with Dual High-Speed Cooling Fans is designed to help reduce motor temperatures in compatible large-scale RC vehicles.

The aluminum motor mount fits motors measuring approximately 47–49mm in diameter. Two high-speed 40mm cooling fans provide increased airflow across the motor to help control heat during extended runs, speed runs, and demanding driving conditions.

Aluminum fan covers help protect the fan blades, while the included JST Y-splitter combines both fan connections into a receiver-style plug for convenient installation.

Features

• Designed for motors measuring approximately 47–49mm in diameter
• Suitable for many compatible 1/8-, 1/7-, and 1/6-scale RC vehicles
• Durable aluminum motor mount
• Dual high-speed cooling-fan design
• Two 40 × 40 × 10mm cooling fans
• Approximately 16,000 RPM at 8.4V
• Operating-voltage range of 6–8.4V
• Aluminum fan covers help protect the fan blades
• Includes JST Y-splitter with receiver-style connector
• Approximately 15-inch total wire length
• Helps reduce motor temperatures during demanding operation
• Gunmetal finish

Specifications

• Part Number / SKU: PH1293Gunmetal
• Barcode: 791511477398
• Product Type: Motor Heatsink and Dual-Fan Cooling System
• Recommended Scale: 1/8, 1/7 and 1/6 Scale
• Compatible Motor Diameter: Approximately 47–49mm
• Fan Quantity: 2
• Fan Dimensions: 40 × 40 × 10mm
• Fan Speed: Approximately 16,000 RPM at 8.4V
• Input Voltage: 6–8.4V
• Total Wire Length: Approximately 15 inches
• Connector: JST Y-Splitter with Receiver-Style Plug
• Motor-Mount Material: Aluminum
• Fan-Cover Material: Aluminum
• Color: Gunmetal

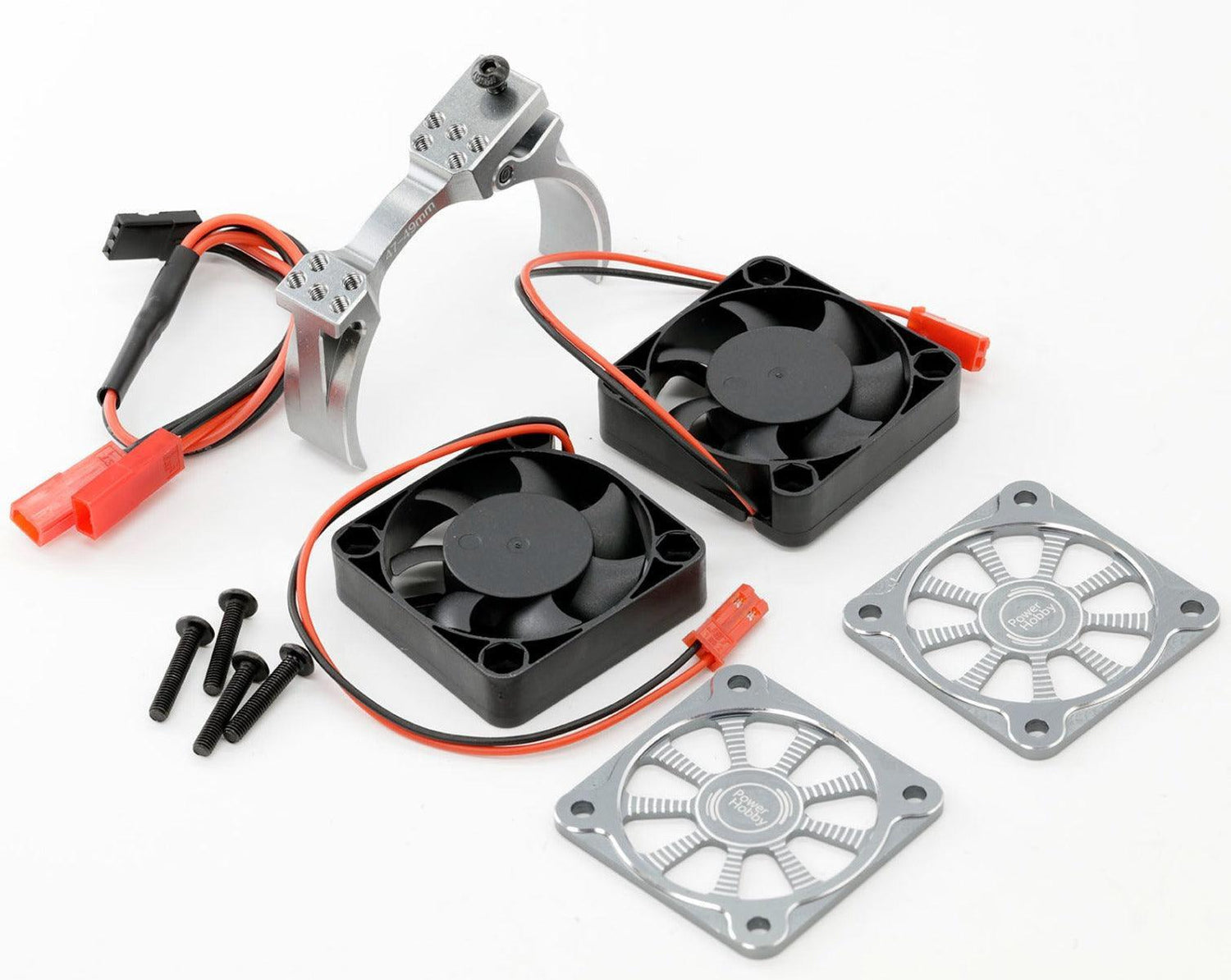

Includes

• 1 Aluminum Motor Mount and Heatsink
• 2 High-Speed 40 × 40 × 10mm Cooling Fans
• 2 Aluminum Fan Covers
• 1 JST Y-Splitter with Receiver-Style Connector

Fits

Universal large-scale RC applications using a compatible motor measuring approximately 47–49mm in diameter, including many:

• 1/8-scale buggies
• 1/8-scale truggies
• 1/8-scale monster trucks
• 1/7-scale on-road vehicles
• 1/6-scale RC vehicles
• Speed-run vehicles
• Custom high-performance RC builds

Verify the motor diameter, chassis clearance, mounting space, connector compatibility, power-source voltage, and available current before purchasing.

Installation Note

Secure the aluminum mount around a clean section of the motor can. Make sure the mount cannot rotate or move during operation.

Keep the fans, covers, screws, and wiring away from the motor shaft, pinion gear, spur gear, center driveshaft, suspension components, and other moving parts.

Connect the receiver-style plug to a compatible open receiver channel or external BEC supplying between 6V and 8.4V. Confirm connector polarity and available current before applying power. Do not exceed 8.4V.
