Powerhobby 1/8 Aluminum Heatsink 40mm Dual High Speed Cooling Fans w/Cover Silver

Powerhobby 1/8 Aluminum HeatSink (Motor Mount) w/Twin Turbo High-Speed Cooling Fans

Description

The Powerhobby Aluminum Motor Heatsink with Dual 40mm Cooling Fans is designed to help control motor temperatures in high-powered RC vehicles.

The aluminum motor mount fits compatible motors measuring 47–49mm in diameter. Two high-speed 40mm fans provide increased airflow across the motor, while the aluminum fan covers help protect the fan blades from debris and accidental contact.

Operating from 6V to 8.4V, each fan reaches up to 16,000 RPM at 8.4V. The included JST Y-splitter combines both fans into a receiver-style connector for connection to a compatible open receiver channel or external BEC.

Features

• Designed for compatible 47–49mm diameter motors
• Dual high-speed 40mm cooling fans
• Helps reduce motor operating temperatures
• Aluminum motor mount and heatsink
• Aluminum fan-protection covers
• Fans produce up to 16,000 RPM at 8.4V
• Wide 6V–8.4V operating range
• Includes JST Y-splitter
• Receiver-style power connector
• Approximately 15-inch total wire length
• Suitable for many 1/8, 1/7, and 1/6-scale RC applications
• Silver finish

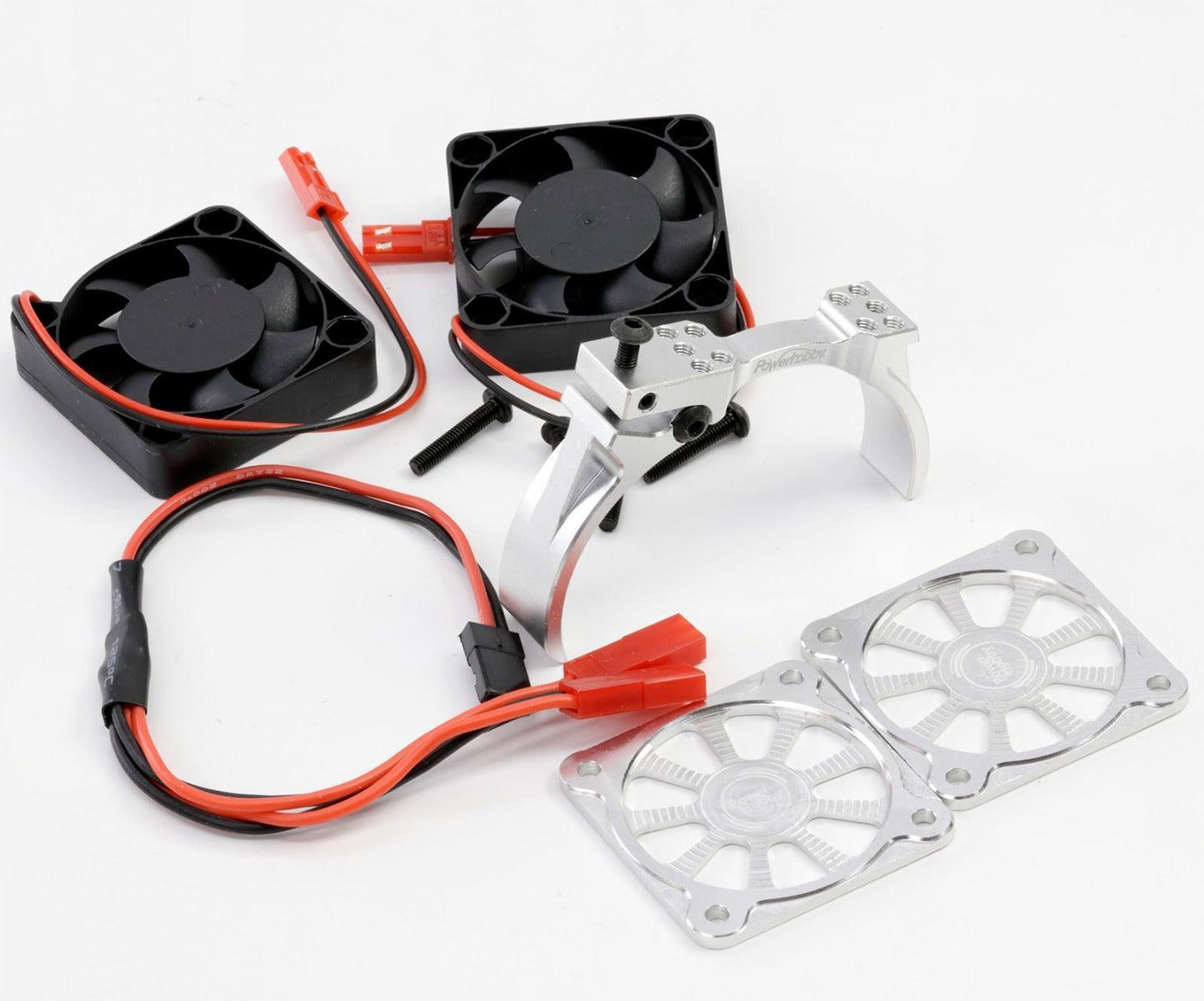

Includes

• 1 Aluminum Motor Heatsink and Mount
• 2 High-Speed 40mm Cooling Fans
• 2 Aluminum Fan Covers
• 1 JST Y-Splitter with Receiver-Style Connector

Specifications

• SKU: PH1293Silver
• Barcode: 791511477381
• Product Type: Motor Heatsink and Dual-Fan Cooling System
• Compatible Motor Diameter: 47–49mm
• Fan Quantity: 2
• Fan Dimensions: 40 × 40 × 10mm
• Maximum Fan Speed: 16,000 RPM at 8.4V
• Input Voltage: 6V–8.4V
• Heatsink Material: Aluminum
• Fan-Cover Material: Aluminum
• Total Wire Length: 15 in
• Connector: Receiver-Style Connector with JST Y-Splitter
• Color: Silver

Fits

Universal RC applications using a compatible 47–49mm diameter motor, including many:

• 1/8-scale buggies and truggies
• 1/8-scale monster trucks
• 1/7-scale on-road and off-road vehicles
• 1/6-scale RC vehicles
• High-power custom RC builds

Verify the motor diameter, available chassis clearance, fan voltage, connector compatibility, and mounting position before purchasing.

Installation Note

Secure the aluminum heatsink around a clean section of the motor can. Make sure the fans, covers, and wiring do not contact the motor shaft, pinion gear, spur gear, center driveshaft, or other moving components.

Connect the fans only to a compatible receiver port or external BEC supplying between 6V and 8.4V. Confirm that the power source can provide sufficient current to operate both fans. Do not exceed 8.4V.
