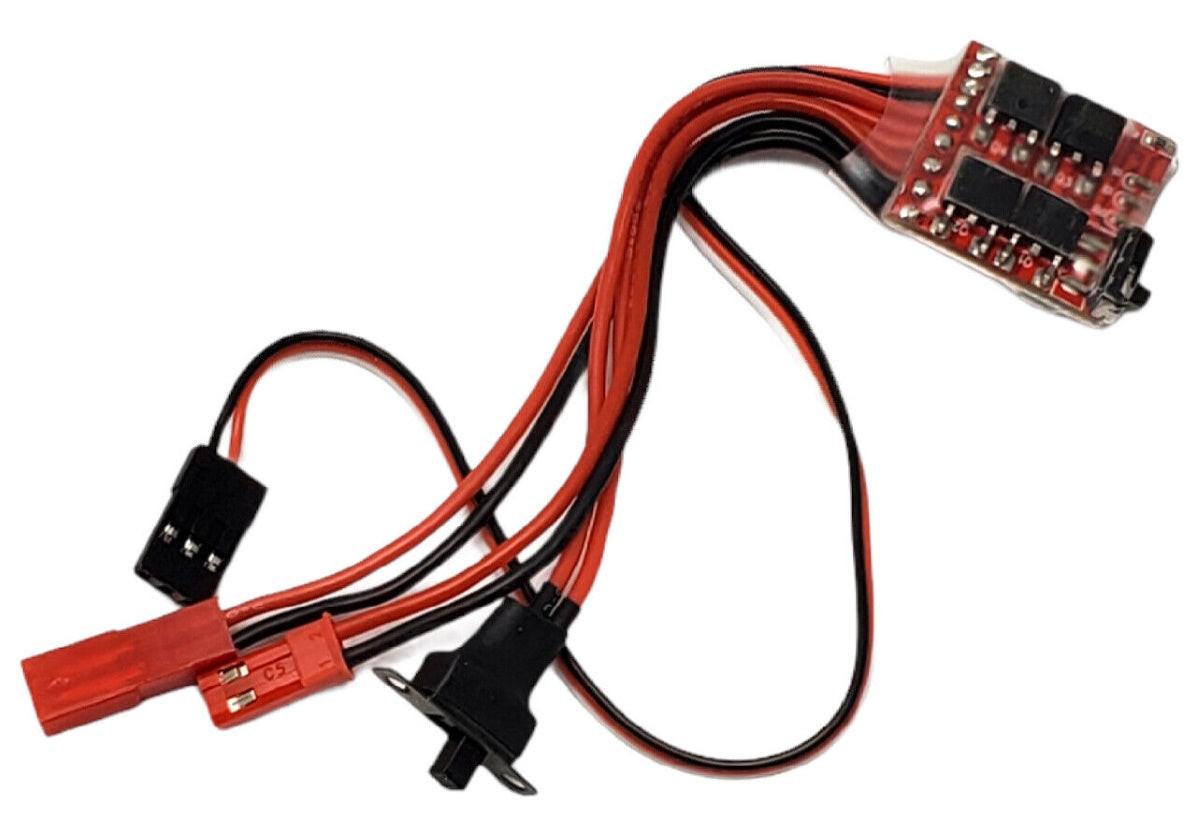

Powerhobby 30A Micro Brushed ESC for Winch Control / 1/24 Crawler Axial SCX24

Powerhobby 30A Micro Brushed ESC for Winch Control / 1/24 Crawlers

Description

The Powerhobby 30A Micro Brushed ESC is a compact electronic speed controller designed for operating brushed winch motors in 1/24-scale RC crawlers.

Its small 25 × 23 × 5mm footprint makes it easy to install in space-limited micro crawlers such as the Axial SCX24 and AX24. The ESC supports forward and reverse winch control and delivers up to 30A forward current with a 40A instantaneous peak rating.

An integrated 5.7V/1A UBEC can supply power to the receiver and connected electronics. PH2.0 motor and ESC connectors provide compatibility with common SCX24 and AX24 wiring systems.

Features

• Compact brushed ESC for micro servo-winch control
• Designed for 1/24-scale RC crawlers
• Forward and reverse operation
• 30A forward-current rating
• 40A instantaneous peak-current rating
• Integrated 5.7V/1A UBEC
• PH2.0 motor and ESC connectors
• Includes an attached power switch
• Compact design for space-limited installations
• Compatible with Axial SCX24 and AX24 connector systems

Includes

• 1 Powerhobby 30A Micro Brushed ESC
• Attached Wiring and Connectors
• Attached On/Off Switch

Specifications

• SKU: PHB6876
• UPC: 659821463121
• ESC Type: Micro Brushed Electronic Speed Control
• Recommended Application: RC Winch Control
• Battery Compatibility: 2S LiPo
• Nominal Battery Voltage: 7.4V
• Forward Current: 30A
• Instantaneous Peak Current: 40A
• Reverse Current: 20A
• Brake Current: 40A
• UBEC Output: 5.7V / 1A
• Motor Connector: PH2.0
• Battery Connector: JST
• Receiver Connection: Three-Wire Receiver Lead
• Dimensions: 25 × 23 × 5mm
• Dimensions in Inches: Approximately 0.98 × 0.91 × 0.20"

Fits

• Axial SCX24
• Axial AX24
• Compatible 1/24-scale RC crawlers
• Custom micro brushed-motor winch installations

Verify the battery voltage, motor type, connector style, receiver compatibility, and available mounting space before installation.

Setup Note

Connect the red battery wire to positive and the black battery wire to negative. Motor polarity can be reversed to change the direction of operation.

After installation, adjust the transmitter throttle trim until the ESC remains neutral when the control is released. The product may not be compatible with every Sanwa radio system.

Important Use Note

This ESC is intended for compatible brushed motors. Do not connect it to a brushless motor. Confirm the winch motor’s current requirements before use and avoid holding the winch under a stalled or overloaded condition.
