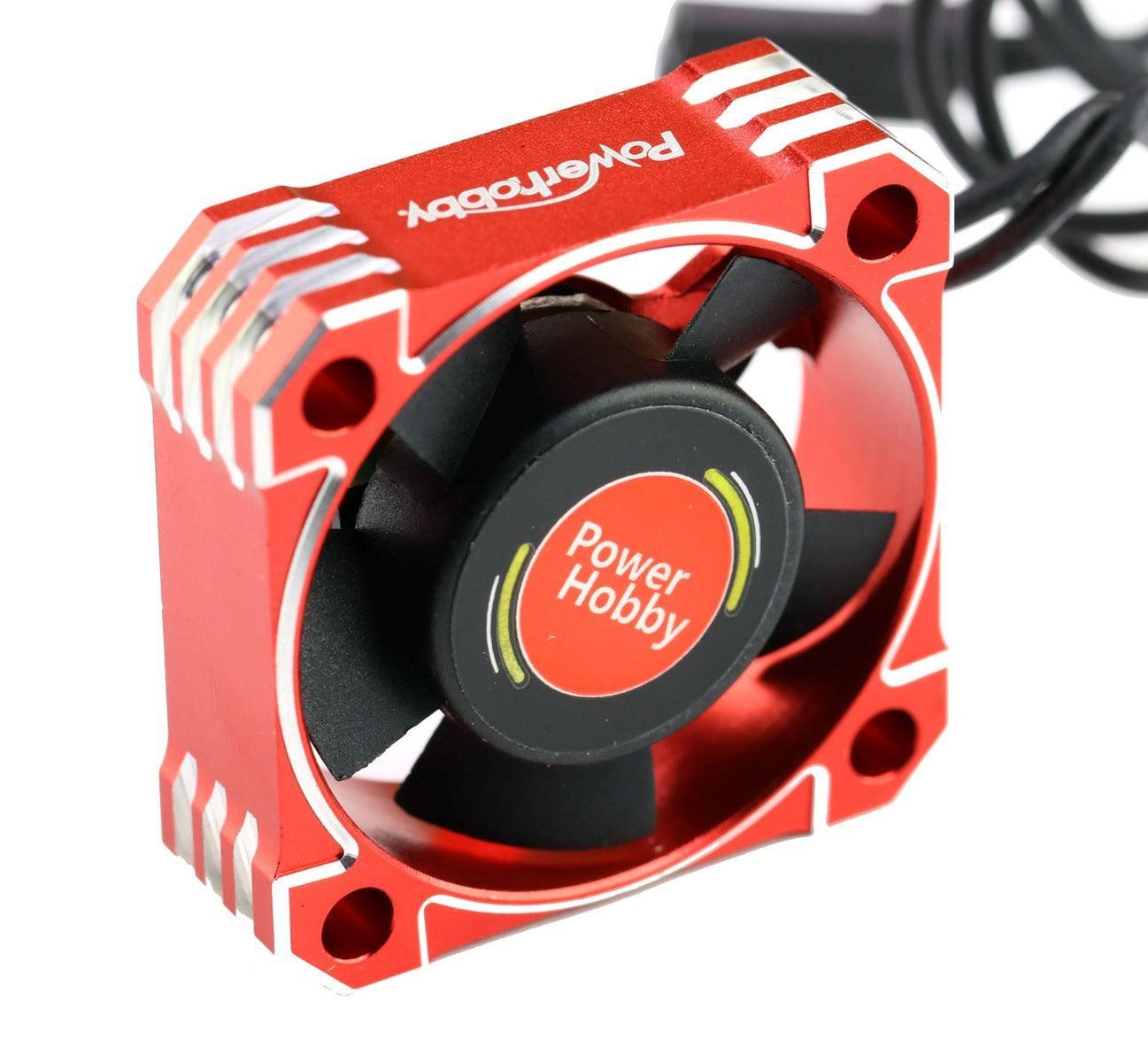

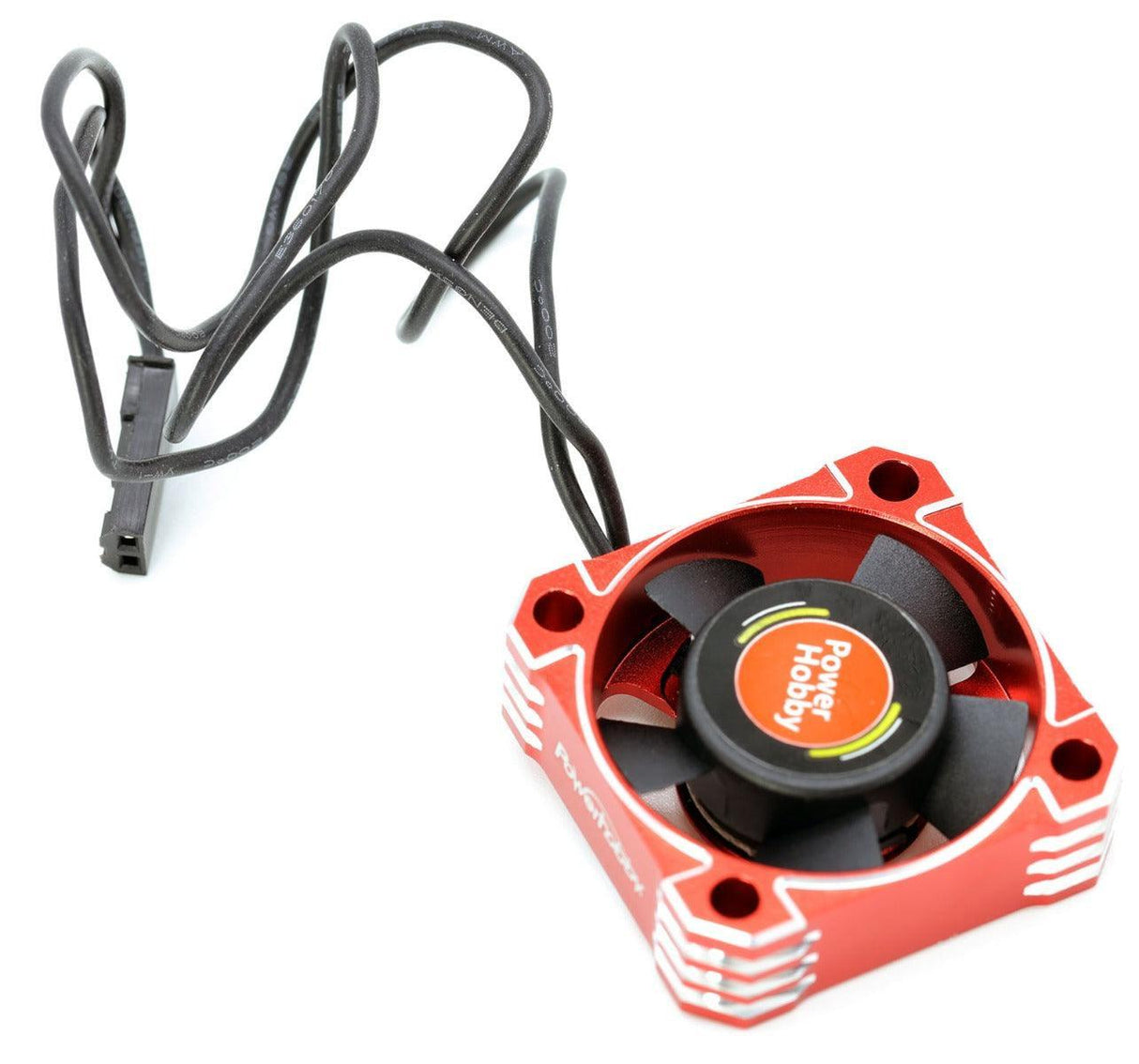

Powerhobby 30mm Aluminum Tornado High Speed HV RC Cooling Fan

Powerhobby 30mm Aluminum Tornado High Speed HV Cooling Fan

Description

The PowerHobby 30mm Aluminum Tornado High-Speed HV Cooling Fan delivers powerful airflow in a compact package for compatible RC motor and ESC cooling applications.

The full T6 aluminum housing helps direct airflow through the fan while protecting the fan blades from accidental contact. When installed against a compatible motor mount or ESC heatsink, the aluminum housing also provides additional surface area to help dissipate heat.

With a fan speed of approximately 28,000 RPM at 8.5V, this compact fan is ideal for demanding RC applications where installation space is limited.

Features

• High-speed 30mm RC cooling fan
• Approximately 28,000 RPM at 8.5V
• Full T6 aluminum heatsink-style housing
• Aluminum housing helps direct airflow
• Helps protect the fan blades
• Provides additional heat-dissipation surface
• Compact 30 × 30 × 10mm dimensions
• Operates from 5V to 8.5V
• Compatible with suitable 2S and 2S HV power systems
• Suitable for compatible motor and ESC cooling applications
• JST power connector
• Mounting hardware included
• Red finish

Specifications

• SKU: PHF3030-Red
• Barcode: Does Not Apply
• Product Type: High-Speed HV RC Cooling Fan
• Fan Dimensions: 30 × 30 × 10mm
• Fan Speed: Approximately 28,000 RPM at 8.5V
• Operating Voltage: 5–8.5V
• Current Draw: Approximately 0.45A
• Wire Length: Approximately 180mm
• Weight: Approximately 13g
• Connector: JST Plug
• Housing Material: T6 Aluminum
• Color: Red

Includes

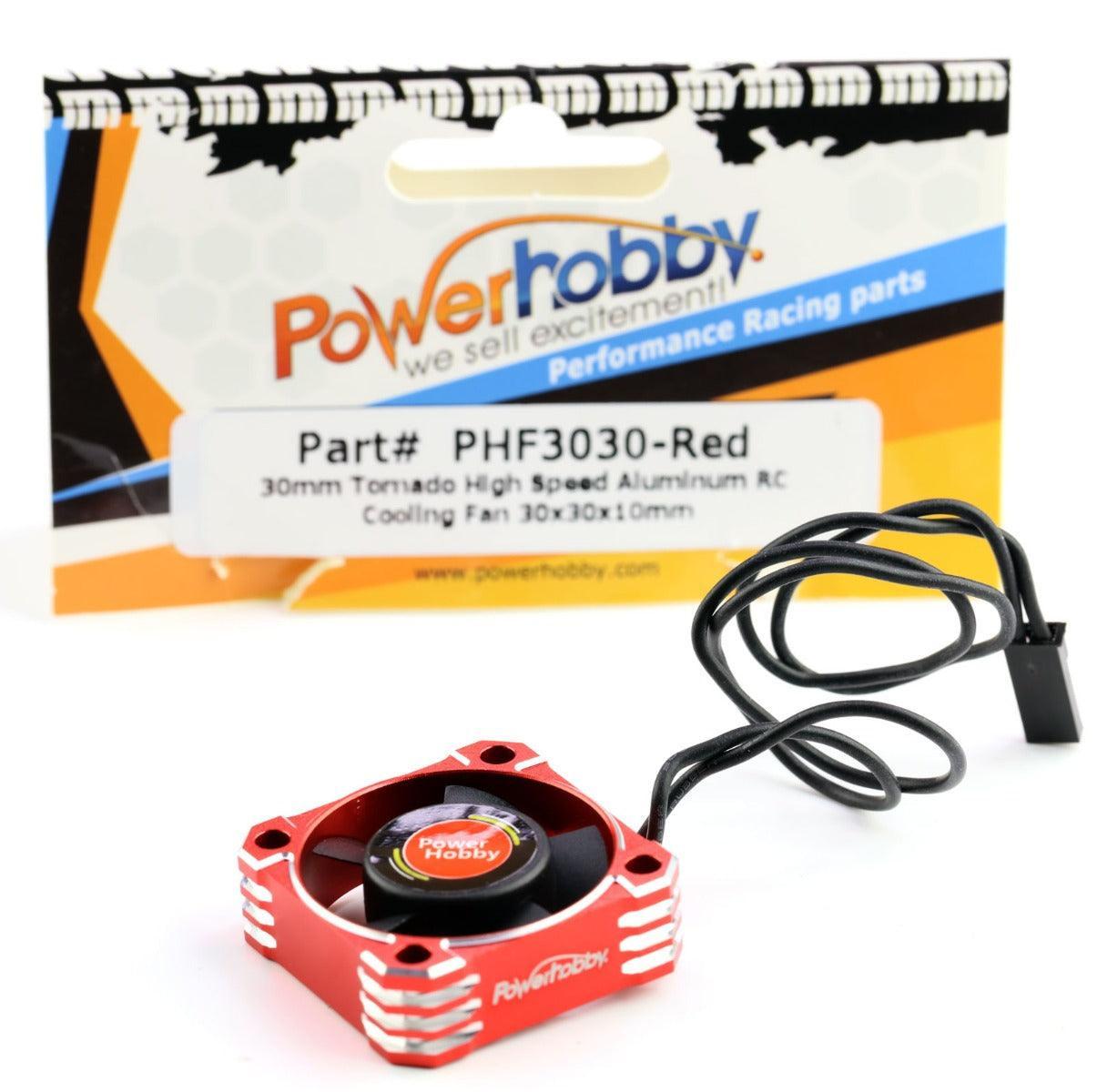

• 1 PowerHobby 30mm Aluminum Tornado Cooling Fan
• Mounting Hardware

Fits

Universal RC motor and ESC cooling applications with sufficient mounting space, including compatible:

• 1/12-scale RC vehicles
• 1/10-scale RC vehicles
• 1/8-scale RC vehicles
• 1/7-scale RC vehicles
• 1/6-scale RC vehicles
• 1/5-scale RC vehicles
• On-road cars
• Off-road buggies
• Short-course trucks
• Monster trucks
• Truggies
• Speed-run vehicles
• Custom high-performance RC builds

Verify the available mounting space, mounting-hole spacing, connector compatibility, power-source voltage, current capacity, and wire routing before purchasing.

Installation Note

Install the fan securely on a compatible motor mount, ESC heatsink, or cooling-fan bracket. Make sure the fan housing and wiring cannot contact the motor shaft, pinion gear, spur gear, driveshaft, or other moving components.

Confirm connector polarity before applying power. Use only a compatible power source between 5V and 8.5V, and do not exceed the listed 8.5V maximum operating voltage.
