Powerhobby 30mm Ultra High Speed Motor / ESC Cooling Fan 30x30x10

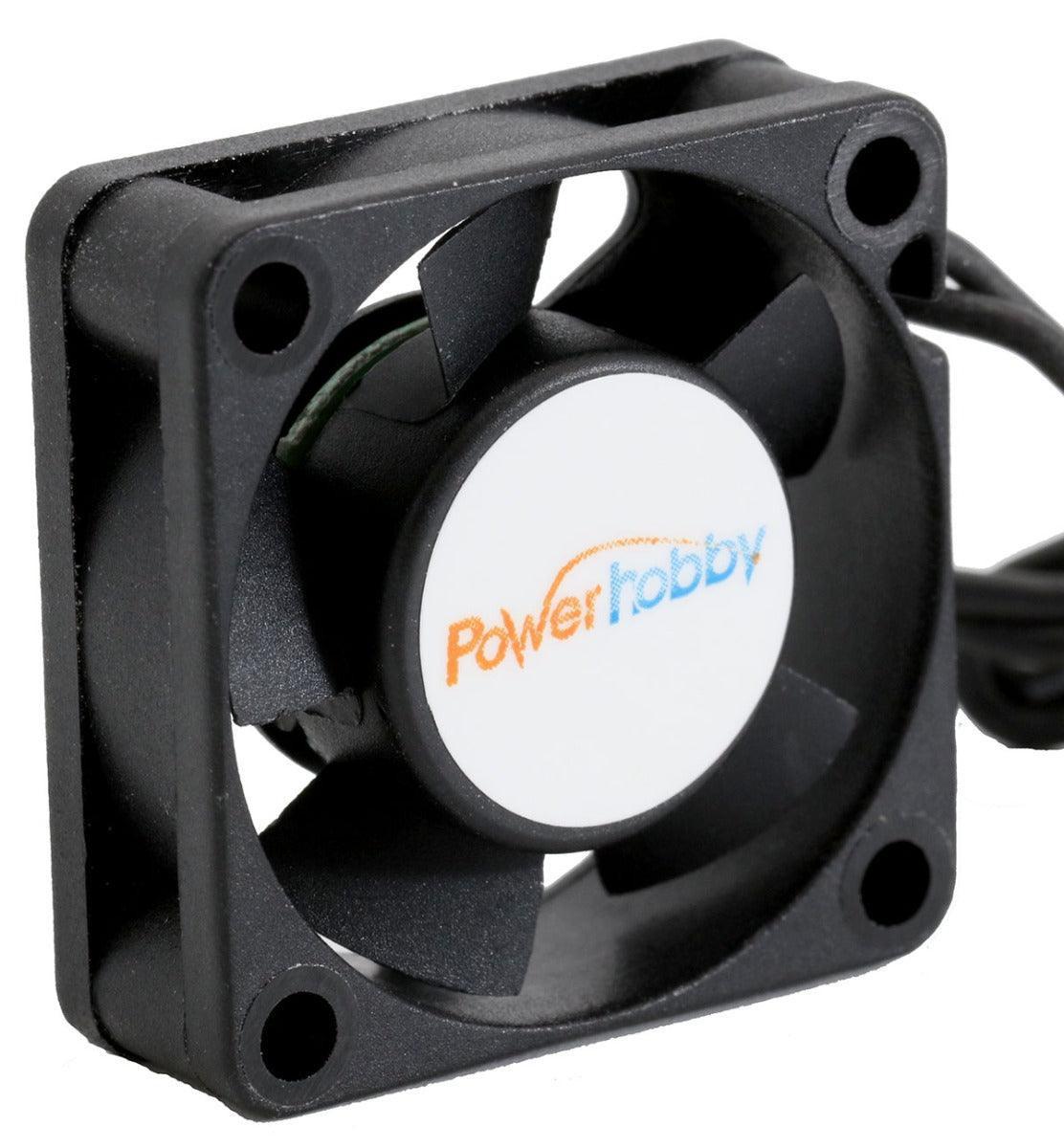

Powerhobby 30mm Ultra High Speed Motor / ESC Cooling Fan

Description

The PowerHobby 30mm Ultra High-Speed Cooling Fan delivers powerful airflow in a compact size for compatible RC motor and ESC cooling applications.

Featuring a dual-ball-bearing design, this fan reaches approximately 25,000 RPM when powered at 8.4V. Its compact 30 × 30 × 10mm dimensions make it suitable for installations where mounting space is limited.

The fan operates from 5V to 8.4V, allowing it to run from a compatible 6V receiver output or a fully charged 2S battery power source.

Features

• Ultra-high-speed 30mm RC cooling fan
• Suitable for motor and ESC cooling applications
• Dual-ball-bearing construction
• Approximately 25,000 RPM at 8.4V
• Compact 30 × 30 × 10mm dimensions
• Operates from 5V to 8.4V
• Can run from a compatible 6V receiver output
• Compatible with a properly connected 2S battery power source

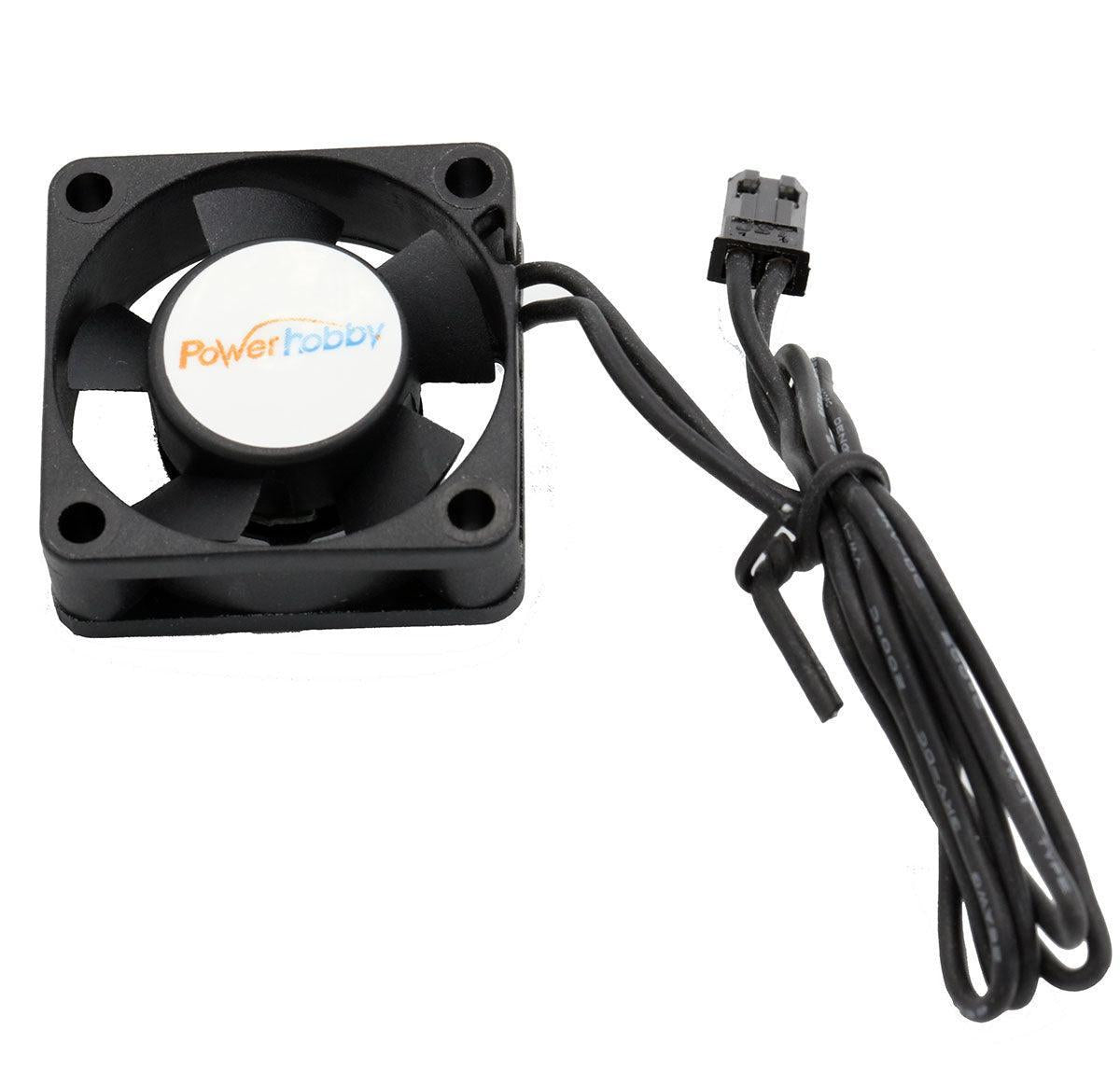

• JST power plug
• Long 7-inch connecting wire
• Suitable for compatible 1/12 through 1/5-scale RC applications
• Mounting hardware included

Specifications

• SKU: PHF30
• Barcode: 655479152844
• Product Type: Motor and ESC Cooling Fan
• Fan Dimensions: 30 × 30 × 10mm
• Fan Speed: Approximately 25,000 RPM at 8.4V
• Operating Voltage: 5V–8.4V
• Current Draw: Approximately 0.45A
• Bearing Type: Dual Ball Bearing
• Wire Length: Approximately 7 inches (177mm)
• Connector: JST Plug

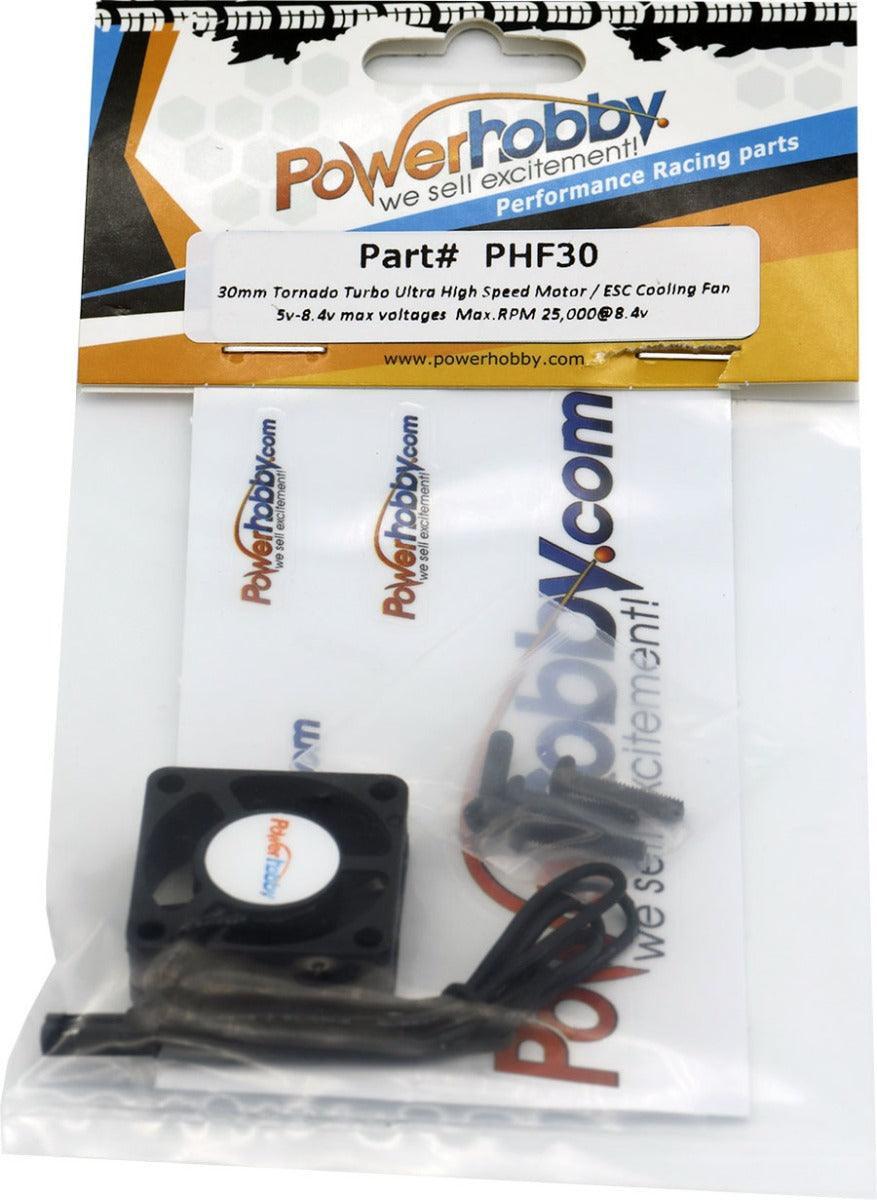

Includes

• 1 PowerHobby 30mm Ultra High-Speed Cooling Fan
• Mounting Hardware

Fits

Universal RC motor and ESC cooling applications with sufficient mounting space, including compatible:

• 1/12-scale RC vehicles
• 1/10-scale RC vehicles
• 1/8-scale RC vehicles
• 1/7-scale RC vehicles
• 1/6-scale RC vehicles
• 1/5-scale RC vehicles
• On-road cars
• Off-road buggies
• Short-course trucks
• Monster trucks
• Truggies
• Speed-run vehicles
• Custom RC builds

Verify the available mounting space, mounting-hole alignment, connector compatibility, power-source voltage, current capacity, and wire routing before purchasing.

Installation Note

Mount the fan securely to a compatible motor mount, ESC heatsink, or cooling-fan bracket. Make sure the fan and wiring cannot contact the motor shaft, pinion gear, spur gear, driveshaft, or other moving components.

Confirm connector polarity before applying power. Use only a compatible power source between 5V and 8.4V, and do not exceed the listed 8.4V maximum operating voltage.
