Powerhobby 30x30x10 Tornado High Speed Aluminum RC Cooling Fan 30MM

Powerhobby 30mm Aluminum Tornado High Speed HV Cooling Fan

Description

The Powerhobby 30mm Tornado High-Speed Cooling Fan provides powerful airflow for compatible RC motors, electronic speed controls, and other electronics.

Its T6 aluminum housing helps concentrate airflow while providing additional surface area for heat dissipation. The aluminum casing also protects the fan blades from debris and accidental contact.

Operating from 5V to 8.5V, the fan reaches up to 28,000 RPM at 8.5V. Its compact 30 × 30 × 10mm design makes it suitable for many RC cooling applications where space is limited.

Features

• High-speed 30mm RC cooling fan
• Produces up to 28,000 RPM at 8.5V
• T6 aluminum heatsink-style housing
• Helps concentrate and direct airflow
• Aluminum casing helps protect the fan blades
• Compact 30 × 30 × 10mm design
• Wide 5V–8.5V operating range
• JST power connector
• Suitable for motor, ESC, and electronics cooling
• Compatible with many 1/12 through 1/5-scale RC applications
• Blue finish

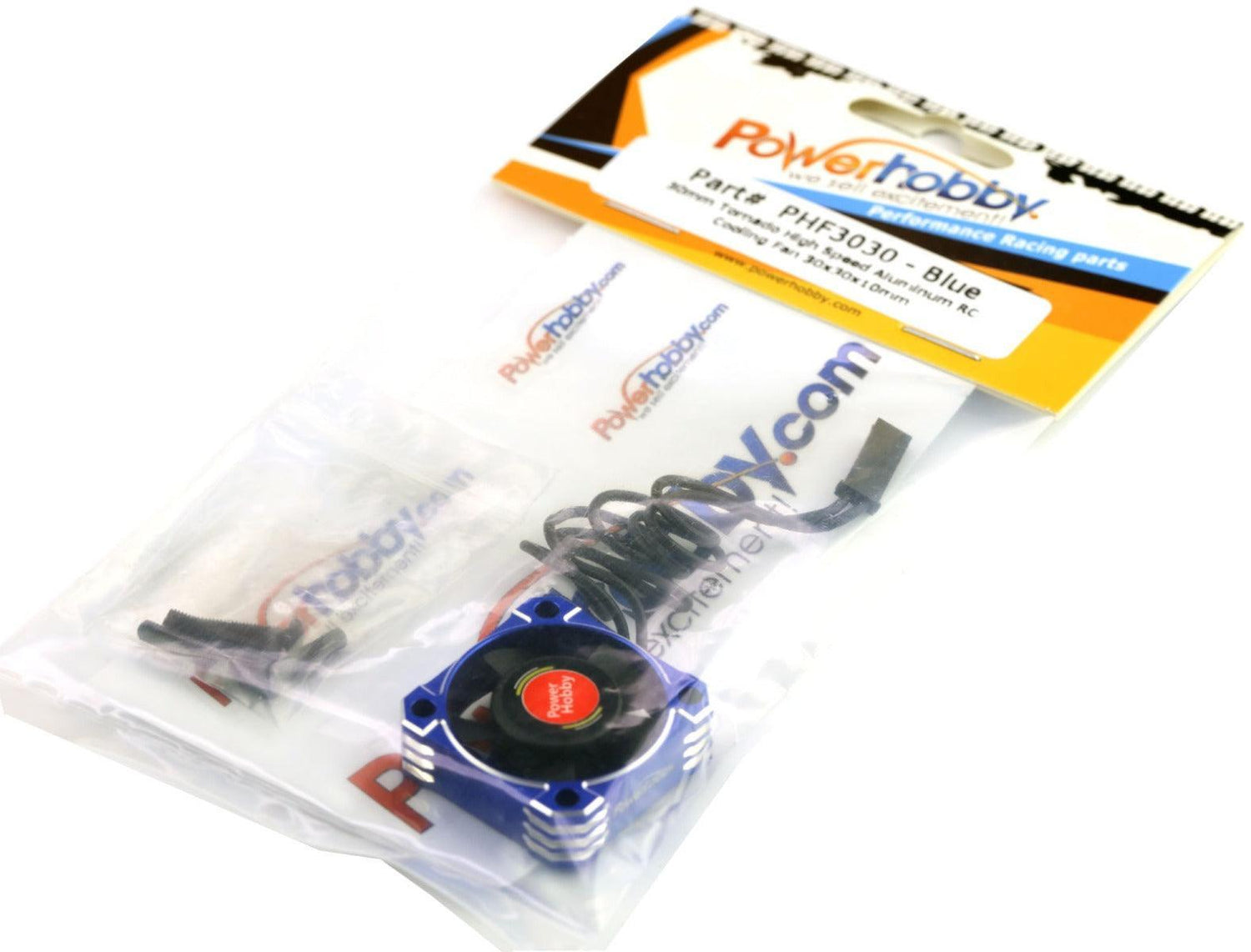

Includes

• 1 Powerhobby 30mm High-Speed Aluminum Cooling Fan
• Mounting Hardware

Specifications

• SKU: PHF3030-Blue
• Barcode: Does Not Apply
• Product Type: High-Speed RC Cooling Fan
• Fan Dimensions: 30 × 30 × 10mm
• Fan Dimensions in Inches: Approximately 1.18 × 1.18 × 0.39"
• Maximum Fan Speed: 28,000 RPM at 8.5V
• Operating Voltage: 5V–8.5V
• Current Draw: 0.45A
• Wire Length: 180mm
• Connector: JST
• Housing Material: T6 Aluminum
• Weight: 13g
• Color: Blue

Fits

Universal RC cooling applications with sufficient mounting space and a compatible power source, including many:

• 1/12-scale RC vehicles
• 1/10-scale RC vehicles
• 1/8-scale RC vehicles
• 1/7-scale RC vehicles
• 1/6-scale RC vehicles
• 1/5-scale RC vehicles
• Motor heatsinks and fan mounts
• Electronic speed controls
• Custom RC electronics installations

Verify the mounting-hole spacing, available clearance, connector type, power-source voltage, and current capacity before installation.

Installation Note

Secure the fan with the included mounting hardware and confirm that the blades rotate freely. Keep the fan and wiring away from gears, driveshafts, motor shafts, suspension parts, and other moving components.

Connect the fan only to a regulated power source between 5V and 8.5V capable of providing at least 0.45A. Do not exceed 8.5V.

The product page also mentions compatibility with 2S HV LiPo systems up to 8.75V, which conflicts with the listed 8.5V operating limit. Use 8.5V as the maximum unless a higher rating is confirmed by the manufacturer.
