Powerhobby 4028 ESC Cooling Fan Hobbywing MAX6 MAX8 Arrma 6S Firma Black

Powerhobby 4028 ESC Cooling Fan 21000RPM Fits hobbywing MAX6 MAX8 / Arrma 6S Firma 150A

Description

The PowerHobby 4028 High-Speed ESC Cooling Fan is designed to provide powerful airflow for compatible large-scale RC electronic speed controls.

The ball-bearing fan operates at approximately 21,000 RPM to help reduce ESC temperatures during extended runs, speed runs, aggressive driving, and other demanding conditions.

It supports a wide operating range of 6V to 11.1V. A 3S LiPo power adapter with an inline on/off switch is included for convenient external power operation.

Features

• High-speed ESC cooling fan
• Approximately 21,000 RPM
• Provides extremely high airflow
• Ball-bearing construction
• 4028 fan design
• Wide 6–11.1V operating range
• Includes 3S LiPo power adapter
• Includes inline on/off switch
• Designed for compatible Hobbywing and ARRMA ESCs
• Black finish

Specifications

• Part Number / SKU: PHB5165Black
• Barcode: 655466482848
• Product Type: High-Speed ESC Cooling Fan
• Fan Size: 4028
• Fan Dimensions: Approximately 40 × 40 × 28mm
• Fan Speed: Approximately 21,000 RPM
• Operating Voltage: 6–11.1V
• Bearing Type: Ball Bearing
• Recommended Power Source: Compatible 3S LiPo
• Color: Black

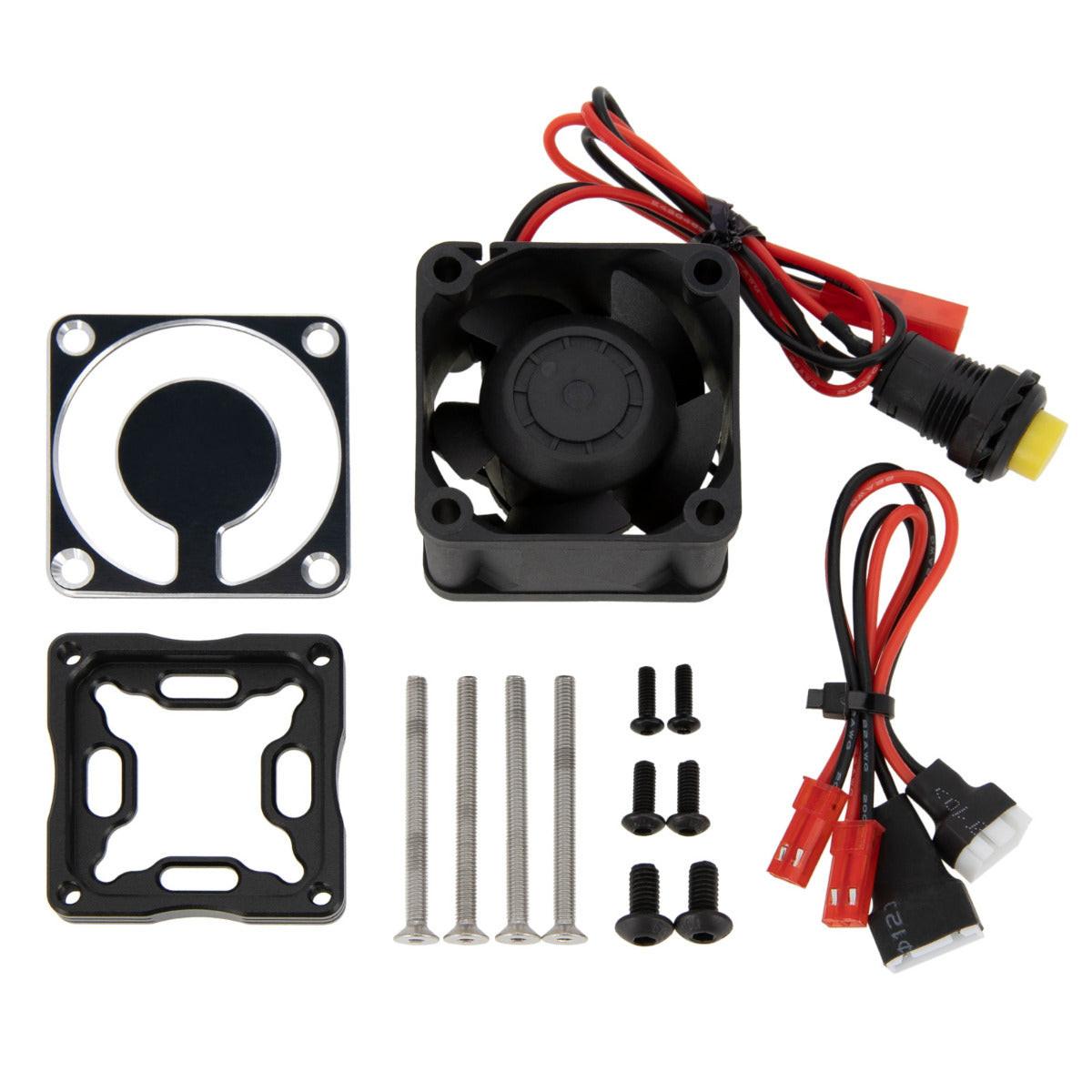

Includes

• 1 PowerHobby 4028 High-Speed ESC Cooling Fan

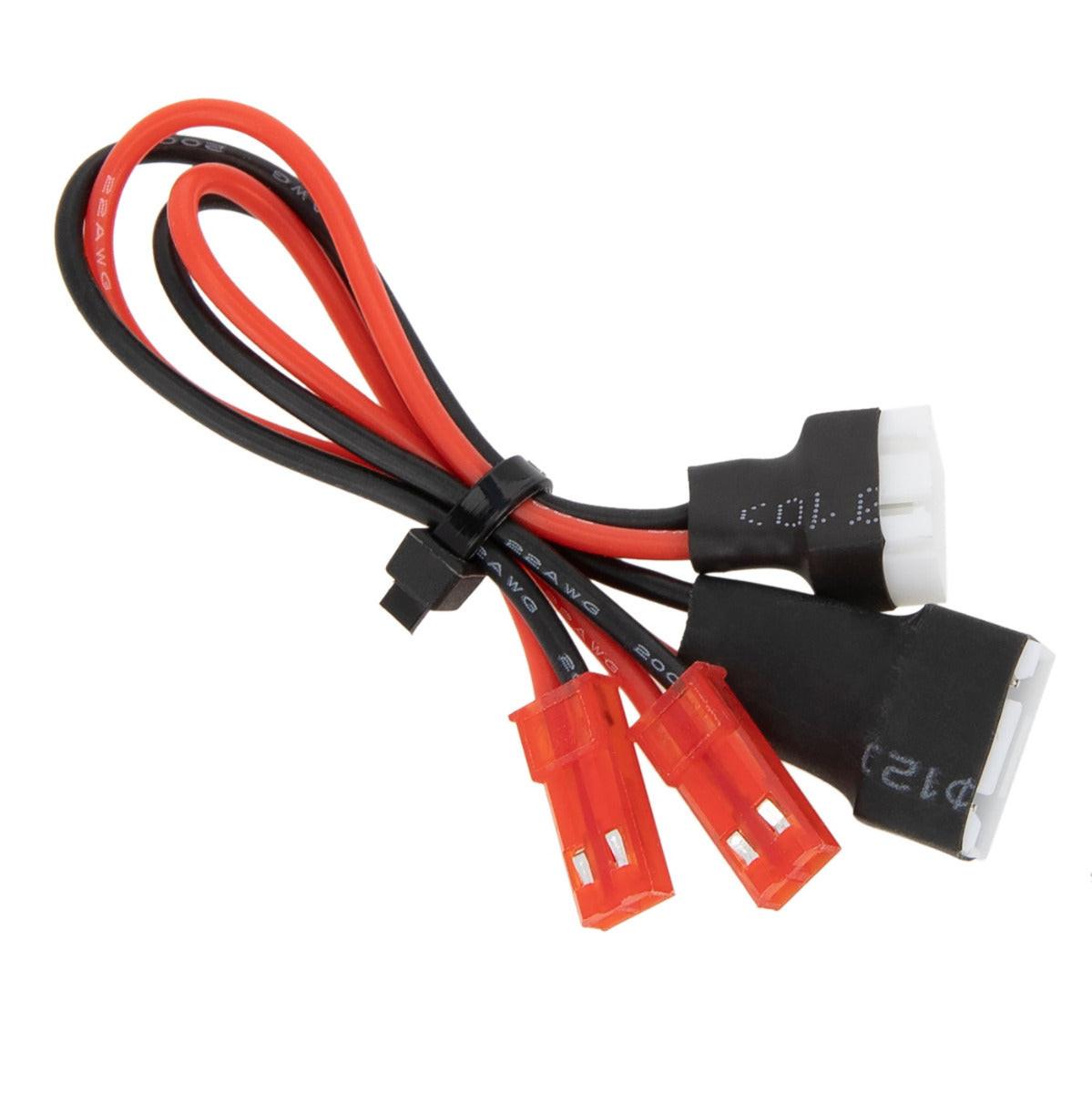

• 1 3S LiPo Power Adapter
• 1 Inline On/Off Switch

Fits

Designed for compatible:

• Hobbywing MAX6 ESC
• Hobbywing MAX8 ESC
• ARRMA Spektrum Firma 150A 6S ESC

May also fit other electronic speed controls that use a compatible 40 × 40 × 28mm cooling fan.

Verify the original fan dimensions, mounting-hole spacing, connector type, polarity, operating voltage, and available installation space before purchasing.

Installation Note

Remove the original ESC fan and install the PowerHobby fan securely over the ESC heatsink. Orient the fan so it directs airflow toward the heatsink.

Keep the fan and wiring away from the motor shaft, pinion gear, spur gear, driveshafts, and other moving components.

Confirm connector polarity before applying power. When using the included 3S adapter, connect it only to a compatible 11.1V 3S LiPo battery. Do not exceed the listed 11.1V maximum operating voltage.
