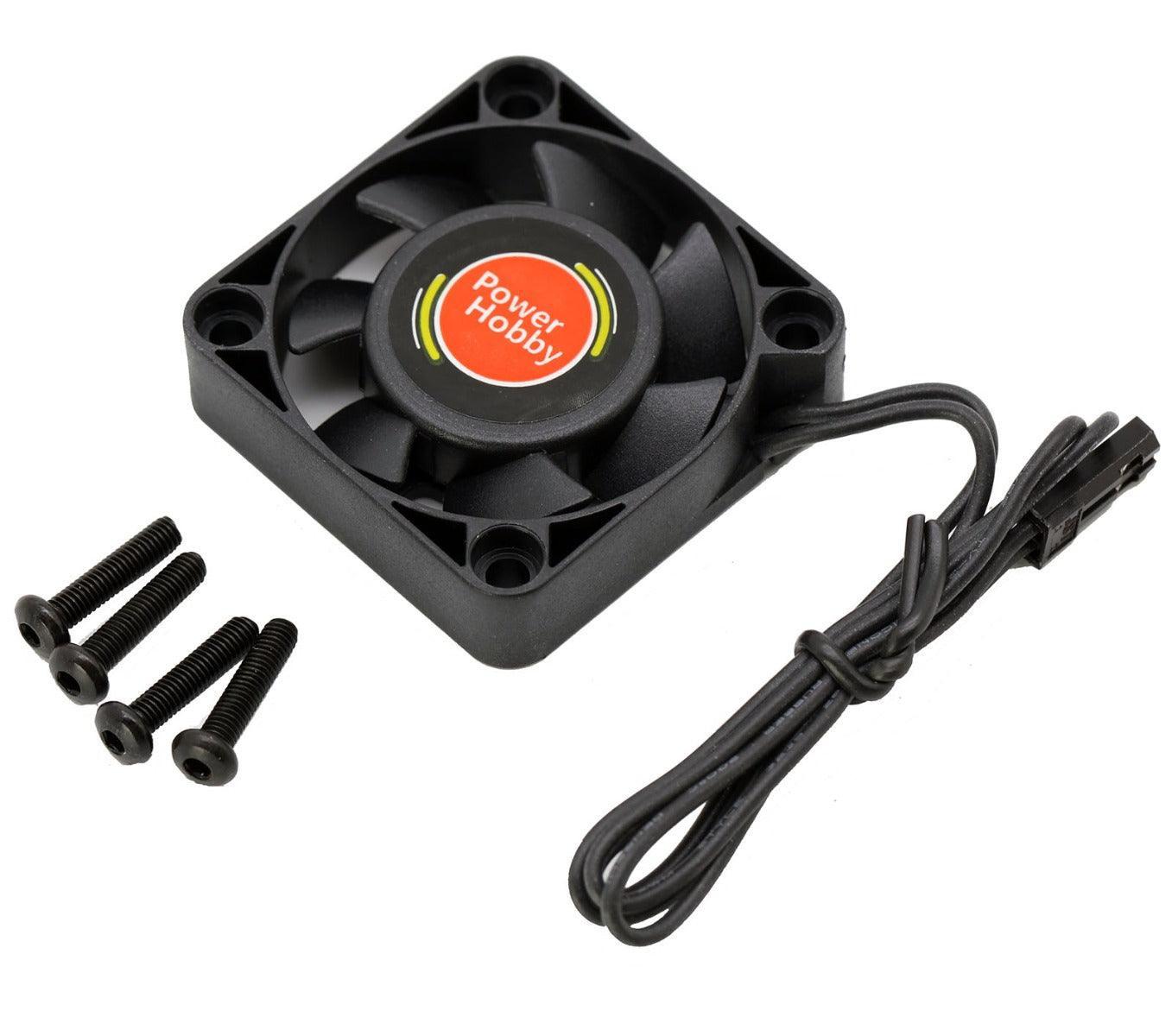

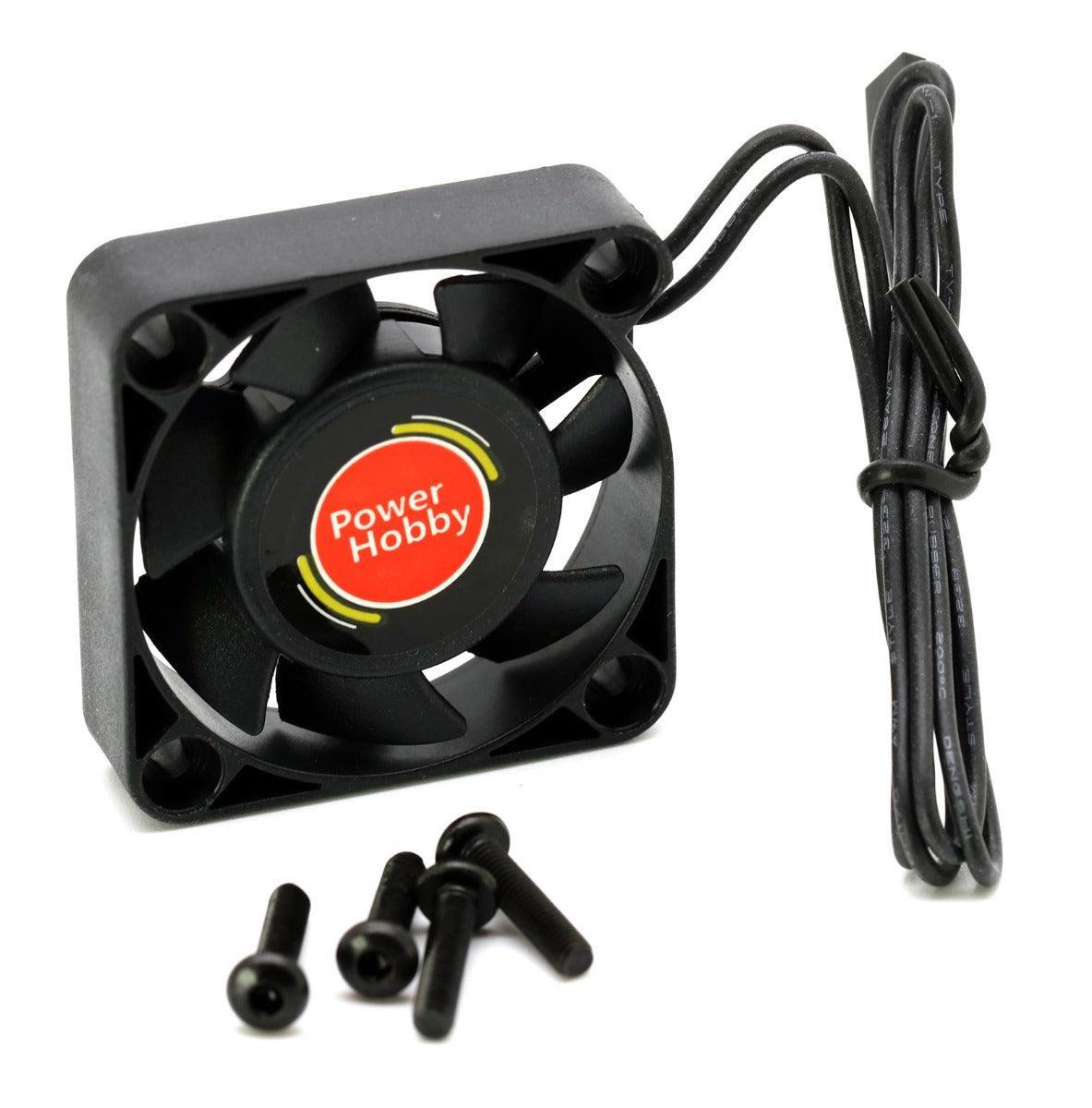

Powerhobby 40mm High Speed RC Motor / ESC Cooling Fan 40x40x10

Powerhobby 40mm High Speed Motor/ESC Coooling Fan

Description

The Powerhobby 40mm High-Speed Cooling Fan provides increased airflow for compatible RC motors, electronic speed controls, heatsinks, and custom electronics installations.

Its compact 40 × 40 × 10mm size makes it suitable for many RC cooling applications. The fan operates from 5V to 8.5V and reaches up to 16,000 RPM at 8.5V to help reduce operating temperatures during demanding use.

A 180mm power lead and mounting hardware are included for installation.

Features

• High-speed 40mm RC cooling fan
• Produces up to 16,000 RPM at 8.5V
• Wide 5V–8.5V operating range
• Compact 40 × 40 × 10mm dimensions
• Suitable for motor and ESC cooling
• Works with compatible motor heatsinks and fan mounts
• 180mm power lead
• Includes mounting hardware
• Suitable for custom RC electronics installations

Includes

• 1 Powerhobby 40mm High-Speed Cooling Fan
• Mounting Hardware

Specifications

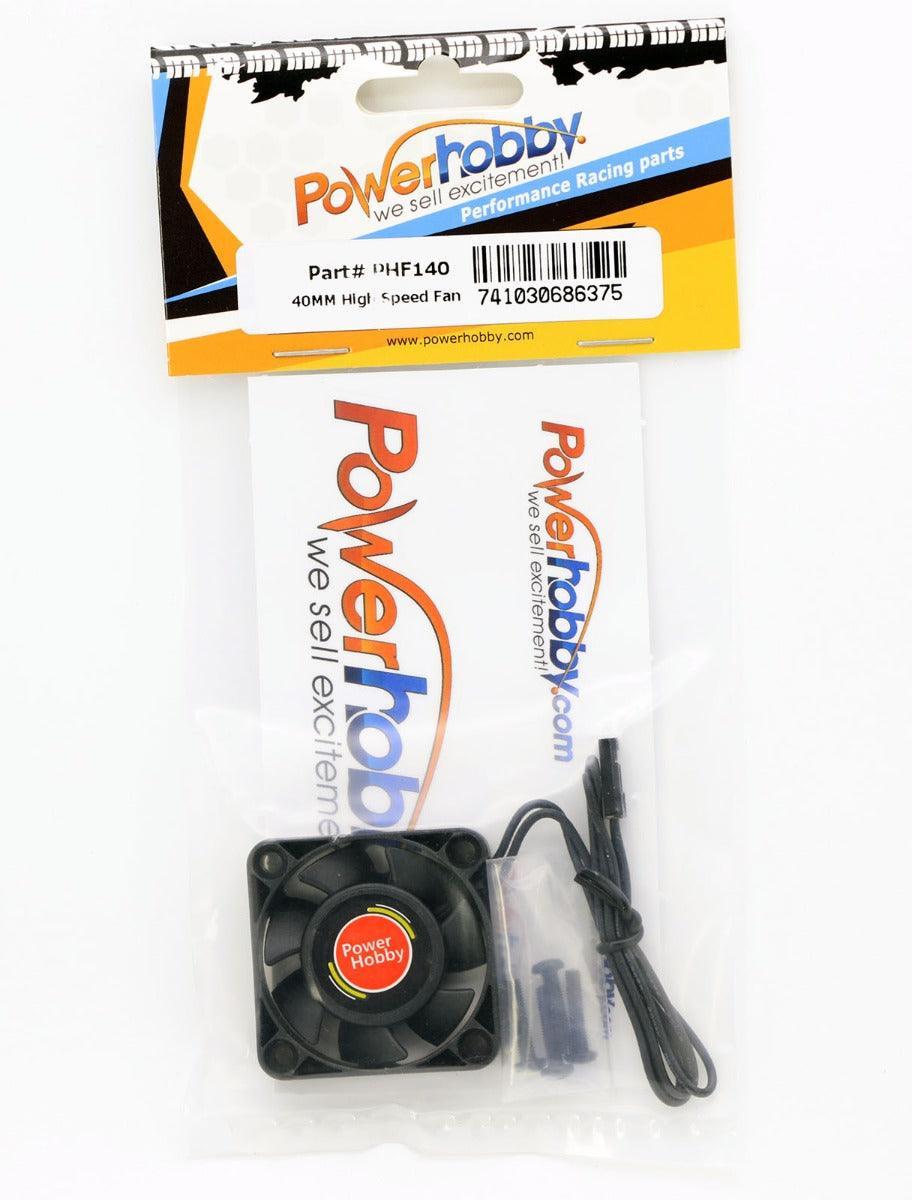

• SKU: PHF140
• Barcode: 741030686375
• Product Type: RC Motor and ESC Cooling Fan
• Fan Dimensions: 40 × 40 × 10mm
• Fan Dimensions in Inches: Approximately 1.57 × 1.57 × 0.39"
• Maximum Fan Speed: 16,000 RPM at 8.5V
• Operating Voltage: 5V–8.5V
• Current Draw: 0.65A at 7.4V
• Wire Length: 180mm / Approximately 7.09"

Fits

Universal RC cooling applications with sufficient mounting space and a compatible power supply, including:

• RC motor heatsinks
• Electronic speed controls
• 1/10-scale RC vehicles
• 1/8-scale RC vehicles
• 1/7-scale RC vehicles
• Large-scale RC vehicles
• Custom electronics installations

Verify the mounting-hole spacing, available clearance, connector compatibility, power-source voltage, and available current before installation.

Installation Note

Secure the fan with the included hardware and confirm that the blades rotate freely. Route the wiring away from gears, driveshafts, motor shafts, suspension components, and other moving parts.

Connect the fan only to a regulated power source between 5V and 8.5V capable of supplying at least 0.65A. Do not exceed 8.5V.
