Powerhobby 40x40x10mm Tornado High Speed Aluminum RC Cooling Fan 40mm Blue

Powerhobby 40mm Aluminum Tornado High Speed HV Cooling Fan

Description

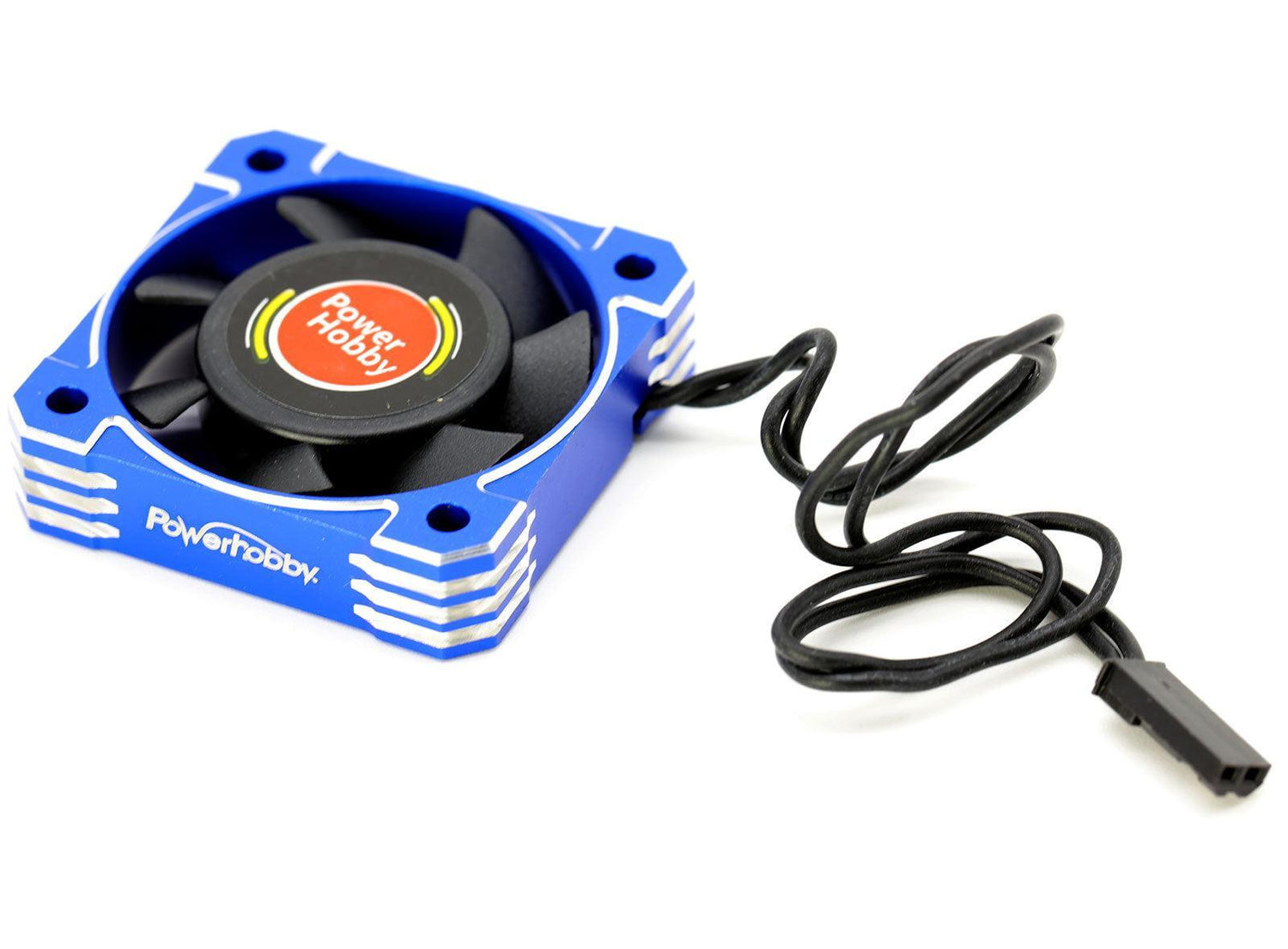

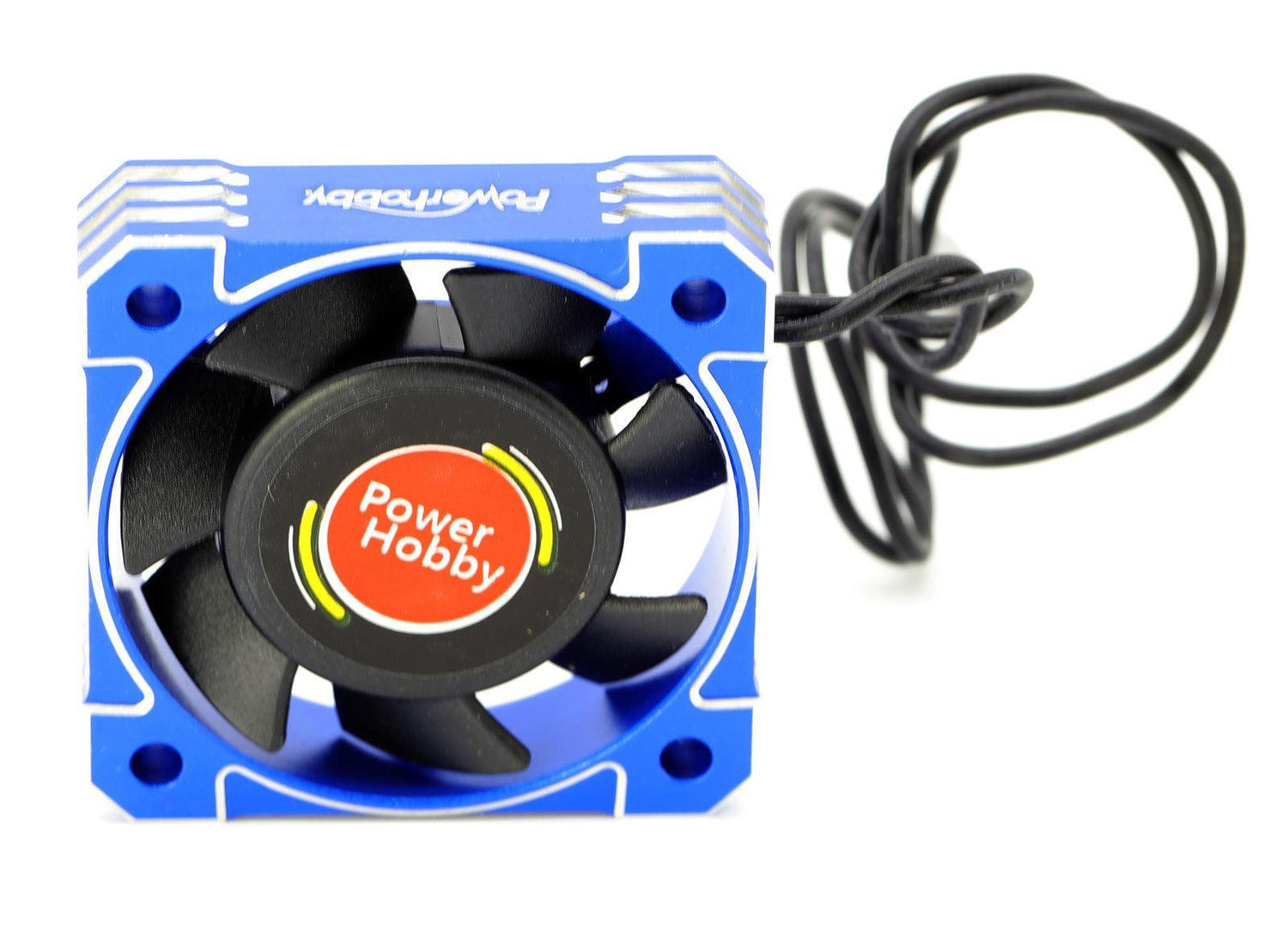

The Powerhobby 40mm Tornado High-Speed Cooling Fan provides increased airflow for compatible RC motors, electronic speed controls, heatsinks, and custom electronics installations.

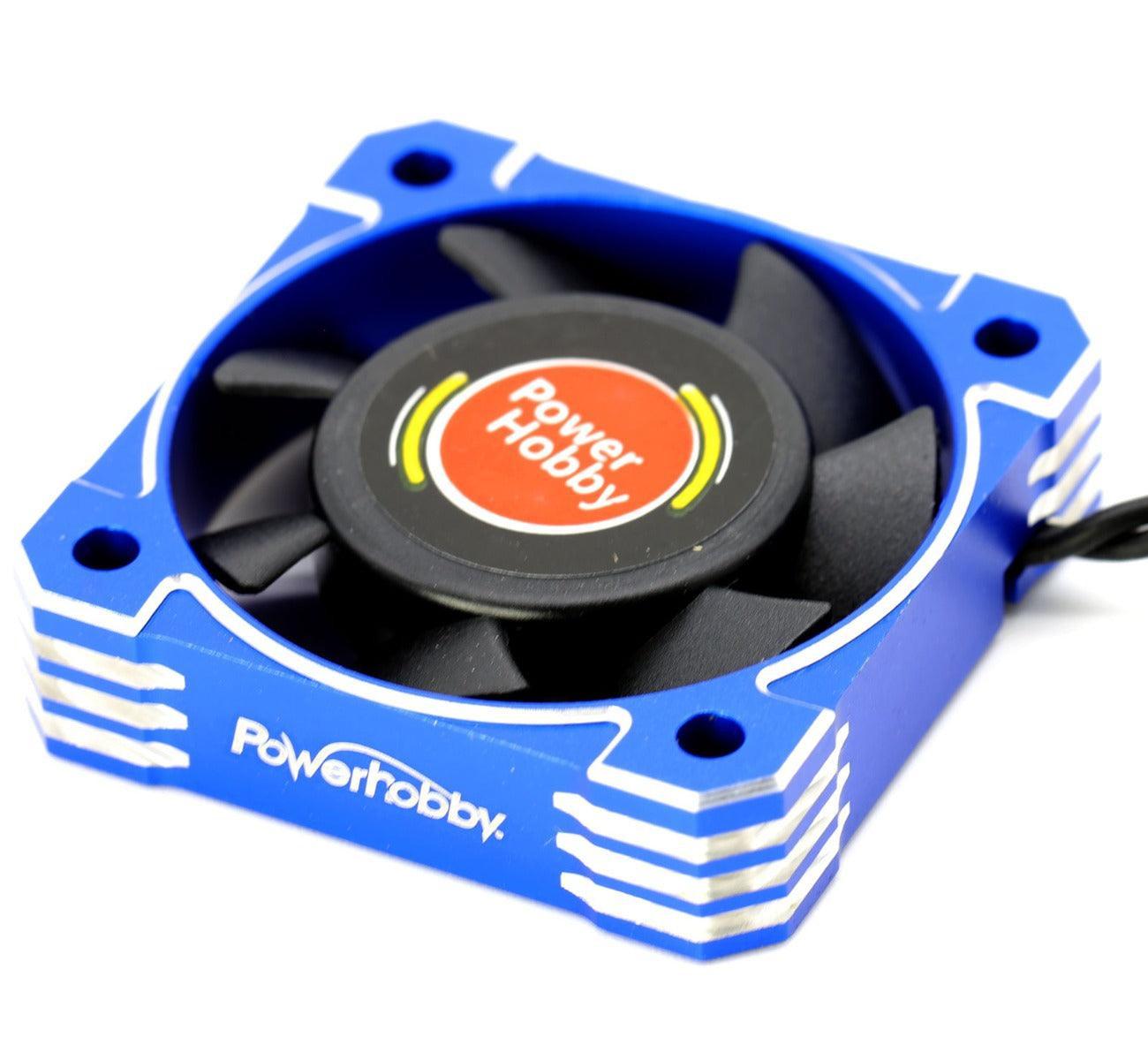

Its T6 aluminum housing helps concentrate and direct airflow through the fan. The large aluminum surface also assists with heat dissipation while helping protect the fan blades from debris and accidental contact.

The fan measures 40 × 40 × 10mm and operates from 5V to 8.5V. At 8.5V, it delivers up to 16,000 RPM for dependable cooling in demanding RC applications.

Features

• High-speed 40mm RC cooling fan
• Produces up to 16,000 RPM at 8.5V
• T6 aluminum heatsink-style housing
• Helps concentrate and direct airflow
• Aluminum casing helps protect the fan blades
• Compact 40 × 40 × 10mm design
• Wide 5V–8.5V operating range
• Suitable for motor and ESC cooling
• Compatible with many 1/12 through 1/5-scale RC applications
• Blue finish

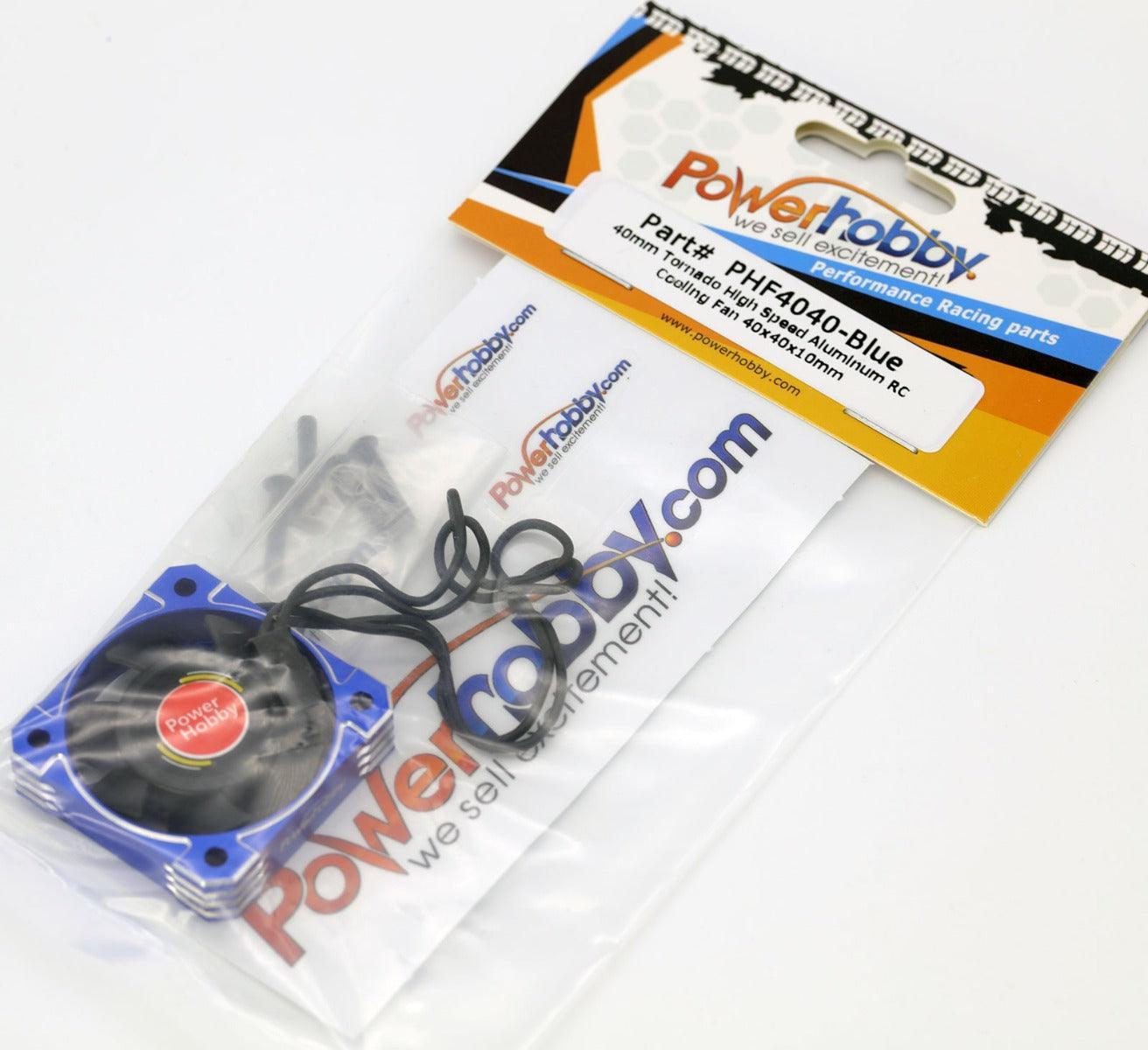

Includes

• 1 Powerhobby 40mm High-Speed Aluminum Cooling Fan
• Mounting Hardware

Specifications

• SKU: PHBPHF4040BLUE
• Barcode: 741030689444
• Product Type: High-Speed RC Cooling Fan
• Fan Dimensions: 40 × 40 × 10mm
• Fan Dimensions in Inches: Approximately 1.57 × 1.57 × 0.39"
• Maximum Fan Speed: 16,000 RPM at 8.5V
• Operating Voltage: 5V–8.5V
• Current Draw: 0.65A at 7.4V
• Wire Length: 180mm / Approximately 7.09"
• Housing Material: T6 Aluminum
• Weight: 18g
• Color: Blue

Fits

Universal RC cooling applications with sufficient mounting space and a compatible regulated power source, including many:

• 1/12-scale RC vehicles
• 1/10-scale RC vehicles
• 1/8-scale RC vehicles
• 1/7-scale RC vehicles
• 1/6-scale RC vehicles
• 1/5-scale RC vehicles
• Motor heatsinks and fan mounts
• Electronic speed controls
• Custom RC electronics installations

Verify the mounting-hole spacing, available clearance, power-source voltage, and available current before installation.

Installation Note

Secure the fan with the included mounting hardware and confirm that the blades rotate freely. Keep the fan and wiring away from gears, driveshafts, motor shafts, suspension components, and other moving parts.

Connect the fan only to a regulated power source between 5V and 8.5V capable of supplying at least 0.65A. Do not exceed 8.5V.

The product page mentions compatibility with 2S HV LiPo systems up to 8.75V, but this conflicts with the listed 8.5V operating limit. Use a regulated BEC set at or below 8.5V rather than connecting the fan directly to a fully charged 2S HV battery.
