Powerhobby 6V 1600mAh NiMH Hump Battery Pack with Hitec Connector

Powerhobby 6V 1600mAh NiMH Hump Battery Pack with Hitec Connector

Description

The Powerhobby 6V 1600mAh NiMH Receiver Battery Pack provides dependable power and long service life for compatible nitro-powered RC cars, trucks, boats, airplanes and other receiver applications. Manufactured with five high-quality 2/3A NiMH cells, the pack offers stable 6V output and a practical 1600mAh capacity.

Choose between a compact hump configuration or a slim flat-pack design to match your model’s receiver battery compartment. Both battery styles feature a Hitec-compatible receiver connector and can be recharged repeatedly for convenient everyday hobby use.

The Flat Pack + Charger option includes the PH-4001 flat receiver battery and a compatible Powerhobby B29 AC peak charger, providing a convenient complete package for charging and powering compatible receiver systems.

Features

• 5-cell nickel-metal hydride receiver battery
• 6V nominal voltage
• 1600mAh capacity
• Hitec-compatible receiver connector
• Available in hump and flat configurations
• Rapid-charge capable
• Long cycle life
• Rechargeable up to approximately 1,000 cycles under proper use
• Suitable as a replacement or additional receiver battery
• Optional flat battery and charger package
• Brand new and factory sealed

General Specifications

• Battery Chemistry: NiMH
• Cell Count: 5 Cells
• Nominal Voltage: 6V
• Capacity: 1600mAh
• Cell Size: 2/3A
• Connector: Hitec-compatible receiver connector

Hump Pack Specifications

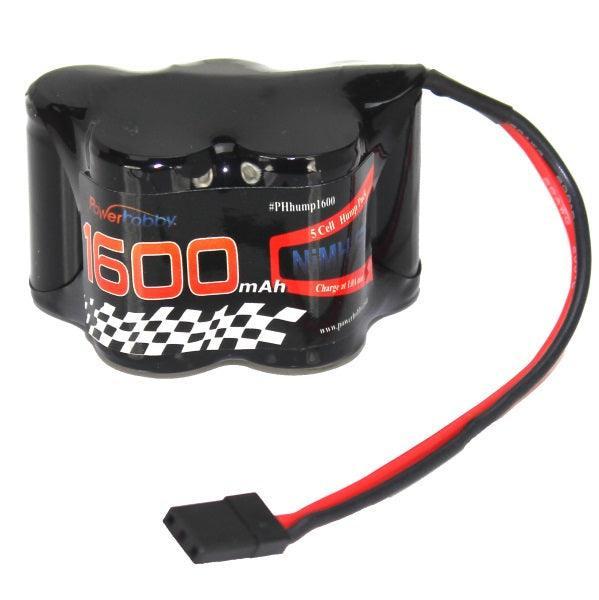

• Configuration: Side-by-side trapezoid/hump
• Length: 50mm
• Width: 30mm
• Height: 30mm
• Weight: Approximately 117g

Flat Pack Specifications

• Configuration: Side-by-side flat pack
• Length: 84mm
• Width: 17mm
• Height: 30mm

Available Versions

• PH-4000 – 6V 1600mAh NiMH Hump Receiver Battery
• PH-4000__________ – Duplicate or legacy formatting of PH-4000
• PH-4001 – 6V 1600mAh NiMH Flat Receiver Battery
• Flat Pack + Charger – PH-4001 Flat Receiver Battery with compatible Powerhobby B29 AC Charger

Charger Specifications

• Compatible Battery Chemistry: NiMH and NiCd only
• Supported Cell Count: 5–8 cells
• Input Voltage: 110–240V AC
• Selectable Charge Current: 1A or 2A
• Maximum Output Power: 20W
• LED charging-status indicators
• Automatic charge monitoring and protection
• Charger Part Number: PHB29

The charger is not compatible with LiPo, LiHV, LiFe or lithium-ion batteries.

Fits

• Nitro-powered RC cars and trucks
• RC boats requiring a 5-cell receiver battery
• Select RC airplanes
• Receiver and ignition applications designed for a 6V NiMH pack
• Other models using a compatible Hitec-style receiver connector

Fitment depends on the selected battery shape, compartment dimensions and connector. Verify the available space and receiver-system voltage requirements before purchasing.

Includes

Battery-only options include:

• One Powerhobby 6V 1600mAh NiMH Receiver Battery in the selected hump or flat configuration

Flat Pack + Charger option includes:

• One Powerhobby PH-4001 6V 1600mAh NiMH Flat Receiver Battery
• One compatible Powerhobby B29 NiMH/NiCd AC Peak Charger

Warranty

This Powerhobby NiMH battery includes a six-month limited warranty from the original purchase date against defects in materials and workmanship.

The warranty does not cover:

• Physical or crash damage
• Damage caused by hard landings
• Improper installation or mounting
• Battery deformation caused by the user
• Overcharging or incorrect charger settings
• Deep discharging
• Excessive discharge current
• Modification, improper storage or misuse

Always inspect the battery and wiring before use. Stop using the pack if the wiring, connector or cells become damaged, excessively hot or deformed. Proof of purchase may be required for warranty service.
