Powerhobby 83MG Waterproof Mini Servo FOR Traxxas 1/16 E-Revo Slash

Powerhobby 83MG Waterproof Mini Servo

Description

The Powerhobby 83MG Waterproof Mini Servo is a high-performance digital steering servo designed for compatible Traxxas 1/16-scale vehicles.

Its high-precision titanium gears, coreless motor, and dual ball-bearing support provide smooth, dependable steering performance. The IP67 waterproof construction helps protect the servo during operation in wet, muddy, and dusty conditions.

Supporting an operating range of 4.8V to 8.4V, the servo produces up to 83 oz-in of torque with a transit speed of 0.085 second at 8.4V. Programmable parameters allow compatible settings to be adjusted for different vehicle and driving requirements.

Features

• High-performance digital mini servo
• Designed for compatible Traxxas 1/16-scale vehicles
• High-precision titanium gears
• High-quality coreless motor
• Dual ball-bearing support
• IP67 waterproof construction
• Programmable servo parameters
• High-voltage 4.8V–8.4V operating range
• Compact and lightweight design
• Up to 83 oz-in of torque
• Includes mounting hardware

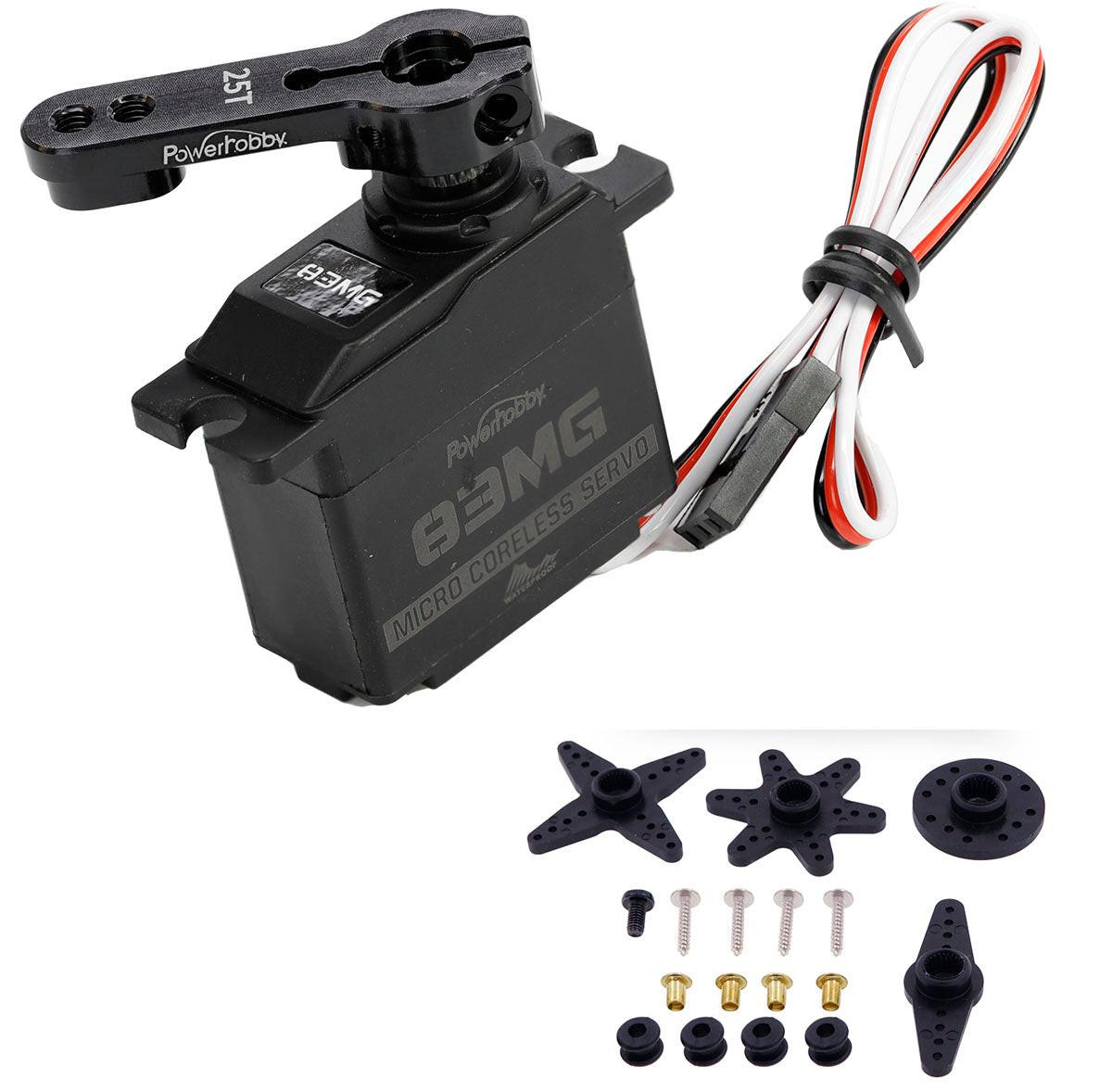

Includes

• 1 Powerhobby 83MG Waterproof Mini Servo
• Mounting Hardware

Specifications

• SKU: PHB83MG
• UPC: Does Not Apply
• Servo Type: Digital Mini Servo
• Operating Voltage: 4.8V–8.4V
• Speed at 6.0V: 0.115 sec/60°
• Speed at 7.4V: 0.100 sec/60°
• Speed at 8.4V: 0.085 sec/60°
• Torque at 6.0V: 4.6 kg-cm / 64 oz-in
• Torque at 7.4V: 5.4 kg-cm / 75 oz-in
• Torque at 8.4V: 6.0 kg-cm / 83 oz-in
• Gear Material: Titanium
• Motor Type: Coreless
• Waterproof Rating: IP67
• Dimensions: 29.5 × 14 × 29mm
• Dimensions in Inches: 1.16 × 0.57 × 1.14"
• Weight: 22g
• Connector: JR
• Wire Length: 180mm
• Wire Gauge: 26AWG

Fits

• Traxxas 1/16 E-Revo
• Traxxas 1/16 Slash

Check the vehicle model, servo dimensions, mounting-hole spacing, servo spline, connector type, receiver voltage, steering linkage, and servo-saver compatibility before installation.
