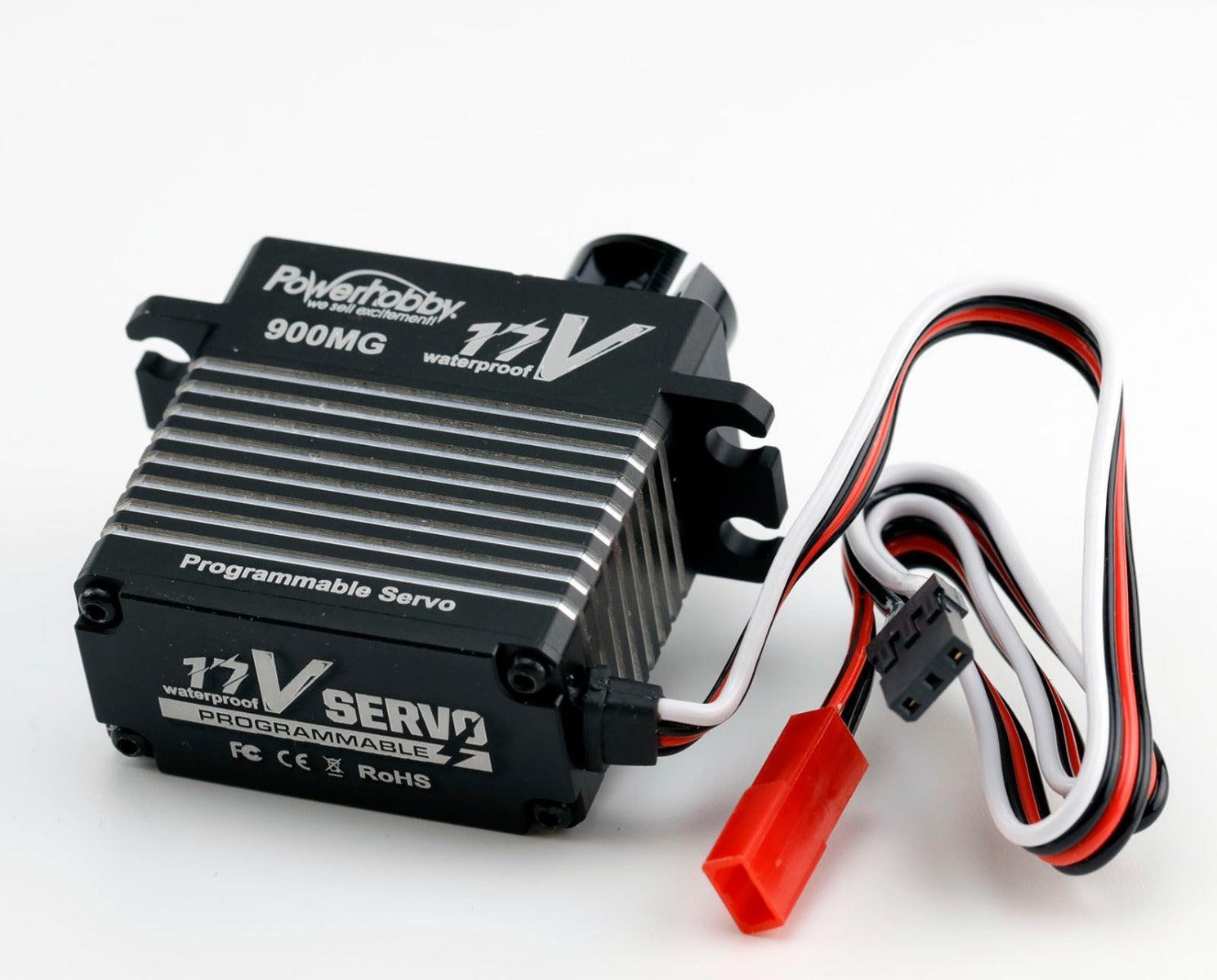

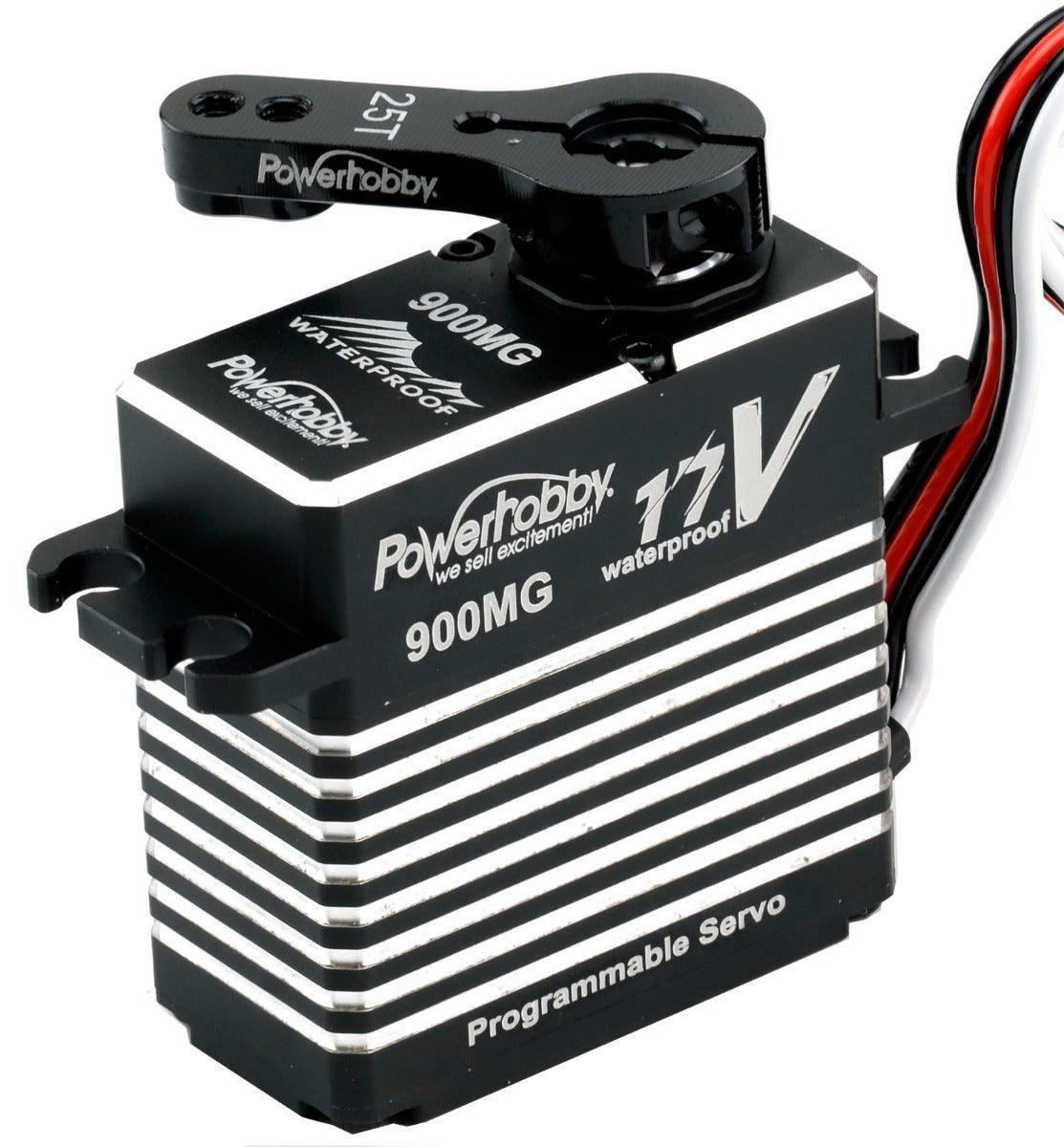

Powerhobby 900MG 17V 4S lipo Aluminum WP Digital Monster Torque 917OZ Servo

Powerhobby 900MG Aluminum Digital 4s (17v) Lipo Servo

Description

The Powerhobby 900MG is an extreme-torque programmable digital servo designed for demanding RC applications. Capable of operating at up to 16.8V from a 4S LiPo power source, it produces up to 917 oz-in of torque with a transit speed of 0.10 sec/60°.

Its high-efficiency brushless motor provides smooth operation, responsive performance, low power consumption, and a long service life. The CNC-machined aluminum cooling case helps dissipate heat during high-load use, while the steel gear train and triple ball-bearing support provide strength and dependable operation.

An IP67-rated magnetic position sensor helps protect the servo in wet and dusty operating conditions. The upgraded four-wire power system allows the servo to receive high-voltage power separately from the receiver signal connection.

Ideal for high-performance crawlers, monster trucks, buggies, truggies, on-road vehicles, boats, airplanes, robotics, and other applications requiring a powerful standard-size servo.

Features

• Produces up to 917 oz-in of torque
• Designed for direct high-voltage operation up to 4S LiPo
• Programmable digital servo
• High-efficiency brushless motor
• Heavy-duty steel gear train
• Triple ball-bearing support
• High-accuracy magnetic position sensor
• IP67-rated water and dust resistance
• CNC-machined aluminum cooling case
• Upgraded four-wire power and signal system
• Wide 7.4V–17V operating range
• Suitable for demanding on-road and off-road applications
• Programmable with a compatible Powerhobby USB programmer

Includes

• 1 Powerhobby 900MG Programmable Digital Servo
• Attached High-Voltage Power and Receiver Wiring

Specifications

• SKU: PH900MG
• UPC: Does Not Apply
• Servo Type: Programmable Digital Standard-Size Servo
• Operating Voltage: 7.4V–17V
• Maximum Recommended 4S LiPo Voltage: 16.8V
• Motor Type: Brushless
• Gear Material: Steel
• Bearings: Triple Ball Bearing
• Sensor Type: Magnetic
• Water-Resistance Rating: IP67
• Case Material: CNC-Machined Aluminum
• Connector Wire: TYU and JST
• Wire Length: 300mm
• Wire Gauge: 22AWG
• Dimensions: 40 × 20 × 41.5mm
• Dimensions in Inches: 1.57 × 0.78 × 1.63"
• Weight: 88.5g
• Programmable: Yes
• Programmer Required: Compatible Powerhobby USB programmer, sold separately

Speed

• 12.0V: 0.130 sec/60°
• 14.4V: 0.115 sec/60°
• 16.0V: 0.108 sec/60°
• 16.8V: 0.100 sec/60°

Torque

• 12.0V: 46 kg-cm / 639 oz-in
• 14.4V: 55 kg-cm / 764 oz-in
• 16.0V: 62 kg-cm / 861 oz-in
• 16.8V: 66 kg-cm / 917 oz-in

Fits

Universal standard-size servo applications, including many:

• 1/10 and 1/8 scale RC crawlers
• Monster trucks
• Buggies and truggies
• On-road and off-road vehicles
• RC boats
• RC airplanes
• Robotics and custom projects

Confirm the servo dimensions, mounting pattern, horn spline compatibility, available clearance, and power-system requirements before purchasing.

Important Installation Note

This is a high-voltage servo capable of operating directly from a properly connected 4S LiPo power source. Do not supply 4S voltage through a standard receiver or BEC unless every connected component is specifically rated for that voltage.

Follow the supplied wiring instructions and verify correct polarity before connecting power. Set the steering or control endpoints carefully to prevent binding, excessive current draw, overheating, or servo damage.
