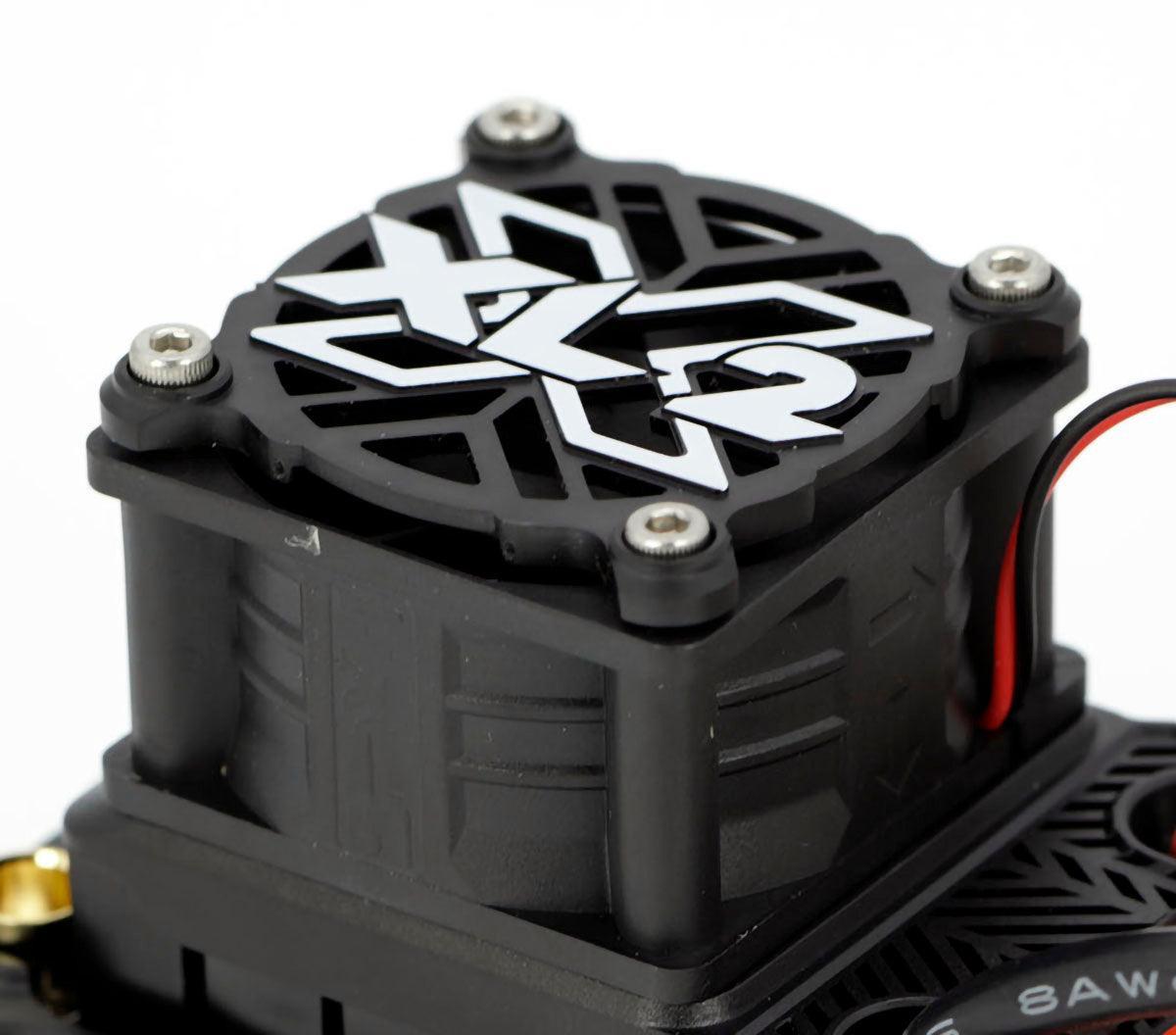

Powerhobby Castle Creations Mamba XLX 2 XLX2 ESC High Speed Cooling Fan

Powerhobby Twister Fan for Mamba XLX 2 ESC

Description

The Powerhobby High-Speed Cooling Fan is designed to improve airflow and help control operating temperatures on the Castle Creations Mamba XLX2 ESC.

The high-output fan uses a brushless motor and dual ball-bearing construction for dependable performance and extended service life. Its large 50 × 50 × 38mm design produces strong airflow to help the ESC remain cooler during demanding high-power operation.

The fan can be powered from a compatible receiver or directly from a 3S LiPo battery using the included adapter and on/off switch.

Features

• Designed for the Castle Creations Mamba XLX2 ESC
• High-speed, high-airflow cooling fan
• Helps reduce ESC operating temperatures
• Brushless fan motor
• Dual ball-bearing construction
• Wide 5V–11.1V operating range
• Can be powered from a compatible receiver
• Includes a 3S LiPo power adapter
• Includes an inline on/off switch
• Installation screws included

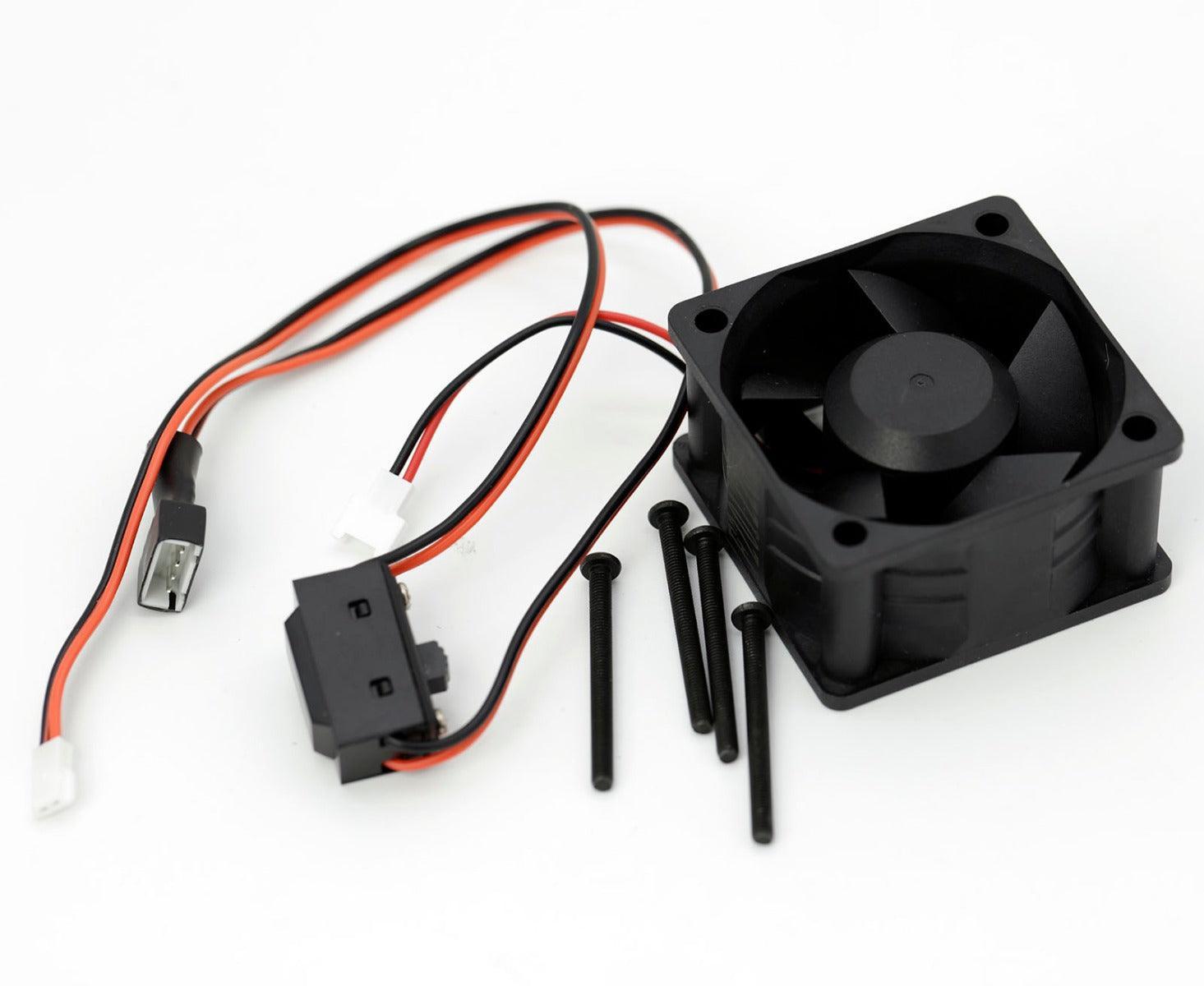

Includes

• 1 Powerhobby High-Speed XLX2 Cooling Fan
• 1 3S LiPo Power Adapter
• 1 Inline On/Off Switch
• 4 Mounting Screws

Specifications

• SKU: PHFXLX2
• UPC: 655466436292
• Product Type: ESC Cooling Fan
• ESC Compatibility: Castle Creations Mamba XLX2
• Fan Motor Type: Brushless
• Bearing Type: Dual Ball Bearing
• Operating Voltage: 5V–11.1V
• Dimensions: 50 × 50 × 38mm
• Dimensions in Inches: Approximately 1.97 × 1.97 × 1.50"
• Power Options: Compatible Receiver or 3S LiPo Adapter

Fits

• Castle Creations Mamba XLX2 ESC

Verify the ESC model, available chassis clearance, mounting-hole alignment, and selected power-source voltage before installation.

Installation Note

Disconnect the vehicle batteries before removing or installing the cooling fan. Secure the fan with the included screws and confirm that the blades rotate freely without contacting the ESC housing, wiring, or nearby components.

When powering the fan through the receiver, verify that the receiver or BEC output is within the fan’s 5V–11.1V operating range and can provide sufficient current.

When using the included 3S adapter, confirm connector polarity before applying power. Secure all wiring away from gears, driveshafts, motor shafts, and other moving components.

Includes:

• One Fan
• 4 screws
• On/Off Switch
