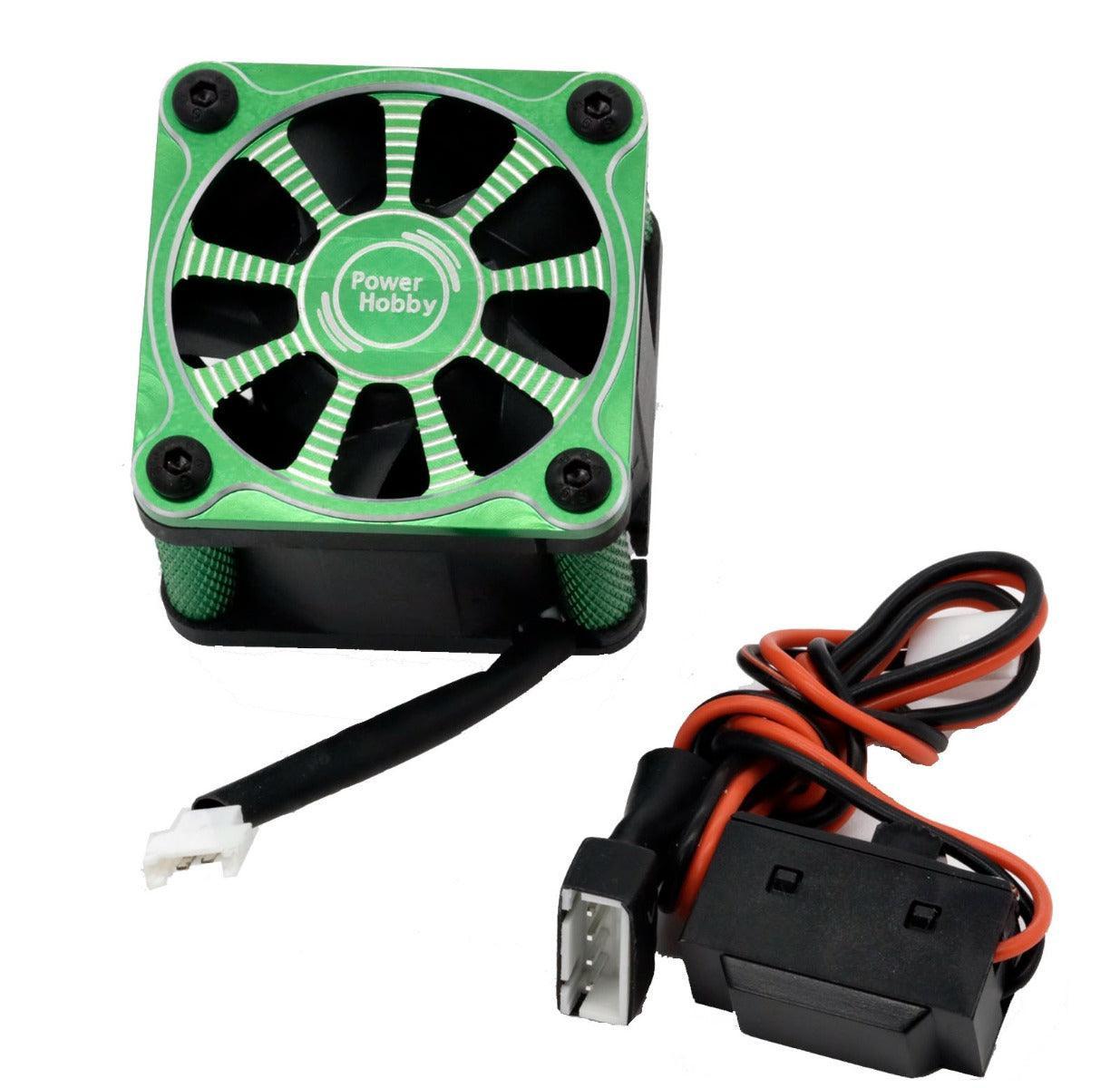

Powerhobby Twister Castle Mamba XLX ESC High Speed Aluminum Cooling Fan Green

Powerhobby Twister Fan w/Aluminum Cover for Mamba XLX ESC

Description

The PowerHobby Twister High-Speed Cooling Fan is designed to help reduce operating temperatures on the Castle Creations Mamba XLX ESC.

The high-speed 40mm fan delivers strong airflow across the ESC heatsink to help control heat during extended runs, speed runs, and demanding driving conditions. Its ball-bearing construction provides smooth operation, while the aluminum fan cover helps protect the fan blades and adds a custom appearance.

The fan operates from 6V to 11.1V. It may be powered from a compatible receiver output or with the included 3S LiPo adapter and inline on/off switch.

Features

• Designed for the Castle Creations Mamba XLX ESC
• High-speed, high-airflow cooling fan
• Helps reduce ESC operating temperatures
• Ball-bearing fan construction
• Aluminum protective fan cover
• 40 × 40 × 28mm dimensions
• Wide 6–11.1V operating range
• May be powered from a compatible receiver
• Includes 3S LiPo power adapter
• Includes inline on/off switch
• Green finish

Specifications

• Part Number / SKU: PHF117-Green
• Barcode: 647489917568
• Product Type: High-Speed ESC Cooling Fan
• Compatible ESC: Castle Creations Mamba XLX
• Fan Dimensions: 40 × 40 × 28mm
• Bearing Type: Ball Bearing
• Operating Voltage: 6–11.1V
• Recommended External Power Source: Compatible 3S LiPo
• Fan-Cover Material: Aluminum
• Color: Green

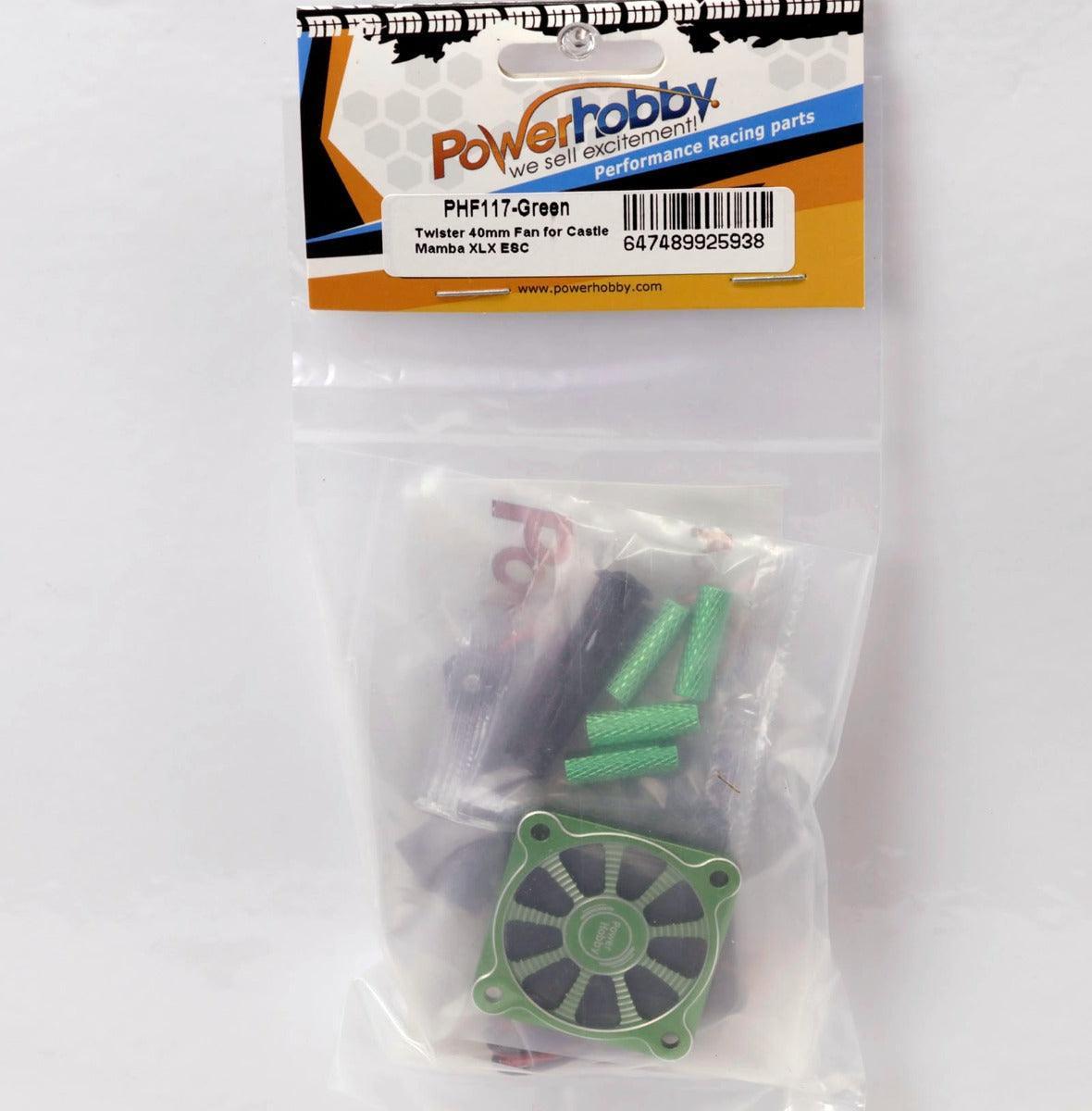

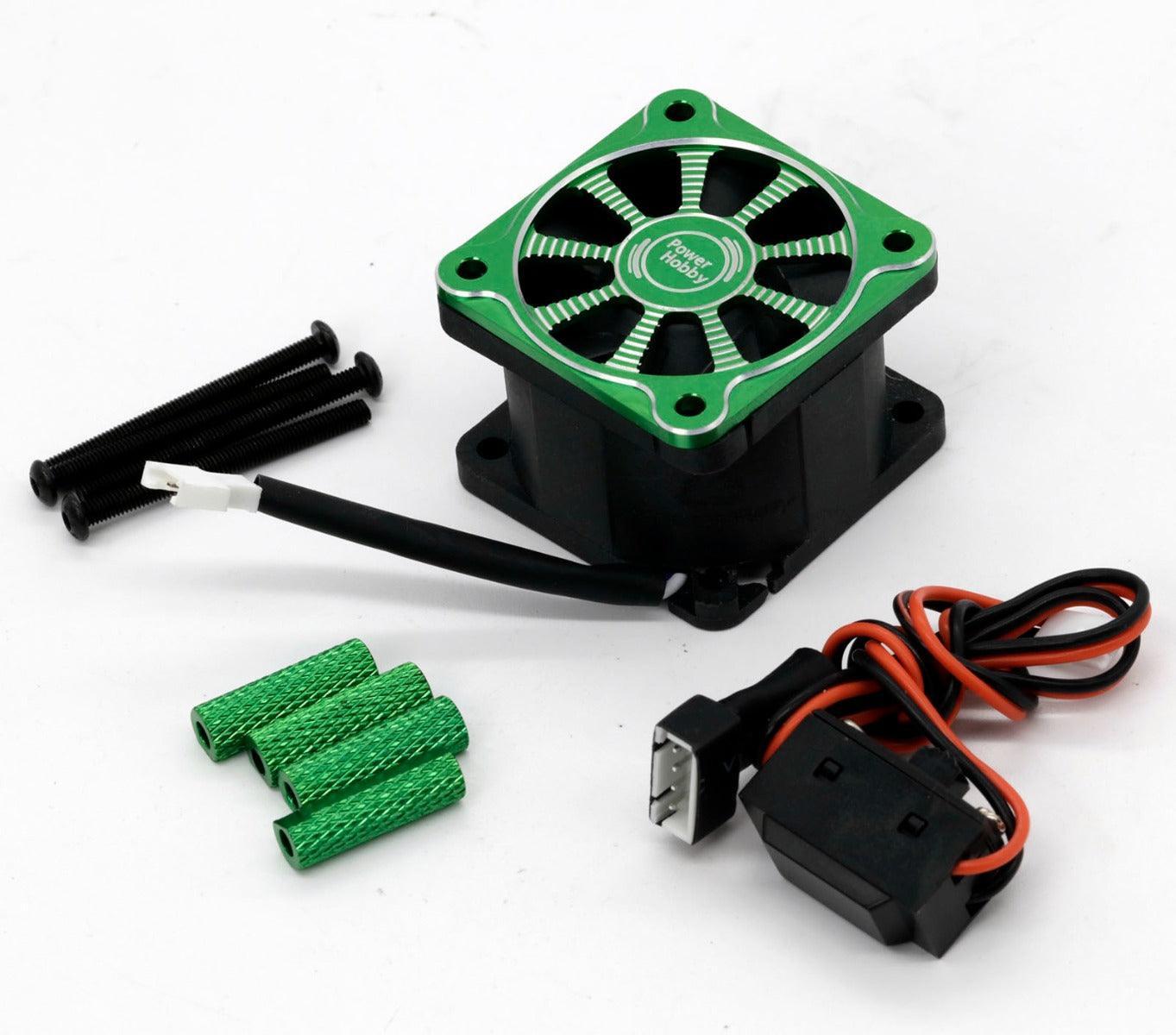

Includes

• 1 PowerHobby Twister High-Speed Cooling Fan
• 1 Aluminum Fan Cover
• 1 3S LiPo Power Adapter
• 1 Inline On/Off Switch

Fits

• Castle Creations Mamba XLX ESC

Verify the ESC model, mounting-hole spacing, available clearance, connector compatibility, operating voltage, and wiring route before purchasing.

Installation Note

Install the fan securely over the ESC heatsink and orient it to direct airflow toward the heatsink.

Keep the fan, adapter, switch, and wiring away from the motor shaft, pinion gear, spur gear, driveshafts, suspension components, and other moving parts.

The fan may be powered from a compatible receiver output or with the included 3S LiPo adapter. Confirm connector polarity before applying power and do not exceed 11.1V.
