Spektrum SPMS6510 1/5 Scale High Torque Servo

Spektrum SPMS6510 1/5 Scale High Torque Servo

Description

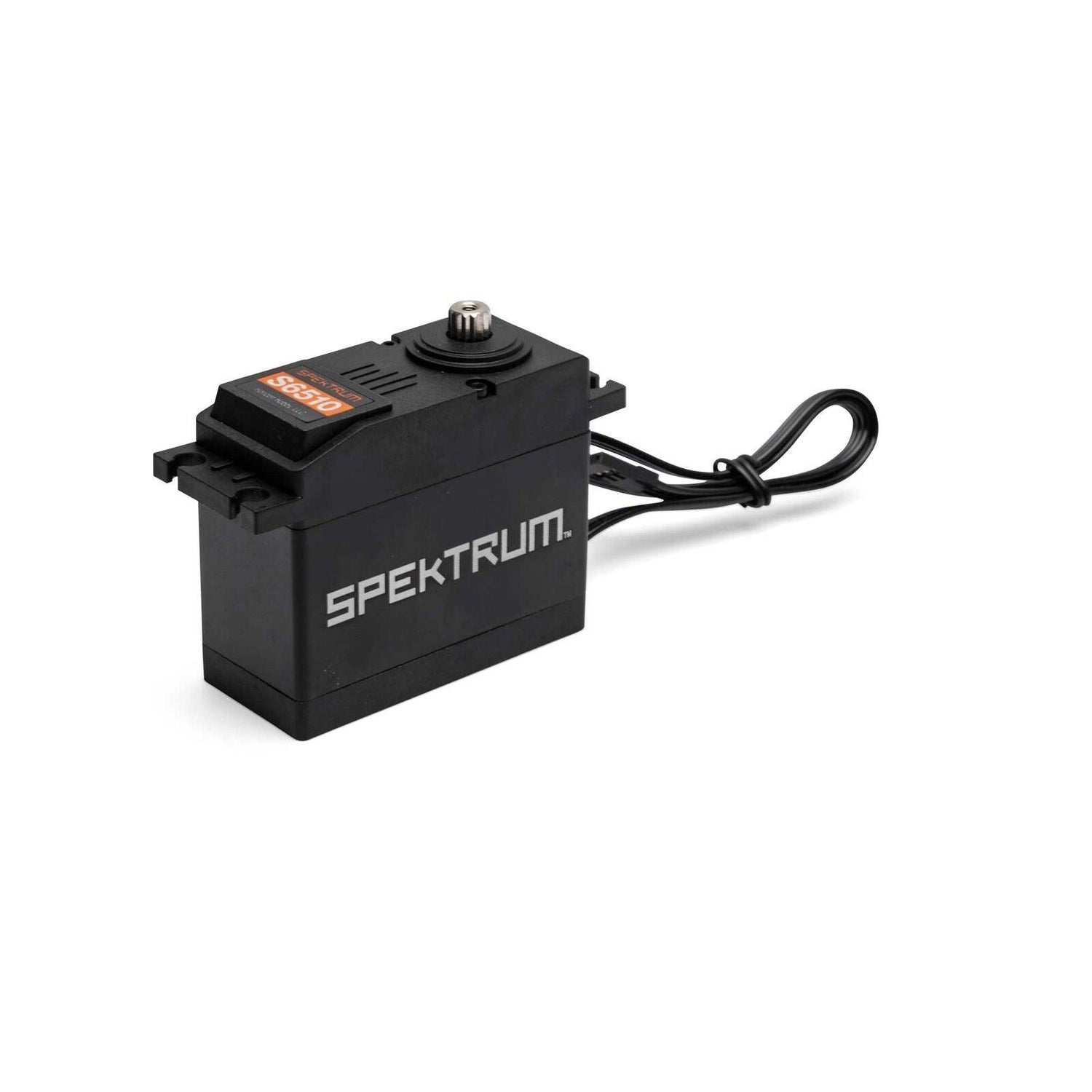

The Spektrum S6510 is a high-torque digital servo designed for demanding 1/5-scale surface vehicles. Delivering up to 820 oz-in of torque at 8.4V, it provides the steering power needed for large-scale racing, bashing, and crawling applications.

The S6510 features durable metal gears, dual ball bearings, a wide 6.0–8.4V operating range, and a 15-tooth output spline. It is also an excellent upgrade from Spektrum S905 and S906 servos.

Features

• Genuine Spektrum high-torque digital servo
• Part number: SPMSS6510
• Designed for 1/5-scale surface vehicles
• Delivers 820 oz-in of torque at 8.4V
• Wide 6.0–8.4V high-voltage operating range
• Strong metal gear construction
• Dual ball bearings for smooth operation
• 15-tooth output spline
• Universal servo connector
• Ideal for racing, bashing, and crawling
• Upgrade option for Spektrum S905 and S906 servos
• Includes servo arm and mounting hardware

Specifications

• Application: Surface
• Servo Type: Digital
• Size Category: Giant Scale
• Operating Voltage: 6.0–8.4V HV
• Maximum Torque: 820 oz-in at 8.4V
• Gear Type: Metal
• Bearings: Dual
• Spline Count: 15-Tooth
• Connector Type: Universal
• Length: 2.6 in. (66mm)
• Width: 1.18 in. (30mm)
• Height: 2.27 in. (58mm)
• Weight: 7.2 oz. (204g)

Includes

• 1 Spektrum S6510 1/5 Scale High Torque Servo
• 1 Servo Arm
• 4 Pieces of Mounting Hardware

Fits

• ARRMA 1/5 Kraton 8S 4X4 RTR – ARA110002
• ARRMA 1/5 Kraton 8S EXB AVC 4X4 RTR – ARA5808V2T1
• ARRMA 1/5 Outcast 8S EXB 4X4 Roller – ARA5210
• ARRMA 1/5 Outcast 8S EXB AVC 4X4 RTR – ARA5810V2T1
