Tamiya 56344 Grand Hauler 1/14 RC Semi Truck Tractor Kit 3-Speed Unpainted

Tamiya 56344 Grand Hauler 1/14 RC Semi Truck Tractor Kit 3-Speed

Important Information:

This is an unassembled RC model kit. The body requires painting and assembly.

Item Specifics:

Brand: Tamiya
Model: Grand Hauler
Manufacturer Part Number: 56344
UPC: 4950344563449
Scale: 1:14
Vehicle Type: Semi Truck / Tractor Truck
Power Source: Electric
Motor Type: Brushed 540-Type
Drive Type: Dual Rear-Axle Drive
Color: Customizable / Unpainted
Body Material: ABS Plastic
Chassis Material: Aluminum and Resin
Transmission: 3-Speed
Suspension: Metal Leaf Spring
Product Type: Unassembled RC Kit
Recommended Surface: On-Road
Assembly Required: Yes

Product Description:

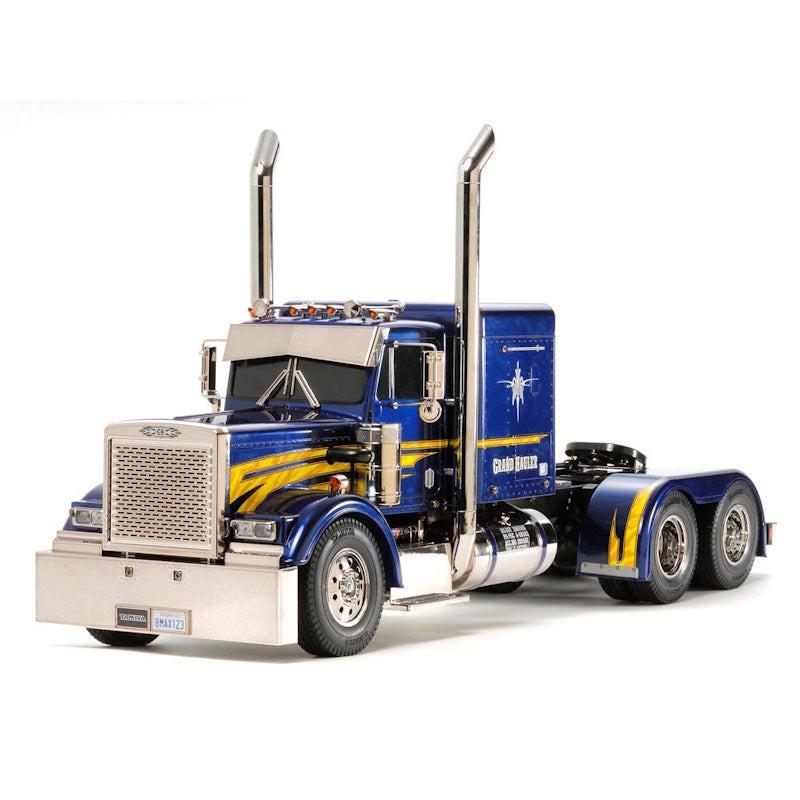

Build your own highly detailed custom big rig with the Tamiya 56344 Grand Hauler 1/14 Scale RC Tractor Truck Kit.

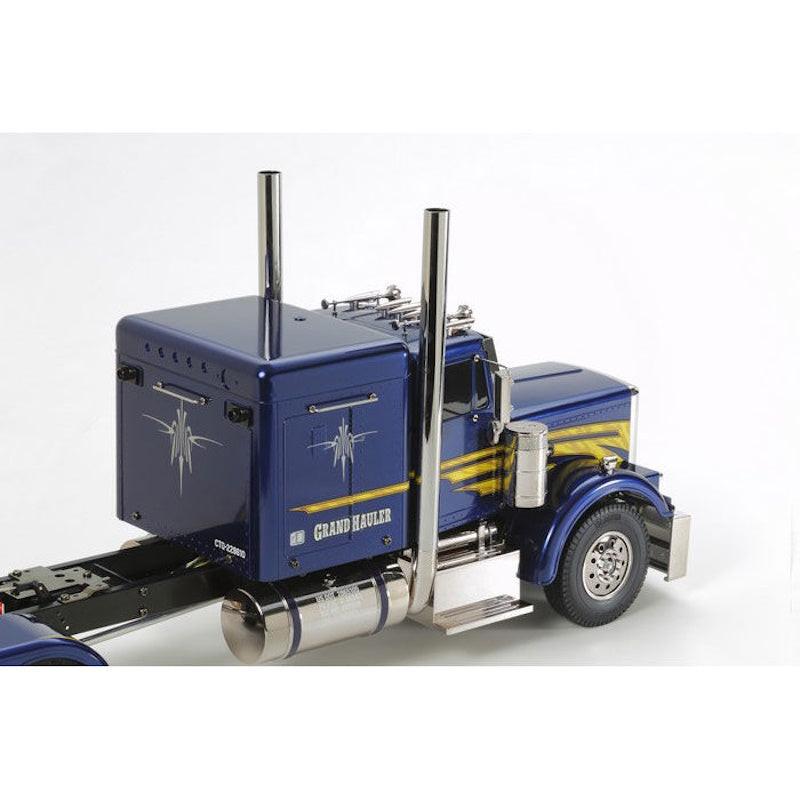

Inspired by customized North American semi trucks, the Grand Hauler features an extended ladder-frame chassis, sleeper-style cab, low-mounted body components and extensive chrome-plated detailing. Its impressive size and realistic construction make it an excellent choice for RC truck enthusiasts and scale-model builders.

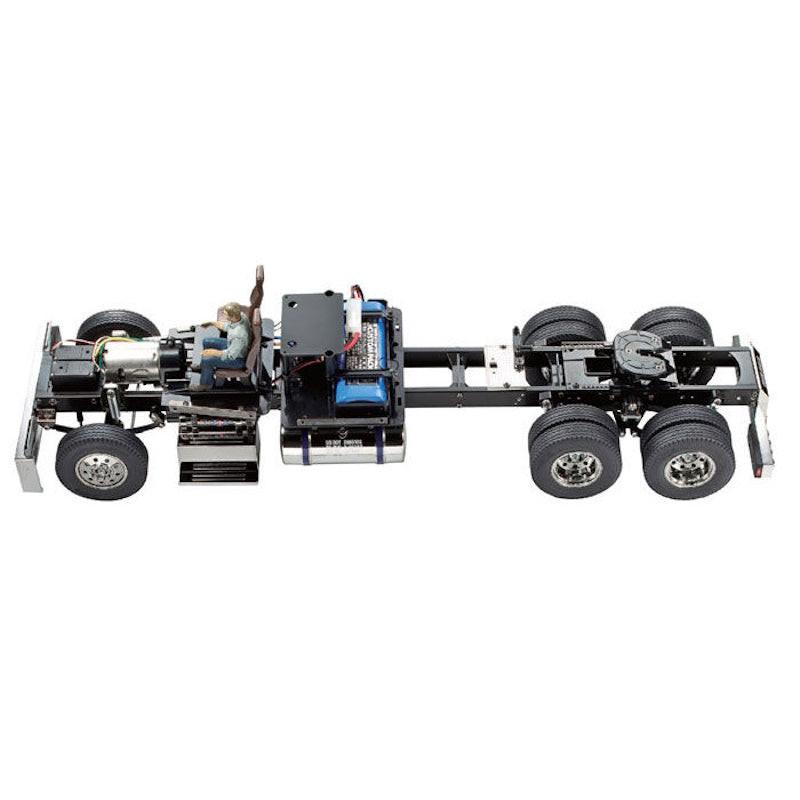

The chassis uses aluminum side channels with reinforced resin cross members. A front-mounted 540-type brushed motor transfers power through a functional three-speed transmission to both rear axles. Built-in rear differentials allow smooth cornering, while metal leaf springs and aluminum friction dampers provide realistic suspension movement.

The hard-plastic body is supplied unpainted, allowing the builder to create a completely customized color scheme.

Key Features:

• Highly detailed 1/14-scale RC tractor-truck kit
• Custom North American big-rig styling
• Extended sleeper cab and long ladder-frame chassis
• Aluminum chassis side channels
• Reinforced resin cross members
• Front-mounted 540-type brushed motor
• Functional three-speed transmission
• Radio-operated gear shifting
• Dual driven rear axles
• Built-in three-bevel differentials
• Metal leaf-spring suspension
• Aluminum friction dampers
• Detailed cab interior

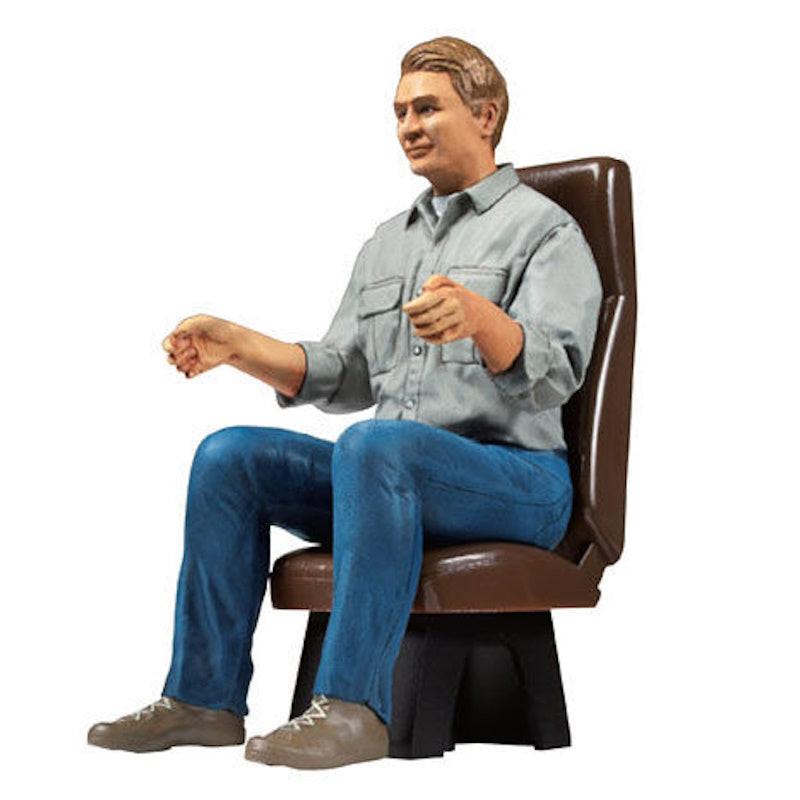

• Included driver figure
• Extensive chrome-plated exterior components
• Photo-etched air-cleaner intake details
• Adjustable side mirrors
• Trailer coupler included
• Compatible with Tamiya 1/14-scale semi-trailers
• Compatible with optional Tamiya multifunction control units

Chrome-Plated and Scale Details Include:

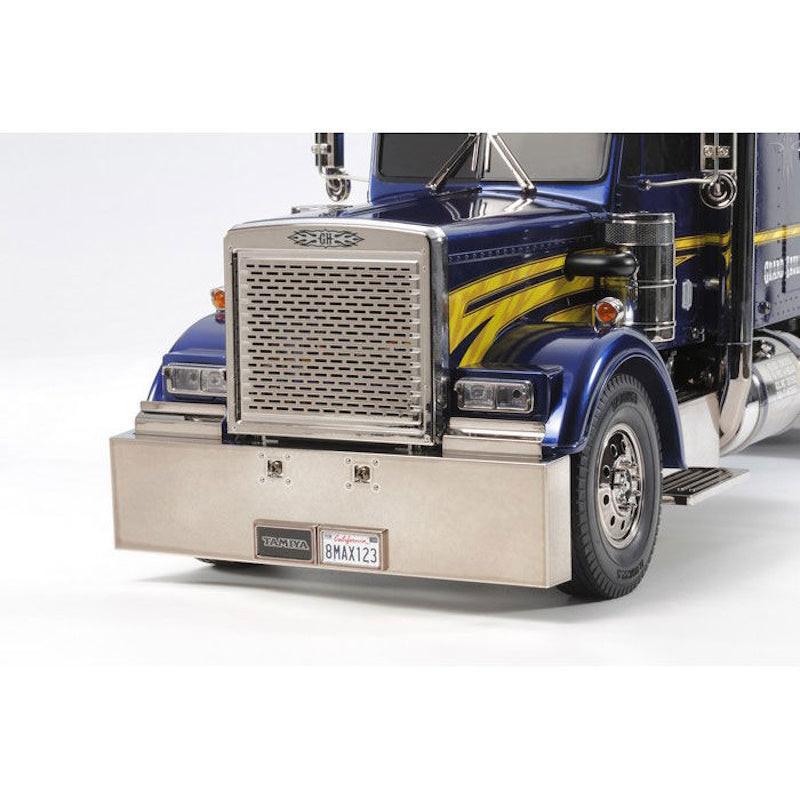

• Front bumper
• Radiator grille

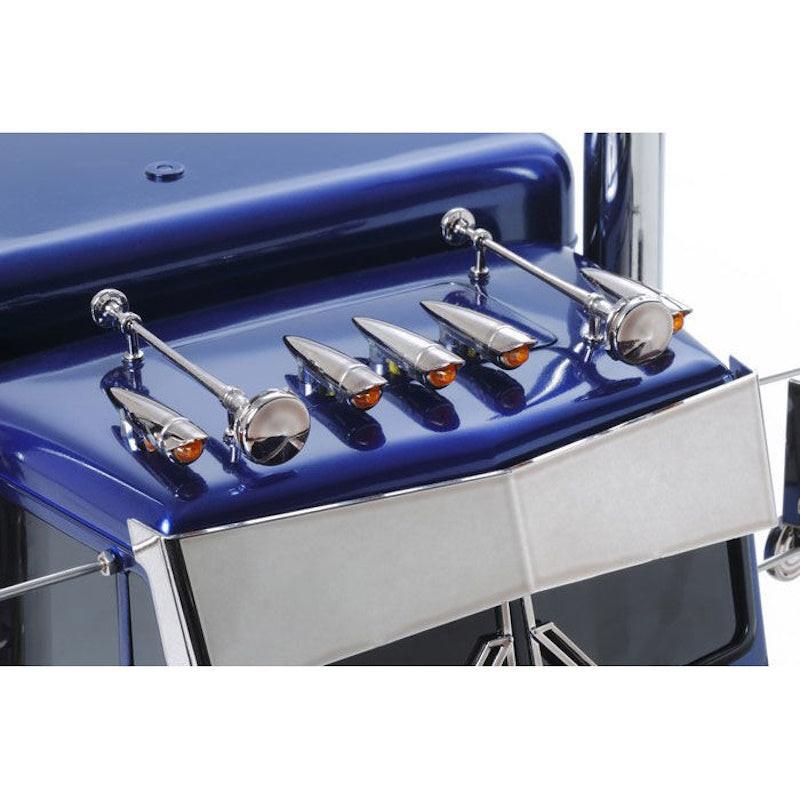

• Roof-mounted air horns
• Roof light bezels
• Large sun visor

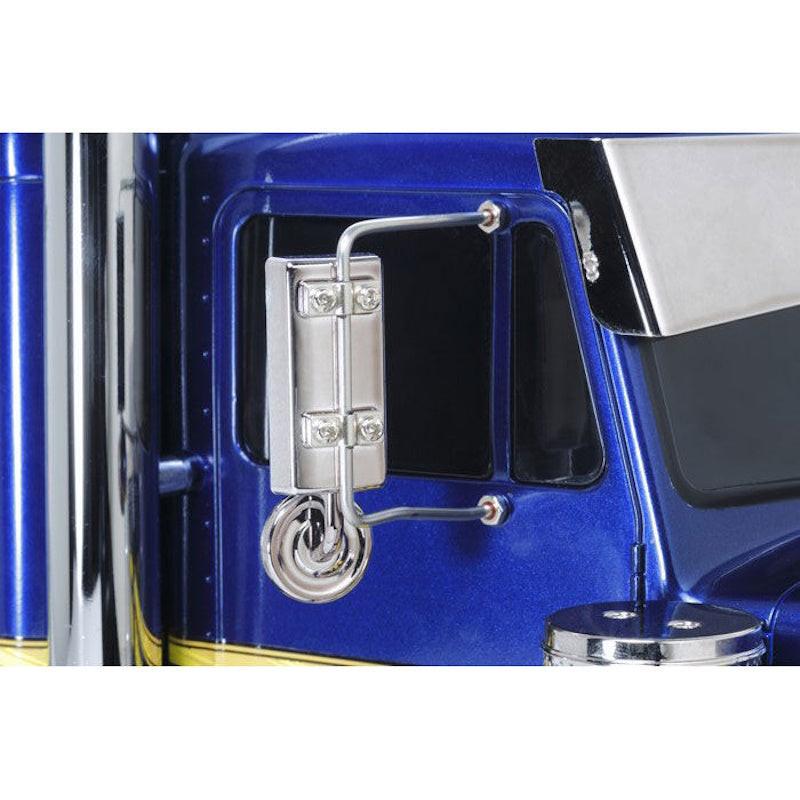

• Side mirrors
• Curb mirrors

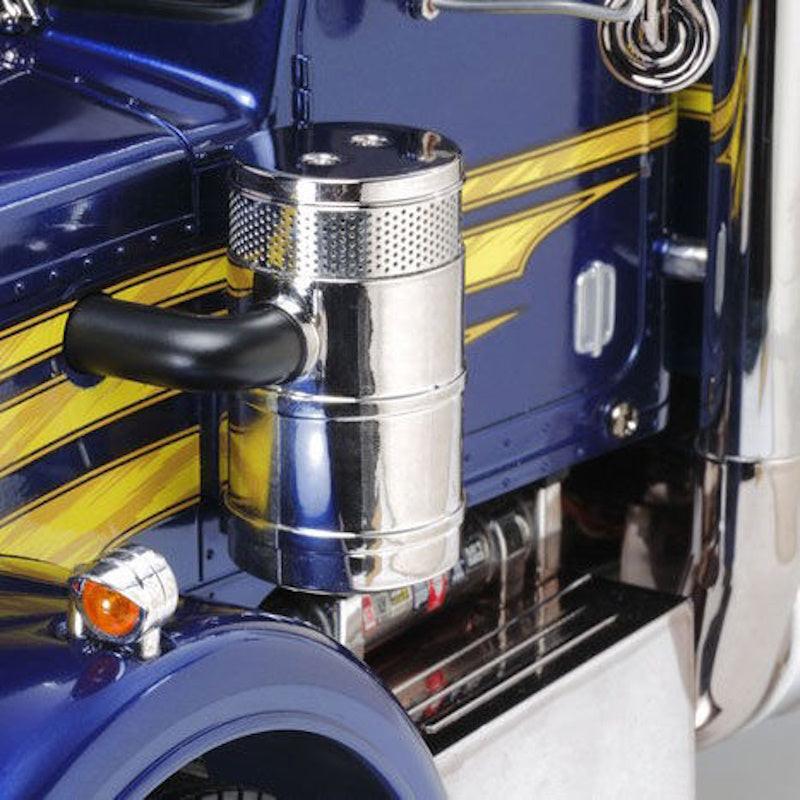

• Air cleaners
• Exhaust covers
• Wheels

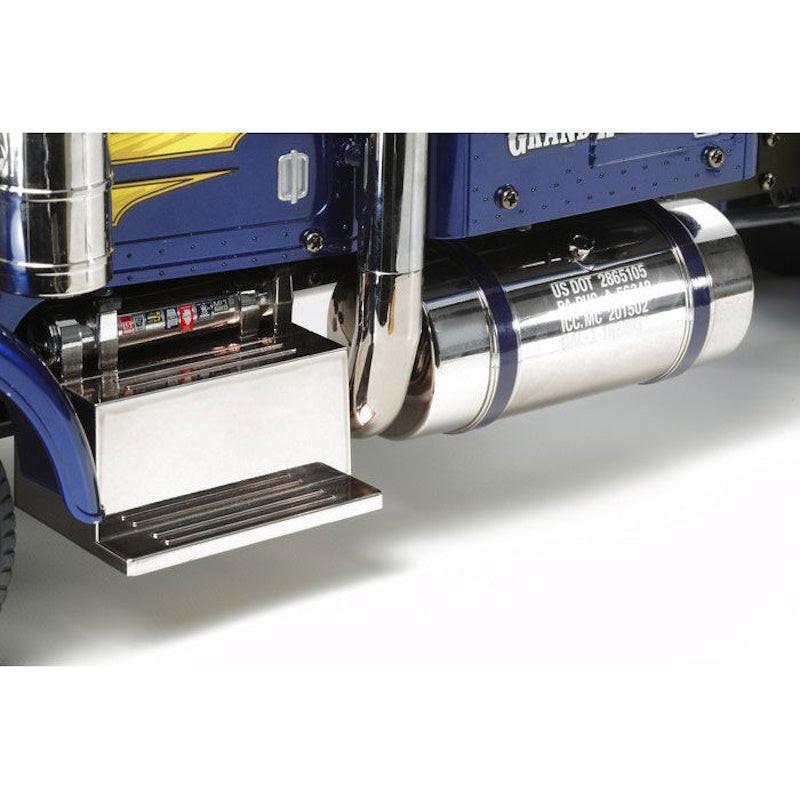

• Fuel tanks

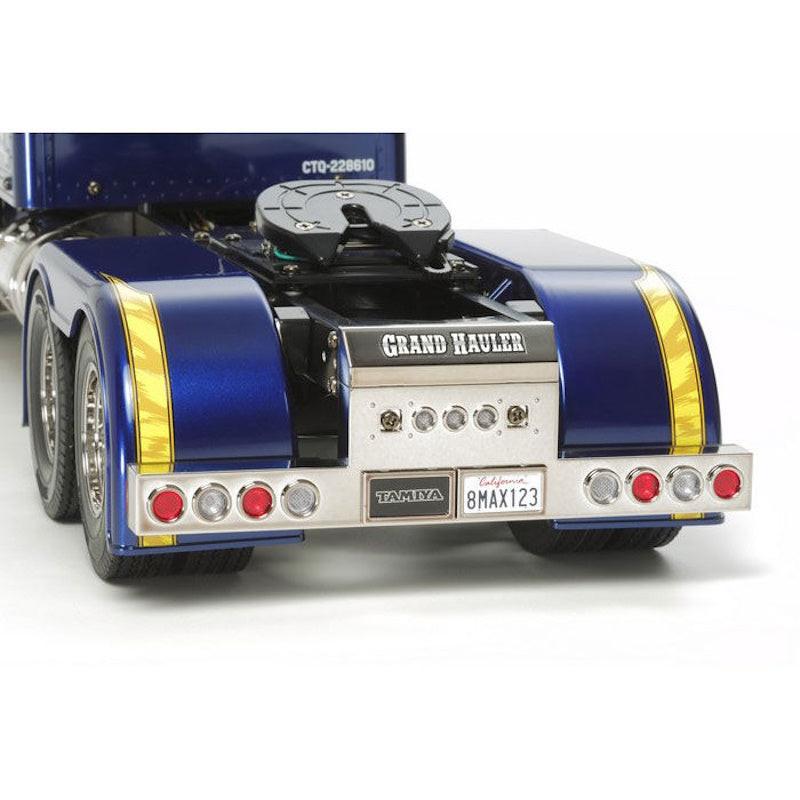

• Rear bumper and exterior trim

Specifications:

Length: 692mm / 27.24 inches
Width: 192mm / 7.56 inches
Height: 330mm / 12.99 inches
Approximate Weight: 3.9kg / 8.6 pounds when fully equipped
Wheelbase: 433mm + 103mm
Front Track Width: 156mm
Rear Track Width: 138mm
Tire Diameter: 83mm
Tire Width: 22mm

Transmission Gear Ratios:

• First Gear: 32.49:1
• Second Gear: 17.76:1
• Third Gear: 10.66:1

Required to Complete:

• Compatible four-channel transmitter and receiver
• Steering servo
• Transmission-shift servo
• Compatible electronic speed controller
• 7.2V battery pack
• Compatible battery charger
• Transmitter batteries
• Tamiya-compatible model paint
• Assembly tools

An optional Tamiya MFC-01 or MFC-03 Multifunction Control Unit may be installed to add realistic lighting, engine sounds, air-horn sounds and vibration effects.

Package Includes:

• Tamiya Grand Hauler assembly kit
• Hard-plastic truck body
• Aluminum ladder-frame chassis components
• 540-type brushed motor
• Three-speed transmission
• Driver figure
• Trailer coupler
• Tires and wheels
• Decals
• Assembly hardware
• Instruction manual

Radio equipment, servos, electronic speed controller, battery, charger, paint, tools, multifunction unit and trailer are not included unless specifically stated otherwise.
